RH11R-JRB (1977)
Toyota Hiace

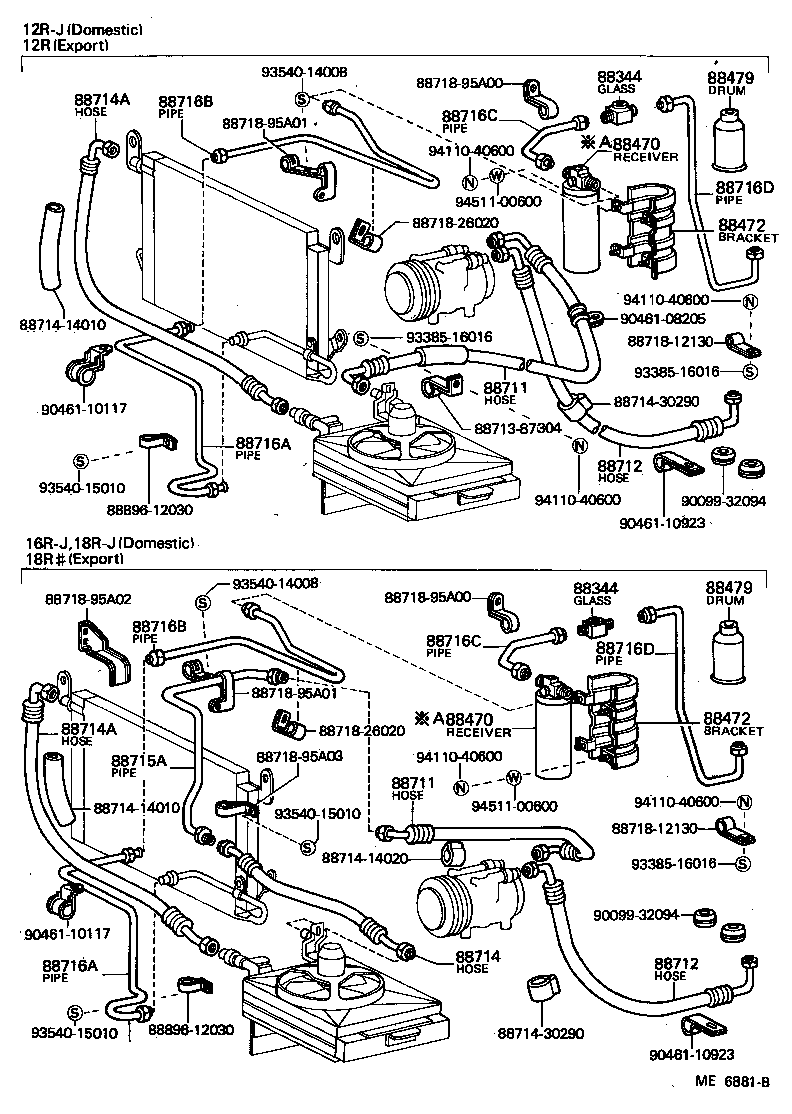

(7702-7804)RH22,42 ; (7702-7804)RH20,3#..RHD ; (7702-7804)LHD..12S..EUR ; (7702-780
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20070 |
RH11,20,22,3#..ARL,GEN |
1 | ||
| 88470-10010 |
RH11,2#,3#..(03S,06S)..(ARL,GEN) |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20070 |
RH11,20,22,3#..ARL,GEN |
1 | ||
| 88470-10010 |
RH11,2#,3#..(03S,06S)..(ARL,GEN) |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95A02 |
RH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN) LWR |
1 | ||
| 88472-95A01 |
RH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN) UPR |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95A02 |
RH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN) LWR |
1 | ||
| 88472-95A01 |
RH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN) UPR |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 88434-30010 |
RH11,2#,3#..(03S,06S)..(ARL,GEN) |
2 | ||
| 90986-02001 |
LH20,RH11,20,22,3#..ARL,GEN 400G |
4 | ||
| 90986-02001 |
RH11,20,22,3#..(03S,06S)..(ARL,GEN) 400G |
2 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 88434-30010 |
RH11,2#,3#..(03S,06S)..(ARL,GEN) |
2 | ||
| 90986-02001 |
LH20,RH11,20,22,3#..ARL,GEN 400G |
4 | ||
| 90986-02001 |
RH11,20,22,3#..(03S,06S)..(ARL,GEN) 400G |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95A02 |
RH11,20,30..(03S,06S)..(ARL,GEN) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95A02 |
RH11,20,30..(03S,06S)..(ARL,GEN) |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95A00 |
RH2#,3#..RHD |
1 | ||
| 88712-95A02 |
RH11,20,30..RHD..(03S,06S)..(ARL,GEN) |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95A00 |
RH2#,3#..RHD |
1 | ||
| 88712-95A02 |
RH11,20,30..RHD..(03S,06S)..(ARL,GEN) |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95A00 |
RH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN) |
1 | ||
| 88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2 | ||||
| 88711-95A01 |
RH2#,3#..RHD |
1 | ||
| 88721-87302 |
RH11,20,22,3#..(03S,06S)..(ARL,GEN) |
1 | ||
| 88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2 | ||||
| 88711-95A01 |
RH2#,3#..RHD |
1 | ||
| 88721-87302 |
RH11,20,22,3#..(03S,06S)..(ARL,GEN) |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-95A01 |
RH11,20,30..(03S,06S)..(ARL,GEN) |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-95A03 |
RH2#,3#..RHD |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-95A03 |
RH2#,3#..RHD |
1 | ||
| Common parts | ||||
| 88713-87304 | ||||
| 88714-14010 | ||||
| 88714-14020 | ||||
| 88714-30290 | ||||
| 88718-12130 | ||||
| 88718-26020 | ||||
| 88718-95A00 | ||||
| 88718-95A01 | ||||
| 88718-95A02 | ||||
| 88718-95A03 | ||||
| 88896-12030 | ||||
| 90099-32094 | ||||
| 90461-08205 | ||||
| 90461-10117 | ||||
| 90461-10923 | ||||
| 93385-16016 | ||||
| 93540-14008 | ||||
| 93540-15010 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||

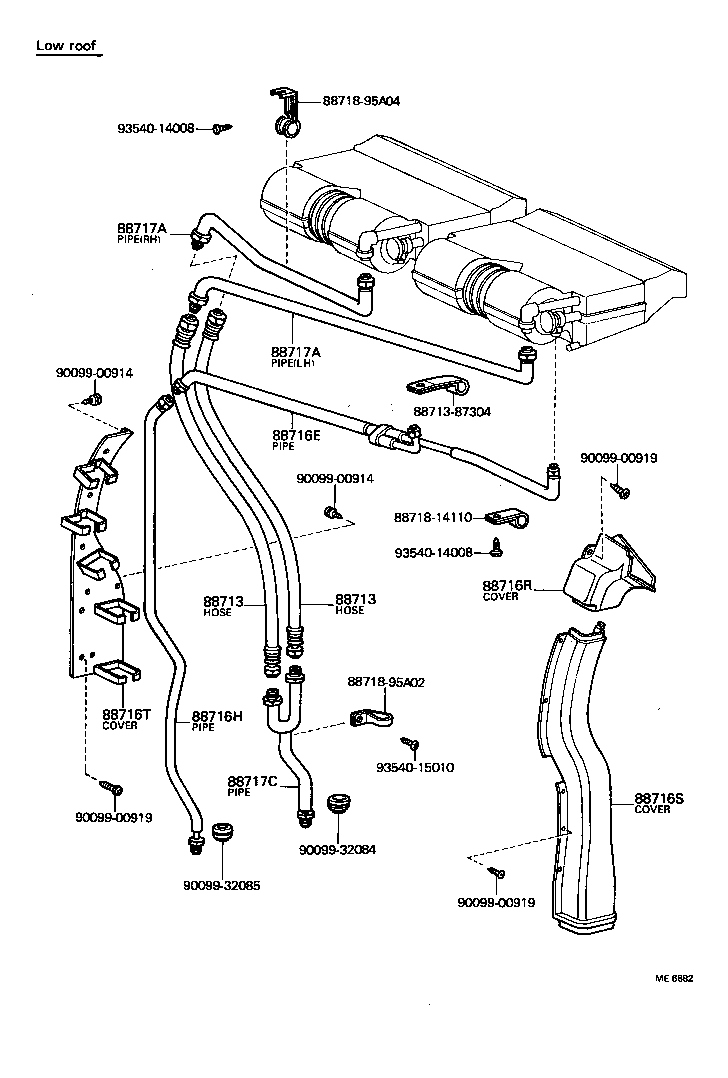

(7702-7804)RH22 ; (7702-7804)RH20,3#..RHD ; (7702-7804)LHD..12S..EUR ; (7702-7804)R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2 | ||||
| 88712-95A01 |
RH2#,3#..RHD |
2 | ||
| 88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2 | ||||
| 88712-95A01 |
RH2#,3#..RHD |
2 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-95A30 |
RH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN) |
1 | ||
| 88716-95A65 |
RH20,22,3#..RHD..(ARL,GEN) |
1 | ||
| 88716-95A30 |
RH11..RHD..(ARL,GEN) |
1 | ||
| 88716-95A05 |
RH2#,3#..RHD |
1 | ||
| 88716-95A04 |
RH11,2#,3#..RHD..(03S,06S)..(ARL,GEN) |
1 | ||
| 88716H - PIPE, COOLER REFRIGERANT LIQUID, H | ||||
| 88716-95A06 |
RH2#,3#..RHD |
1 | ||
| 88716R - COVER, PIPE OR HOSE, NO.1 | ||||
| 88897-95A02 |
RH2#,3#..RHD |
1 | ||
| 88716S - COVER, PIPE OR HOSE, NO.2 | ||||
| 88897-95A00 |
RH2#,3#..RHD |
1 | ||
| 88716T - COVER, PIPE OR HOSE, NO.3 | ||||
| 88898-95A01 |
RH2#,3#..RHD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95A15 |
RH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN) |
1 | ||
| 88717-95A03 |
RH2#,3#..RHD RH |
1 | ||
| 88717-95A37 |
RH20,22,3#..RHD..(ARL,GEN) |
1 | ||
| 88717-95A15 |
RH11..RHD..(ARL,GEN) |
1 | ||
| 88717-95A02 |
RH2#,3#..RHD LH |
1 | ||
| 88717-95A01 |
RH11,2#,3#..RHD..(03S,06S)..(ARL,GEN) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95A15 |
RH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN) |
1 | ||
| 88717-95A03 |
RH2#,3#..RHD RH |
1 | ||
| 88717-95A37 |
RH20,22,3#..RHD..(ARL,GEN) |
1 | ||
| 88717-95A15 |
RH11..RHD..(ARL,GEN) |
1 | ||
| 88717-95A02 |
RH2#,3#..RHD LH |
1 | ||
| 88717-95A01 |
RH11,2#,3#..RHD..(03S,06S)..(ARL,GEN) |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-95A00 |
RH2#,3#..RHD |
1 | ||
| Common parts | ||||
| 88713-87304 | ||||
| 88718-14110 | ||||
| 88718-95A02 | ||||
| 88718-95A04 | ||||
| 90099-00914 | ||||
| 90099-00919 | ||||
| 90099-32084 | ||||
| 90099-32085 | ||||
| 93540-14008 | ||||
| 93540-15010 | ||||

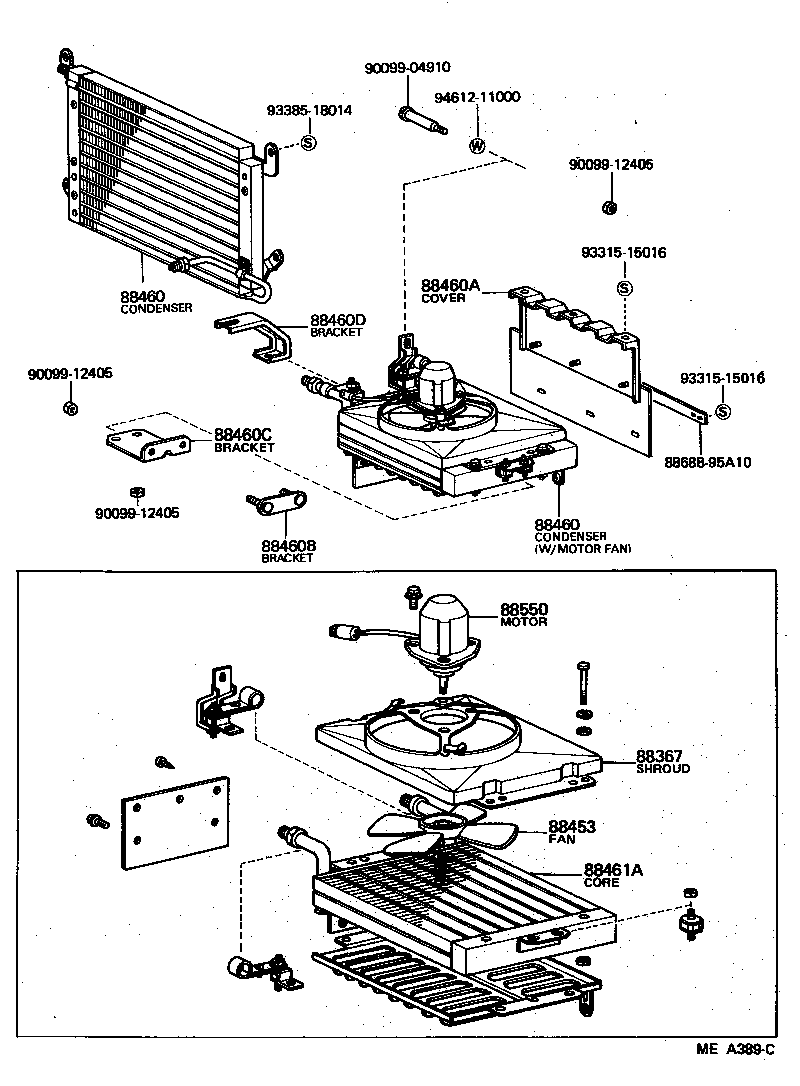

(7804-7912)RH22,42 ; (7804-7912)RH20,3#..RHD ; (7804-7912)LHD..12S..EUR ; (7804-791
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95A00 |
RH11,20,22,3#..(03S,06S)..(ARL,GEN) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95A00 |
RH11,20,22,3#..(03S,06S)..(ARL,GEN) |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-95A00 |
RH2#,3#..RHD..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 88688-95A10 | ||||
| 90099-04910 | ||||
| 90099-12405 | ||||
| 93315-15016 | ||||
| 93385-18014 | ||||
| 94612-11000 | ||||

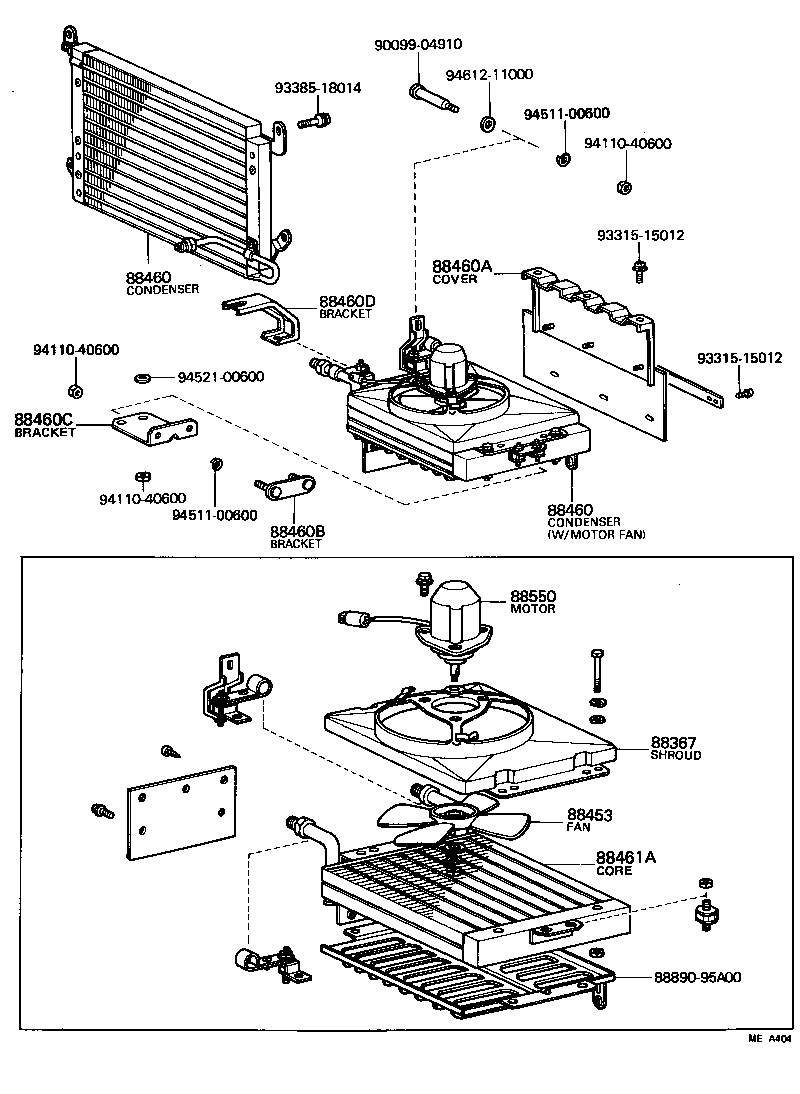

(7702-7804)RH22,42 ; (7702-7804)RH20,3#..RHD ; (7702-7804)LHD..12S..EUR ; (7702-780
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95A00 |
RH11,20,22,3#..(03S,06S)..(ARL,GEN) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95A00 |
RH11,20,22,3#..(03S,06S)..(ARL,GEN) |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-95A00 |
RH2#,3#..RHD..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 88890-95A00 | ||||
| 90099-04910 | ||||
| 93315-15012 | ||||
| 93385-18014 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94521-00600 | ||||
| 94612-11000 | ||||
(7702- )RH11,20,30..RHD..03S,06S..ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95A00 |
RH11,20,22,3#..(03S,06S)..(ARL,GEN) |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20070 |
RH11,20,22,3#..ARL,GEN |
1 | ||
| 88470-10010 |
RH11,2#,3#..(03S,06S)..(ARL,GEN) |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95A02 |
RH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN) LWR |
1 | ||
| 88472-95A01 |
RH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN) UPR |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95A02 |
RH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN) LWR |
1 | ||
| 88472-95A01 |
RH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN) UPR |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 88434-30010 |
RH11,2#,3#..(03S,06S)..(ARL,GEN) |
2 | ||
| 90986-02001 |
LH20,RH11,20,22,3#..ARL,GEN 400G |
4 | ||
| 90986-02001 |
RH11,20,22,3#..(03S,06S)..(ARL,GEN) 400G |
2 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-30250 |
RH11,20,22,3#,42..ARL,GEN |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95A02 |
RH11,20,30..(03S,06S)..(ARL,GEN) |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95A00 |
RH2#,3#..RHD |
1 | ||
| 88712-95A02 |
RH11,20,30..RHD..(03S,06S)..(ARL,GEN) |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95A00 |
RH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN) |
1 | ||
| 88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2 | ||||
| 88711-95A01 |
RH2#,3#..RHD |
1 | ||
| 88721-87302 |
RH11,20,22,3#..(03S,06S)..(ARL,GEN) |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-95A01 |
RH11,20,30..(03S,06S)..(ARL,GEN) |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-95A30 |
RH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN) |
1 | ||
| 88716-95A65 |
RH20,22,3#..RHD..(ARL,GEN) |
1 | ||
| 88716-95A30 |
RH11..RHD..(ARL,GEN) |
1 | ||
| 88716-95A05 |
RH2#,3#..RHD |
1 | ||
| 88716-95A04 |
RH11,2#,3#..RHD..(03S,06S)..(ARL,GEN) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95A15 |
RH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN) |
1 | ||
| 88717-95A03 |
RH2#,3#..RHD RH |
1 | ||
| 88717-95A37 |
RH20,22,3#..RHD..(ARL,GEN) |
1 | ||
| 88717-95A15 |
RH11..RHD..(ARL,GEN) |
1 | ||
| 88717-95A02 |
RH2#,3#..RHD LH |
1 | ||
| 88717-95A01 |
RH11,2#,3#..RHD..(03S,06S)..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 88714-10010 | ||||
| 88714-14020 | ||||
| 88714-20030 | ||||
| 88714-30290 | ||||
| 88718-26030 | ||||
| 88718-95A19 | ||||
| 88895-12030 | ||||
| 90099-32084 | ||||
| 90099-32085 | ||||
| 90099-32095 | ||||
| 90179-06115 | ||||
| 90179-08123 | ||||
| 90179-18016 | ||||
| 90461-08104 | ||||
| 90461-08458 | ||||
| 90461-10222 | ||||
| 90461-10952 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||
| 93385-16016 | ||||
| 93385-16020 | ||||
| 93385-18014 | ||||
| 93385-18016 | ||||
| 93385-40816 | ||||
| 93590-16020 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94118-40800 | ||||
(7702- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20070 |
RH11,20,22,3#..ARL,GEN |
1 | ||
| 88470-10010 |
RH11,2#,3#..(03S,06S)..(ARL,GEN) |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
RH11,20,22,3#..ARL,GEN |
1 | ||
| 90099-04579 |
RH11,2#,3#..(03S,06S)..(ARL,GEN) |
1 | ||
