RH11R-JRB (1977)

Toyota Hiace

Production Feb 1977 - Nov 1982

Engine 12R

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(7702-7909)18R ; (7702-8002)12R# ; (7909-8011)18R..RH22,25,32..LHD

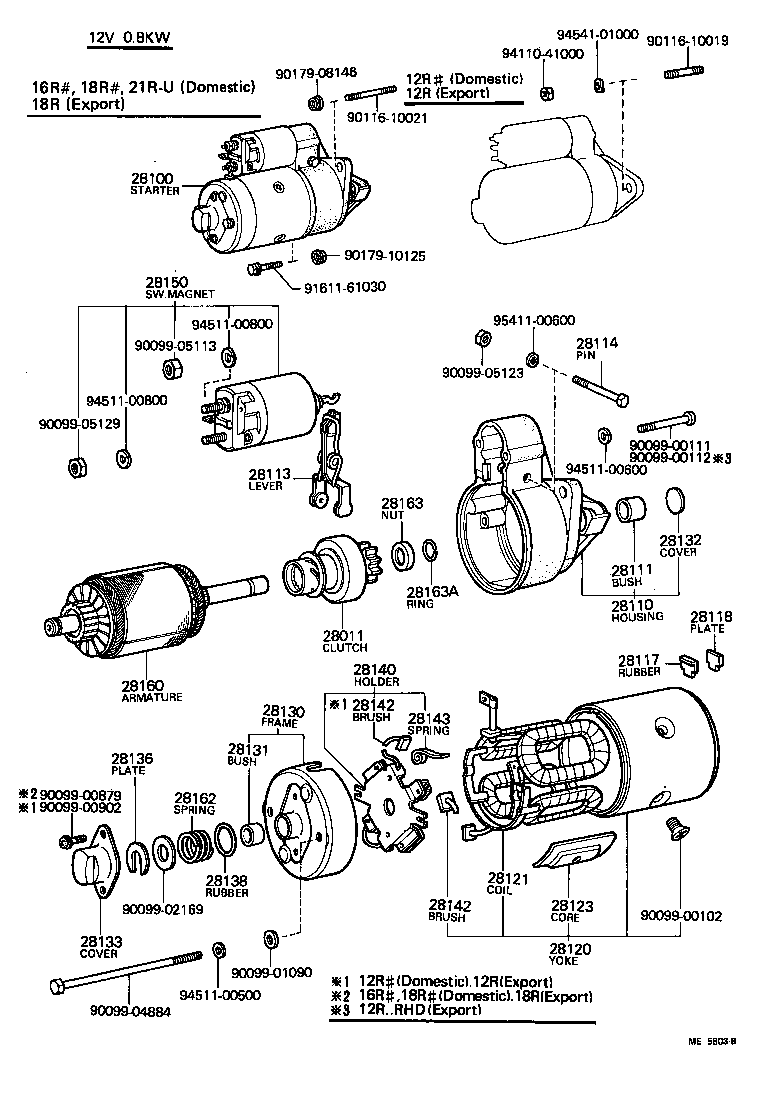

Click highlighted areas on diagram

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-41011	12R#,18R..RH11,2#,3#,42 12V 0.8KW	02/1977 - 09/1979	1
28011-41011	12R..RH11,20,30 12V 0.8KW	09/1979 - 02/1980	1
28011-15010	12R,18R..RH11,20,22,3#,42 12V 0.8KW	11/1980 - 11/1982	1
28011-15010	12R..RH11,20,30..RHD 12V 0.8KW	02/1980 - 11/1980	1
28100 - STARTER ASSY
28100-40014	12R..RH11,20,30..RHD 12V 0.8KW	02/1977 - 05/1978	1
28100-40015	12R..RH11,20,30..RHD 12V 0.8KW,12V 0.8KW	05/1978 - 02/1980	1
28100-31020	12R..RH11,20,30 12V 0.8KW,12V 0.8KW	12/1980 - 11/1982	1
28100-31020	12R..RH11,20,30..RHD 12V 0.8KW,12V 0.8KW	02/1980 - 12/1980	1
28110 - HOUSING ASSY, STARTER DRIVE
28110-40019	12R#..RH11,20,30 12V 0.8KW	02/1977 - 05/1978	1
28110-40030	12R#..RH11,20,30 12V 0.8KW	05/1978 - 02/1980	1
28110-31020	12R..RH11,20,30..RHD 12V 0.8KW	02/1980 - 11/1980	1
28110-31020	12R..RH11,20,30 12V 0.8KW	11/1980 - 11/1982	1
28111 - BUSH(FOR STARTER HOUSING)
28111-51011	12R,18R..RH11,20,22,3#,42 12V 0.8KW	08/1981 - 11/1982	1
28111-51011	12R#,18R..RH11,2#,3#,42 12V 0.8KW,1.0KW	02/1977 - 12/1980	1
28113 - LEVER, STARTER PINION DRIVE
28113-41011	12R#,18R..RH11,2#,3#,42 12V 0.8KW,1.0KW	02/1977 - 09/1979	1
28113-15011	12R..RH11,20,30..RHD 12V 0.8KW	02/1980 - 11/1980	1
28113-15011	12R,18R..RH11,20,22,3#,42 12V 0.8KW	11/1980 - 11/1982	1
28113-41011	12R..RH11,20,30 12V 0.8KW	09/1979 - 02/1980	1
28114 - PIN, STARTER DRIVE LEVER SET
28114-41011	12R#,18R..RH11,2#,3#,42 12V 0.8KW,1.0KW	02/1977 - 11/1982	1
28117 - RUBBER(FOR STARTER YOKE)
28117-41013	12R..RH11,20,30..RHD 12V 0.8KW	06/1979 - 12/1980	1
28117-41012	12R..RH11,20,30..RHD 12V 0.8KW	02/1977 - 06/1979	1
28118 - PLATE(FOR STARTER YOKE)
28118-41012	12R..RH11,20,30..RHD 12V 0.8KW	02/1977 - 06/1979	1
28118-41013	12R..RH11,20,30..RHD 12V 0.8KW	06/1979 - 02/1980	1
28120 - YOKE ASSY, STARTER
28120-36040	12R#,18R..RH11,2#,3#,42 12V 0.8KW	02/1977 - 09/1979	1
28120-36040	12R..RH11,20,30 12V 0.8KW	09/1979 - 02/1980	1
28120-15010	12R,18R..RH11,20,22,3#,42 12V 0.8KW	11/1980 - 11/1982	1
28120-15010	12R..RH11,20,30..RHD 12V 0.8KW	02/1980 - 11/1980	1
28121 - COIL, STARTER FIELD
28121-36040	12R#,18R..RH11,2#,3#,42 12V 0.8KW	02/1977 - 12/1980	1
28123 - CORE, STARTER POLE
28123-40012	12R#,18R..RH11,2#,3#,42 12V 0.8KW	02/1977 - 12/1980	4
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-21011	12R#,18R..RH11,2#,3#,42 12V 0.8KW	02/1977 - 09/1979	1
28130-13020	12R..RH11,20,30..RHD 12V 0.8KW	02/1980 - 11/1980	1
28130-21011	12R..RH11,20,30 12V 0.8KW	09/1979 - 02/1980	1
28130-13020	12R..RH11,20,30 12V 0.8KW	11/1980 - 11/1982	1
28131 - BUSH, COMMUTATOR END FRAME
28131-20010	12R..RH11,20,30..RHD 12V 0.8KW,STD	02/1977 - 02/1980	1
90099-10039	12R..RH11,20,30..RHD 12V 0.8KW,U/S 0.3	02/1977 - 02/1980	1
90099-10040	12R..RH11,20,30..RHD 12V 0.8KW,U/S 0.5	02/1977 - 02/1980	1
90099-10134	12R..RH11,20,30..RHD 12V 0.8KW	02/1980 - 11/1982	1
28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING)
28166-41011	12R#,18R..RH11,2#,3#,42 12V 0.8KW,1.0KW	02/1977 - 09/1979	1
28166-41011	12R..RH11,20,30 12V 0.8KW	09/1979 - 02/1980	1
28133 - COVER, BEARING(FOR END FRAME)
28132-41011	12R#,18R..RH11,2#,3#,42 12V 0.8KW	02/1977 - 09/1979	1
28132-15010	12R,18R..RH11,20,22,3#,42 12V 0.8KW	11/1980 - 11/1982	1
28132-15010	12R..RH11,20,30..RHD 12V 0.8KW	02/1980 - 11/1980	1
28132-41011	12R..RH11,20,30 12V 0.8KW	09/1979 - 02/1980	1
28136 - PLATE, STARTER LOCK
28136-41011	12R..RH11,20,30 12V 0.8KW	09/1979 - 02/1980	1
28136-15010	12R,18R..RH11,20,22,3#,42 12V 0.8KW	11/1980 - 11/1982	1
28136-41011	12R#,18R..RH11,2#,3#,42 12V 0.8KW	02/1977 - 09/1979	1
28136-15010	12R..RH11,20,30..RHD 12V 0.8KW	02/1980 - 11/1980	1
28138 - RUBBER(FOR STARTER BEARING COVER)
28138-41011	12R..RH11,20,30 12V 0.8KW	09/1979 - 02/1980	1
28138-15010	12R..RH11,20,30..RHD 12V 0.8KW	02/1980 - 11/1980	1
28138-15010	12R,18R..RH11,20,22,3#,42 12V 0.8KW	11/1980 - 11/1982	1
28138-41011	12R#,18R..RH11,2#,3#,42 12V 0.8KW	02/1977 - 09/1979	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-41012	12R#,18R..RH11,2#,3#,42 12V 0.8KW	02/1977 - 09/1979	1
28140-15010	12R,18R..RH11,20,22,3#,42 12V 0.8KW	11/1980 - 11/1982	1
28140-41013	12R..RH11,20,30 12V 0.8KW	09/1979 - 02/1980	1
28140-15010	12R..RH11,20,30..RHD 12V 0.8KW	02/1980 - 11/1980	1
28142 - BRUSH, STARTER
28142-21010	12R#,18R..RH11,2#,3#,42 12V 0.8KW	02/1977 - 09/1979	4
28142-21010	12R..RH11,20,30..RHD 12V 0.8KW	09/1979 - 02/1980	4
28142 - BRUSH, STARTER
28142-21010	12R#,18R..RH11,2#,3#,42 12V 0.8KW	02/1977 - 09/1979	4
28142-21010	12R..RH11,20,30..RHD 12V 0.8KW	09/1979 - 02/1980	4
28143 - SPRING, STARTER BRUSH
28143-40010	12R#,18R..RH11,2#,3#,42 12V 0.8KW,1.0KW	02/1977 - 06/1979	4
28143-40040	12R,18R..RH11,2#,3#,42 12V 0.8KW,1.0KW	06/1979 - 09/1979	4
28143-40040	12R..RH11,20,30 12V 0.8KW	09/1979 - 02/1980	4
28150 - SWITCH ASSY, MAGNET STARTER
28150-22011	12R,18R..RH11,2#,3#,42..RHD 12V 0.8KW,1.0KW	02/1977 - 02/1979	1
28150-34070	12R,18R..RH11,2#,3#,42..RHD 12V 0.8KW,1.0KW	06/1979 - 09/1979	1
28150-33020	12R,18R..RH11,2#,3#,42..RHD 12V 0.8KW,1.0KW	02/1979 - 06/1979	1
28150-34070	12R..RH11,20,30..RHD 12V 0.8KW	09/1979 - 02/1980	1
28150-15012	12R,18R..RH11,20,22,3#,42 12V 0.8KW	12/1980 - 11/1982	1
28150-15011	12R..RH11,20,30..RHD 12V 0.8KW	02/1980 - 12/1980	1
28160 - ARMATURE ASSY, STARTER
28160-40014	12R..RH11,20,30 12V 0.8KW	09/1979 - 02/1980	1
28160-40014	12R#,18R..RH11,2#,3#,42 12V 0.8KW	02/1977 - 09/1979	1
28160-15010	12R..RH11,20,30..RHD 12V 0.8KW	02/1980 - 11/1980	1
28160-15010	12R,18R..RH11,20,22,3#,42 12V 0.8KW	11/1980 - 11/1982	1
28162 - SPRING, STARTER BRAKE
28162-15010	12R..RH11,20,30..RHD 12V 0.8KW	02/1980 - 11/1980	1
28162-41011	12R..RH11,20,30 12V 0.8KW	09/1979 - 02/1980	1
28162-15010	12R,18R..RH11,20,22,3#,42 12V 0.8KW	11/1980 - 11/1982	1
28162-41011	12R#,18R..RH11,2#,3#,42 12V 0.8KW	02/1977 - 09/1979	1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-40011	12R#,18R..RH11,2#,3#,42 12V 0.8KW,1.0KW	02/1977 - 11/1982	1
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
90099-07047	12R#,18R..RH11,2#,3#,42 12V 0.8KW,1.0KW	02/1977 - 11/1982	1
Common parts
90099-00102
90099-00111
90099-00112
90099-00879
90099-00902
90099-01090
90099-02169
90099-04884
90099-05113
90099-05123
90099-05129
90116-10019
90116-10021
90179-08146
90179-10125
91611-61030
94110-41000
94511-00500
94511-00600
94511-00800
94541-01000
95411-00600

(7909- )18R..RH22,32,42..RHD ; (8002- )12R; (8011- )18R..RH22,25,32..LHD

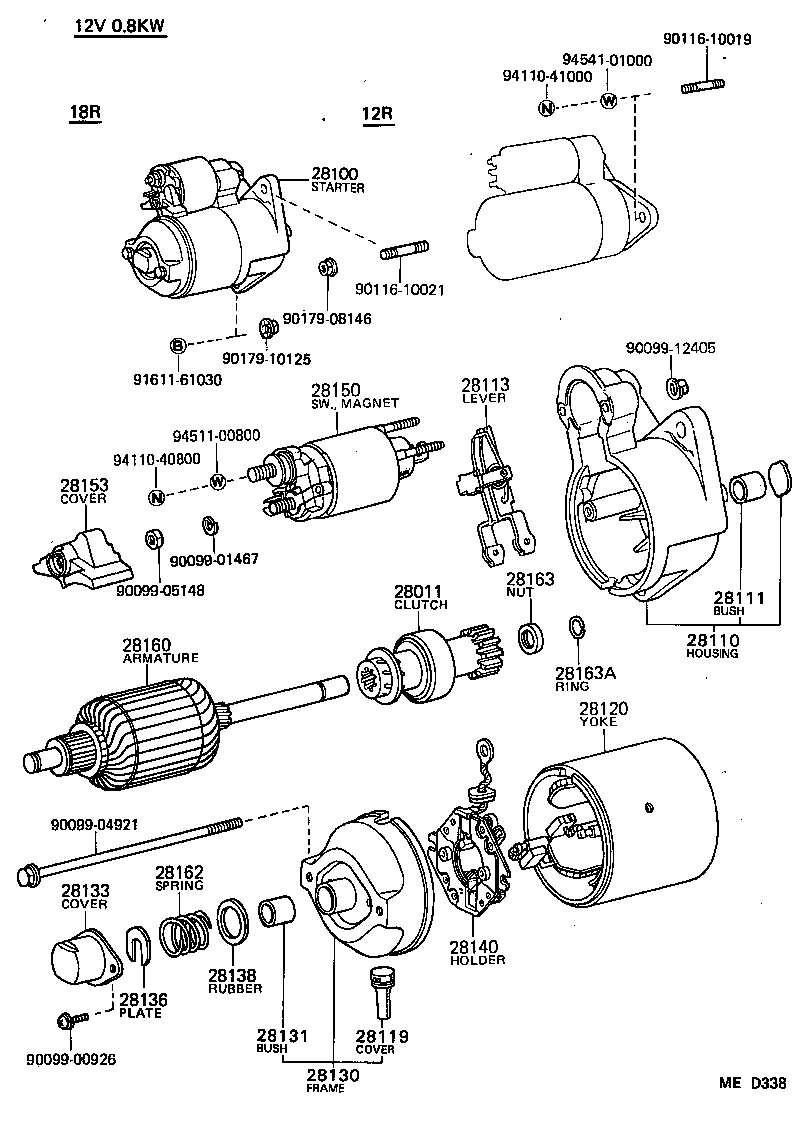

Click highlighted areas on diagram
