RH11R-JR3 (1977)

Toyota Hiace

Production Feb 1977 - Nov 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )RH11..06S ; (7702- )LH20,30,RH20,22,3#,42

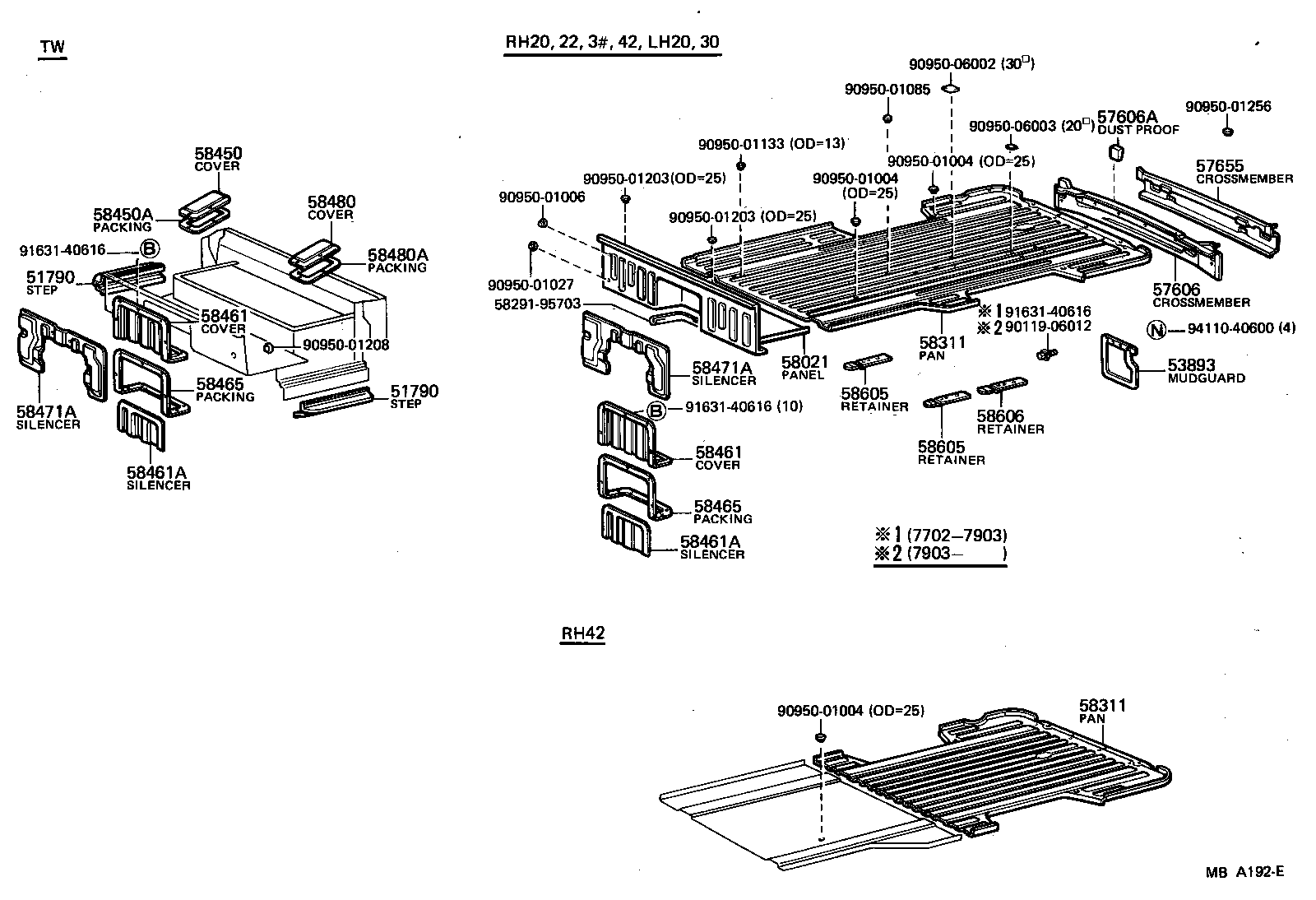

Click highlighted areas on diagram

diagram 51790 51790 53893 57606 57606A 57655 58021 5829195703 58311 58311 58450 58450A 58461 58461 58461A 58461A 58465 58465 58471A 58471A 58480 58480A 58605 58605 58606 9011906012 9095001004 9095001004 9095001004 9095001006 9095001027 9095001085 9095001133 9095001203 9095001203 9095001208 9095001256 9095006002 9095006003 9163140616 9163140616 9163140616 9411040600
Part # Description Qty Price
51790 - STEP ASSY, REAR FLOOR
58304-95A00

LH20,30,RH20,22,3#..RHD..V

LH

 1
58304-95A09

LH20,30,RH20,22,3#..RHD..V

LH

 1
51790 - STEP ASSY, REAR FLOOR
58304-95A00

LH20,30,RH20,22,3#..RHD..V

LH

 1
58304-95A09

LH20,30,RH20,22,3#..RHD..V

LH

 1
53893 - MUDGUARD, REAR
53884-95A00

LH20,30,RH20,22,3#,42

LH

 1
53883-95A00

LH20,30,RH20,22,3#,42

RH

 1
57606 - CROSSMEMBER SUB-ASSY, REAR FLOOR REAR, INNER
57607-95A00

LH20,30,RH20,22,3#,42

 1
57606A - DUST PROOF(FOR REAR CROSSMEMBER)
57614-95A00

LH20,30,RH20,22,3#,42..ARL,GEN,SA

CYCLONE TYPE AIR CLEANER

 2
57655 - MEMBER, REAR FLOOR CROSS, NO.5
57708-95A02

LH20,30,RH20,22,3#,42

 1
57708-95A00

LH20,30,RH2#,3#,42

 1
58461 - COVER, TRANSMISSION SERVICE HOLE
58406-95A00

RH20,22,3#,42

 1
58406-95A04

LH20,30,RH20,22,3#,42

 1
58461 - COVER, TRANSMISSION SERVICE HOLE
58406-95A00

RH20,22,3#,42

 1
58406-95A04

LH20,30,RH20,22,3#,42

 1
58461A - SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1
58468-95A03

RH20,22,3#,42

 1
58468-95A01

RH20,22,3#,42

 1
58461A - SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1
58468-95A03

RH20,22,3#,42

 1
58468-95A01

RH20,22,3#,42

 1
58465 - PACKING, TRANSMISSION SERVICE HOLE COVER, NO.1
58465-95A01

LH20,30,RH20,22,3#,42

 1
58465 - PACKING, TRANSMISSION SERVICE HOLE COVER, NO.1
58465-95A01

LH20,30,RH20,22,3#,42

 1
58471A - SILENCER, HEADER PANEL
58469-95A02

RH20,22,3#,42

 1
58471A - SILENCER, HEADER PANEL
58469-95A02

RH20,22,3#,42

 1
Common parts
58291-95703
90119-06012
90950-01004
90950-01006
90950-01027
90950-01085
90950-01133
90950-01203
90950-01208
90950-01256
90950-06002
90950-06003
91631-40616
94110-40600
