RH11R-JR3 (1982)
Toyota Hiace
Production
Nov 1982
-
Jul 1985
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

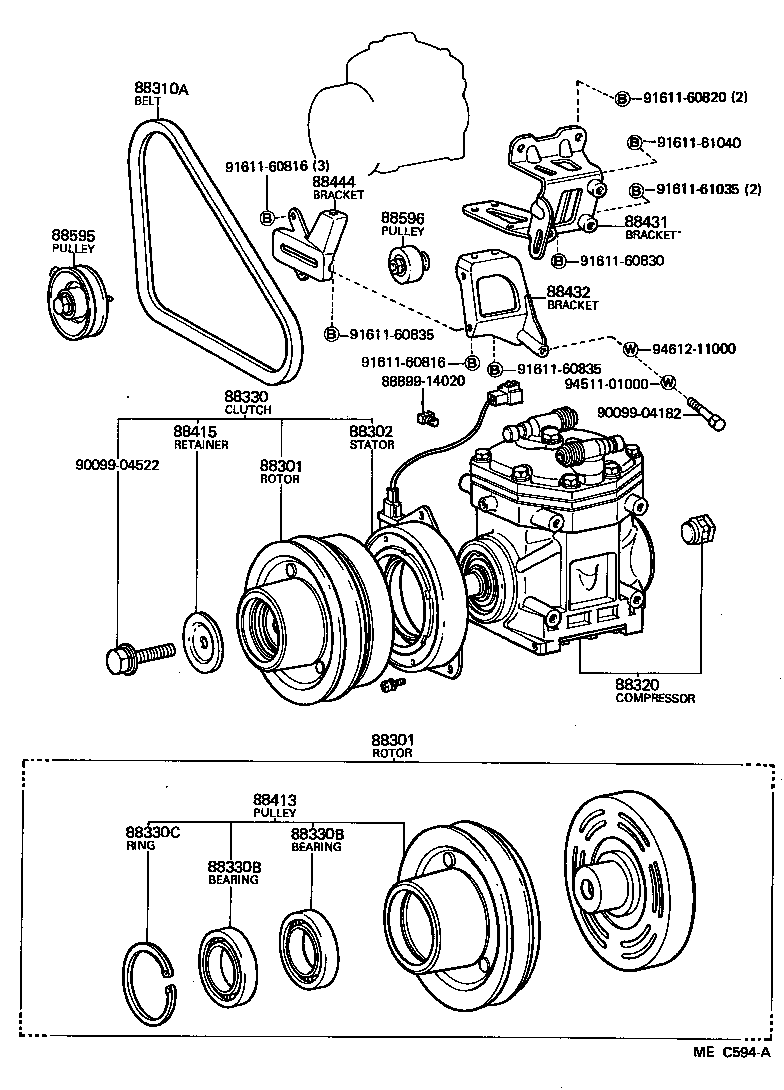

(8211- )RH11
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88401-20090 |
RH11..ARL,GEN |
1 | ||
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88401-20090 |
RH11..ARL,GEN |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-20080 |
RH11..ARL,GEN |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-26170 |
RH11..ARL,GEN |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-20110 |
RH11..ARL,GEN |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10083 |
RH11..ARL,GEN |
2 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10083 |
RH11..ARL,GEN |
2 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90096-90005 |
RH11..ARL,GEN |
1 | ||
| 88413 - PULLEY SUB-ASSY, MAGNET CLUTCH | ||||
| 88402-30250 |
RH11..ARL,GEN |
1 | ||
| 88415 - RETAINER, MAGNET CLUTCH BEARING, NO.1 | ||||
| 88415-12020 |
RH11..ARL,GEN |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-26110 |
RH11..ARL,GEN |
1 | ||
| 88432 - BRACKET, COMPRESSOR MOUNTING, NO.2 | ||||
| 88432-20070 |
RH11..ARL,GEN |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-26010 |
RH11..ARL,GEN |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-26050 |
RH11..ARL,GEN |
1 | ||
| 88596 - PULLEY ASSY, IDLE, NO.2 | ||||
| 88440-20060 |
RH11..ARL,GEN |
1 | ||
| Common parts | ||||
| 88899-14020 | ||||
| 90099-04182 | ||||
| 90099-04522 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-60830 | ||||
| 91611-60835 | ||||
| 91611-61035 | ||||
| 91611-61040 | ||||
| 94511-01000 | ||||
| 94612-11000 | ||||

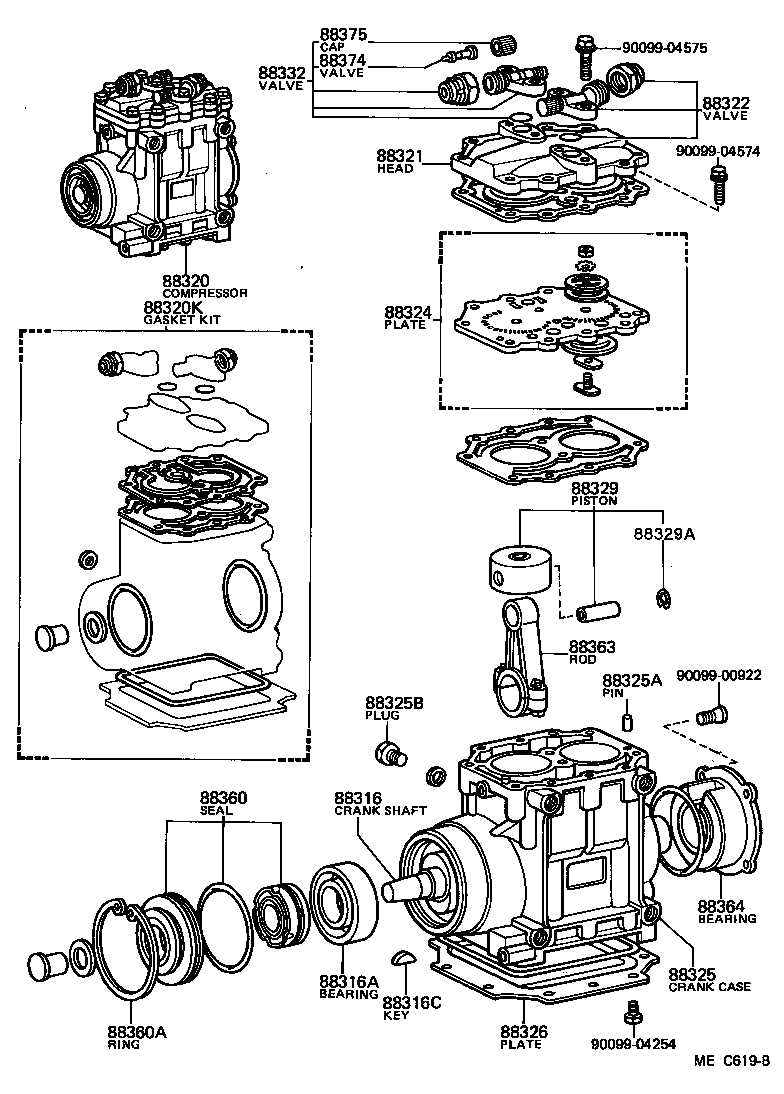

(8211- )RH11
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-22010 |
RH11..ARL,GEN |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-22010 |
RH11..ARL,GEN |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90097-00465 |
RH11..ARL,GEN |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-26170 |
RH11..ARL,GEN |
1 | ||
| 88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL | ||||
| 04881-14010 |
RH11..ARL,GEN |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-22020 |
RH11..ARL,GEN |
1 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-22020 |
RH11..ARL,GEN |
1 | ||
| 88324 - PLATE SUB-ASSY, COOLER COMPRESSOR VALVE | ||||
| 88305-22010 |
RH11..ARL,GEN |
1 | ||
| 88325 - CRANKCASE, COOLER COMPRESSOR | ||||
| 88325-22020 |
RH11..ARL,GEN |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08060 |
RH11..ARL,GEN |
2 | ||
| 88325B - PLUG, CYLINDER BLOCK OIL | ||||
| 88339-30250 |
RH11..ARL,GEN |
1 | ||
| 88326 - PLATE, COOLER COMPRESSOR BOTTOM | ||||
| 88331-12030 |
RH11..ARL,GEN |
1 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-14010 |
RH11..ARL,GEN |
2 | ||
| 88329A - RING, COMPRESSOR PISTON SNAP | ||||
| 90099-07054 |
RH11..ARL,GEN |
4 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-22030 |
RH11..ARL,GEN |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-22010 |
RH11..ARL,GEN |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90005 |
RH11..ARL,GEN |
1 | ||
| 88363 - ROD SUB-ASSY, COOLER COMPRESSOR CONNECTING | ||||
| 88302-14010 |
RH11..ARL,GEN |
2 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88367-22010 |
RH11..ARL,GEN |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
RH11..ARL,GEN;LH11..RHD..(ARL,GEN,IDN) |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
RH11..ARL,GEN;LH11..RHD..(ARL,GEN,IDN) |
2 | ||
| Common parts | ||||
| 90099-00922 | ||||
| 90099-04254 | ||||
| 90099-04574 | ||||
| 90099-04575 | ||||
