RH11R-JR3 (1982)
Toyota Hiace

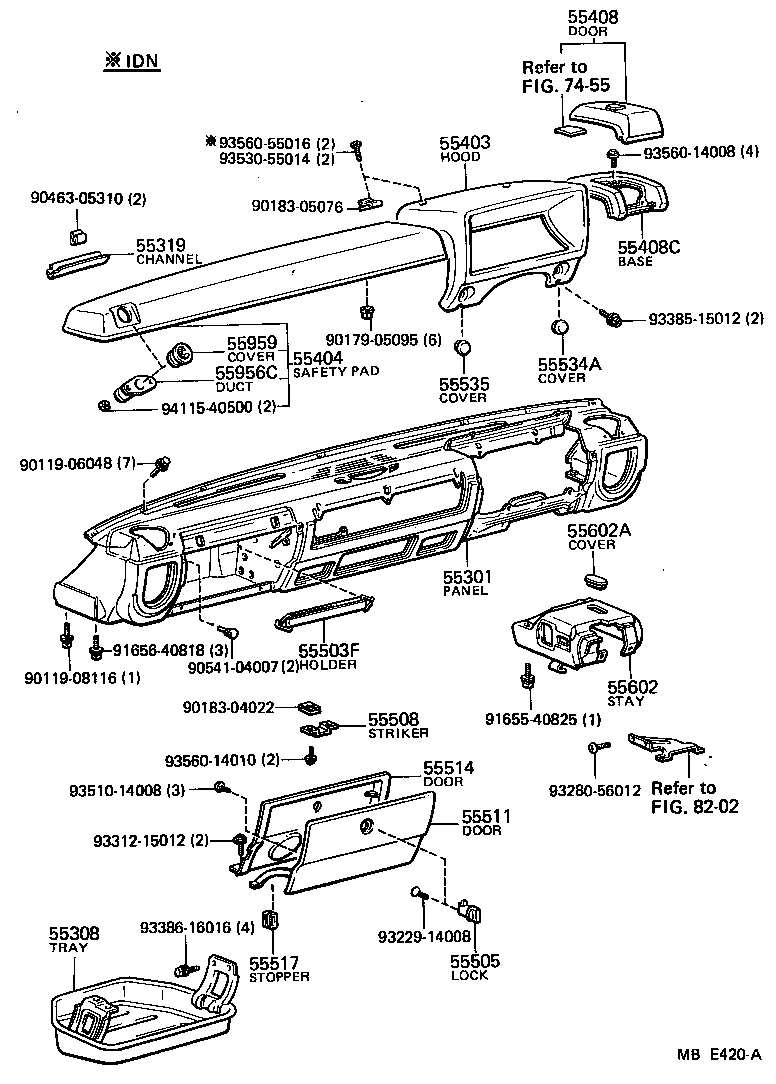

(8211- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-95A15 |
LH11,RH11..RHD..(ARL,EUR,GEN) |
1 | ||
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 74650-95A00 |
LH11,RH11..RHD |
1 | ||
| 55319 - CHANNEL, WATER GUIDE | ||||
| 55319-95A00 |
LH11,RH11 |
2 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55403-95A04 |
RH11;LH11..RHD |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55404-95A09 |
LH11,RH11..RHD..(ARL,EUR,GEN) W/SIDE DEFROSTER |
1 | ||
| 55404-95A15 |
LH11,RH11..RHD..(ARL,GEN) |
1 | ||
| 55404-95A17 |
LH11,RH11..RHD..(ARL,EUR,GEN) W/SIDE DEFROSTER |
1 | ||
| 55404-95A10 |
LH11,RH11..RHD..(ARL,GEN) |
1 | ||
| 55408 - DOOR SUB-ASSY, RESERVOIR TANK SERVICE HOLE | ||||
| 55405-95A02 |
LH11,RH11..RHD |
1 | ||
| 55408C - BASE, RESERVOIR TANK SERVICE HOLE DOOR | ||||
| 55431-95A02 |
LH11,RH11..RHD |
1 | ||
| 55503F - HOLDER, CARD(FOR GLOVE COMPARTMENT) | ||||
| 55505-95700 |
LH11,RH11 |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55520-14011 |
LH11,RH11 |
1 | ||
| 55508 - STRIKER SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55316-95A00 |
LH11,RH11 |
1 | ||
| 55511 - DOOR, GLOVE COMPARTMENT | ||||
| 55502-95A02 |
LH11,RH11..RHD |
1 | ||
| 55514 - DOOR, GLOVE COMPARTMENT, INNER | ||||
| 55512-95A05 |
LH11,RH11..RHD |
1 | ||
| 55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM | ||||
| 55517-95A00 |
LH11,RH11 |
1 | ||
| 55534A - COVER, ILLUMINATION LAMP HOLE | ||||
| 90950-01303 |
LH11,RH11 |
1 | ||
| 55602 - STAY SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 55602-95A17 |
LH11,RH11..RHD |
1 | ||
| 55602A - COVER,STEERING COLUMN UPPER STAY | ||||
| 55678-95A02 |
LH11,RH11 |
1 | ||
| 55956C - DUCT, SIDE DEFROSTER NOZZLE, NO.3 | ||||
| 55964-95A00 |
LH11,RH11..RHD..(ARL,EUR,GEN) |
1 | ||
| 55959 - COVER, DEFROSTER NOZZLE OPENING, NO.1 | ||||
| 55652-95A03 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| Common parts | ||||
| 90119-06048 | ||||
| 90119-08116 | ||||
| 90179-05095 | ||||
| 90183-04022 | ||||
| 90183-05076 | ||||
| 90463-05310 | ||||
| 90541-04007 | ||||
| 91655-40825 | ||||
| 91656-40818 | ||||
| 93229-14008 | ||||
| 93280-56012 | ||||
| 93312-15012 | ||||
| 93385-15012 | ||||
| 93386-16016 | ||||
| 93510-14008 | ||||
| 93530-55014 | ||||
| 93560-14008 | ||||
| 93560-14010 | ||||
| 93560-55016 | ||||
| 94115-40500 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8202 | ||||

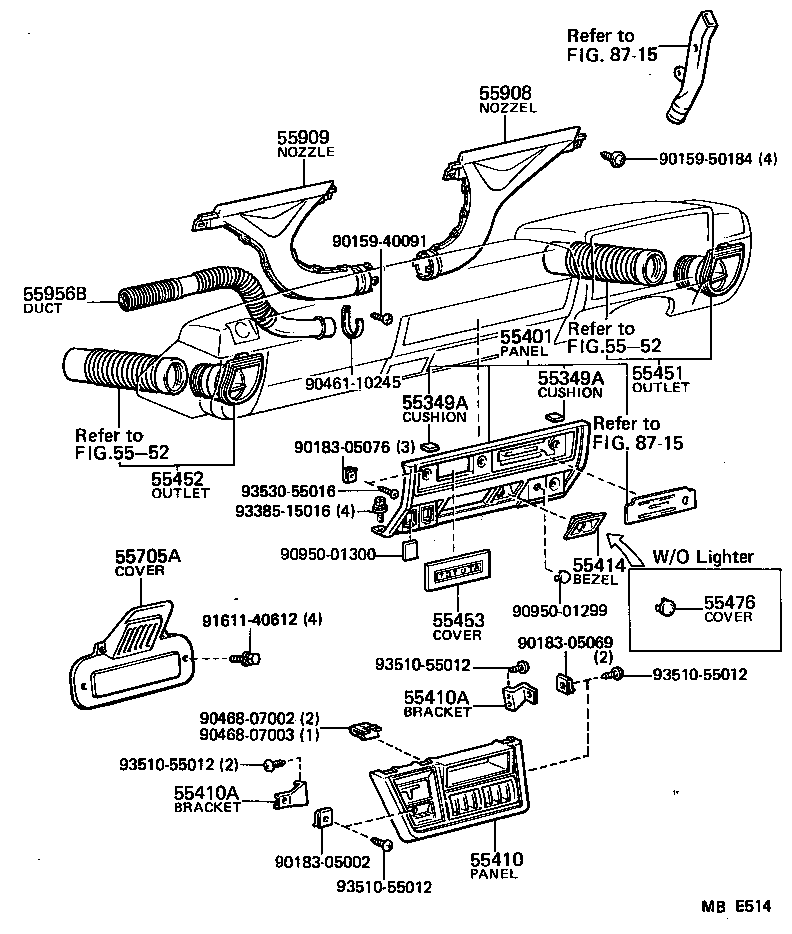

(8211- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-95A00 |
LH11,RH11..ARL,EUR,GEN |
2 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-95A00 |
LH11,RH11..ARL,EUR,GEN |
2 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-95A33 |
LH11,RH11..RHD..GEN |
1 | ||
| 55411-95A24 |
LH11,RH11..RHD..(ARL,EUR,GEN) W/HEATER |
1 | ||
| 55410 - PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55407-95A13 |
LH11,RH11..RHD..(ARL,EUR,GEN) |
1 | ||
| 55410A - BRACKET, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55463-95A02 |
LH11,RH11..RHD..(ARL,EUR,GEN) LH |
1 | ||
| 55462-95A03 |
LH11,RH11..RHD..(ARL,EUR,GEN) RH |
1 | ||
| 55410A - BRACKET, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55463-95A02 |
LH11,RH11..RHD..(ARL,EUR,GEN) LH |
1 | ||
| 55462-95A03 |
LH11,RH11..RHD..(ARL,EUR,GEN) RH |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55414-95A02 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| 55451 - OUTLET, AIR OUTER, RH | ||||
| 55409-95A01 |
LH11,RH11 |
1 | ||
| 55452 - OUTLET, AIR OUTER, LH | ||||
| 55409-95A03 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-12050 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| 55476 - COVER, CIGARETTE LIGHTER HOLE | ||||
| 55476-2201001 |
LH11,RH11..EUR,GEN BLACK |
1 | ||
| 55908 - NOZZLE SUB-ASSY, DEFROSTER, RH | ||||
| 55950-95A00 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| 55909 - NOZZLE SUB-ASSY, DEFROSTER, LH | ||||
| 55960-95A00 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| 55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55908-95A00 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| Common parts | ||||
| 90159-40091 | ||||
| 90159-50184 | ||||
| 90183-05002 | ||||
| 90183-05069 | ||||
| 90183-05076 | ||||
| 90461-10245 | ||||
| 90468-07002 | ||||
| 90468-07003 | ||||
| 90950-01299 | ||||
| 90950-01300 | ||||
| 91611-40612 | ||||
| 93385-15016 | ||||
| 93510-55012 | ||||
| 93530-55016 | ||||
| Linked diagrams | ||||
| 5552 | ||||
| 8715 | ||||
