RH11R-JR3 (1982)
Toyota Hiace
Production
Nov 1982
-
Jul 1985
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8211- )

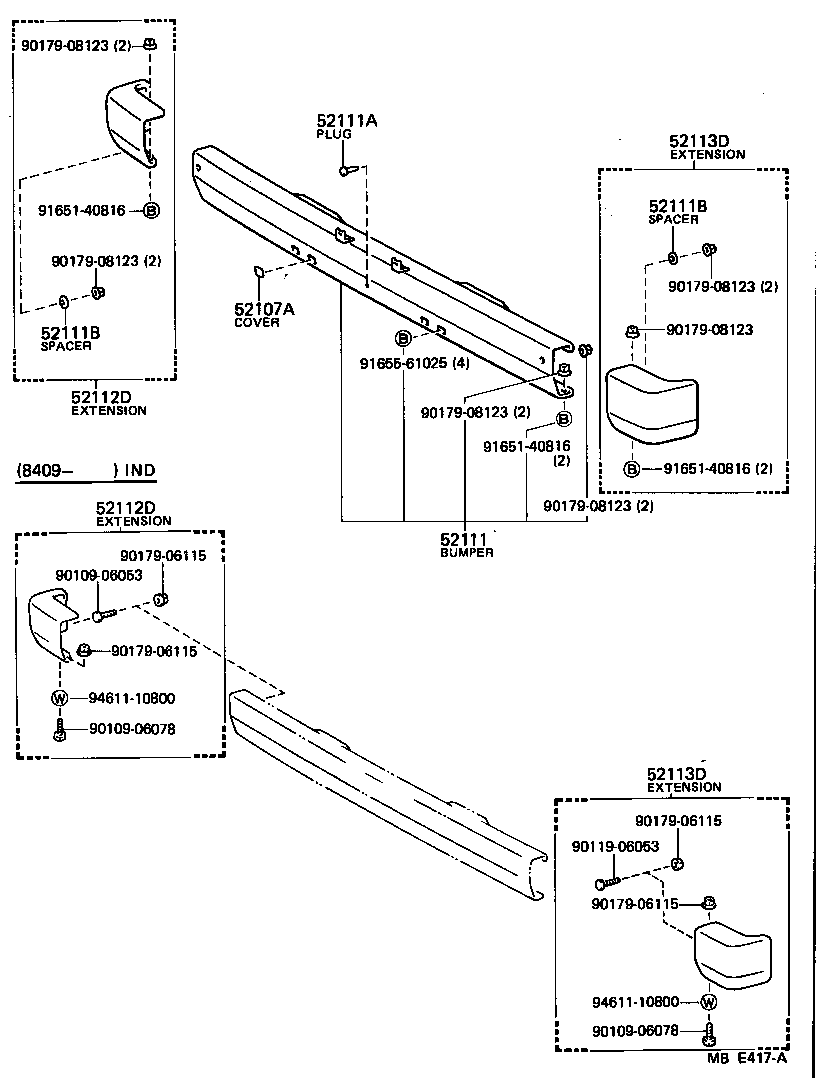

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52107A - COVER, FRONT BUMPER ARM HOLE | ||||
| 52158-95A01 |
LH11,RH11..ARL,EUR,GEN |
4 | ||
| 52158-95A01 |
LH11,RH11 |
4 | ||
| 52111 - BUMPER ASSY, FRONT | ||||
| 52101-29085 |
LH11,RH11 |
1 | ||
| 52101-29085 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| 52111A - PLUG, FRONT BUMPER | ||||
| 90541-08008 |
LH11,RH11 |
1 | ||
| 90541-08008 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| 52111B - SPACER(FOR FRONT BUNPER) | ||||
| 52135-95A01 |
LH11,RH11..ARL,EUR,GEN |
2 | ||
| 52135-95A01 |
LH11,RH11 |
2 | ||
| 52111B - SPACER(FOR FRONT BUNPER) | ||||
| 52135-95A01 |
LH11,RH11..ARL,EUR,GEN |
2 | ||
| 52135-95A01 |
LH11,RH11 |
2 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52011-29025 |
LH11,RH11 |
1 | ||
| 52011-29025 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52011-29025 |
LH11,RH11 |
1 | ||
| 52011-29025 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52012-29025 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| 52012-29025 |
LH11,RH11 |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52012-29025 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| 52012-29025 |
LH11,RH11 |
1 | ||
| Common parts | ||||
| 90109-06053 | ||||
| 90109-06078 | ||||
| 90119-06053 | ||||
| 90179-06115 | ||||
| 90179-08123 | ||||
| 91651-40816 | ||||
| 91655-61025 | ||||
| 94611-10800 | ||||
