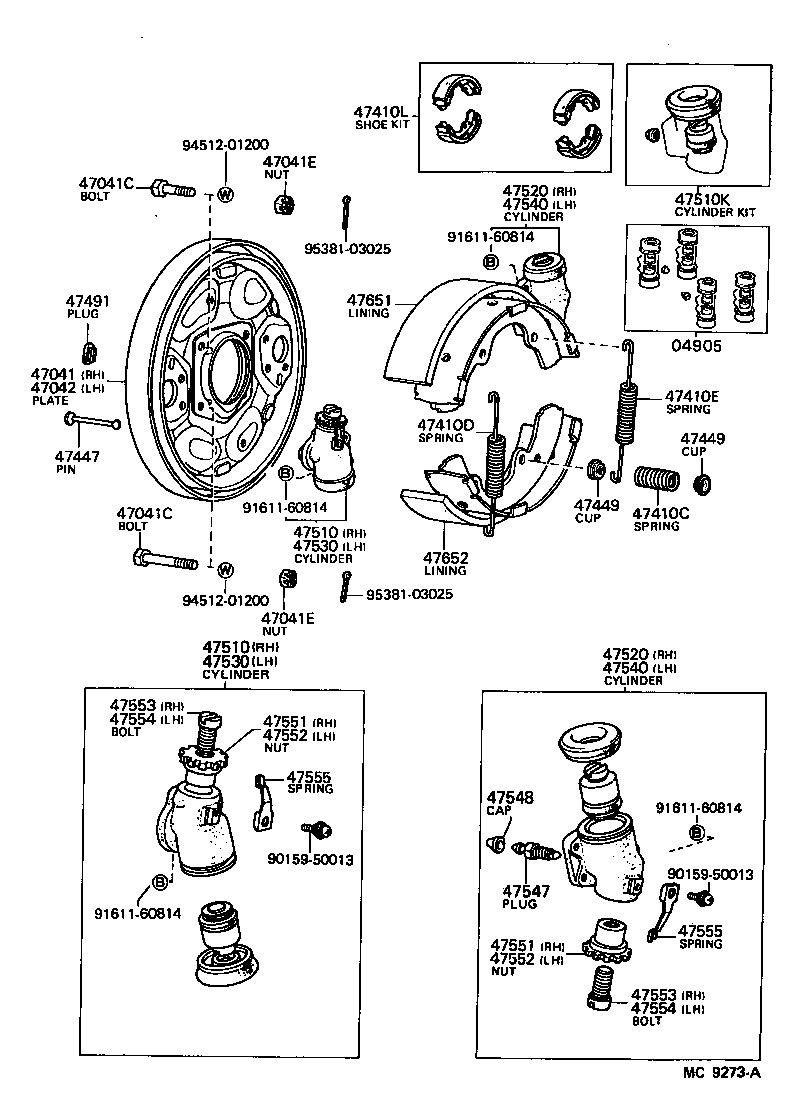

RH11R-JR3 (1982)
Toyota Hiace
(8211- )GEN,IDN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-35050 |
LH11,RH11..GEN,IDN |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-26040 |
LH11,RH11..GEN,IDN |
1 | ||
| 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90102-12050 |
LH11,RH11..GEN,IDN *12-1.25PX61-24 |
4 | ||
| 90102-12058 |
LH11,RH11..GEN,IDN *12-1.25PX36-20 |
4 | ||
| 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90102-12050 |
LH11,RH11..GEN,IDN *12-1.25PX61-24 |
4 | ||
| 90102-12058 |
LH11,RH11..GEN,IDN *12-1.25PX36-20 |
4 | ||
| 47041E - NUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 94145-51200 |
LH11,RH11..GEN,IDN |
8 | ||
| 47041E - NUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 94145-51200 |
LH11,RH11..GEN,IDN |
8 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-26040 |
LH11,RH11..GEN,IDN |
1 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-20756 |
LH11,RH11..GEN,IDN |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-23301 |
LH11,RH11..GEN,IDN |
2 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-23301 |
LH11,RH11..GEN,IDN |
2 | ||
| 47410L - SHOE KIT, FRONT BRAKE | ||||
| 04494-26030 |
LH11,RH11..GEN,IDN |
1 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-20020 |
LH11,RH11..GEN,IDN |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
LH11,RH11..GEN,IDN |
8 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
LH11,RH11..GEN,IDN |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36010 |
LH11,RH11..GEN,IDN |
4 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47520-29135 |
LH11,RH11..GEN,IDN |
1 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47520-29135 |
LH11,RH11..GEN,IDN |
1 | ||
| 47510K - CYLINDER KIT, FRONT WHEEL | ||||
| 04473-26020 |
LH11,RH11..GEN,IDN |
4 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47510-29215 |
LH11,RH11..GEN,IDN |
1 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47510-29215 |
LH11,RH11..GEN,IDN |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47540-29135 |
LH11,RH11..GEN,IDN |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47540-29135 |
LH11,RH11..GEN,IDN |
1 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47530-29215 |
LH11,RH11..GEN,IDN |
1 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47530-29215 |
LH11,RH11..GEN,IDN |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-12010 |
LH11,RH11..GEN,IDN |
2 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
LH11,RH11..GEN,IDN |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-26020 |
LH11,RH11..GEN,IDN LH SCREW |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-26020 |
LH11,RH11..GEN,IDN LH SCREW |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-26020 |
LH11,RH11..GEN,IDN RH SCREW |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-26020 |
LH11,RH11..GEN,IDN RH SCREW |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-30051 |
LH11,RH11..GEN,IDN LH SCREW |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-30051 |
LH11,RH11..GEN,IDN LH SCREW |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-30051 |
LH11,RH11..GEN,IDN RH SCREW |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-30051 |
LH11,RH11..GEN,IDN RH SCREW |
2 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-26030 |
LH11,RH11..GEN,IDN |
4 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-26030 |
LH11,RH11..GEN,IDN |
4 | ||
| 47651 - LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47651-26020 |
LH11,RH11..GEN,IDN |
2 | ||
| 47652 - LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47651-26020 |
LH11,RH11..GEN,IDN |
2 | ||
| Common parts | ||||
| 90159-50013 | ||||
| 91611-60814 | ||||
| 94512-01200 | ||||
| 95381-03025 | ||||
