RH11R-JR3 (1982)
Toyota Hiace
(8211- )

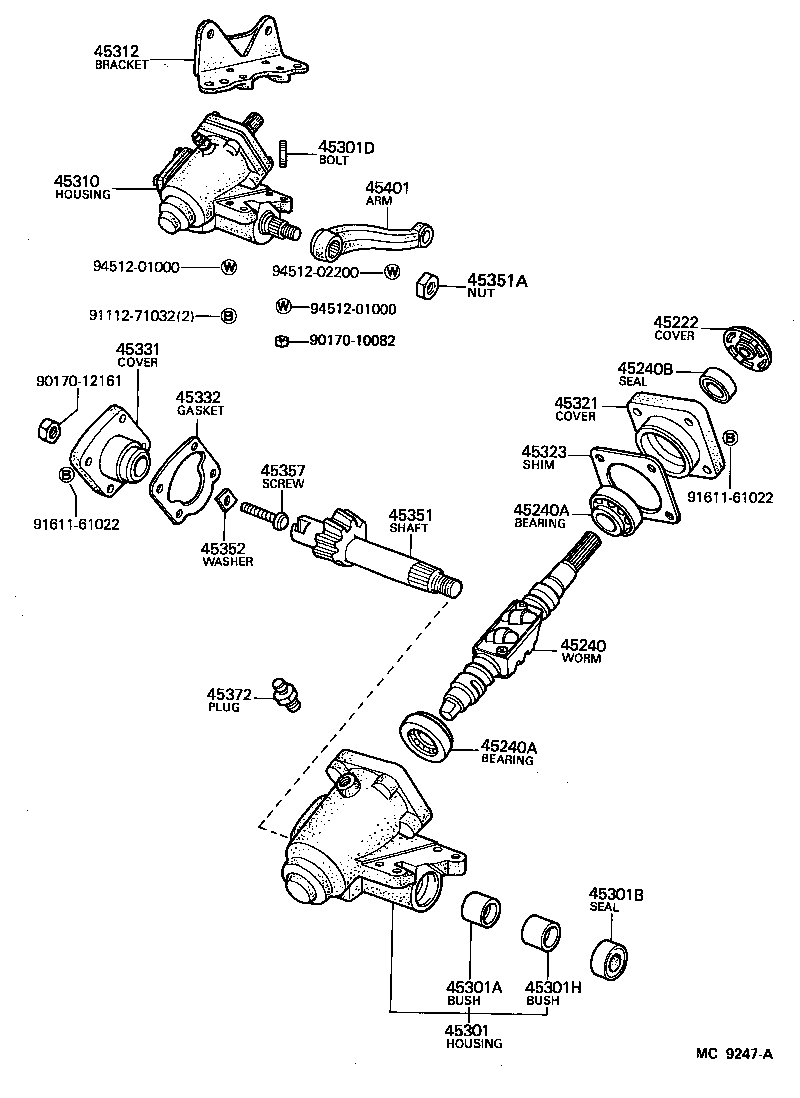

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-26010 |
LH11,RH11 |
1 | ||
| 45240 - WORM ASSY, STEERING | ||||
| 45240-36031 |
LH11,RH11..RHD |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20003 |
LH11,RH11 |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20003 |
LH11,RH11 |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-18001 |
LH11,RH11 |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-26011 |
LH11,RH11..RHD |
1 | ||
| 45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1 | ||||
| 90999-73061 |
LH11,RH11 |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-32024 |
LH11,RH11 |
1 | ||
| 45301D - BOLT, STUD(FOR STEERING GEAR HOUSING) | ||||
| 90116-10220 |
LH11,RH11 |
1 | ||
| 45301H - BUSH OR BEARING, SECTOR SHAFT, NO.2 | ||||
| 90999-73061 |
LH11,RH11 |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-26022 |
LH11,RH11..RHD |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-26030 |
LH11,RH11..RHD |
1 | ||
| 45321 - COVER, GEAR HOUSING END | ||||
| 45321-36020 |
LH11,RH11 |
1 | ||
| 45323 - SHIM, GEAR HOUSING END COVER | ||||
| 45323-36010 |
LH11,RH11 T=0.045-0.055,T=0.05 |
1 | ||
| 45323-36040 |
LH11,RH11 T=0.092-0.108,T=0.10 |
1 | ||
| 45323-36020 |
LH11,RH11 T=0.065-0.075,T=0.07 |
1 | ||
| 45323-36030 |
LH11,RH11 T=0.072-0.088,T=0.08 |
1 | ||
| 45323-36050 |
LH11,RH11 T=0.185-0.215,T=0.20 |
1 | ||
| 45323-36070 |
LH11,RH11 T=0.055-0.065,T=0.06 |
1 | ||
| 45323-36080 |
LH11,RH11 T=0.082-0.098,T=0.09 |
1 | ||
| 45323-36060 |
LH11,RH11 T=0.485-0.515,T=0.50 |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-36020 |
LH11,RH11 |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-36010 |
LH11,RH11 |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45351-36020 |
LH11,RH11 |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
LH11,RH11 |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-36010 |
LH11,RH11 T=2.00,T=2.00 |
1 | ||
| 45355-36010 |
LH11,RH11 T=2.15,T=2.15 |
1 | ||
| 45353-36010 |
LH11,RH11 T=2.05,T=2.05 |
1 | ||
| 45354-36010 |
LH11,RH11 T=2.10,T=2.10 |
1 | ||
| 45356-36010 |
LH11,RH11 T=2.20,T=2.20 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-36020 |
LH11,RH11 |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03058 |
LH11,RH11 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45411-26030 |
LH11,RH11..RHD |
1 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 90170-12161 | ||||
| 91112-71032 | ||||
| 91611-61022 | ||||
| 94512-01000 | ||||
| 94512-02200 | ||||

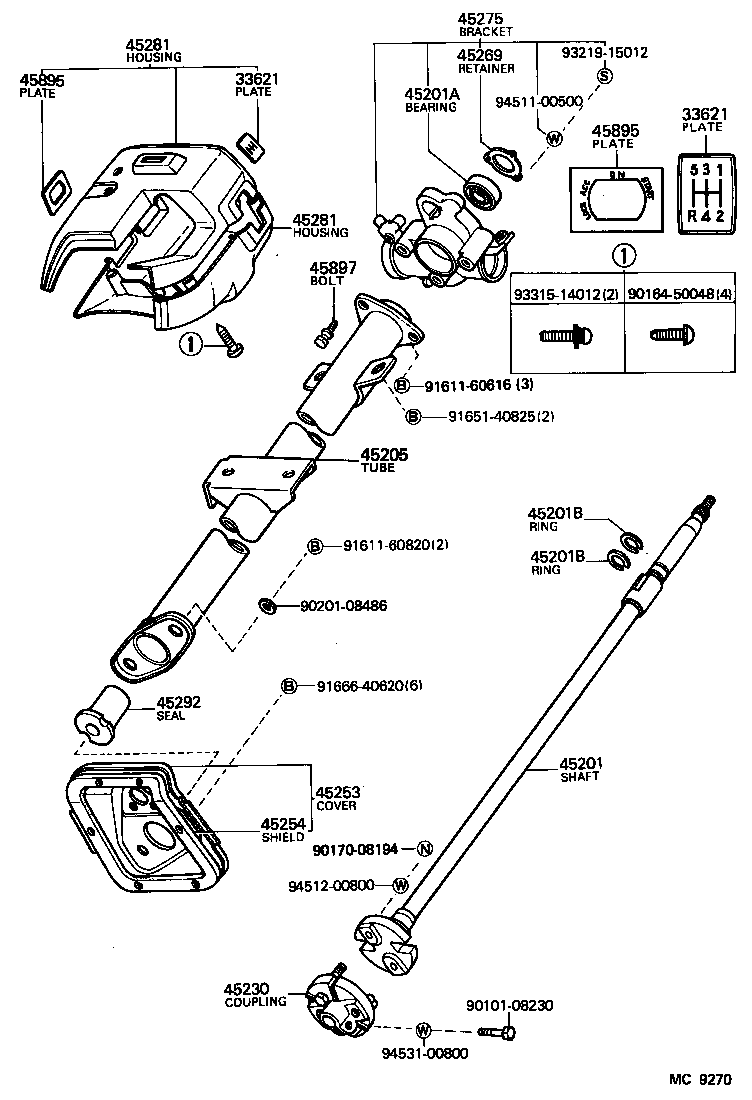

(8211- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33621 - PLATE, CONTROL LEVER CAUTION | ||||
| 33621-36040 |
LH11,RH11..RHD..4H |
1 | ||
| 33621 - PLATE, CONTROL LEVER CAUTION | ||||
| 33621-36040 |
LH11,RH11..RHD..4H |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-26031 |
LH11,RH11 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
LH11,RH11 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
LH11,RH11 T=1.20,UPR |
1 | ||
| 90520-17042 |
LH11,RH11 T=1.20,LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
LH11,RH11 T=1.20,UPR |
1 | ||
| 90520-17042 |
LH11,RH11 T=1.20,LWR |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-26030 |
LH11,RH11..RHD |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-36010 |
LH11,RH11 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45253-26030 |
LH11,RH11..RHD |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-26030 |
LH11,RH11 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
LH11,RH11 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-28011 |
LH11,RH11..RHD |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-2604001 |
LH11,RH11..RHD LWR,BLACK |
1 | ||
| 45023-2606001 |
LH11,RH11..RHD..4H UPR,BLACK |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-2604001 |
LH11,RH11..RHD LWR,BLACK |
1 | ||
| 45023-2606001 |
LH11,RH11..RHD..4H UPR,BLACK |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-36010 |
LH11,RH11 |
1 | ||
| 45895 - PLATE, STEERING LOCK CAUTION | ||||
| 45895-26010 |
LH11,RH11..RHD |
1 | ||
| 45895 - PLATE, STEERING LOCK CAUTION | ||||
| 45895-26010 |
LH11,RH11..RHD |
1 | ||
| Common parts | ||||
| 90101-08230 | ||||
| 90164-50048 | ||||
| 90170-08194 | ||||
| 90201-08486 | ||||
| 91611-60616 | ||||
| 91611-60820 | ||||
| 91651-40825 | ||||
| 91666-40620 | ||||
| 93219-15012 | ||||
| 93315-14012 | ||||
| 94511-00500 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
