RH11LP-JRW (1982)
Toyota Hiace
Production
Nov 1982
-
Jul 1985
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

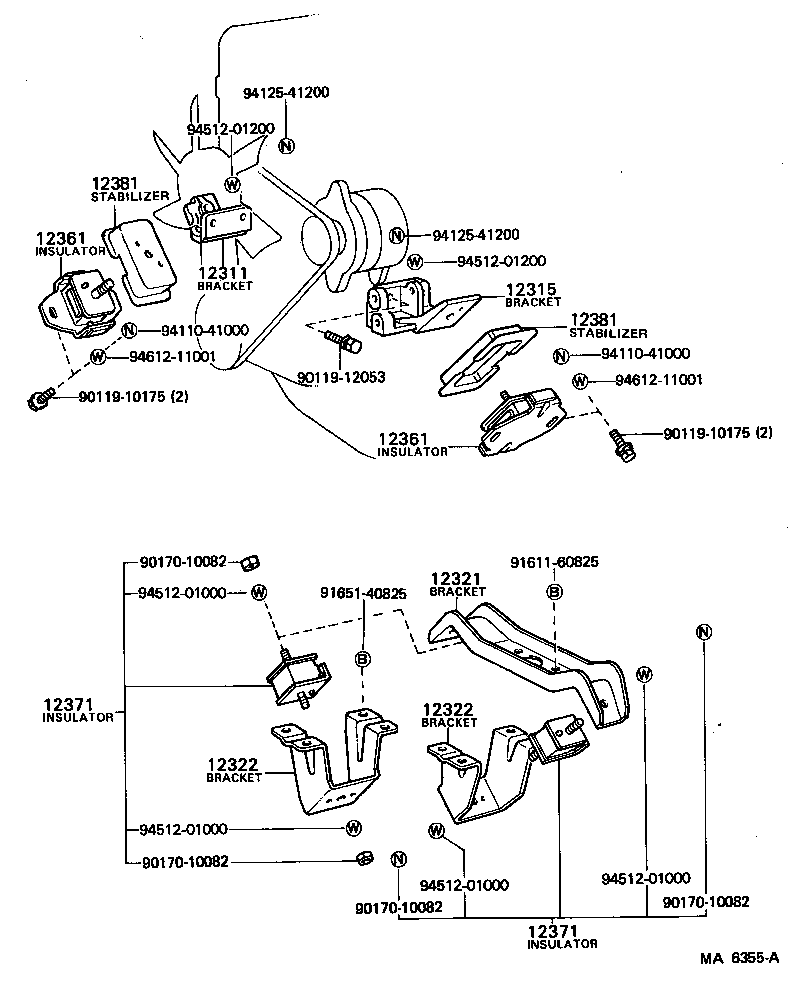

(8211- )12R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-30010 |
12R..RH11 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-31011 |
12R..RH11 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-31020 |
12R..RH11 |
1 | ||
| 12322 - BRACKET, ENGINE MOUNTING, REAR NO.2 | ||||
| 12322-54010 |
12R..RH11 |
2 | ||
| 12322 - BRACKET, ENGINE MOUNTING, REAR NO.2 | ||||
| 12322-54010 |
12R..RH11 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-31070 |
12R..RH11 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-31070 |
12R..RH11 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-39025 |
12R..RH11 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-39025 |
12R..RH11 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-31031 |
12R..RH11 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-31031 |
12R..RH11 |
2 | ||
| Common parts | ||||
| 90119-10175 | ||||
| 90119-12053 | ||||
| 90170-10082 | ||||
| 91611-60825 | ||||
| 91651-40825 | ||||
| 94110-41000 | ||||
| 94125-41200 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
| 94612-11001 | ||||
(8211- )L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-30010 |
12R..RH11 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-31011 |
12R..RH11 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-31020 |
12R..RH11 |
1 | ||
| 12322 - BRACKET, ENGINE MOUNTING, REAR NO.2 | ||||
| 12322-54010 |
12R..RH11 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-31070 |
12R..RH11 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-31070 |
12R..RH11 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-39025 |
12R..RH11 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-31031 |
12R..RH11 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-31031 |
12R..RH11 |
2 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 90201-12033 | ||||
| 91161-51220 | ||||
| 91611-61022 | ||||
| 91611-61025 | ||||
| 91651-60825 | ||||
| 94115-41200 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
