RH11LP-JR (1982)

Toyota Hiace

Production Nov 1982 - Jul 1985
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

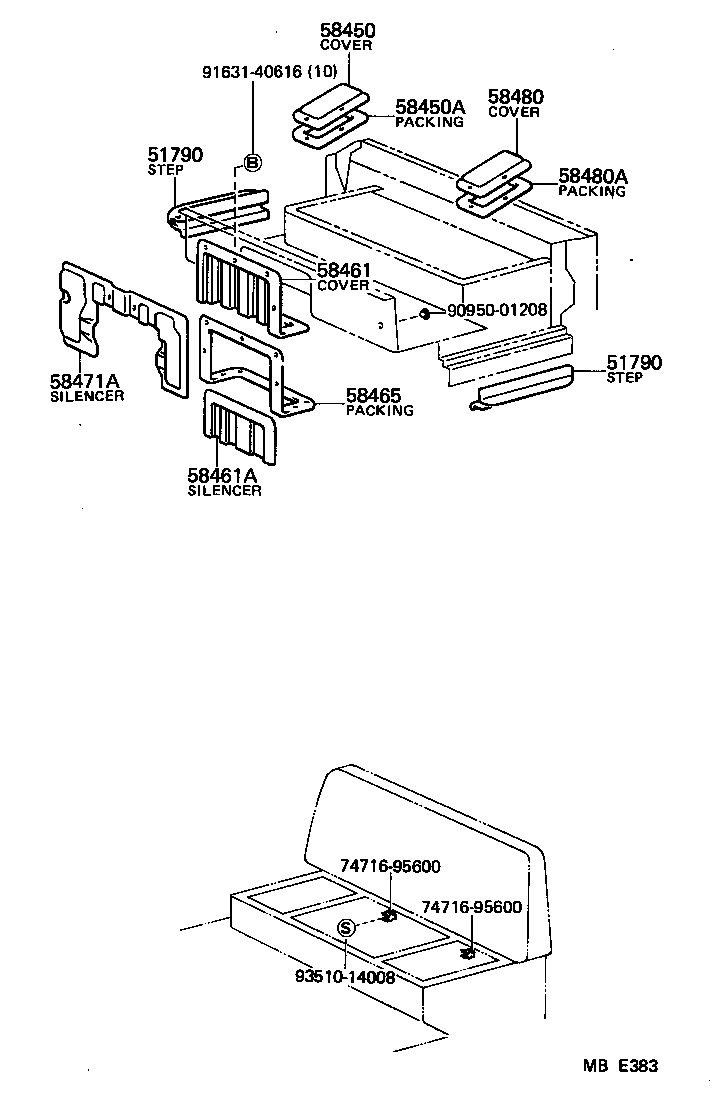

Click highlighted areas on diagram

diagram 51790 51790 58450 58450A 58461 58461A 58465 58471A 58480 58480A 7471695600 7471695600 9095001208 9163140616 9351014008
Part # Description Qty Price
51790 - STEP ASSY, REAR FLOOR
58303-95A05

LH11,RH11..TW

 2
51790 - STEP ASSY, REAR FLOOR
58303-95A05

LH11,RH11..TW

 2
58450 - COVER ASSY, BATTERY SERVICE HOLE
58201-95A02

LH11,RH11..TW

 1
58450A - PACKING, BATTERY SERVICE HOLE COVER
58445-95A05

LH11,RH11..TW

 1
65352-95A00

LH11,RH11..TW

 1
58461 - COVER, TRANSMISSION SERVICE HOLE
58406-95A04

LH11,RH11..TW

 1
58461A - SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1
58468-95A03

RH11..06S

 1
58465 - PACKING, TRANSMISSION SERVICE HOLE COVER, NO.1
58465-95A01

LH11,RH11..TW

 1
58471A - SILENCER, HEADER PANEL
58469-95A03

RH11..06S

 1
58480 - COVER ASSY, FUEL TANK SERVICE HOLE
58201-95A02

LH11,RH11..TW

 1
58480A - PACKING, FUEL TANK SERVICE HOLE COVER
65352-95A00

LH11,RH11..TW

 1
58445-95A05

LH11,RH11..TW

 1
Common parts
74716-95600
90950-01208
91631-40616
93510-14008
