RH11L-JRB (1977)
Toyota Hiace

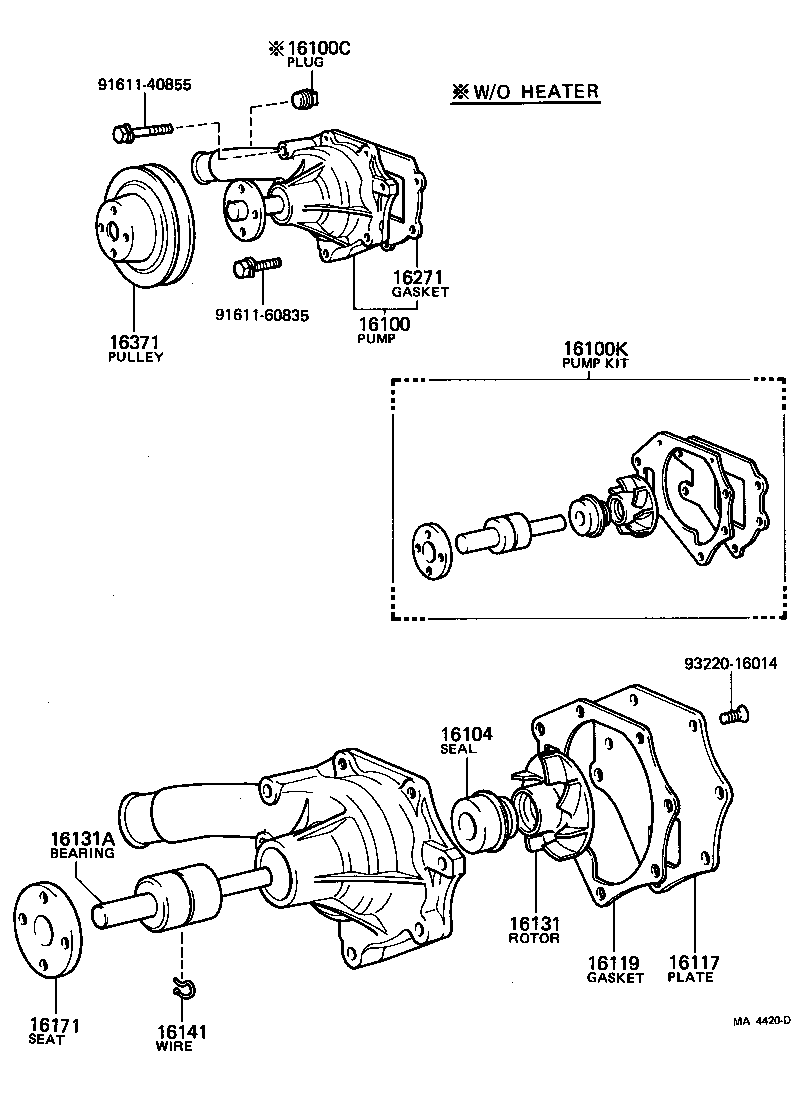

(7702-8204)12R# ; (8204- )12R..ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-39116 |
12R..RH11,20,30..GEN |
1 | ||
| 16100-39116 |
12R..RH11,20,30..EUR,GEN,IDN |
1 | ||
| 16100-39116 |
12R#..RH11,20,30 |
1 | ||
| 16100C - PLUG, W/HEAD TAPER SCREW | ||||
| 90345-54002 |
12R#..RH11,20,30..GEN,IDN,PHL W/O HEATER |
1 | ||
| 90345-54005 |
12R..RH11,20,30..GEN,IDN W/O HEATER |
1 | ||
| 90345-54021 |
12R..RH11,20,30..GEN,IDN W/O HEATER |
1 | ||
| 90345-54004 |
12R#..RH11,20,30..GEN,IDN,PHL W/O HEATER |
1 | ||
| 16100K - PUMP KIT, WATER | ||||
| 04161-31023 |
12R..RH11,20,30..EUR,GEN,IDN |
1 | ||
| 04161-31021 |
12R..RH11,20,30 |
1 | ||
| 04161-31023 |
12R#..RH11,20,30 |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-41111 |
12R..RH11,20,30 W/O TWIN COOLER |
1 | ||
| 16104-41110 |
12R#..RH11,20,30 |
1 | ||
| 16117 - PLATE, WATER PUMP | ||||
| 16117-31031 |
12R#..RH11,20,30 |
1 | ||
| 16119 - GASKET, WATER PUMP BODY | ||||
| 16124-31031 |
12R#..RH11,20,30 |
1 | ||
| 16131 - ROTOR, WATER PUMP | ||||
| 16131-31031 |
12R..RH11,20,30 |
1 | ||
| 16131-31031 |
12R..RH11,20,30 W/O TWIN COOLER |
1 | ||
| 16131-31032 |
12R#..RH11,20,30 |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 90369-30003 |
12R..RH11,20,30..EUR,GEN,IDN WPB 16124BR-1-R |
1 | ||
| 90369-30003 |
12R#..RH11,20,30 WPB 16124BR-1-R |
1 | ||
| 90369-30003 |
12R..RH11,20,30..GEN WPB 16124BR-1-R |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-24031 |
12R#..RH11,20,30 |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-30011 |
12R#..RH11,20,30 |
1 | ||
| 16271-31010 |
12R#..RH11,20,30 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-31022 |
12R..RH11,20,30..GEN |
1 | ||
| 16371-31022 |
12R#..RH11,20,30 |
1 | ||
| Common parts | ||||
| 91611-40855 | ||||
| 91611-60835 | ||||
| 93220-16014 | ||||

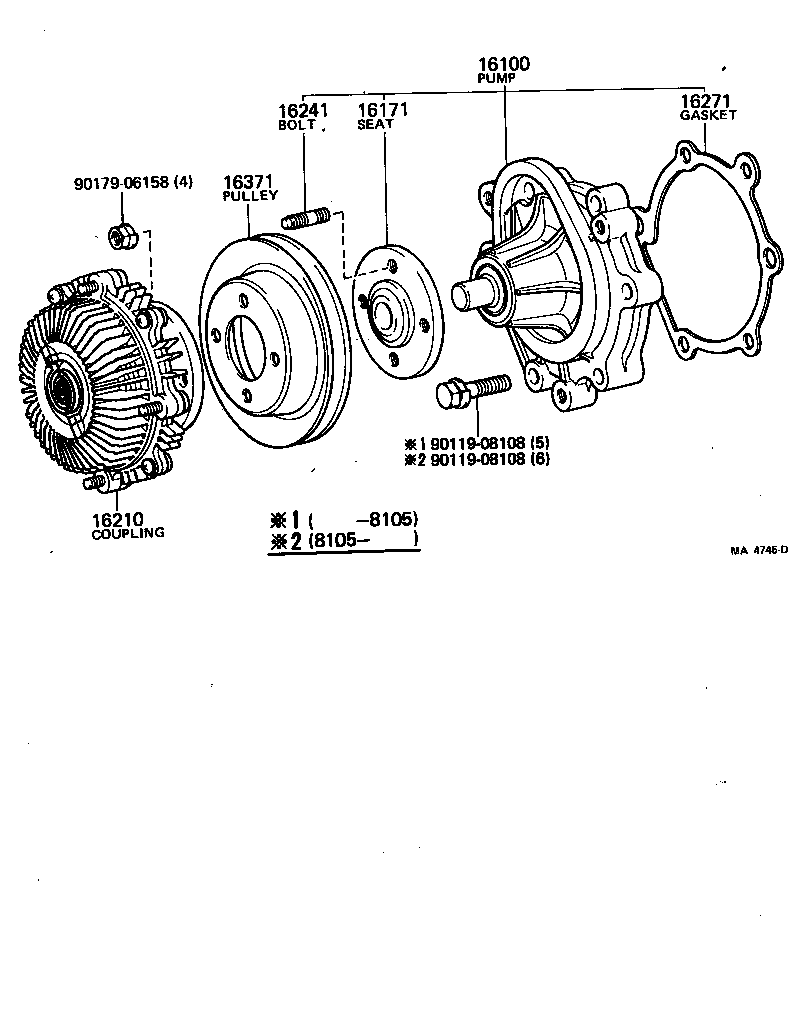

(7901- )L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-39116 |
12R..RH11,20,30..GEN |
1 | ||
| 16100-39116 |
12R..RH11,20,30..EUR,GEN,IDN |
1 | ||
| 16100-39116 |
12R#..RH11,20,30 |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-24031 |
12R#..RH11,20,30 |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-30011 |
12R#..RH11,20,30 |
1 | ||
| 16271-31010 |
12R#..RH11,20,30 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-31022 |
12R..RH11,20,30..GEN |
1 | ||
| 16371-31022 |
12R#..RH11,20,30 |
1 | ||
| Common parts | ||||
| 90119-08108 | ||||
| 90179-06158 | ||||
