RH11L-JRB (1982)
Toyota Hiace
Production
Nov 1982
-
Jul 1985
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8211- )

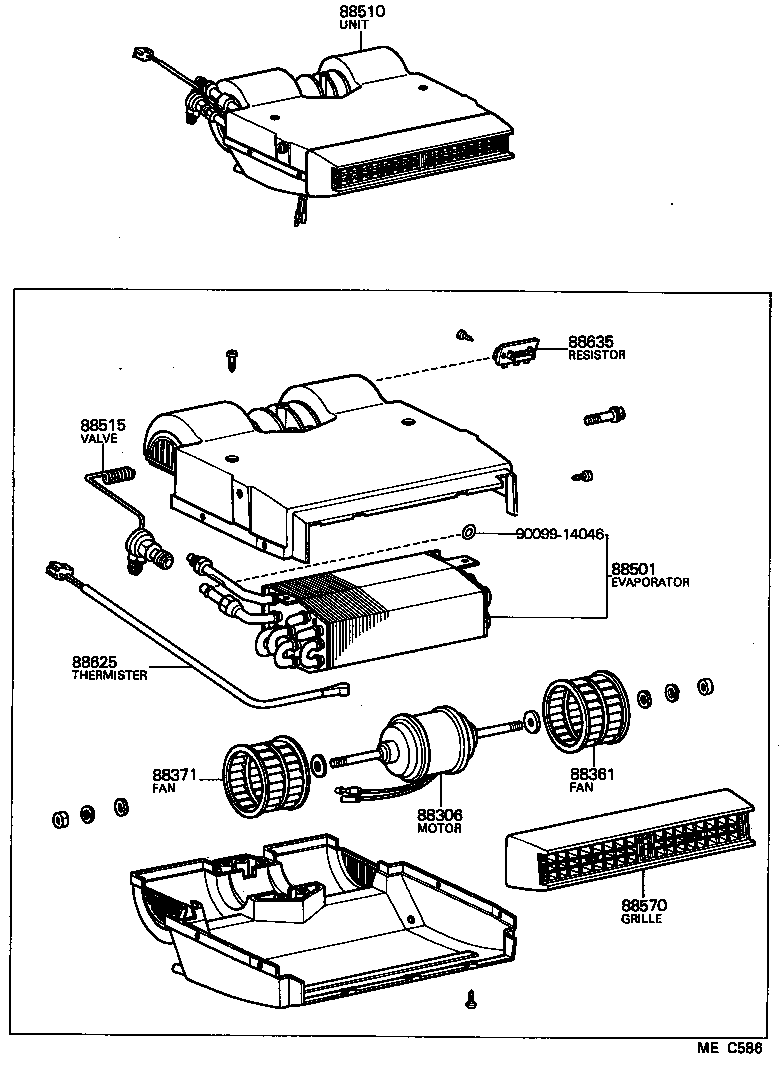

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-30300 |
RH11..ARL,GEN;LH11..RHD..(ARL,GEN,IDN) |
1 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 88541-10010 |
RH11..ARL,GEN;LH11..RHD..(ARL,GEN,IDN) |
1 | ||
| 88371 - FAN, COOLER BLOWER, NO.2 | ||||
| 88541-10020 |
RH11..ARL,GEN;LH11..RHD..(ARL,GEN,IDN) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-30531 |
RH11..ARL,GEN;LH11..RHD..(ARL,GEN,IDN) |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-30671 |
RH11..ARL,GEN;LH11..RHD..(ARL,GEN,IDN) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-12051 |
RH11..ARL,GEN;LH11..RHD..(ARL,GEN,IDN) |
1 | ||
| 88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET | ||||
| 88570-30600 |
RH11..ARL,GEN;LH11..RHD..(ARL,GEN,IDN) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12040 |
RH11..ARL,GEN;LH11..RHD..(ARL,GEN,IDN) |
1 | ||
| 88635 - RESISTOR, COOLER UNIT BLOWER | ||||
| 88635-30370 |
RH11..ARL,GEN;LH11..RHD..(ARL,GEN,IDN) |
1 | ||
| Common parts | ||||
| 90099-14046 | ||||
(8211- )

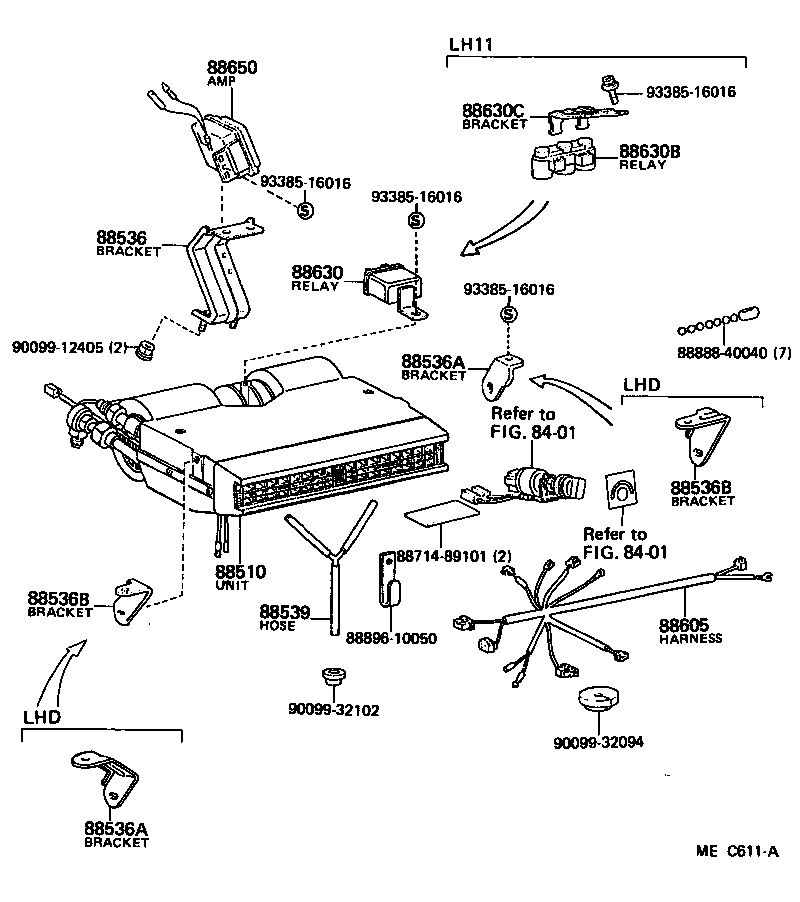

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-30671 |
RH11..ARL,GEN;LH11..RHD..(ARL,GEN,IDN) |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95A07 |
RH11..LHD..GEN |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95A05 |
RH11..LHD..GEN |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95A05 |
RH11..LHD..GEN |
1 | ||
| 88536B - BRACKET, COOLING UNIT, NO.3 | ||||
| 88536-95A06 |
RH11..LHD..GEN |
1 | ||
| 88536B - BRACKET, COOLING UNIT, NO.3 | ||||
| 88536-95A06 |
RH11..LHD..GEN |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-26040 |
RH11..LHD..GEN |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95A15 |
RH11..LHD..GEN |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-14010 |
RH11..ARL,GEN |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-22040 |
RH11..ARL,GEN |
1 | ||
| Common parts | ||||
| 88714-89101 | ||||
| 88888-40040 | ||||
| 88896-10050 | ||||
| 90099-12405 | ||||
| 90099-32094 | ||||
| 90099-32102 | ||||
| 93385-16016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
