RH11L-JRB (1982)
Toyota Hiace
(8211- )RH11

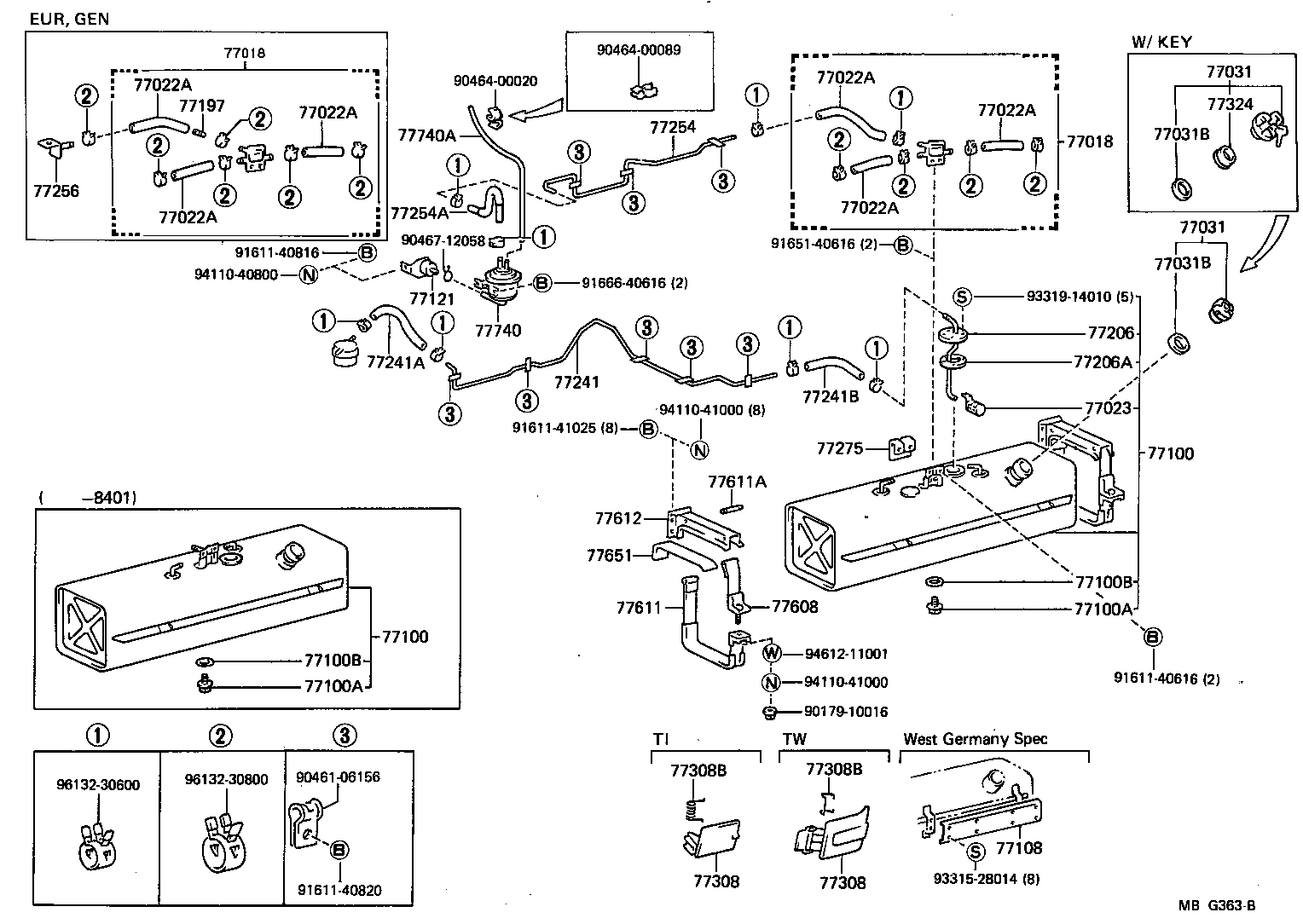

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-26040 |
LH11;RH11..EUR,GEN |
1 | ||
| 77018-26120 |
LH11,RH11..EUR,GEN |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-26040 |
LH11;RH11..EUR,GEN |
1 | ||
| 77018-26120 |
LH11,RH11..EUR,GEN |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08030 |
LH11,RH11..EUR,GEN *H,L=280,ID=7.6 |
1 | ||
| 95332-08030 |
LH11;RH11..EUR,GEN *H,L=260,ID=7.6 |
1 | ||
| 95332-08020 |
LH11,RH11 *H,L=140,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08030 |
LH11,RH11..EUR,GEN *H,L=280,ID=7.6 |
1 | ||
| 95332-08030 |
LH11;RH11..EUR,GEN *H,L=260,ID=7.6 |
1 | ||
| 95332-08020 |
LH11,RH11 *H,L=140,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08030 |
LH11,RH11..EUR,GEN *H,L=280,ID=7.6 |
1 | ||
| 95332-08030 |
LH11;RH11..EUR,GEN *H,L=260,ID=7.6 |
1 | ||
| 95332-08020 |
LH11,RH11 *H,L=140,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08030 |
LH11,RH11..EUR,GEN *H,L=280,ID=7.6 |
1 | ||
| 95332-08030 |
LH11;RH11..EUR,GEN *H,L=260,ID=7.6 |
1 | ||
| 95332-08020 |
LH11,RH11 *H,L=140,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08030 |
LH11,RH11..EUR,GEN *H,L=280,ID=7.6 |
1 | ||
| 95332-08030 |
LH11;RH11..EUR,GEN *H,L=260,ID=7.6 |
1 | ||
| 95332-08020 |
LH11,RH11 *H,L=140,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08030 |
LH11,RH11..EUR,GEN *H,L=280,ID=7.6 |
1 | ||
| 95332-08030 |
LH11;RH11..EUR,GEN *H,L=260,ID=7.6 |
1 | ||
| 95332-08020 |
LH11,RH11 *H,L=140,ID=7.6 |
2 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
RH11 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 69058-95400 |
RH11..ARL,GEN W/KEY |
1 | ||
| 77310-14070 |
RH11 W/O KEY |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 69058-95400 |
RH11..ARL,GEN W/KEY |
1 | ||
| 77310-14070 |
RH11 W/O KEY |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
RH11 CAP=W/O KEY |
1 | ||
| 77316-12031 |
LH11,RH11 CAP=W/KEY |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
RH11 CAP=W/O KEY |
1 | ||
| 77316-12031 |
LH11,RH11 CAP=W/KEY |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-26270 |
RH11 |
1 | ||
| 77001-28020 |
RH11 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-26270 |
RH11 |
1 | ||
| 77001-28020 |
RH11 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
LH11,RH11 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
LH11,RH11 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LH11,RH11 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LH11,RH11 |
1 | ||
| 77197 - ORIFICE, FUEL VAPOR | ||||
| 77198-35010 |
LH11;RH11..EUR,GEN |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-26100 |
RH11 |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
LH11,RH11 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-26063 |
RH11 |
1 | ||
| 77251-26062 |
RH11 |
1 | ||
| 77251-26063 |
RH11..ARL,GEN |
1 | ||
| 77251-26280 |
RH11 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
RH11 *H,L=180 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
RH11 *H,L=110 |
1 | ||
| 95332-06020 |
RH11 *H,L=200 |
1 | ||
| 77256 - TUBE, FUEL EMISSION, NO.3 | ||||
| 77244-26010 |
LH11;RH11..EUR,GEN |
1 | ||
| 77244-26030 |
RH11..EUR,GEN |
1 | ||
| 77275 - PROTECTOR, FUEL EVAPORATIVE SEPARATOR | ||||
| 77197-25010 |
LH11,RH11..LHD..T3;LH11,RH11..LHD..IV;LH11,RH11..RHD..03S..(ARL,EUR,GEN) |
1 | ||
| 77324 - SPRING, FUEL TANK CAP | ||||
| 77324-12011 |
LH11,RH11 |
1 | ||
| 77608 - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-28010 |
LH11,RH11..ARL,EUR,GEN |
2 | ||
| 77603-25010 |
LH11,RH11 |
2 | ||
| 77603-26011 |
LH11,RH11 |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-25090 |
LH11,RH11 |
2 | ||
| 77601-26040 |
LH11,RH11..ARL,EUR,GEN |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
LH11,RH11 |
4 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-28011 |
LH11,RH11 |
2 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-25050 |
LH11,RH11 |
2 | ||
| 77651-26040 |
LH11,RH11..ARL,EUR,GEN |
2 | ||
| Common parts | ||||
| 90179-10016 | ||||
| 90461-06156 | ||||
| 90464-00020 | ||||
| 90464-00089 | ||||
| 90467-12058 | ||||
| 91611-40616 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 91611-41025 | ||||
| 91651-40616 | ||||
| 91666-40616 | ||||
| 93315-28014 | ||||
| 93319-14010 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94612-11001 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
