LH30RV-QRW (1979)

Toyota Hiace

Production Dec 1979 - Nov 1982
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8012- )EUR

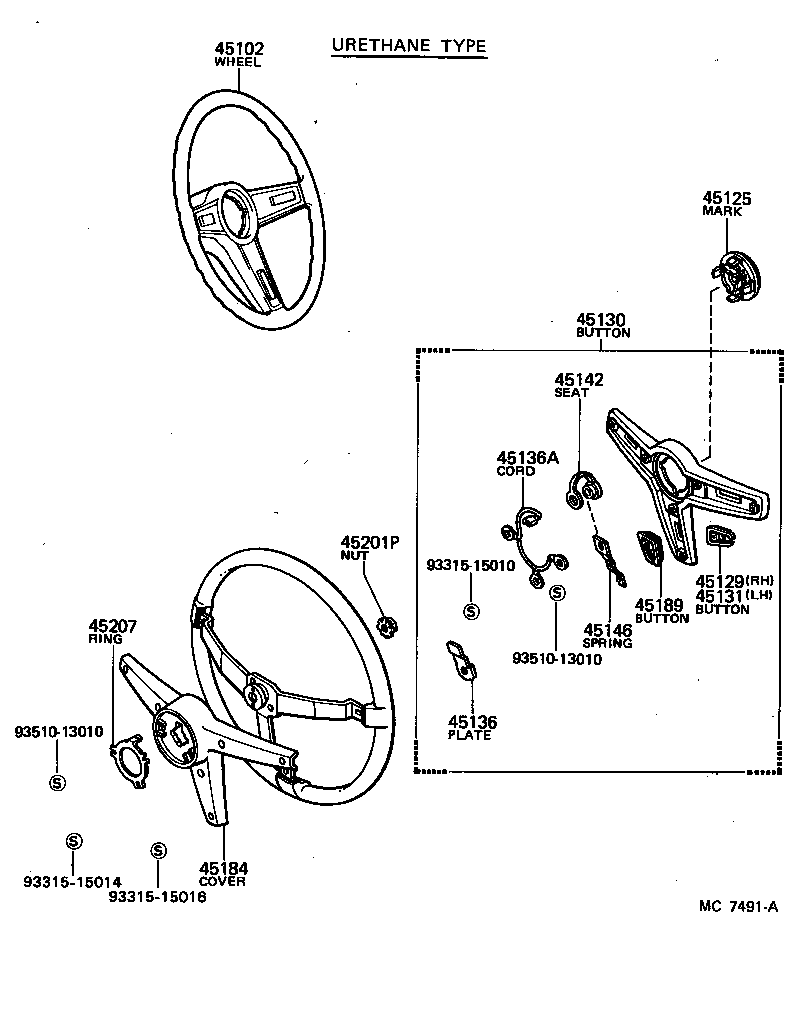

Click highlighted areas on diagram

diagram 45102 45125 45129 45130 45131 45136 45136A 45142 45146 45184 45189 45201P 45207 9331515010 9331515014 9331515016 9351013010 9351013010
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45100-2602005

LH11,20,30,RH11,2#,3#,42

BEIGE,BEIGE

 1
45100-2602006

LH11,20,30,RH11,2#,3#,42

BROWN,BROWN

 1
45100-26050

LH11,20,30,RH11,20,25,3#..EUR

URETHANE

 1
45125 - MARK, STEERING WHEEL PAD
45125-26030

LH11,20,30,RH11,20,25,3#..EUR

URETHANE

 1
45125-26010

LH11,20,30,RH11,2#,3#,42

 1
45125-26010

LH11,20,30,RH11,2#,3#..TR,V

 1
45129 - BUTTON, HORN, NO.2
45131-26020

LH11,20,30,RH11,2#,3#,42

 1
45131-14050

LH11,20,30,RH11,20,25,3#..EUR

URETHANE

 1
45130 - BUTTON ASSY, HORN
45130-2602006

LH11,20,30,RH11,2#,3#,42

BROWN,BROWN

 1
45130-2602005

LH11,20,30,RH11,2#,3#,42

BEIGE,BEIGE

 1
45130-26030

LH11,20,30,RH11,20,25,3#..EUR

URETHANE

 1
45131 - BUTTON, HORN, NO.1
45131-26020

LH11,20,30,RH11,2#,3#,42

 1
45131-14050

LH11,20,30,RH11,20,25,3#..EUR

URETHANE

 1
45136 - PLATE, HORN BUTTON CONTACT
45136-14040

LH11,20,30,RH11,20,25,3#..EUR

URETHANE

 3
45136-26020

LH11,20,30,RH11,2#,3#,42

 2
45136A - CORD(FOR HORN CONTACT RING)
90945-02013

LH11,20,30,RH11,2#,3#,42

 1
90945-02046

LH11,20,30,RH11,20,25,3#..EUR

URETHANE

 1
45142 - SEAT, HORN BUTTON CONTACT, NO.1
45142-14030

LH11,20,30,RH11,20,25,3#..EUR

URETHANE

 3
45146 - SPRING, HORN BUTTON CONTACT
45146-26010

LH11,20,30,RH11,2#,3#,42

 2
45146-14040

LH11,20,30,RH11,20,25,3#..EUR

URETHANE

 3
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-26020

LH11,20,30,RH11,20,25,3#..EUR

URETHANE

 1
45189 - BUTTON, HORN, NO.3
45131-14050

LH11,20,30,RH11,20,25,3#..EUR

URETHANE

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

LH11,20,30,RH11,2#,3#,42

 1
45207 - RING, HORN CONTACT
45176-22020

LH11,20,30,RH11,2#,3#,42

 1
45176-20030

LH11,20,30,RH11,20,25,3#..EUR

URETHANE

 1
Common parts
93315-15010
93315-15014
93315-15016
93510-13010
