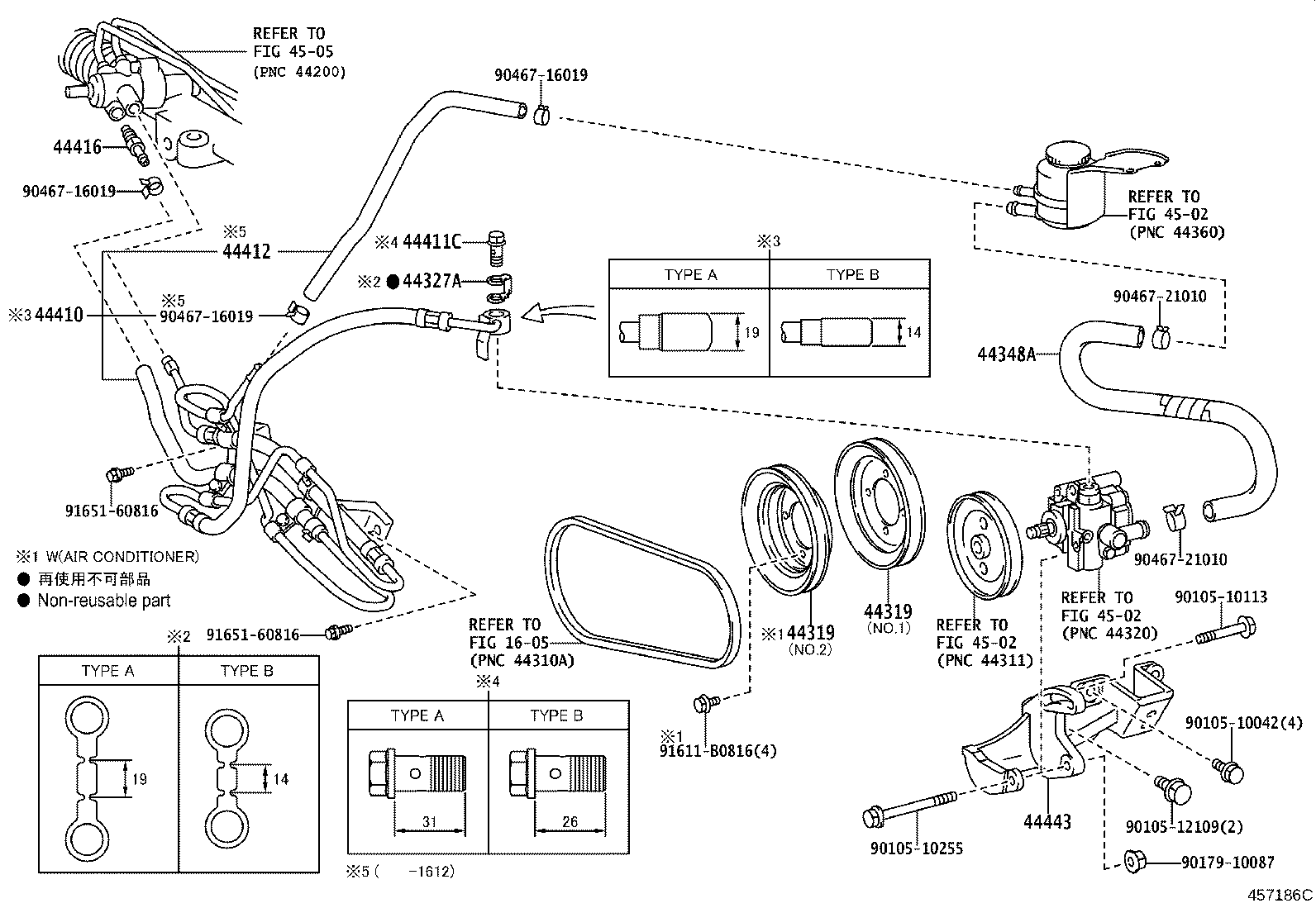

Toyota Hiace LH202 POWER STEERING TUBE

Part #	Description	Period	Qty
44319 - PULLEY, VANE PUMP DRIVE
44319-26070	LH20#..4D;LH222..LHD NO.1	12/2013 - 12/2999	1
44319-26050	LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)	12/2013 - 12/2999	1
44319 - PULLEY, VANE PUMP DRIVE
44319-26070	LH20#..4D;LH222..LHD NO.1	12/2013 - 12/2999	1
44319-26050	LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)	12/2013 - 12/2999	1
44327A - GASKET, PRESSURE PORT, NO.1
44327-30040	TRH223..6FC;TRH213..LHD..STD..GEN;KDH201,TRH213..RHD..SG;TRH223..(13S,14S,16S)..(GCC,GEN,SA,TH);KDH212,22#,LH222..02S,03S,06S,10S,12S,14S,16S;KDH212,TRH200,201,221..(02S,03S,05S,06S,13S)..(5F,6FC)..STD;KDH20#,213,LH20#,212,TRH203..(SMRF,SRF)..(02S,03S,05S,10S,11S,12S,13S,15S,16S) TYPE A:REFER ILLUST.	12/2013 - 12/2016	1
44327-30030	TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;KDH220,222,TRH201,22#;KDH200,TRH213..GCC,MA,TH;GDH201,KDH201,202,203,21#,221,223,LH202,212,222,TRH200..ARL,GCC,GEN,RUS,TH,VN TYPE B:REFER ILLUST.	12/2016 - 02/2019	1
44327-30040	KDH223..4FC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..STD..(SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH213,222,223..(10S,11S,13S,16S)..(GEN,SA,VN);KDH201,202,203,212,LH202,222,TRH201..GCC,GEN,TH TYPE A:REFER ILLUST.	02/2019 - 12/2999	1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-26270	LH20#	12/2013 - 12/2018	1
44348-26271	LH20#..4D	01/2019 - 12/2999	1
44348-26250	KDH201,202,203;KDH200..GCC,MA;KDH200..LHD..5D..GEN	12/2013 - 12/2999	1
44410 - TUBE ASSY, PRESSURE FEED
44410-26890	LH20#..RHD TYPE A:REFER ILLUST.	12/2013 - 12/2016	1
44410-26891	LH20#..RHD TYPE B:REFER ILLUST.	12/2016 - 11/2017	1
44410-26B11	KDH200..MA;KDH201,202,203..RHD TYPE B:REFER ILLUST.	12/2016 - 02/2019	1
44410-26892	LH20#..RHD..4D TYPE B:REFER ILLUST.	12/2017 - 02/2019	1
44410-26890	LH20#..RHD..4D TYPE A:REFER ILLUST.	02/2019 - 12/2999	1
44410-26B10	KDH200..MA;KDH201,202,203..RHD TYPE A:REFER ILLUST.	02/2019 - 12/2999	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
96341-41603	TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;KDH220,222,TRH201,22#;KDH200,TRH213..GCC,MA,TH;GDH201,KDH201,202,203,21#,221,223,LH202,212,222,TRH200..ARL,GCC,GEN,RUS,TH,VN TYPE B:REFER ILLUST.	12/2016 - 02/2019	1
90401-16034	TRH223..6FC;TRH213..LHD..STD..GEN;KDH201,TRH213..RHD..SG;TRH223..(13S,14S,16S)..(GCC,GEN,SA,TH);KDH212,22#,LH222..02S,03S,06S,10S,12S,14S,16S;KDH212,TRH200,201,221..(02S,03S,05S,06S,13S)..(5F,6FC)..STD;KDH20#,213,LH20#,212,TRH203..(SMRF,SRF)..(02S,03S,05S,10S,11S,12S,13S,15S,16S) TYPE A:REFER ILLUST.	12/2013 - 12/2016	1
90401-16034	KDH223..4FC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..STD..(SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH213,222,223..(10S,11S,13S,16S)..(GEN,SA,VN);KDH201,202,203,212,LH202,222,TRH201..GCC,GEN,TH TYPE A:REFER ILLUST.	02/2019 - 12/2999	1
44412 - HOSE, RETURN
44412-26430	KDH20#,LH20#	12/2013 - 12/2016	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-60370	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	1
44443 - BRACKET, PUMP
44443-26120	LH20#..4D;LH222..LHD	12/2013 - 12/2999	1
Common parts
90105-10042
90105-10113
90105-10255
90105-12109
90179-10087
90467-16019
90467-21010
91611-B0816
91651-60816
Linked diagrams
1605
4502
4505

LH202R-REMDE (2013)

(1312- )LH20#..RHD
