LH202L-RDMDE (2005)
Toyota Hiace

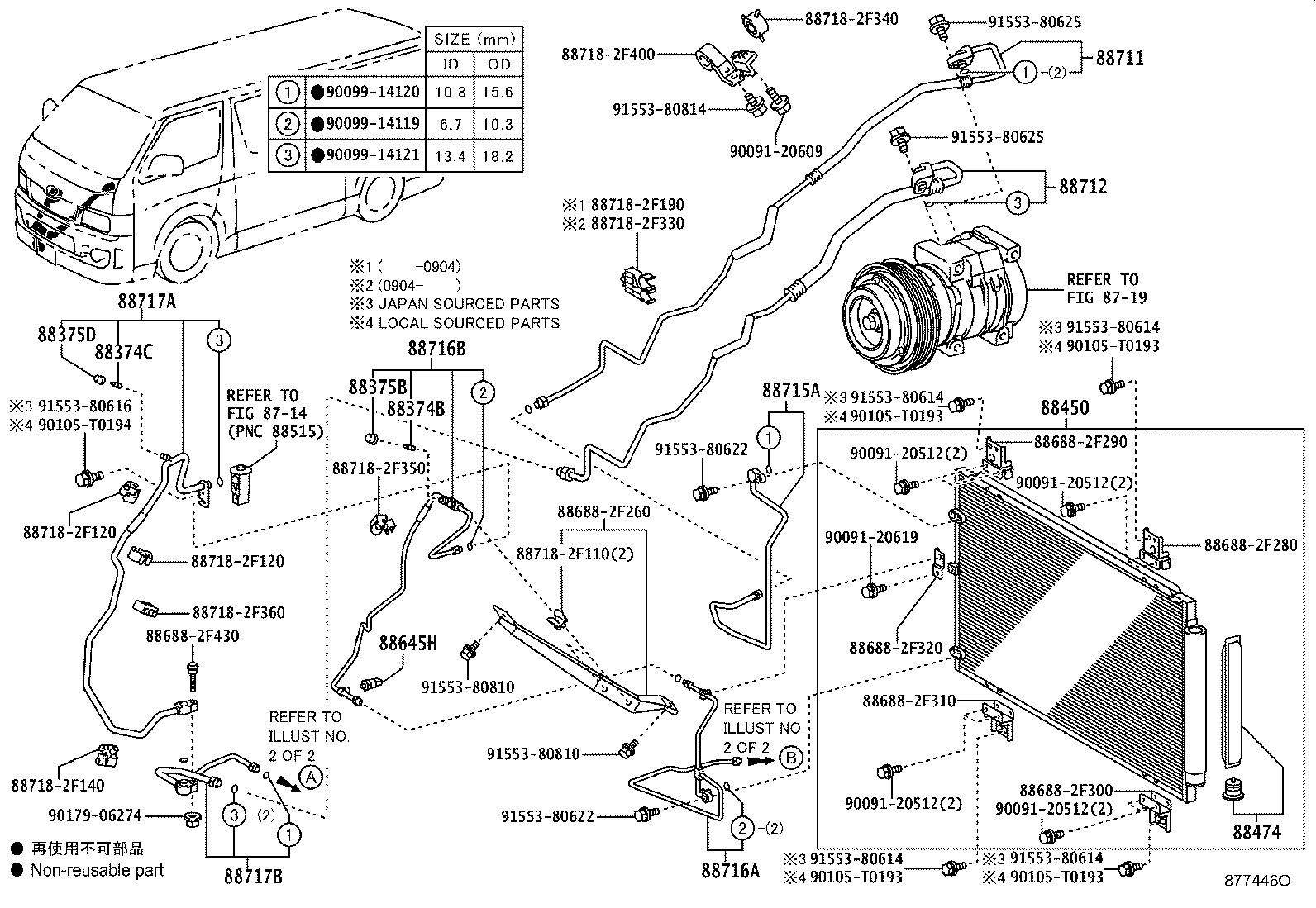

ILLUST NO. 1 OF 2(0501-1008)KDH200,202..LHD..5F..GEN ; (0501-)KDH202..4FC
FRONT:DUAL A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-26120 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-2F191 |
LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88711-2F192 |
LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2F211 |
LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26390 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-2F630 |
KDH202,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88710-2F631 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2N220 |
LH202..LHD AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| Common parts | ||||
| 88688-2F260 | ||||
| 88688-2F280 | ||||
| 88688-2F290 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88718-2F120 | ||||
| 88718-2F140 | ||||
| 88718-2F180 | ||||
| 88718-2F250 | ||||
| 88718-2F330 | ||||
| 88718-2F340 | ||||
| 88718-2F350 | ||||
| 90091-20512 | ||||
| 90091-20619 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90105-T0193 | ||||
| 90105-T0194 | ||||
| 91553-80614 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80810 | ||||
| 91553-80814 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

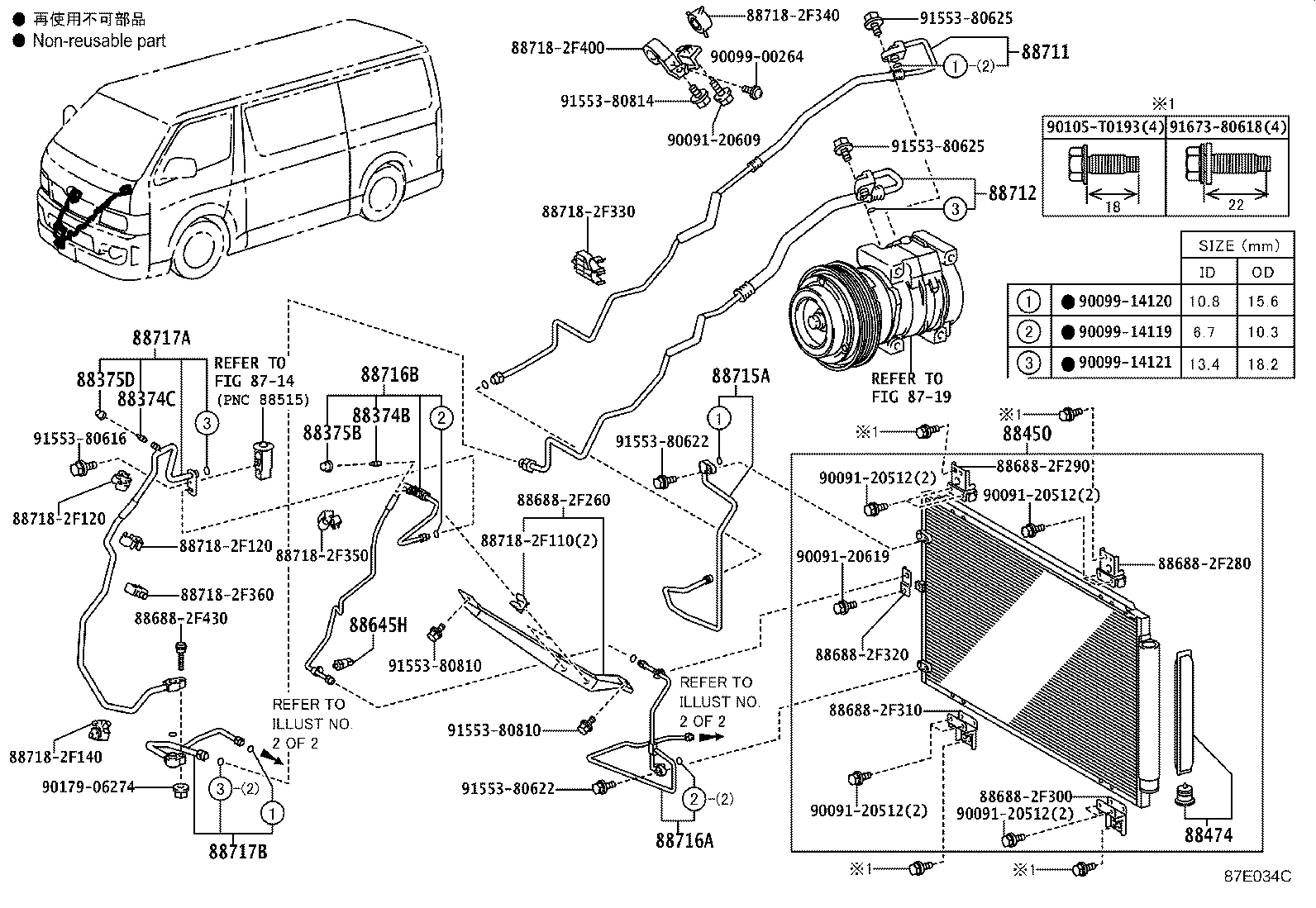

ILLUST NO. 1 OF 2(0501-1008)KDH200..RHD..03S..5F..GEN,MA,SA,TH ;(0501- )KDH200..5F..ARL ; (0501-
FRONT:SINGLE A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-26120 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-2F191 |
LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88711-2F192 |
LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2F211 |
LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26390 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-2F630 |
KDH202,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88710-2F631 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2N220 |
LH202..LHD AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2F570 |
LH202..LHD AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| Common parts | ||||
| 88688-2F260 | ||||
| 88688-2F280 | ||||
| 88688-2F290 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88718-2F110 | ||||
| 88718-2F120 | ||||
| 88718-2F140 | ||||
| 88718-2F180 | ||||
| 88718-2F250 | ||||
| 88718-2F330 | ||||
| 88718-2F340 | ||||
| 88718-2F350 | ||||
| 90091-20512 | ||||
| 90091-20619 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90105-T0193 | ||||
| 90105-T0194 | ||||
| 91553-80614 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80810 | ||||
| 91553-80814 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 1 OF 2(0501- )LH20#..LHD
FRONT:DUAL A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-26120 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-2F191 |
LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88711-2F192 |
LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2F211 |
LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26390 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-2F630 |
KDH202,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88710-2F631 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2N220 |
LH202..LHD AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2F570 |
LH202..LHD AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-2F551 |
LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| Common parts | ||||
| 88688-2F260 | ||||
| 88688-2F280 | ||||
| 88688-2F290 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88688-2F430 | ||||
| 88718-2F110 | ||||
| 88718-2F120 | ||||
| 88718-2F140 | ||||
| 88718-2F190 | ||||
| 88718-2F330 | ||||
| 88718-2F340 | ||||
| 88718-2F350 | ||||
| 88718-2F360 | ||||
| 88718-2F400 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-T0193 | ||||
| 90105-T0194 | ||||
| 90179-06274 | ||||
| 91553-80614 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80810 | ||||
| 91553-80814 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 1 OF 2(0501-0512)TRH213..10S ; (0501- )TRH22#..LHD..CIS,GEN ; (0508-0512)TRH213..STD ;
FRONT:DUAL A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-26120 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-2F191 |
LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88711-2F192 |
LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2F211 |
LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26390 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-2F630 |
KDH202,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88710-2F631 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2N220 |
LH202..LHD AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2F570 |
LH202..LHD AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| Common parts | ||||
| 88688-2F280 | ||||
| 88688-2F290 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88688-2F391 | ||||
| 88718-27030 | ||||
| 88718-2F110 | ||||
| 88718-2F120 | ||||
| 88718-2F140 | ||||
| 88718-2F161 | ||||
| 88718-2F170 | ||||
| 88718-2F190 | ||||
| 88718-2F250 | ||||
| 88718-2F330 | ||||
| 88718-2F340 | ||||
| 88718-2F350 | ||||
| 88718-2F430 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90091-20801 | ||||
| 90099-00259 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90105-T0193 | ||||
| 90105-T0194 | ||||
| 91553-80614 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80810 | ||||
| 91553-80814 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 2 OF 2(0610-0709)KDH200..06S ; (0610- )KDH201..RHD; (0610- )KDH202..SRF ; (0610-
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88515A - VALVE, COOLER EXPANSION | ||||
| 88515-26090 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88515-26090 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-2F780 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88710-2F780 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2 | ||||
| 88710-2F840 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88710-2F840 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-26050 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88714-26050 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-2N170 |
LH202,TRH203..SRF AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88716-2N170 |
LH202,TRH203..SRF AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88715-26451 |
LH202,TRH203..SRF AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88715-26451 |
LH202,TRH203..SRF AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88891H - COVER, COOLER, NO.1 | ||||
| 88891-26250 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88891-26250 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88891Q - COVER, COOLER, NO.2 | ||||
| 88891-26270 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS),NO.1 |
1 | ||
| 88891-26270 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS),NO.1 |
1 | ||
| 88891-26280 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS),NO.2 |
1 | ||
| 88891-26280 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS),NO.2 |
1 | ||
| 88891Q - COVER, COOLER, NO.2 | ||||
| 88891-26270 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS),NO.1 |
1 | ||
| 88891-26270 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS),NO.1 |
1 | ||
| 88891-26280 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS),NO.2 |
1 | ||
| 88891-26280 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS),NO.2 |
1 | ||
| Common parts | ||||
| 88718-2F070 | ||||
| 88718-2F080 | ||||
| 88718-2F090 | ||||
| 88718-2F200 | ||||
| 88718-2F210 | ||||
| 88718-2F220 | ||||
| 90099-00259 | ||||
| 90099-00968 | ||||
| 90099-04492 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 91553-80630 | ||||
| 91553-80814 | ||||
| 91673-80620 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 2 OF 2(0611-0709)TRH223..GL..GCC ; (0611- )LH222,TRH221 ; (0611- )TRH223..GL..SA ;
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88515A - VALVE, COOLER EXPANSION | ||||
| 88515-26090 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88515-26090 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-2F780 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88710-2F780 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2 | ||||
| 88710-2F840 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88710-2F840 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-26050 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88714-26050 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-2N170 |
LH202,TRH203..SRF AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88716-2N170 |
LH202,TRH203..SRF AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88715-26451 |
LH202,TRH203..SRF AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88715-26451 |
LH202,TRH203..SRF AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88891H - COVER, COOLER, NO.1 | ||||
| 88891-26250 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88891-26250 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88891Q - COVER, COOLER, NO.2 | ||||
| 88891-26270 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS),NO.1 |
1 | ||
| 88891-26270 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS),NO.1 |
1 | ||
| 88891-26280 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS),NO.2 |
1 | ||
| 88891-26280 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS),NO.2 |
1 | ||
| 88891Q - COVER, COOLER, NO.2 | ||||
| 88891-26270 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS),NO.1 |
1 | ||
| 88891-26270 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS),NO.1 |
1 | ||
| 88891-26280 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS),NO.2 |
1 | ||
| 88891-26280 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS),NO.2 |
1 | ||
| Common parts | ||||
| 88718-2F070 | ||||
| 88718-2F080 | ||||
| 88718-2F090 | ||||
| 88718-2F200 | ||||
| 88718-2F210 | ||||
| 88718-2F220 | ||||
| 90099-00264 | ||||
| 90099-00968 | ||||
| 90099-04492 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 91553-80814 | ||||
| 91673-80620 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 1 OF 2(1008- )KDH200,202..LHD..GEN
FRONT:DUAL A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-26120 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-2F191 |
LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88711-2F192 |
LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2F211 |
LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26390 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-2F630 |
KDH202,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88710-2F631 |
KDH202,203,LH202,TRH203..SRF..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2N220 |
LH202..LHD AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2F570 |
LH202..LHD AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| Common parts | ||||
| 88688-2F260 | ||||
| 88688-2F280 | ||||
| 88688-2F290 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88718-2F120 | ||||
| 88718-2F140 | ||||
| 88718-2F250 | ||||
| 88718-2F330 | ||||
| 88718-2F350 | ||||
| 88718-2F490 | ||||
| 88718-2F500 | ||||
| 90091-20512 | ||||
| 90091-20619 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90105-T0193 | ||||
| 90105-T0194 | ||||
| 91553-80614 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80810 | ||||
| 91553-80814 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
(1312-2005)LH20#..LHD
FRONT:DUAL A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88688-2F260 | ||||
| 88688-2F280 | ||||
| 88688-2F290 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88688-2F430 | ||||
| 88718-2F110 | ||||
| 88718-2F120 | ||||
| 88718-2F140 | ||||
| 88718-2F330 | ||||
| 88718-2F340 | ||||
| 88718-2F350 | ||||
| 88718-2F360 | ||||
| 88718-2F400 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90099-00264 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-T0193 | ||||
| 90179-06274 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80810 | ||||
| 91553-80814 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
(1312-2005)KDH200,202..LHD..GEN
FRONT:DUAL A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88688-2F260 | ||||
| 88688-2F280 | ||||
| 88688-2F290 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88718-2F110 | ||||
| 88718-2F120 | ||||
| 88718-2F140 | ||||
| 88718-2F161 | ||||
| 88718-2F250 | ||||
| 88718-2F330 | ||||
| 88718-2F350 | ||||
| 88718-2F490 | ||||
| 88718-2F500 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90099-00264 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90105-T0193 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80810 | ||||
| 91553-80814 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
