LH202L-RDMDE (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013
Engine 5LE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

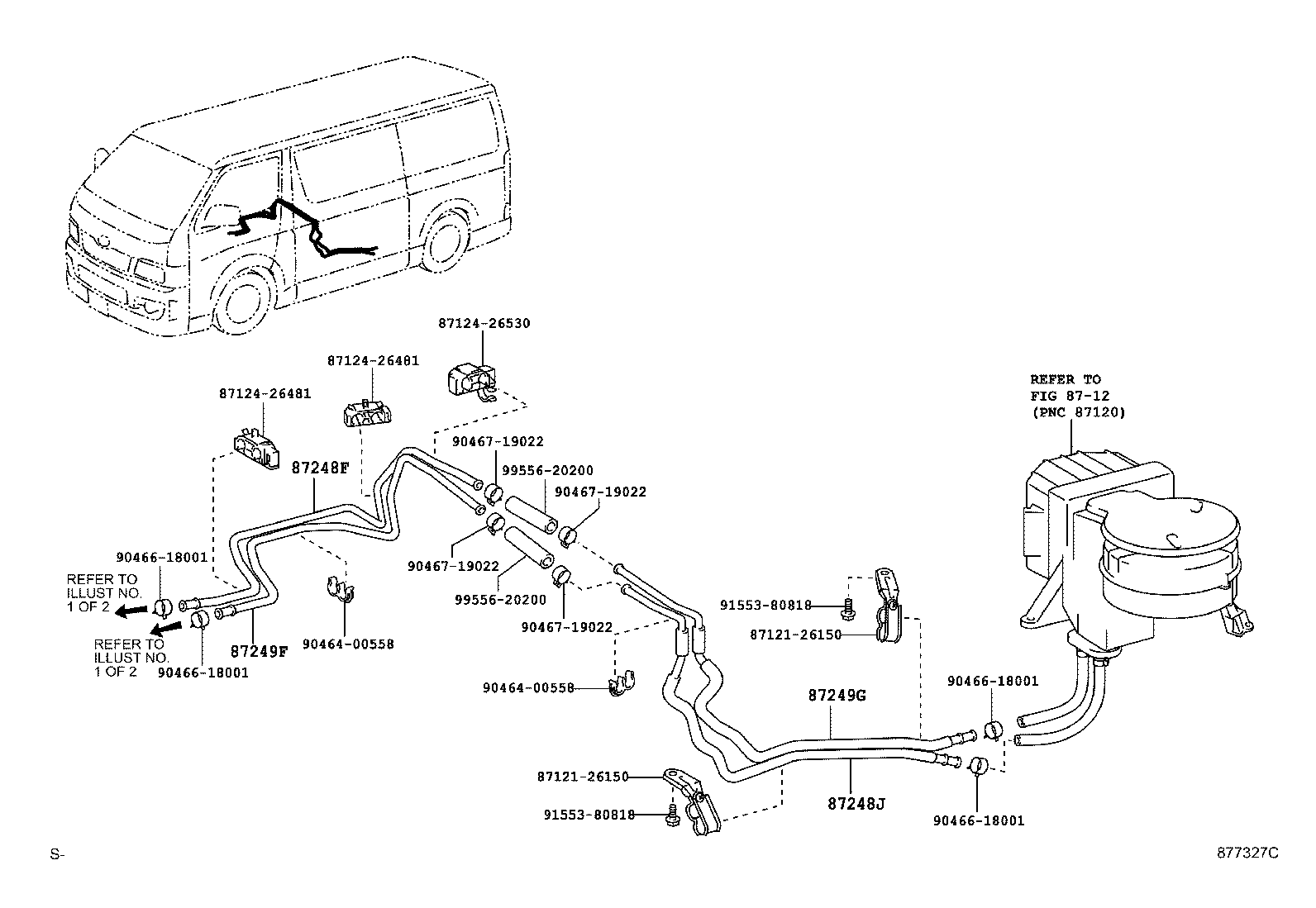

ILLUST NO. 2 OF 2(0501- )KDH222,TRH223..GL..SA ; (0501- )TRH223..RHD..5F..ARL,GEN ; (0501-

Click highlighted areas on diagram

REAR

diagram 8712 8712126130 8712126140 8712426481 8712426481 87248F 87249F 9009900275 9009900275 9046618001 9046618001 9046618001 9046618001 9155380818 9155380818
Part # Description Qty Price
87248F - PIPE, HEATER WATER INLET, F
87248-26830

KDH202,203,LH202,TRH203..LHD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87248-26830

KDH202,203,LH202,TRH203..LHD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87248-26830

KDH202,203,LH202..12S..GEN

AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)

 1
87248-26830

KDH202,203,LH202..12S..GEN

AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)

 1
87249F - PIPE, HEATER WATER OUTLET, F
87248-26820

KDH202,203,LH202,TRH203..LHD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87248-26820

KDH202,203,LH202,TRH203..LHD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87248-26820

KDH202,203,LH202..12S..GEN

AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)

 1
87248-26820

KDH202,203,LH202..12S..GEN

AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)

 1
Common parts
87121-26130
87121-26140
87124-26481
90099-00275
90466-18001
91553-80818
Linked diagrams
8712

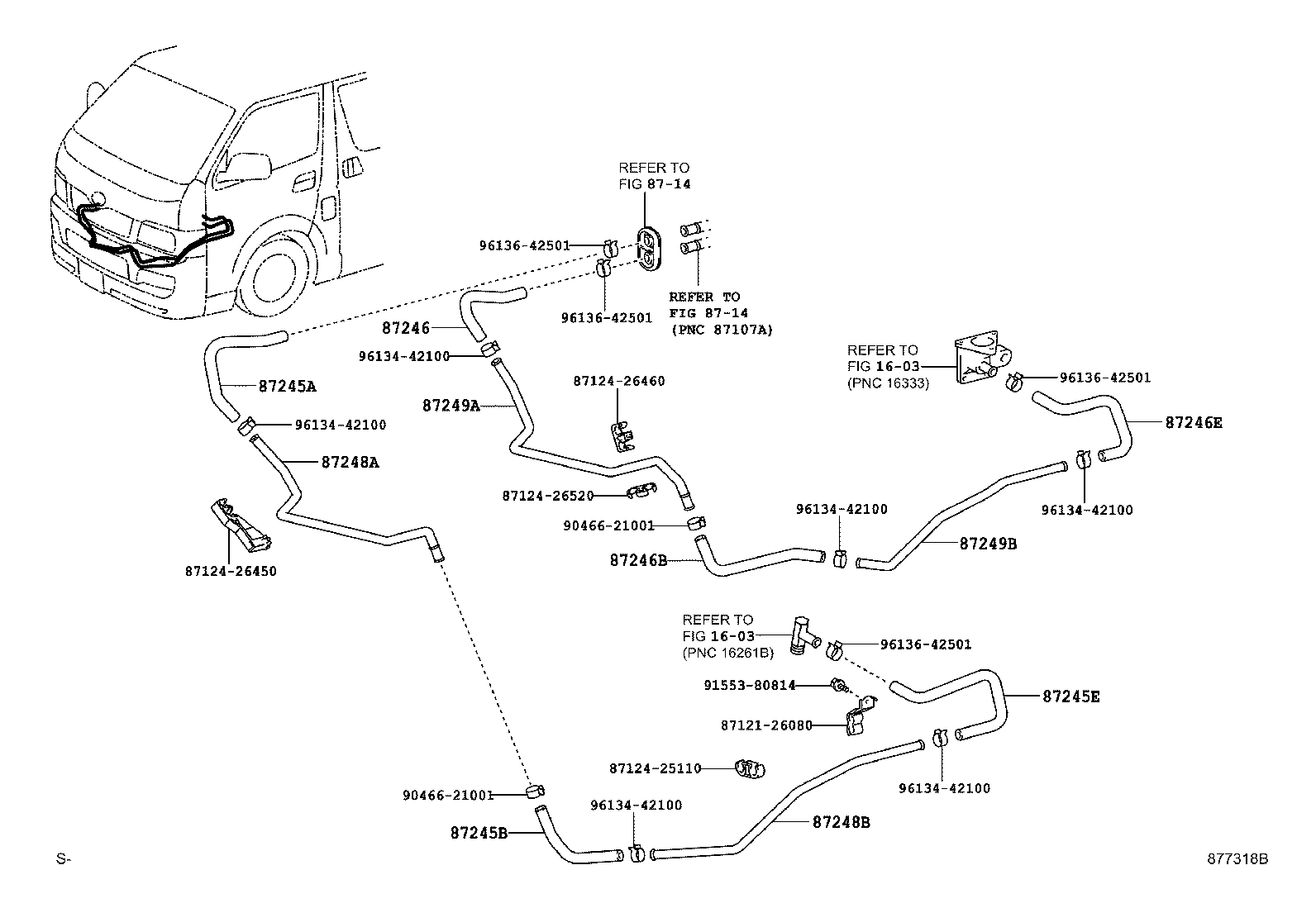

ILLUST NO. 1 OF 2(0501-0709)KDH202..4FC ; (0501-0709)KDH200..06S..GCC ; (0501- )KDH200,202..LHD..

Click highlighted areas on diagram

FRONT

diagram 1603 1603 8712126100 8712426450 8712426460 8712426520 8714 8714 87245A 87245B 87245E 87246 87246B 87248A 87248B 87249A 9155380814 9613442100 9613442100 9613442100 9613442100 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-26B00

KDH200,202,LH20#,TRH201,203..LHD

FRONT HEATER-WITH

 1
87245-26B00

KDH200,202..LHD..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00

KDH200,202..LHD..5F..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87245-26B40

LH202;TRH203..LHD..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26C00

KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S)

FRONT HEATER-WITH

 1
87245-26B40

TRH201..06S..GCC;LH20#,TRH203..SRF;TRH201..03S..(GCC,GEN)

FRONT HEATER-WITH

 1
87245E - HOSE, HEATER WATER, INLET E
87245-26C10

KDH200,202..LHD..5F..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87245-26C90

LH20#

FRONT HEATER-WITH

 1
87245-26C10

KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S)

FRONT HEATER-WITH

 1
87245-26C90

LH202

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-26B10

KDH200,202,LH20#,TRH201,203..LHD

FRONT HEATER-WITH

 1
87245-26B10

KDH200,202..LHD..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26C80

KDH200,202..LHD..5F..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87245-26B50

LH202;TRH203..LHD..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26B50

TRH201..06S..GCC;LH20#,TRH203..SRF;TRH201..03S..(GCC,GEN)

FRONT HEATER-WITH

 1
87245-26C80

KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S)

FRONT HEATER-WITH

 1
87248A - PIPE, HEATER WATER INLET, A
87248-26420

KDH200,202..LHD..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87248-26420

KDH200,202,LH20#,TRH201,203..LHD

FRONT HEATER-WITH

 1
87248B - PIPE, HEATER WATER INLET, B
87248-26570

KDH200,202..LHD..5F..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87248-26600

LH202

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87248-26570

KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S)

FRONT HEATER-WITH

 1
87248-26620

LH20#

FRONT HEATER-WITH

 1
87248-26601

LH202

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26430

KDH200,202..LHD..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87248-26430

KDH200,202,LH20#,TRH201,203..LHD

FRONT HEATER-WITH

 1
Common parts
87121-26100
87124-26450
87124-26460
87124-26520
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714

ILLUST NO. 1 OF 2(0501- )LH20#..LHD

Click highlighted areas on diagram

FRONT

diagram 1603 1603 8712126080 8712425110 8712426450 8712426460 8712426520 8714 8714 87245A 87245B 87245E 87246 87246B 87246E 87248A 87248B 87249A 87249B 9046621001 9046621001 9155380814 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-26B00

KDH200,202,LH20#,TRH201,203..LHD

FRONT HEATER-WITH

 1
87245-26B00

KDH200,202..LHD..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00

KDH200,202..LHD..5F..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87245-26B40

LH202;TRH203..LHD..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26C00

KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S)

FRONT HEATER-WITH

 1
87245-26B40

TRH201..06S..GCC;LH20#,TRH203..SRF;TRH201..03S..(GCC,GEN)

FRONT HEATER-WITH

 1
87245E - HOSE, HEATER WATER, INLET E
87245-26C10

KDH200,202..LHD..5F..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87245-26C90

LH20#

FRONT HEATER-WITH

 1
87245-26C10

KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S)

FRONT HEATER-WITH

 1
87245-26C90

LH202

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-26B10

KDH200,202,LH20#,TRH201,203..LHD

FRONT HEATER-WITH

 1
87245-26B10

KDH200,202..LHD..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26C80

KDH200,202..LHD..5F..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87245-26B50

LH202;TRH203..LHD..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26B50

TRH201..06S..GCC;LH20#,TRH203..SRF;TRH201..03S..(GCC,GEN)

FRONT HEATER-WITH

 1
87245-26C80

KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S)

FRONT HEATER-WITH

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26D00

LH202

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26D00

LH20#

FRONT HEATER-WITH

 1
87248A - PIPE, HEATER WATER INLET, A
87248-26420

KDH200,202..LHD..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87248-26420

KDH200,202,LH20#,TRH201,203..LHD

FRONT HEATER-WITH

 1
87248B - PIPE, HEATER WATER INLET, B
87248-26570

KDH200,202..LHD..5F..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87248-26600

LH202

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87248-26570

KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S)

FRONT HEATER-WITH

 1
87248-26620

LH20#

FRONT HEATER-WITH

 1
87248-26601

LH202

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26430

KDH200,202..LHD..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87248-26430

KDH200,202,LH20#,TRH201,203..LHD

FRONT HEATER-WITH

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26610

LH202

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87248-26630

LH20#,212,222..03S,12S,15S,16S

FRONT HEATER-WITH

 1
Common parts
87121-26080
87124-25110
87124-26450
87124-26460
87124-26520
90466-21001
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714

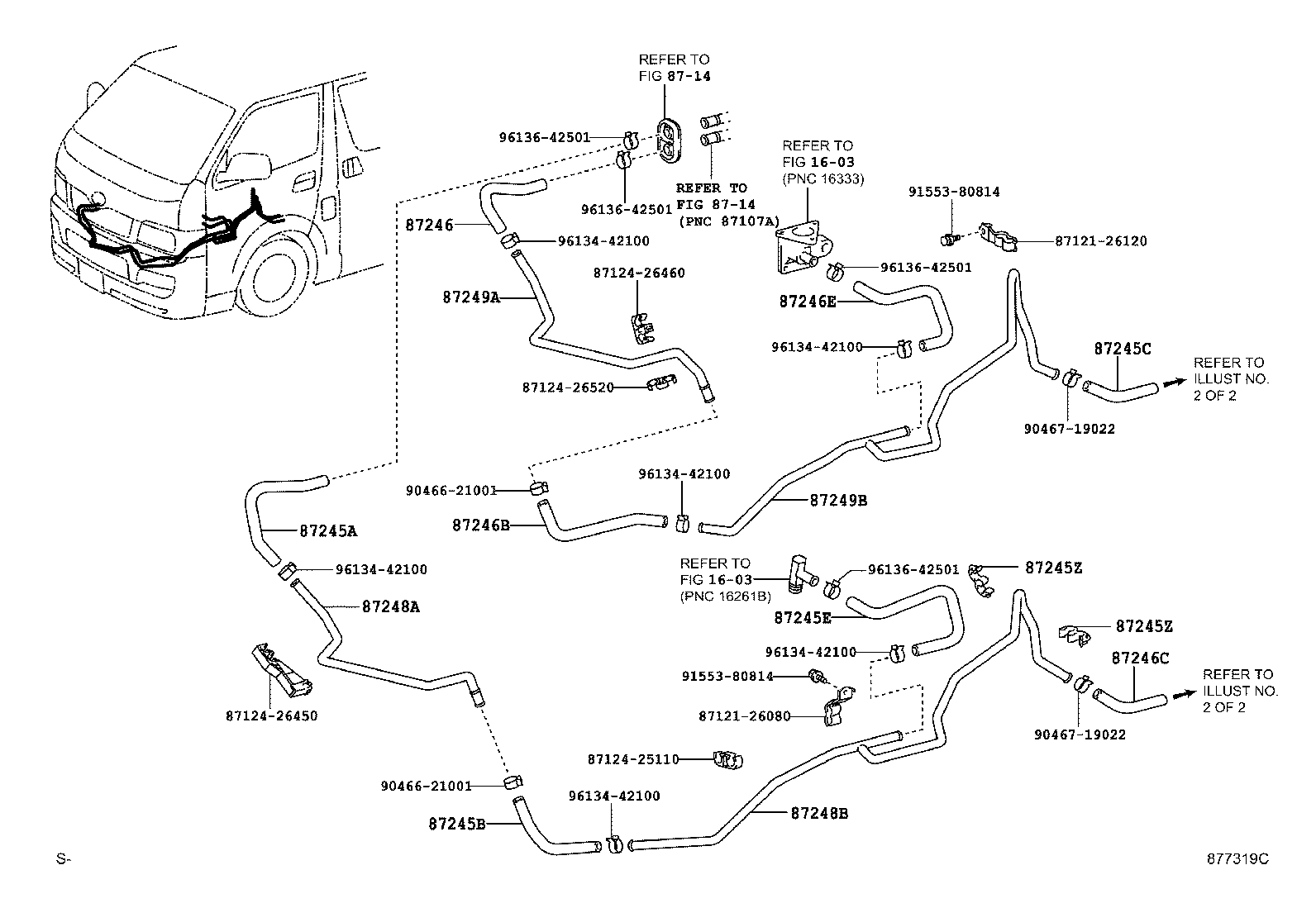

ILLUST NO. 1 OF 2(0501- )LH202..LHD

Click highlighted areas on diagram

FRONT:W(REAR HEATER)

diagram 1603 1603 8712126080 8712126120 8712425110 8712426450 8712426460 8712426520 8714 8714 87245A 87245B 87245C 87245E 87245Z 87245Z 87246 87246B 87246C 87246E 87248A 87248B 87249A 87249B 9046621001 9046621001 9046719022 9046719022 9155380814 9155380814 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-26B00

KDH200,202,LH20#,TRH201,203..LHD

FRONT HEATER-WITH

 1
87245-26B00

KDH200,202..LHD..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00

KDH200,202..LHD..5F..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87245-26B40

LH202;TRH203..LHD..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26C00

KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S)

FRONT HEATER-WITH

 1
87245-26B40

TRH201..06S..GCC;LH20#,TRH203..SRF;TRH201..03S..(GCC,GEN)

FRONT HEATER-WITH

 1
87245C - HOSE, HEATER WATER ,INLET C
99556-20220

LH202,222

*H,L=220,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
99556-20300

LH202,222

*H,L=210,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-26C10

KDH200,202..LHD..5F..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87245-26C90

LH20#

FRONT HEATER-WITH

 1
87245-26C10

KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S)

FRONT HEATER-WITH

 1
87245-26C90

LH202

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
90464-00558

LH202,222

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 2
87124-26590

LH202,222

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 2
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
90464-00558

LH202,222

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 2
87124-26590

LH202,222

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 2
87246 - HOSE, HEATER WATER, OUTLET
87245-26B10

KDH200,202,LH20#,TRH201,203..LHD

FRONT HEATER-WITH

 1
87245-26B10

KDH200,202..LHD..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26C80

KDH200,202..LHD..5F..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87245-26B50

LH202;TRH203..LHD..GEN

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26B50

TRH201..06S..GCC;LH20#,TRH203..SRF;TRH201..03S..(GCC,GEN)

FRONT HEATER-WITH

 1
87245-26C80

KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S)

FRONT HEATER-WITH

 1
87246C - HOSE, HEATER WATER, OUTLET C
99556-20300

LH202,222

*H,L=210,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
99556-20220

LH202,222

*H,L=220,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26D00

LH202

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87245-26D00

LH20#

FRONT HEATER-WITH

 1
87248A - PIPE, HEATER WATER INLET, A
87248-26420

KDH200,202..LHD..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87248-26420

KDH200,202,LH20#,TRH201,203..LHD

FRONT HEATER-WITH

 1
87248B - PIPE, HEATER WATER INLET, B
87248-26570

KDH200,202..LHD..5F..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87248-26600

LH202

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87248-26570

KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S)

FRONT HEATER-WITH

 1
87248-26620

LH20#

FRONT HEATER-WITH

 1
87248-26601

LH202

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26430

KDH200,202..LHD..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87248-26430

KDH200,202,LH20#,TRH201,203..LHD

FRONT HEATER-WITH

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26610

LH202

FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)

 1
87248-26630

LH20#,212,222..03S,12S,15S,16S

FRONT HEATER-WITH

 1
Common parts
87121-26080
87121-26120
87124-25110
87124-26450
87124-26460
87124-26520
90466-21001
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714

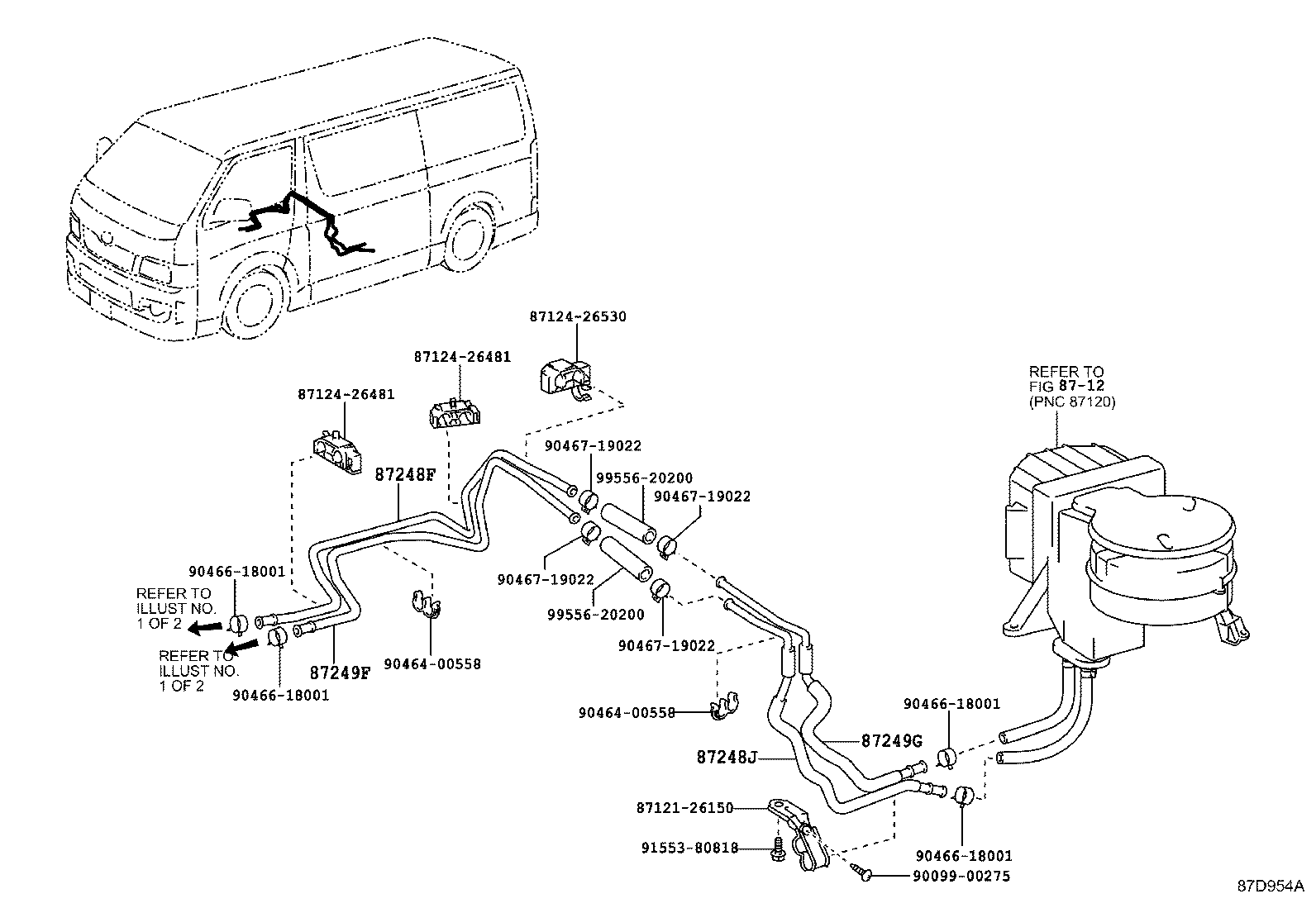

ILLUST NO. 2 OF 2(0501-0709)KDH202..4FC ; (0501- )KDH202,203,LH202,TRH203..LHD..12S..5F

Click highlighted areas on diagram

REAR

diagram 8712 8712126150 8712126150 8712426481 8712426481 8712426530 87248F 87248J 87249F 87249G 9046400558 9046400558 9046618001 9046618001 9046618001 9046618001 9046719022 9046719022 9046719022 9046719022 9155380818 9155380818 9955620200 9955620200
Part # Description Qty Price
87248F - PIPE, HEATER WATER INLET, F
87248-26830

KDH202,203,LH202,TRH203..LHD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87248-26830

KDH202,203,LH202..12S..GEN

AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)

 1
87248J - PIPE, HEATER WATER INLET, J
87248-26720

KDH222,TRH223..16S..GL;KDH202,203,222,LH202,222,TRH223..LHD..(12S,16S)..5F..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87248-26740

KDH202,203,LH202..12S..GEN

AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)

 1
87249F - PIPE, HEATER WATER OUTLET, F
87248-26820

KDH202,203,LH202,TRH203..LHD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87248-26820

KDH202,203,LH202..12S..GEN

AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)

 1
87249G - PIPE, HEATER WATER OUTLET, G
87248-26730

KDH222,TRH223..16S..GL;KDH202,203,222,LH202,222,TRH223..LHD..(12S,16S)..5F..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87248-26750

KDH202,203,LH202..12S..GEN

AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)

 1
Common parts
87121-26150
87124-26481
87124-26530
90464-00558
90466-18001
90467-19022
91553-80818
99556-20200
Linked diagrams
8712

ILLUST NO. 2 OF 2(0501- )TRH223..LHD..STD..GEN ; (0501- )KDH222,223,LH222..LHD..GEN,RUS ; (050

Click highlighted areas on diagram

REAR

diagram 8712 8712126150 8712126150 8712426481 8712426481 8712426530 87248F 87248J 87249F 87249G 9046400558 9046618001 9046618001 9046618001 9046618001 9046719022 9046719022 9046719022 9046719022 9155380818 9155380818 9955620200 9955620200
Part # Description Qty Price
87248F - PIPE, HEATER WATER INLET, F
87248-26830

KDH202,203,LH202,TRH203..LHD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87248-26830

KDH202,203,LH202,TRH203..LHD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87248-26830

KDH202,203,LH202..12S..GEN

AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)

 1
87248-26830

KDH202,203,LH202..12S..GEN

AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)

 1
87248J - PIPE, HEATER WATER INLET, J
87248-26720

KDH222,TRH223..16S..GL;KDH202,203,222,LH202,222,TRH223..LHD..(12S,16S)..5F..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87248-26720

KDH222,TRH223..16S..GL;KDH202,203,222,LH202,222,TRH223..LHD..(12S,16S)..5F..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87248-26740

KDH202,203,LH202..12S..GEN

AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)

 1
87248-26740

KDH202,203,LH202..12S..GEN

AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)

 1
87249F - PIPE, HEATER WATER OUTLET, F
87248-26820

KDH202,203,LH202,TRH203..LHD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87248-26820

KDH202,203,LH202,TRH203..LHD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87248-26820

KDH202,203,LH202..12S..GEN

AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)

 1
87248-26820

KDH202,203,LH202..12S..GEN

AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)

 1
87249G - PIPE, HEATER WATER OUTLET, G
87248-26730

KDH222,TRH223..16S..GL;KDH202,203,222,LH202,222,TRH223..LHD..(12S,16S)..5F..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87248-26730

KDH222,TRH223..16S..GL;KDH202,203,222,LH202,222,TRH223..LHD..(12S,16S)..5F..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87248-26750

KDH202,203,LH202..12S..GEN

AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)

 1
87248-26750

KDH202,203,LH202..12S..GEN

AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)

 1
Common parts
87121-26150
87124-26481
87124-26530
90464-00558
90466-18001
90467-19022
91553-80818
99556-20200
Linked diagrams
8712

(1312-2005)KDH202,203,LH202..12S..GEN

Click highlighted areas on diagram

REAR

diagram 8712 8712126150 8712126150 8712426481 8712426481 8712426530 87248F 87248J 87249F 87249G 9009900275 9009900275 9046400558 9046400558 9046618001 9046618001 9046618001 9046618001 9046719022 9046719022 9046719022 9046719022 9155380818 9155380818 9955620200 9955620200
Part # Description Qty Price
Common parts
87121-26150
87124-26481
87124-26530
90099-00275
90464-00558
90466-18001
90467-19022
91553-80818
99556-20200
Linked diagrams
8712

(1312-2005)KDH203..12S..GEN ; (1312-2005)KDH202,LH202,TRH203..LHD..GEN

Click highlighted areas on diagram

REAR

diagram 8712 8712126150 8712426481 8712426481 8712426530 87248F 87248J 87249F 87249G 9009900275 9046400558 9046400558 9046618001 9046618001 9046618001 9046618001 9046719022 9046719022 9046719022 9046719022 9155380818 9955620200 9955620200
Part # Description Qty Price
Common parts
87121-26150
87124-26481
87124-26530
90099-00275
90464-00558
90466-18001
90467-19022
91553-80818
99556-20200
Linked diagrams
8712

(1312-1712)KDH222..RHD..GL ; (1312-1712)KDH222..RHD..STD..GEN ; (1312-1712)KDH202,2

Click highlighted areas on diagram

FRONT:W(REAR HEATER)

diagram 1603 1603 8712126100 8712126110 8712426450 8712426460 8712426481 8712426520 8712426590 8712426590 8712426590 87124A 8714 8714 87245A 87245B 87245C 87245D 87245E 87245H 87246 87246B 87246C 87246D 87246E 87248A 87248B 87248C 87249A 87249B 87249C 87249C 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9155380814 9155380814 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
Common parts
87121-26100
87121-26110
87124-26450
87124-26460
87124-26481
87124-26520
87124-26590
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714

(1312-1712)KDH222..GL..GCC ; (1312-1712)KDH222,223..LHD..12S,16S..GEN,RUS ; (1501-1

Click highlighted areas on diagram

FRONT:W(REAR HEATER)

diagram 1603 1603 8712126100 8712126110 8712426450 8712426460 8712426481 8712426520 8712426590 8712426590 8714 8714 87245A 87245B 87245C 87245D 87245E 87245H 87246 87246B 87246C 87246D 87246E 87248A 87248B 87248C 87249A 87249B 87249C 87249C 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9155380814 9155380814 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
Common parts
87121-26100
87121-26110
87124-26450
87124-26460
87124-26481
87124-26520
87124-26590
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714
