LH202L-RDMDE (2005)
Toyota Hiace
Production
Jan 2005
-
Dec 2013
Engine
5LE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0501- )LH20#..LHD

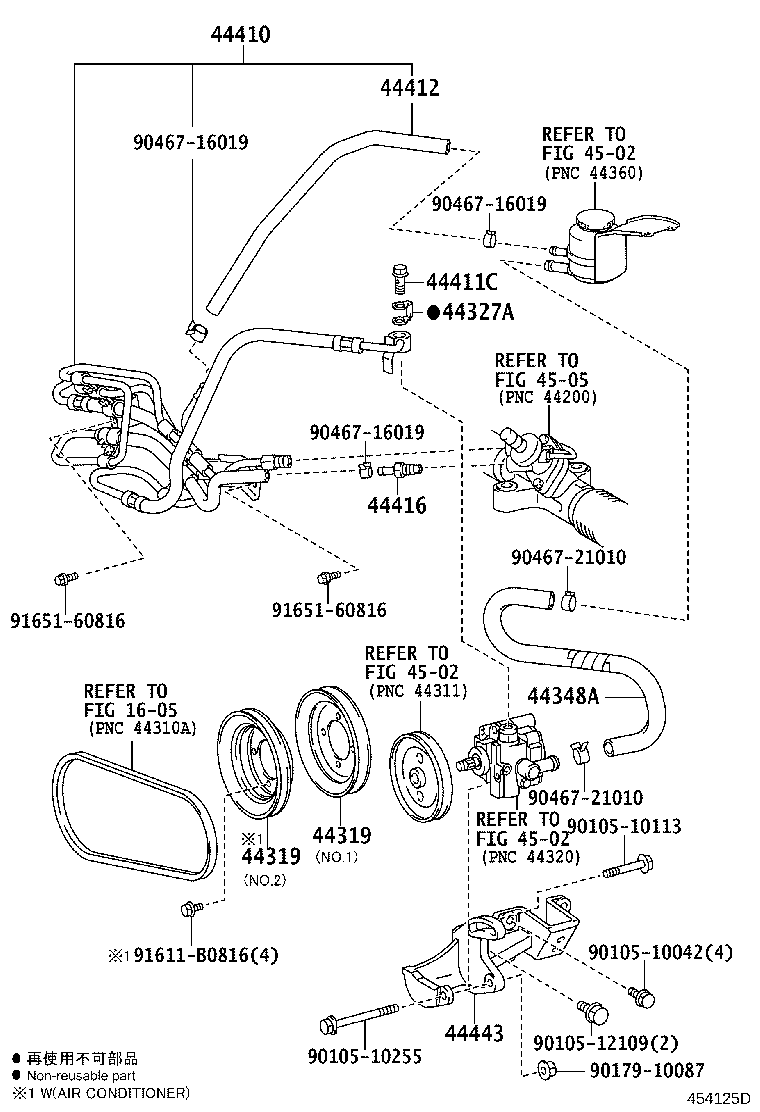

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-26070 |
LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS),NO.1 |
1 | ||
| 44319-26070 |
LH20#,212,222 |
1 | ||
| 44319-26050 |
LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS),NO.2 |
1 | ||
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-26070 |
LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS),NO.1 |
1 | ||
| 44319-26070 |
LH20#,212,222 |
1 | ||
| 44319-26050 |
LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS),NO.2 |
1 | ||
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30040 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-26270 |
LH20# |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-26B30 |
LH20#..LHD |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16014 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-26430 |
KDH20#,LH20# |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-26080 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-26120 |
LH20#,212,222 |
1 | ||
| Common parts | ||||
| 90105-10042 | ||||
| 90105-10113 | ||||
| 90105-10255 | ||||
| 90105-12109 | ||||
| 90179-10087 | ||||
| 90467-16019 | ||||
| 90467-21010 | ||||
| 91611-B0816 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 4502 | ||||
| 4505 | ||||
