LH202L-RDMDE (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013
Engine 5LE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )5LE

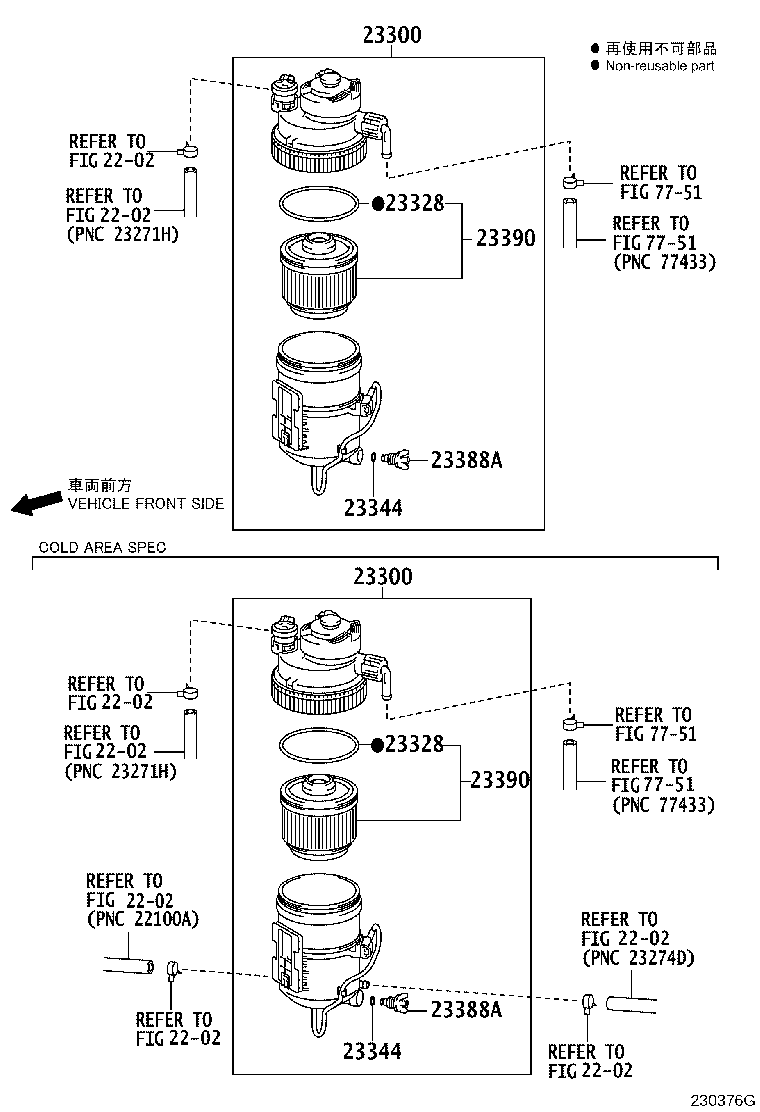

Click highlighted areas on diagram

diagram 2202 2202 2202 2202 2202 2202 2202 23300 23300 23328 23328 23344 23344 23388A 23388A 23390 23390 7751 7751
Part # Description Qty Price
23300 - FILTER ASSY, FUEL
23300-30210

5LE..LH20#,222

COLD AREA SPEC

 1
23300-30200

5LE..LH20#,212,222

 1
23300-30211

5LE..LH20#

COLD AREA SPEC

 1
23300-30213

5LE..LH20#

COLD AREA SPEC

 1
23300-30212

5LE..LH20#

COLD AREA SPEC

 1
23300-30202

5LE..LH20#,212,222

 1
23300-30201

5LE..LH20#,212,222

 1
23300-30215

5LE..LH20#

COLD AREA SPEC

 1
23300-30214

5LE..LH20#

COLD AREA SPEC

 1
23300-30216

5LE..LH20#

COLD AREA SPEC

 1
23300-30203

5LE..LH20#,212,222

 1
23300-30217

5LE..LH20#

COLD AREA SPEC

 1
23300-30204

5LE..LH20#,212,222

 1
23300 - FILTER ASSY, FUEL
23300-30210

5LE..LH20#,222

COLD AREA SPEC

 1
23300-30200

5LE..LH20#,212,222

 1
23300-30211

5LE..LH20#

COLD AREA SPEC

 1
23300-30213

5LE..LH20#

COLD AREA SPEC

 1
23300-30212

5LE..LH20#

COLD AREA SPEC

 1
23300-30202

5LE..LH20#,212,222

 1
23300-30201

5LE..LH20#,212,222

 1
23300-30215

5LE..LH20#

COLD AREA SPEC

 1
23300-30214

5LE..LH20#

COLD AREA SPEC

 1
23300-30216

5LE..LH20#

COLD AREA SPEC

 1
23300-30203

5LE..LH20#,212,222

 1
23300-30217

5LE..LH20#

COLD AREA SPEC

 1
23300-30204

5LE..LH20#,212,222

 1
23328 - GASKET(FOR FUEL FILTER)
23344-0L010

5LE..LH20#,212,222

 1
23328 - GASKET(FOR FUEL FILTER)
23344-0L010

5LE..LH20#,212,222

 1
23344 - GASKET, CLAMPING NUT(FOR FUEL FILTER)
23344-0L041

5LE..LH20#,212,222

 1
23344 - GASKET, CLAMPING NUT(FOR FUEL FILTER)
23344-0L041

5LE..LH20#,212,222

 1
23388A - PLUG, FUEL FILTER DRAIN
23388-0L041

5LE..LH20#,212,222

 1
23388A - PLUG, FUEL FILTER DRAIN
23388-0L041

5LE..LH20#,212,222

 1
23390 - ELEMENT ASSY, FUEL FILTER
23390-0L030

5LE..LH20#

COLD AREA SPEC

 1
23390-0L010

5LE..LH20#,212,222

 1
23390-0L041

5LE..LH20#,212,222

 1
23390 - ELEMENT ASSY, FUEL FILTER
23390-0L030

5LE..LH20#

COLD AREA SPEC

 1
23390-0L010

5LE..LH20#,212,222

 1
23390-0L041

5LE..LH20#,212,222

 1
Linked diagrams
2202
7751
