LH202L-RDMDE (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013
Engine 5LE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )5LE

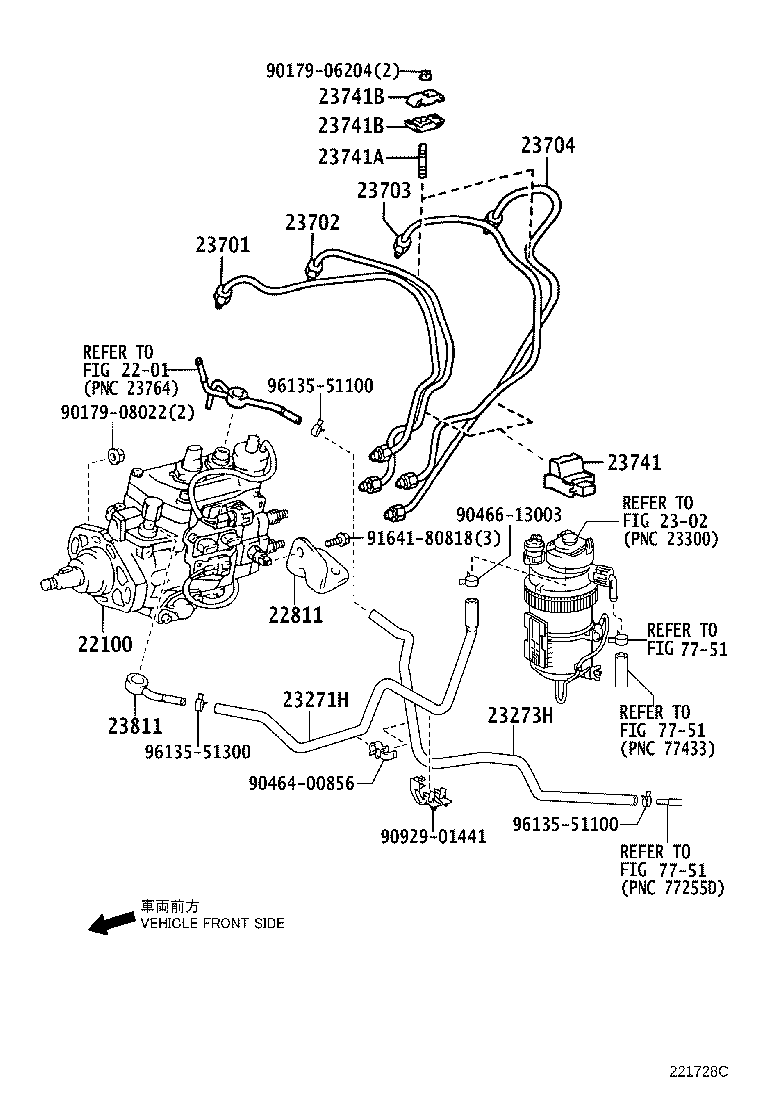

Click highlighted areas on diagram

diagram 2201 22100 22811 2302 23271H 23273H 23701 23702 23703 23704 23741 23741A 23741B 23741B 23811 7751 7751 7751 9017906204 9017908022 9046400856 9046613003 9092901441 9164180818 9613551100 9613551100 9613551300
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-5D180

5LE..LH20#,212,222..03S,12S,15S,16S

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-05020

5LE..LH20#,212,222

 1
22811-05021

5LE..LH20#,212,222..03S,12S,15S,16S

 1
23271H - HOSE, FUEL, NO.1
23271-54220

5LE..LH20#

 1
23273H - HOSE, FUEL, NO.2
23273-54150

5LE..LH20#

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-54140

5LE..LH20#,212,222..03S,12S,15S,16S

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-54140

5LE..LH20#,212,222..03S,12S,15S,16S

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-54100

5LE..LH20#,212,222..03S,12S,15S,16S

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-54100

5LE..LH20#,212,222..03S,12S,15S,16S

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54030

5LE..LH20#,212,222..03S,12S,15S,16S

 2
23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP)
90116-06095

5LE..LH20#,212,222..03S,12S,15S,16S

 2
23741B - CLAMP, INJECTION PIPE
23741-56010

5LE..LH20#,212,222..03S,12S,15S,16S

 4
23741B - CLAMP, INJECTION PIPE
23741-56010

5LE..LH20#,212,222..03S,12S,15S,16S

 4
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-54220

5LE..LH20#,212,222..03S,12S,15S,16S

 1
Common parts
90179-06204
90179-08022
90464-00856
90466-13003
90929-01441
91641-80818
96135-51100
96135-51300
Linked diagrams
2201
2302
7751

(0501- )5LE

Click highlighted areas on diagram

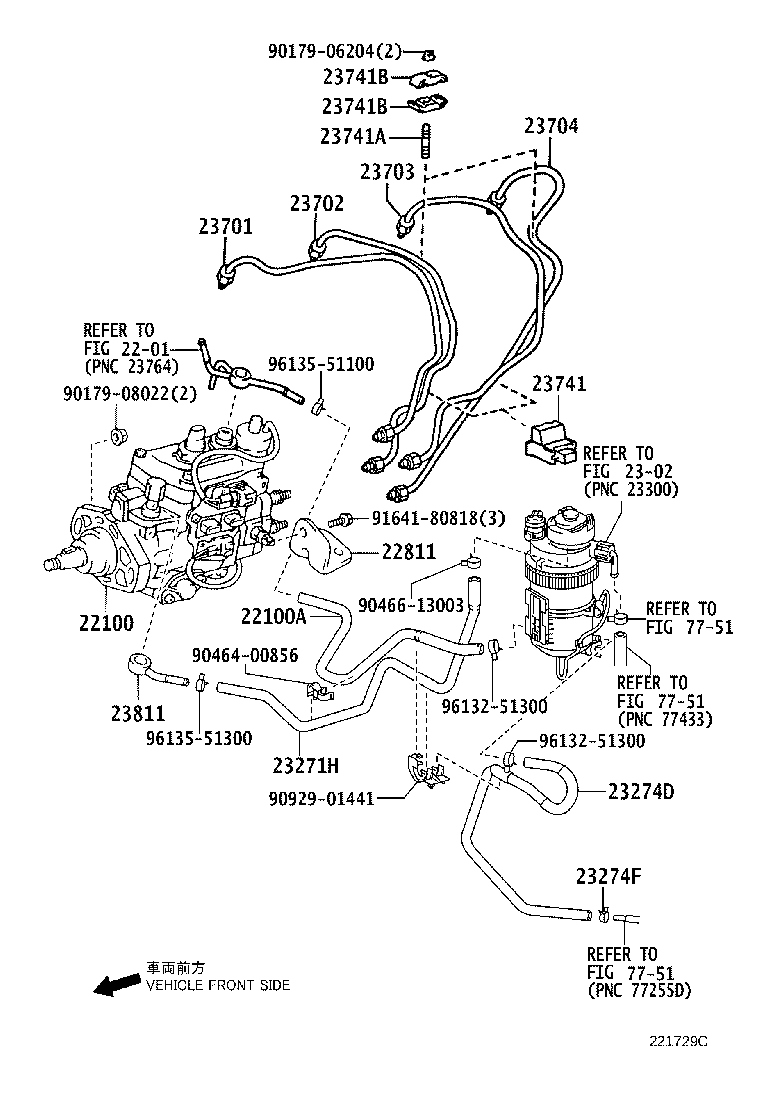

COLD SPEC

diagram 2201 22100 22100A 22811 2302 23271H 23274D 23274F 23701 23702 23703 23704 23741 23741A 23741B 23741B 23811 7751 7751 7751 9017906204 9017908022 9046400856 9046613003 9092901441 9164180818 9613251300 9613251300 9613551100 9613551300
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-5D180

5LE..LH20#,212,222..03S,12S,15S,16S

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23273-54160

5LE..LH20#

COLD AREA SPEC

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-05020

5LE..LH20#,212,222

 1
22811-05021

5LE..LH20#,212,222..03S,12S,15S,16S

 1
23271H - HOSE, FUEL, NO.1
23271-54220

5LE..LH20#

 1
23274D - HOSE, FUEL, NO.3
23274-54020

5LE..LH20#

COLD AREA SPEC

 1
23274F - CLIP(FOR FUEL HOSE NO.3)
96135-51100

5LE..LH20#

COLD AREA SPEC

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-54140

5LE..LH20#,212,222..03S,12S,15S,16S

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-54140

5LE..LH20#,212,222..03S,12S,15S,16S

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-54100

5LE..LH20#,212,222..03S,12S,15S,16S

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-54100

5LE..LH20#,212,222..03S,12S,15S,16S

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54030

5LE..LH20#,212,222..03S,12S,15S,16S

 2
23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP)
90116-06095

5LE..LH20#,212,222..03S,12S,15S,16S

 2
23741B - CLAMP, INJECTION PIPE
23741-56010

5LE..LH20#,212,222..03S,12S,15S,16S

 4
23741B - CLAMP, INJECTION PIPE
23741-56010

5LE..LH20#,212,222..03S,12S,15S,16S

 4
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-54220

5LE..LH20#,212,222..03S,12S,15S,16S

 1
Common parts
90179-06204
90179-08022
90464-00856
90466-13003
90929-01441
91641-80818
96132-51300
96135-51100
96135-51300
Linked diagrams
2201
2302
7751

(0705- )2KDFTV..KDH202..15S..GEN ; (0705-)2KDFTV..KDH202..HRF..GEN ; (0705-

Click highlighted areas on diagram

diagram 04226 1301 1301 1301 2201 2201 22100 22100S 2302 2302 23271H 23271H 23273H 23274D 23681A 23681A 23681A 23681A 23701 23702 23703 23704 23741 23742 23742A 23743 23743 23804C 23810A 7751 7751 8405 90105T0170 9011606173 9011906775 90119T0064 90119T0306 90178T0018 9017906208 9017908022 90182T0009 9025313008 90253T0003 9030149003 90301T0011 9046400723 9046400723 9046400723 90464T0004 90464T0004 9046613003 9046613003 9092901441 9092901441 9155281060 9163160625 91631G0614 9415180600 9613251300 9613251300 9613551300 9613551300 9613551300 9613551300 9613551300 9613551300
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-5D180

5LE..LH20#,212,222..03S,12S,15S,16S

 1
22100-5D180

5LE..LH20#,212,222..03S,12S,15S,16S

 1
23271H - HOSE, FUEL, NO.1
23271-54220

5LE..LH20#

 1
23271-54220

5LE..LH20#

 1
23271H - HOSE, FUEL, NO.1
23271-54220

5LE..LH20#

 1
23271-54220

5LE..LH20#

 1
23273H - HOSE, FUEL, NO.2
23273-54150

5LE..LH20#

 1
23273-54150

5LE..LH20#

 1
23274D - HOSE, FUEL, NO.3
23274-54020

5LE..LH20#

COLD AREA SPEC

 1
23274-54020

5LE..LH20#

COLD AREA SPEC

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-54140

5LE..LH20#,212,222..03S,12S,15S,16S

 1
23701-54140

5LE..LH20#,212,222..03S,12S,15S,16S

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-54140

5LE..LH20#,212,222..03S,12S,15S,16S

 1
23702-54140

5LE..LH20#,212,222..03S,12S,15S,16S

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-54100

5LE..LH20#,212,222..03S,12S,15S,16S

 1
23703-54100

5LE..LH20#,212,222..03S,12S,15S,16S

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-54100

5LE..LH20#,212,222..03S,12S,15S,16S

 1
23704-54100

5LE..LH20#,212,222..03S,12S,15S,16S

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54030

5LE..LH20#,212,222..03S,12S,15S,16S

 2
23741-54030

5LE..LH20#,212,222..03S,12S,15S,16S

 2
Common parts
90105-T0170
90116-06173
90119-06775
90119-T0064
90119-T0306
90178-T0018
90179-06208
90179-08022
90182-T0009
90253-13008
90253-T0003
90301-49003
90301-T0011
90464-00723
90464-T0004
90466-13003
90929-01441
91552-81060
91631-60625
91631-G0614
94151-80600
96132-51300
96135-51300
Linked diagrams
1301
2201
2302
7751
8405
