LH202L-RDMDE (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013
Engine 5LE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )5LE

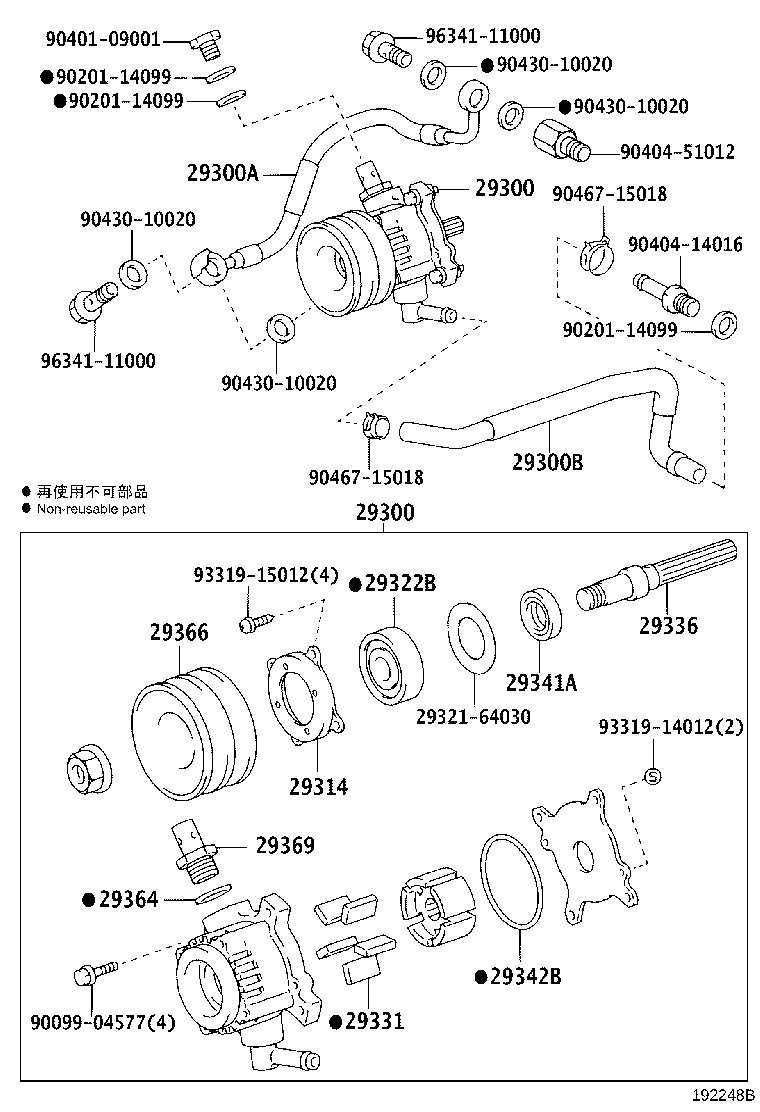

Click highlighted areas on diagram

diagram 29300 29300 29300A 29300B 29314 2932164030 29322B 29331 29336 29341A 29342B 29364 29366 29369 9009904577 9020114099 9020114099 9020114099 9040109001 9040414016 9040451012 9043010020 9043010020 9043010020 9043010020 9046715018 9046715018 9331914012 9331915012 9634111000 9634111000
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-54220

5LE..LH20#,212,222

 1
29300 - PUMP ASSY, VACUUM
29300-54220

5LE..LH20#,212,222

 1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02121

5LE..LH20#,212,222..03S,12S,15S,16S

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
29611-54050

5LE..LH20#,212,222..03S,12S,15S,16S

 1
29314 - RING, STOP
29314-64030

5LE..LH20#,212,222..03S,12S,15S,16S

 1
29322B - BEARING, VACUUM PUMP
90099-10199

5LE..LH20#,212,222

 1
90099-10227

5LE..LH20#,212,222

 1
29331 - BLADE, VACUUM PUMP, A
29331-54130

5LE..LH20#,212,222

 5
29336 - SHAFT, VACUUM PUMP
29336-64031

5LE..LH20#,212,222

 1
29341A - SEAL, OIL
29341-64030

5LE..LH20#,212,222..03S,12S,15S,16S

 1
29342B - RING, O
29342-64030

5LE..LH20#,212,222..03S,12S,15S,16S

 1
29364 - WASHER, VACUUM PUMP
29364-66010

2KDFTV..KDH200..03S..GCC;2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH202..GCC,MA,TH;2KDFTV..KDH202..LHD..12S..5F;2KDFTV,5LE..KDH222,LH202..ARL,GCC,GEN,SA;2KDFTV..KDH200,202..(03S,06S,15S)..(ARL,GEN,MA,SA,TH);1KDFTV,2KDFTV,5LE..KDH201,203,212,220,221,223,LH200,212,222..03S,06S,10S,11S,12S,14S,16S

 1
29366 - PULLEY, VACUUM PUMP
29366-54220

5LE..LH20#,212,222..03S,12S,15S,16S

 1
29369 - VALVE SUB-ASSY, CHECK
29369-64030

2KDFTV..KDH200..03S..GCC;2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH202..GCC,MA,TH;2KDFTV..KDH202..LHD..12S..5F;2KDFTV,5LE..KDH222,LH202..ARL,GCC,GEN,SA;2KDFTV..KDH200,202..(03S,06S,15S)..(ARL,GEN,MA,SA,TH);1KDFTV,2KDFTV,5LE..KDH201,203,212,220,221,223,LH200,212,222..03S,06S,10S,11S,12S,14S,16S

 1
Common parts
29321-64030
90099-04577
90201-14099
90401-09001
90404-14016
90404-51012
90430-10020
90467-15018
93319-14012
93319-15012
96341-11000
