LH202L-RDMDE (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013
Engine 5LE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )2TRFE..TRH223..GL..SA ; (0501- )2TRFE..TRH201,203,213,221 ; (0501-

Click highlighted areas on diagram

12V 1.6KW

diagram 28021 28100 28110 28114 28120 28130 28132A 28160 28177 28226B 28255 9009902228 9009904561 9009904572 9009905178 9009907068 90119T0138 9017908204 90182T0011 9161261055
Part # Description Qty Price
28100 - STARTER ASSY
28100-54261

5LE..LH20#,212,222

12V 2.2KW

 1
28100-54261

5LE..LH20#,212,222

12V 2.2KW

 1
28100-54481

5LE..LH20#

12V 2.7KW,COLD AREA SPEC

 1
28100-54481

5LE..LH20#

12V 2.7KW,COLD AREA SPEC

 1
28100-54262

5LE..LH20#,212,222

12V 2.2KW

 1
28100-54262

5LE..LH20#,212,222

12V 2.2KW

 1
28100-54480

5LE..LH20#

12V 2.7KW,COLD AREA SPEC

 1
28100-54480

5LE..LH20#

12V 2.7KW,COLD AREA SPEC

 1
28120 - YOKE ASSY, STARTER
28120-56081

5LE..LH20#

COLD AREA SPEC

 1
28120-56081

5LE..LH20#

COLD AREA SPEC

 1
28120-54260

5LE..LH20#,212,222

 1
28120-54260

5LE..LH20#,212,222

 1
28120-47040

5LE..LH20#

COLD AREA SPEC

 1
28120-47040

5LE..LH20#

COLD AREA SPEC

 1
28160 - ARMATURE ASSY, STARTER
28160-64041

1KDFTV,5LE..KDH201,203,221,223,LH20#,212,222..5F..(ARL,GEN,TH)

 1
28160-64041

1KDFTV,5LE..KDH201,203,221,223,LH20#,212,222..5F..(ARL,GEN,TH)

 1
28160-54140

2KDFTV..KDH220..RHD..5F..(ARL,GEN);2KDFTV..KDH200,202..SG..(06S,15S)..5F..GEN;1KDFTV,2KDFTV..KDH201,202,203..LHD..(03S,12S)..5F;2KDFTV,5LE..KDH200,222,LH20#..(03S,12S,14S,15S)..5F..(ARL,GEN)

COLD AREA SPEC

 1
28160-54140

2KDFTV..KDH220..RHD..5F..(ARL,GEN);2KDFTV..KDH200,202..SG..(06S,15S)..5F..GEN;1KDFTV,2KDFTV..KDH201,202,203..LHD..(03S,12S)..5F;2KDFTV,5LE..KDH200,222,LH20#..(03S,12S,14S,15S)..5F..(ARL,GEN)

COLD AREA SPEC

 1
Common parts
90099-02228
90099-04561
90099-04572
90099-05178
90099-07068
90119-T0138
90179-08204
90182-T0011
91612-61055

(0501- )2KDFTV..KDH200..SP..06S..4FC ; (0501-)2KDFTV..KDH220..RHD..ARL,GEN ;

Click highlighted areas on diagram

12V 2.7KW

diagram 28011 28100 28100 28120 28140 28150 28160 9010512053 9010512135 9017910195 9017912022 9017912022
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-54260

5LE..LH20#,212,222

 1
28011-54260

5LE..LH20#,212,222

 1
28011-54260

5LE..LH20#,212,222

 1
28011-54480

5LE..LH20#

COLD AREA SPEC

 1
28011-54480

5LE..LH20#

COLD AREA SPEC

 1
28011-54480

5LE..LH20#

COLD AREA SPEC

 1
28100 - STARTER ASSY
28100-54261

5LE..LH20#,212,222

12V 2.2KW

 1
28100-54261

5LE..LH20#,212,222

12V 2.2KW

 1
28100-54261

5LE..LH20#,212,222

12V 2.2KW

 1
28100-54481

5LE..LH20#

12V 2.7KW,COLD AREA SPEC

 1
28100-54481

5LE..LH20#

12V 2.7KW,COLD AREA SPEC

 1
28100-54481

5LE..LH20#

12V 2.7KW,COLD AREA SPEC

 1
28100-54262

5LE..LH20#,212,222

12V 2.2KW

 1
28100-54262

5LE..LH20#,212,222

12V 2.2KW

 1
28100-54262

5LE..LH20#,212,222

12V 2.2KW

 1
28100-54480

5LE..LH20#

12V 2.7KW,COLD AREA SPEC

 1
28100-54480

5LE..LH20#

12V 2.7KW,COLD AREA SPEC

 1
28100-54480

5LE..LH20#

12V 2.7KW,COLD AREA SPEC

 1
28100 - STARTER ASSY
28100-54261

5LE..LH20#,212,222

12V 2.2KW

 1
28100-54261

5LE..LH20#,212,222

12V 2.2KW

 1
28100-54261

5LE..LH20#,212,222

12V 2.2KW

 1
28100-54481

5LE..LH20#

12V 2.7KW,COLD AREA SPEC

 1
28100-54481

5LE..LH20#

12V 2.7KW,COLD AREA SPEC

 1
28100-54481

5LE..LH20#

12V 2.7KW,COLD AREA SPEC

 1
28100-54262

5LE..LH20#,212,222

12V 2.2KW

 1
28100-54262

5LE..LH20#,212,222

12V 2.2KW

 1
28100-54262

5LE..LH20#,212,222

12V 2.2KW

 1
28100-54480

5LE..LH20#

12V 2.7KW,COLD AREA SPEC

 1
28100-54480

5LE..LH20#

12V 2.7KW,COLD AREA SPEC

 1
28100-54480

5LE..LH20#

12V 2.7KW,COLD AREA SPEC

 1
28120 - YOKE ASSY, STARTER
28120-56081

5LE..LH20#

COLD AREA SPEC

 1
28120-56081

5LE..LH20#

COLD AREA SPEC

 1
28120-56081

5LE..LH20#

COLD AREA SPEC

 1
28120-54260

5LE..LH20#,212,222

 1
28120-54260

5LE..LH20#,212,222

 1
28120-54260

5LE..LH20#,212,222

 1
28120-47040

5LE..LH20#

COLD AREA SPEC

 1
28120-47040

5LE..LH20#

COLD AREA SPEC

 1
28120-47040

5LE..LH20#

COLD AREA SPEC

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-77090

2KDFTV..KDH220..RHD..5F..(ARL,GEN);2KDFTV..KDH200,202..SG..(06S,15S)..5F..GEN;1KDFTV,2KDFTV..KDH201,202,203..LHD..(03S,12S)..5F;2KDFTV,5LE..KDH200,222,LH20#..(03S,12S,14S,15S)..5F..(ARL,GEN)

COLD AREA SPEC

 1
28140-77090

2KDFTV..KDH220..RHD..5F..(ARL,GEN);2KDFTV..KDH200,202..SG..(06S,15S)..5F..GEN;1KDFTV,2KDFTV..KDH201,202,203..LHD..(03S,12S)..5F;2KDFTV,5LE..KDH200,222,LH20#..(03S,12S,14S,15S)..5F..(ARL,GEN)

COLD AREA SPEC

 1
28140-77090

2KDFTV..KDH220..RHD..5F..(ARL,GEN);2KDFTV..KDH200,202..SG..(06S,15S)..5F..GEN;1KDFTV,2KDFTV..KDH201,202,203..LHD..(03S,12S)..5F;2KDFTV,5LE..KDH200,222,LH20#..(03S,12S,14S,15S)..5F..(ARL,GEN)

COLD AREA SPEC

 1
28140-64040

1KDFTV,5LE..KDH201,203,221,223,LH20#,212,222..5F..(ARL,GEN,TH)

 1
28140-64040

1KDFTV,5LE..KDH201,203,221,223,LH20#,212,222..5F..(ARL,GEN,TH)

 1
28140-64040

1KDFTV,5LE..KDH201,203,221,223,LH20#,212,222..5F..(ARL,GEN,TH)

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-54330

5LE..LH20#,212,222

 1
28150-54330

5LE..LH20#,212,222

 1
28150-54330

5LE..LH20#,212,222

 1
28150-54480

5LE..LH20#

COLD AREA SPEC

 1
28150-54480

5LE..LH20#

COLD AREA SPEC

 1
28150-54480

5LE..LH20#

COLD AREA SPEC

 1
28160 - ARMATURE ASSY, STARTER
28160-64041

1KDFTV,5LE..KDH201,203,221,223,LH20#,212,222..5F..(ARL,GEN,TH)

 1
28160-64041

1KDFTV,5LE..KDH201,203,221,223,LH20#,212,222..5F..(ARL,GEN,TH)

 1
28160-64041

1KDFTV,5LE..KDH201,203,221,223,LH20#,212,222..5F..(ARL,GEN,TH)

 1
28160-54140

2KDFTV..KDH220..RHD..5F..(ARL,GEN);2KDFTV..KDH200,202..SG..(06S,15S)..5F..GEN;1KDFTV,2KDFTV..KDH201,202,203..LHD..(03S,12S)..5F;2KDFTV,5LE..KDH200,222,LH20#..(03S,12S,14S,15S)..5F..(ARL,GEN)

COLD AREA SPEC

 1
28160-54140

2KDFTV..KDH220..RHD..5F..(ARL,GEN);2KDFTV..KDH200,202..SG..(06S,15S)..5F..GEN;1KDFTV,2KDFTV..KDH201,202,203..LHD..(03S,12S)..5F;2KDFTV,5LE..KDH200,222,LH20#..(03S,12S,14S,15S)..5F..(ARL,GEN)

COLD AREA SPEC

 1
28160-54140

2KDFTV..KDH220..RHD..5F..(ARL,GEN);2KDFTV..KDH200,202..SG..(06S,15S)..5F..GEN;1KDFTV,2KDFTV..KDH201,202,203..LHD..(03S,12S)..5F;2KDFTV,5LE..KDH200,222,LH20#..(03S,12S,14S,15S)..5F..(ARL,GEN)

COLD AREA SPEC

 1
Common parts
90105-12053
90105-12135
90179-10195
90179-12022

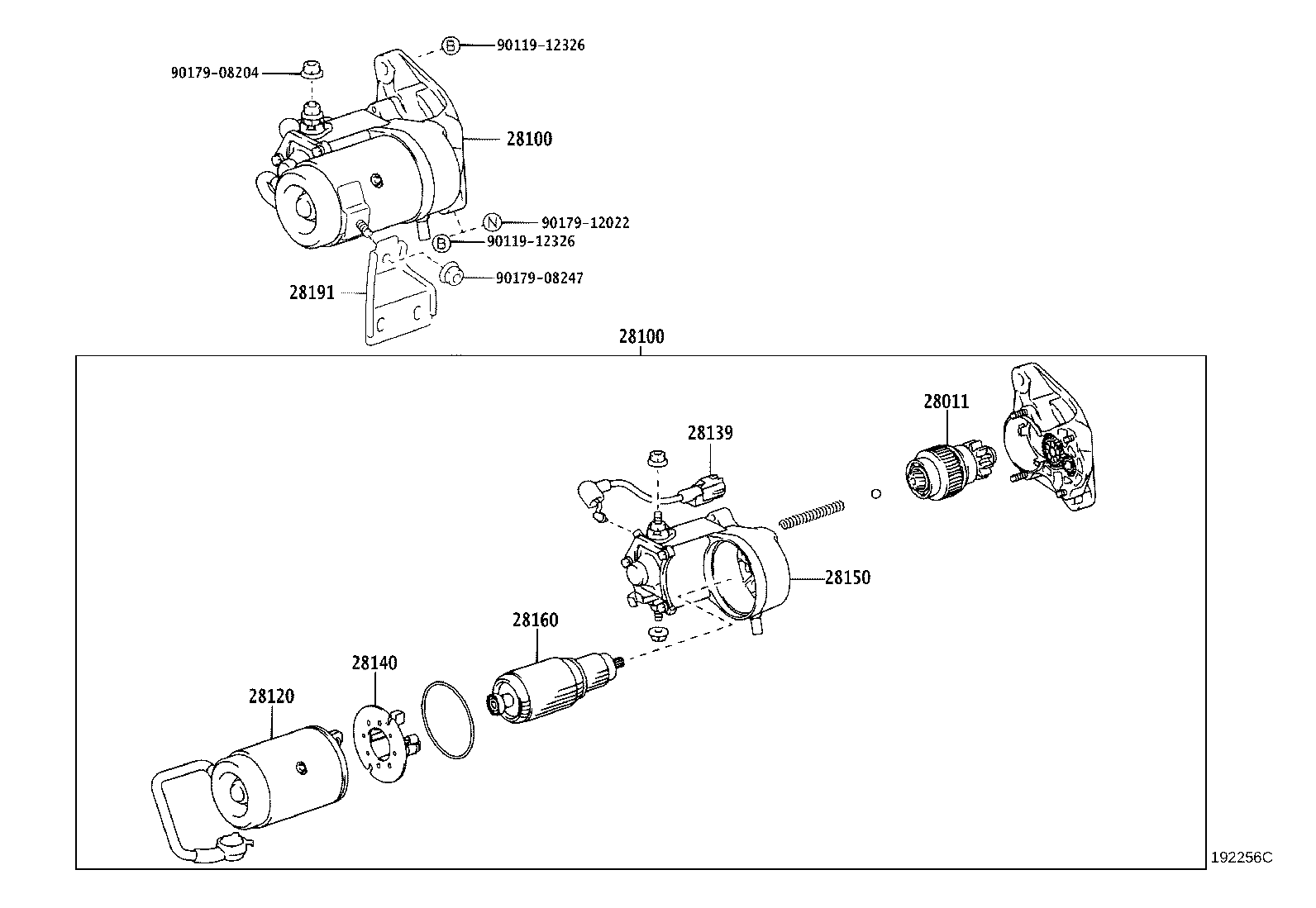

(0501- )5LE

Click highlighted areas on diagram

12V 2.2KW

diagram 28011 28100 28100 28120 28139 28140 28150 28160 28191 9011912326 9011912326 9017908204 9017908247 9017912022
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-54260

5LE..LH20#,212,222

 1
28011-54480

5LE..LH20#

COLD AREA SPEC

 1
28100 - STARTER ASSY
28100-54261

5LE..LH20#,212,222

12V 2.2KW

 1
28100-54481

5LE..LH20#

12V 2.7KW,COLD AREA SPEC

 1
28100-54262

5LE..LH20#,212,222

12V 2.2KW

 1
28100-54480

5LE..LH20#

12V 2.7KW,COLD AREA SPEC

 1
28100 - STARTER ASSY
28100-54261

5LE..LH20#,212,222

12V 2.2KW

 1
28100-54481

5LE..LH20#

12V 2.7KW,COLD AREA SPEC

 1
28100-54262

5LE..LH20#,212,222

12V 2.2KW

 1
28100-54480

5LE..LH20#

12V 2.7KW,COLD AREA SPEC

 1
28120 - YOKE ASSY, STARTER
28120-56081

5LE..LH20#

COLD AREA SPEC

 1
28120-54260

5LE..LH20#,212,222

 1
28120-47040

5LE..LH20#

COLD AREA SPEC

 1
28139 - WIRE, LEAD, NO.1(FOR STARTER)
28139-54261

5LE..LH20#,212,222..03S,12S,15S,16S

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-77090

2KDFTV..KDH220..RHD..5F..(ARL,GEN);2KDFTV..KDH200,202..SG..(06S,15S)..5F..GEN;1KDFTV,2KDFTV..KDH201,202,203..LHD..(03S,12S)..5F;2KDFTV,5LE..KDH200,222,LH20#..(03S,12S,14S,15S)..5F..(ARL,GEN)

COLD AREA SPEC

 1
28140-64040

1KDFTV,5LE..KDH201,203,221,223,LH20#,212,222..5F..(ARL,GEN,TH)

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-54330

5LE..LH20#,212,222

 1
28150-54480

5LE..LH20#

COLD AREA SPEC

 1
28160 - ARMATURE ASSY, STARTER
28160-64041

1KDFTV,5LE..KDH201,203,221,223,LH20#,212,222..5F..(ARL,GEN,TH)

 1
28160-54140

2KDFTV..KDH220..RHD..5F..(ARL,GEN);2KDFTV..KDH200,202..SG..(06S,15S)..5F..GEN;1KDFTV,2KDFTV..KDH201,202,203..LHD..(03S,12S)..5F;2KDFTV,5LE..KDH200,222,LH20#..(03S,12S,14S,15S)..5F..(ARL,GEN)

COLD AREA SPEC

 1
28191 - STAY, STARTER
28191-54010

5LE..LH20#

COLD AREA SPEC

 1
28191-54040

5LE..LH20#,212,222..03S,12S,15S,16S

 1
Common parts
90119-12326
90179-08204
90179-08247
90179-12022

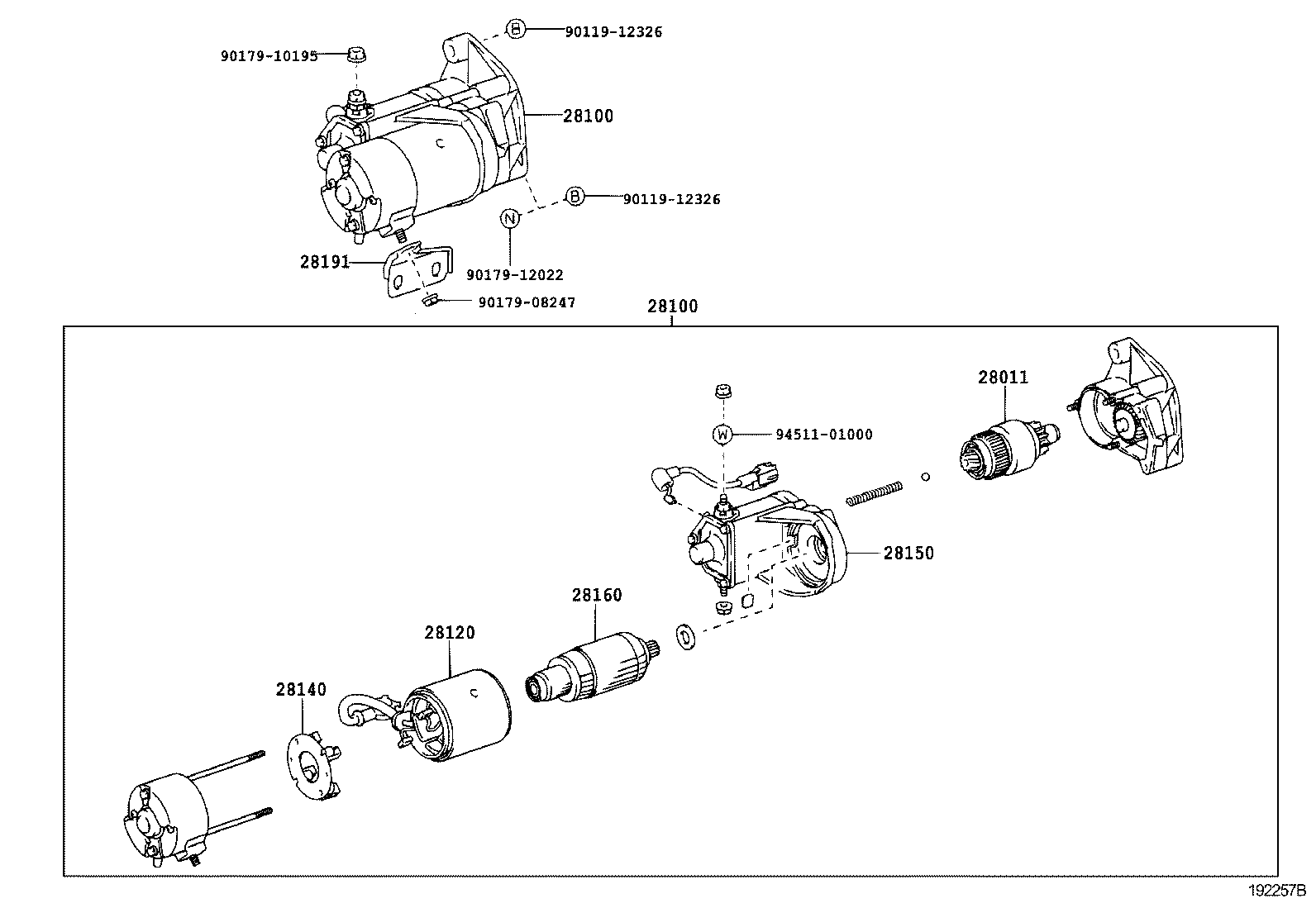

(0501- )5LE..03S,12S,15S,16S

Click highlighted areas on diagram

12V 2.7KW,COLD SPEC

diagram 28011 28100 28100 28120 28140 28150 28160 28191 9011912326 9011912326 9017908247 9017910195 9017912022 9451101000
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-54260

5LE..LH20#,212,222

 1
28011-54480

5LE..LH20#

COLD AREA SPEC

 1
28100 - STARTER ASSY
28100-54261

5LE..LH20#,212,222

12V 2.2KW

 1
28100-54481

5LE..LH20#

12V 2.7KW,COLD AREA SPEC

 1
28100-54262

5LE..LH20#,212,222

12V 2.2KW

 1
28100-54480

5LE..LH20#

12V 2.7KW,COLD AREA SPEC

 1
28100 - STARTER ASSY
28100-54261

5LE..LH20#,212,222

12V 2.2KW

 1
28100-54481

5LE..LH20#

12V 2.7KW,COLD AREA SPEC

 1
28100-54262

5LE..LH20#,212,222

12V 2.2KW

 1
28100-54480

5LE..LH20#

12V 2.7KW,COLD AREA SPEC

 1
28120 - YOKE ASSY, STARTER
28120-56081

5LE..LH20#

COLD AREA SPEC

 1
28120-54260

5LE..LH20#,212,222

 1
28120-47040

5LE..LH20#

COLD AREA SPEC

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-77090

2KDFTV..KDH220..RHD..5F..(ARL,GEN);2KDFTV..KDH200,202..SG..(06S,15S)..5F..GEN;1KDFTV,2KDFTV..KDH201,202,203..LHD..(03S,12S)..5F;2KDFTV,5LE..KDH200,222,LH20#..(03S,12S,14S,15S)..5F..(ARL,GEN)

COLD AREA SPEC

 1
28140-64040

1KDFTV,5LE..KDH201,203,221,223,LH20#,212,222..5F..(ARL,GEN,TH)

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-54330

5LE..LH20#,212,222

 1
28150-54480

5LE..LH20#

COLD AREA SPEC

 1
28160 - ARMATURE ASSY, STARTER
28160-64041

1KDFTV,5LE..KDH201,203,221,223,LH20#,212,222..5F..(ARL,GEN,TH)

 1
28160-54140

2KDFTV..KDH220..RHD..5F..(ARL,GEN);2KDFTV..KDH200,202..SG..(06S,15S)..5F..GEN;1KDFTV,2KDFTV..KDH201,202,203..LHD..(03S,12S)..5F;2KDFTV,5LE..KDH200,222,LH20#..(03S,12S,14S,15S)..5F..(ARL,GEN)

COLD AREA SPEC

 1
28191 - STAY, STARTER
28191-54010

5LE..LH20#

COLD AREA SPEC

 1
28191-54040

5LE..LH20#,212,222..03S,12S,15S,16S

 1
Common parts
90119-12326
90179-08247
90179-10195
90179-12022
94511-01000
