LH202L-RDMDE (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013
Engine 5LE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )5LE

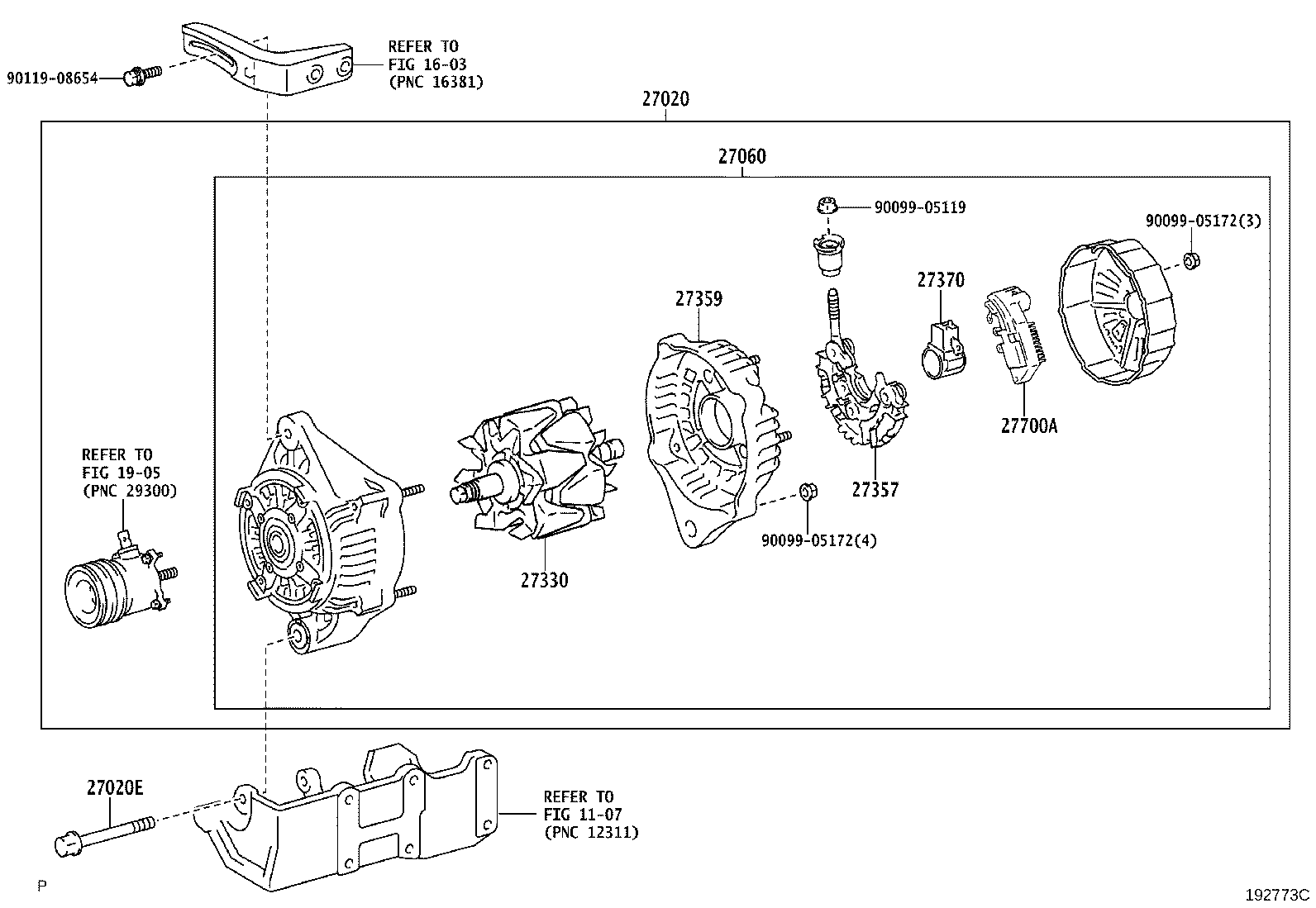

Click highlighted areas on diagram

12V 120A

diagram 1107 1603 1905 27020 27020E 27060 27330 27357 27359 27370 27700A 9009905119 9009905172 9009905172 9011908654
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27040-54670

5LE..LH20#,212,222

12V 120A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10287

5LE..LH20#,212,222

 1
27060 - ALTERNATOR ASSY, W/REGULATOR
27060-54450

5LE..LH20#,212,222..03S,12S,15S,16S

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-11120

5LE..LH20#,212,222

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-17230

5LE..LH20#,212,222..03S,12S,15S,16S

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-54480

5LE..LH20#,212,222..03S,12S,15S,16S

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

5LE..LH20#,212,222

 1
27700A - REGULATOR ASSY, GENERATOR
27700-30070

5LE..LH20#,212,222

 2
Common parts
90099-05119
90099-05172
90119-08654
Linked diagrams
1107
1603
1905
