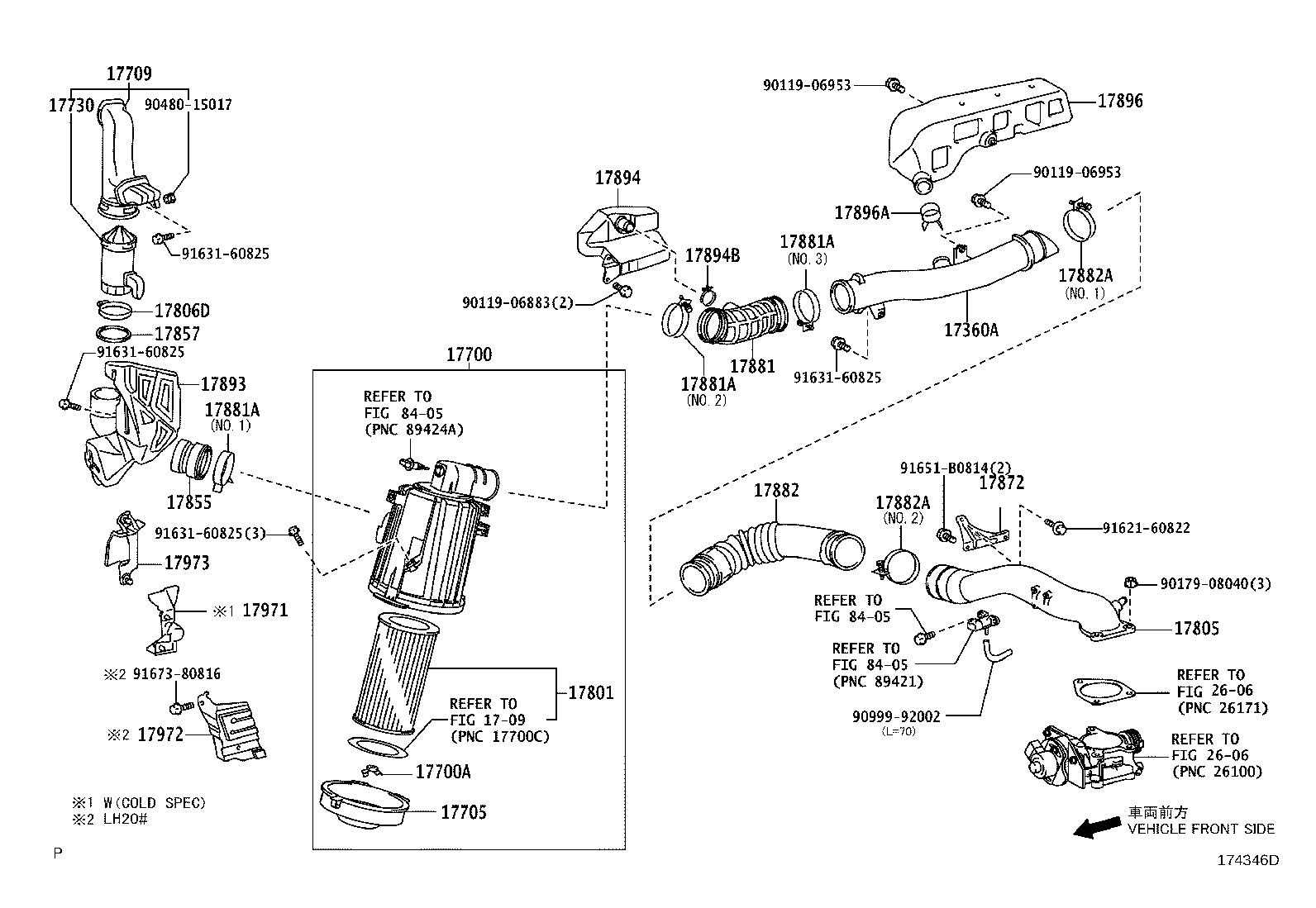

LH202L-RDMDE (2005)
Toyota Hiace
(0501- )2KDFTV..KDH200,202,212 ; (0501- )2KDFTV..KDH220..SP..5F ; (0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17360A - TUBE ASSY, AIR | ||||
| 17360-54100 |
5LE..LH20#,212,222 |
1 | ||
| 17360-54100 |
5LE..LH20#,212,222 |
1 | ||
| 17360-54101 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17360-54101 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-54A00 |
5LE..LH20#,212,222 |
1 | ||
| 17700-54A00 |
5LE..LH20#,212,222 |
1 | ||
| 17700-54A01 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17700-54A01 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 90175-08008 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-54540 |
5LE..LH20#,212,222 |
1 | ||
| 17705-54540 |
5LE..LH20#,212,222 |
1 | ||
| 17705-54541 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17705-54541 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17709 - INLET SUB-ASSY, AIR CLEANER | ||||
| 17709-30011 |
5LE..LH20#,212..03S,10S,12S,15S |
1 | ||
| 17709-30011 |
5LE..LH20#,212..03S,10S,12S,15S |
1 | ||
| 17709-30021 |
5LE..LH20#,212,222 |
1 | ||
| 17709-30021 |
5LE..LH20#,212,222 |
1 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-30010 |
5LE..LH20#,212,222 |
1 | ||
| 17730-30010 |
5LE..LH20#,212,222 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-75010 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17801-75010 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17806D - CLAMP(FOR AIR CLEANER PIPE) | ||||
| 90460-92002 |
5LE..LH20#,212,222 |
1 | ||
| 90460-92002 |
5LE..LH20#,212,222 |
1 | ||
| 17855 - GASKET, AIR INLET DUCT, NO.1 | ||||
| 17855-30010 |
5LE..LH20#,212,222 |
1 | ||
| 17855-30010 |
5LE..LH20#,212,222 |
1 | ||
| 17857 - GASKET, AIR INLET DUCT, NO.2 | ||||
| 17857-30010 |
5LE..LH20#,212,222 |
1 | ||
| 17857-30010 |
5LE..LH20#,212,222 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30080 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17881-30080 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 & NO.3 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 & NO.3 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90460-80006 |
5LE..LH20#,212,222 NO.3 |
1 | ||
| 90460-80006 |
5LE..LH20#,212,222 NO.3 |
1 | ||
| 90466-78001 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 90466-78001 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222..03S,12S,15S,16S NO.2 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222..03S,12S,15S,16S NO.2 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.3 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.3 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 & NO.3 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 & NO.3 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90460-80006 |
5LE..LH20#,212,222 NO.3 |
1 | ||
| 90460-80006 |
5LE..LH20#,212,222 NO.3 |
1 | ||
| 90466-78001 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 90466-78001 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222..03S,12S,15S,16S NO.2 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222..03S,12S,15S,16S NO.2 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.3 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.3 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 & NO.3 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 & NO.3 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90460-80006 |
5LE..LH20#,212,222 NO.3 |
1 | ||
| 90460-80006 |
5LE..LH20#,212,222 NO.3 |
1 | ||
| 90466-78001 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 90466-78001 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222..03S,12S,15S,16S NO.2 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222..03S,12S,15S,16S NO.2 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.3 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.3 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-80006 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 90460-80006 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 90460-80006 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 90460-80006 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-30030 |
5LE..LH20#,212,222 |
1 | ||
| 17893-30030 |
5LE..LH20#,212,222 |
1 | ||
| 17893-30070 |
5LE..LH20#,212,222 |
1 | ||
| 17893-30070 |
5LE..LH20#,212,222 |
1 | ||
| 17894 - BRACKET, RESONATOR | ||||
| 17894-30010 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17894-30010 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2) | ||||
| 96111-10380 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 96111-10380 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17971 - INLET, COOL AIR, NO.1 | ||||
| 17971-30020 |
5LE..LH20# COLD AREA SPEC |
1 | ||
| 17971-30020 |
5LE..LH20# COLD AREA SPEC |
1 | ||
| 17972 - INLET, COOL AIR, NO.2 | ||||
| 17972-30010 |
5LE..LH20# |
1 | ||
| 17972-30010 |
5LE..LH20# |
1 | ||
| 17973 - INLET, COOL AIR, NO.3 | ||||
| 17973-30010 |
5LE..LH20#,212,222 |
1 | ||
| 17973-30010 |
5LE..LH20#,212,222 |
1 | ||
| Common parts | ||||
| 53955-95402 | ||||
| 90119-06883 | ||||
| 90119-06953 | ||||
| 90179-08068 | ||||
| 90253-13002 | ||||
| 90480-15017 | ||||
| 90480-16039 | ||||
| 91551-F0650 | ||||
| 91553-80812 | ||||
| 91631-40835 | ||||
| 91631-60825 | ||||
| 91673-80816 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 8405 | ||||
(0501- )5LE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17360A - TUBE ASSY, AIR | ||||
| 17360-54100 |
5LE..LH20#,212,222 |
1 | ||
| 17360-54101 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-54A00 |
5LE..LH20#,212,222 |
1 | ||
| 17700-54A01 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-54540 |
5LE..LH20#,212,222 |
1 | ||
| 17705-54541 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17709 - INLET SUB-ASSY, AIR CLEANER | ||||
| 17709-30011 |
5LE..LH20#,212..03S,10S,12S,15S |
1 | ||
| 17709-30021 |
5LE..LH20#,212,222 |
1 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-30010 |
5LE..LH20#,212,222 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-75010 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-54390 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17806D - CLAMP(FOR AIR CLEANER PIPE) | ||||
| 90460-92002 |
5LE..LH20#,212,222 |
1 | ||
| 17855 - GASKET, AIR INLET DUCT, NO.1 | ||||
| 17855-30010 |
5LE..LH20#,212,222 |
1 | ||
| 17857 - GASKET, AIR INLET DUCT, NO.2 | ||||
| 17857-30010 |
5LE..LH20#,212,222 |
1 | ||
| 17872 - BRACKET, INTAKE AIR CONNECTOR | ||||
| 17872-54030 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30080 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 & NO.3 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90460-80006 |
5LE..LH20#,212,222 NO.3 |
1 | ||
| 90466-78001 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222..03S,12S,15S,16S NO.2 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.3 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 & NO.3 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90460-80006 |
5LE..LH20#,212,222 NO.3 |
1 | ||
| 90466-78001 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222..03S,12S,15S,16S NO.2 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.3 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 & NO.3 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90460-80006 |
5LE..LH20#,212,222 NO.3 |
1 | ||
| 90466-78001 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222..03S,12S,15S,16S NO.2 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.3 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-54520 |
5LE..LH20# |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-80006 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 90460-80006 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-80006 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 90460-80006 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-30030 |
5LE..LH20#,212,222 |
1 | ||
| 17893-30070 |
5LE..LH20#,212,222 |
1 | ||
| 17894 - BRACKET, RESONATOR | ||||
| 17894-30010 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2) | ||||
| 96111-10380 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17896 - RESONATOR, INTAKE AIR, NO.3 | ||||
| 17896-75010 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17896A - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3) | ||||
| 90467-37005 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17971 - INLET, COOL AIR, NO.1 | ||||
| 17971-30020 |
5LE..LH20# COLD AREA SPEC |
1 | ||
| 17972 - INLET, COOL AIR, NO.2 | ||||
| 17972-30010 |
5LE..LH20# |
1 | ||
| 17973 - INLET, COOL AIR, NO.3 | ||||
| 17973-30010 |
5LE..LH20#,212,222 |
1 | ||
| Common parts | ||||
| 90119-06883 | ||||
| 90119-06953 | ||||
| 90179-08040 | ||||
| 90480-15017 | ||||
| 90999-92002 | ||||
| 91621-60822 | ||||
| 91631-60825 | ||||
| 91651-B0814 | ||||
| 91673-80816 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 2606 | ||||
| 8405 | ||||
(1008- )2TRFE..TRH223..5F..GCC ; (1008- )2TRFE..TRH213..LHD..5F..STD ; (1008-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17360A - TUBE ASSY, AIR | ||||
| 17360-54100 |
5LE..LH20#,212,222 |
1 | ||
| 17360-54100 |
5LE..LH20#,212,222 |
1 | ||
| 17360-54101 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17360-54101 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-54A00 |
5LE..LH20#,212,222 |
1 | ||
| 17700-54A00 |
5LE..LH20#,212,222 |
1 | ||
| 17700-54A01 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17700-54A01 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-54540 |
5LE..LH20#,212,222 |
1 | ||
| 17705-54540 |
5LE..LH20#,212,222 |
1 | ||
| 17705-54541 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17705-54541 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-75010 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17801-75010 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30080 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17881-30080 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 & NO.3 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 & NO.3 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90460-80006 |
5LE..LH20#,212,222 NO.3 |
1 | ||
| 90460-80006 |
5LE..LH20#,212,222 NO.3 |
1 | ||
| 90466-78001 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 90466-78001 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222..03S,12S,15S,16S NO.2 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222..03S,12S,15S,16S NO.2 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.3 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.3 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-54520 |
5LE..LH20# |
1 | ||
| 17882-54520 |
5LE..LH20# |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-80006 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 90460-80006 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 90460-80006 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 90460-80006 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-80006 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 90460-80006 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 90460-80006 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 90460-80006 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 96111-10800 |
5LE..LH20#,212,222 NO.1 & NO.2 |
2 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-30030 |
5LE..LH20#,212,222 |
1 | ||
| 17893-30030 |
5LE..LH20#,212,222 |
1 | ||
| 17893-30070 |
5LE..LH20#,212,222 |
1 | ||
| 17893-30070 |
5LE..LH20#,212,222 |
1 | ||
| 17896 - RESONATOR, INTAKE AIR, NO.3 | ||||
| 17896-75010 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17896-75010 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 17896A - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3) | ||||
| 90467-37005 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 90467-37005 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90105-T0066 | ||||
| 90119-06953 | ||||
| 90999-92002 | ||||
| 91551-80612 | ||||
| 91631-60825 | ||||
| 96111-10500 | ||||
| 96111-10690 | ||||
| Linked diagrams | ||||
| 1201 | ||||
(1312-1606)1KDFTV..KDH221..ARL ; (1312-1606)1KDFTV..KDH223..4FC..ARL ; (1512- )1
SINGAPOLE SPEC OR PERU SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 12251-30010 | ||||
| 12251-30050 | ||||
| 88718-2F110 | ||||
| 90099-00289 | ||||
| 90105-T0117 | ||||
| 90119-06953 | ||||
| 90179-08017 | ||||
| 90179-08057 | ||||
| 90460-67008 | ||||
| 90464-00795 | ||||
| 90466-07002 | ||||
| 90467-09185 | ||||
| 90469-07015 | ||||
| 90949-01B66 | ||||
| 91551-80620 | ||||
| 91553-80810 | ||||
| 91553-80812 | ||||
| 91631-40835 | ||||
| 91631-60622 | ||||
| 91631-60825 | ||||
| 91635-B0835 | ||||
| 94151-80800 | ||||
| 96132-40700 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2606 | ||||
| 5351 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
