LH202L-RDMDE (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013
Engine 5LE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )5LE

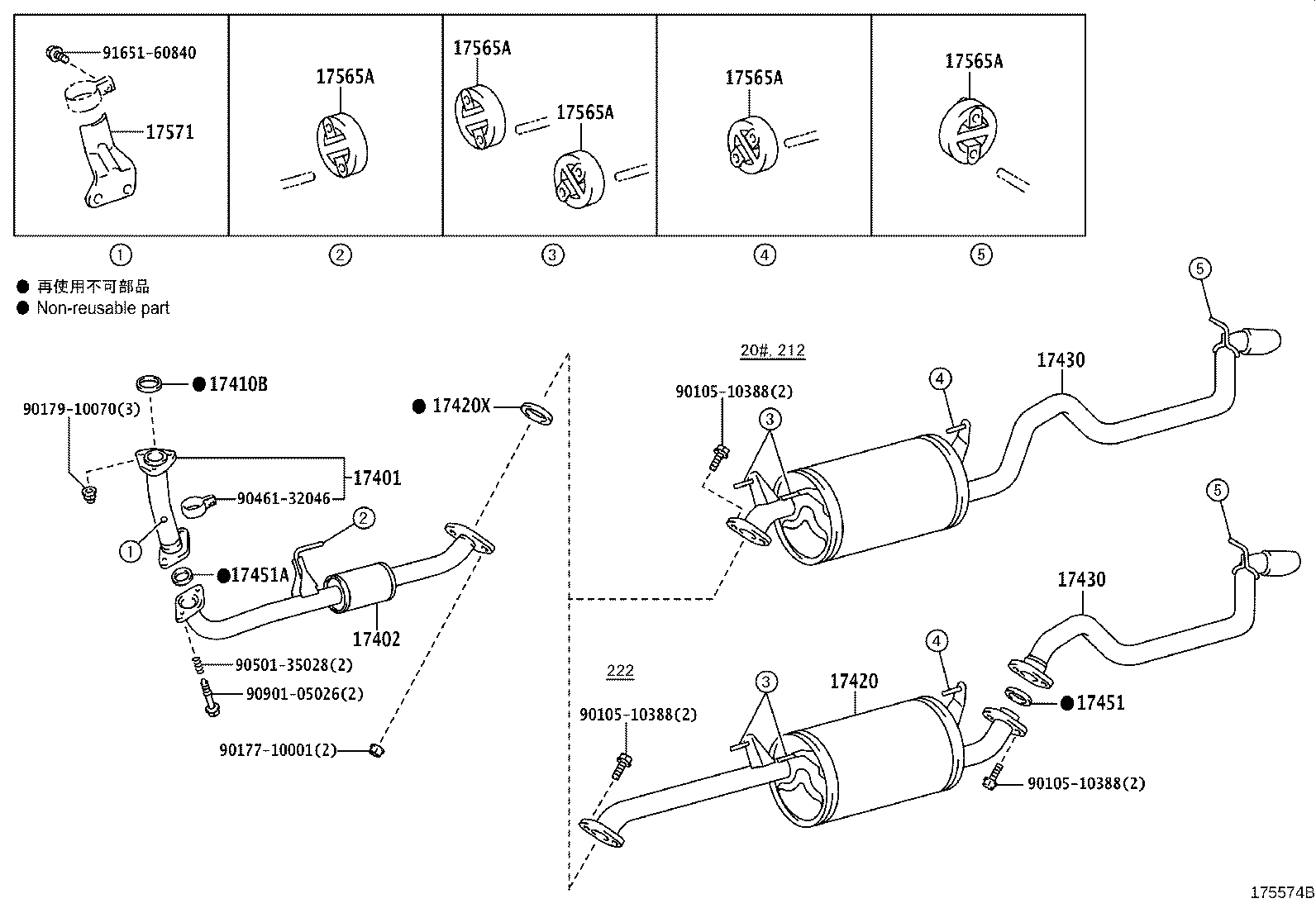

Click highlighted areas on diagram

diagram 17401 17402 17410B 17420 17420X 17430 17430 17451 17451A 17565A 17565A 17565A 17565A 17565A 17571 9010510388 9010510388 9010510388 9017710001 9017910070 9046132046 9050135028 9090105026 9165160840
Part # Description Qty Price
17401 - PIPE SUB-ASSY, EXHAUST, FRONT
17401-54301

5LE..LH20#,212,222..03S,12S,15S,16S

 1
17402 - PIPE SUB-ASSY, EXHAUST, FRONT NO.2
17402-54170

5LE..LH20#,212,222..03S,12S,15S,16S

 1
17410B - GASKET, EXHAUST PIPE
90917-06066

5LE..LH20#,212,222

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-30060

2KDFTV,5LE..KDH200,202,LH20#

 1
17430-30061

2KDFTV,5LE..KDH200,202,LH20#..STD..(GCC,GEN,SA,TH)

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-30060

2KDFTV,5LE..KDH200,202,LH20#

 1
17430-30061

2KDFTV,5LE..KDH200,202,LH20#..STD..(GCC,GEN,SA,TH)

 1
17451 - GASKET, EXHAUST PIPE
90917-06073

1KDFTV..KDH201..RHD..03S;1KDFTV..KDH201,203..RHD..SG;1KDFTV,2KDFTV,5LE..KDH200,202,212,22#,LH20#,212,222

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-54010

5LE..LH20#,212,222..03S,12S,15S,16S

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2KDFTV..KDH202..STD..TH;1KDFTV..KDH201..RHD..03S;2KDFTV..KDH202..GCC,GEN,MA;1KDFTV..KDH201,203..RHD..SG;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KDH200,212,22#,LH20#,212,222,TRH20#,213,22#

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2KDFTV..KDH202..STD..TH;1KDFTV..KDH201..RHD..03S;2KDFTV..KDH202..GCC,GEN,MA;1KDFTV..KDH201,203..RHD..SG;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KDH200,212,22#,LH20#,212,222,TRH20#,213,22#

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2KDFTV..KDH202..STD..TH;1KDFTV..KDH201..RHD..03S;2KDFTV..KDH202..GCC,GEN,MA;1KDFTV..KDH201,203..RHD..SG;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KDH200,212,22#,LH20#,212,222,TRH20#,213,22#

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2KDFTV..KDH202..STD..TH;1KDFTV..KDH201..RHD..03S;2KDFTV..KDH202..GCC,GEN,MA;1KDFTV..KDH201,203..RHD..SG;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KDH200,212,22#,LH20#,212,222,TRH20#,213,22#

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2KDFTV..KDH202..STD..TH;1KDFTV..KDH201..RHD..03S;2KDFTV..KDH202..GCC,GEN,MA;1KDFTV..KDH201,203..RHD..SG;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KDH200,212,22#,LH20#,212,222,TRH20#,213,22#

 5
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-54540

5LE..LH20#,212,222..03S,12S,15S,16S

 1
Common parts
90105-10388
90177-10001
90179-10070
90461-32046
90501-35028
90901-05026
91651-60840

(0610-1111)1KDFTV..KDH201..SP..06S ; (0610- )1KDFTV..KDH201,223..SG ; (0610-

Click highlighted areas on diagram

diagram 17410 17410 17410B 17420 17420X 17430 17430 17451 17565A 17565A 17565A 17565A 17565A 9010510388 9010510388 9010510388 9017710001 9050135032 9090105020
Part # Description Qty Price
17410B - GASKET, EXHAUST PIPE
90917-06066

5LE..LH20#,212,222

 1
90917-06066

5LE..LH20#,212,222

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-30060

2KDFTV,5LE..KDH200,202,LH20#

 1
17430-30060

2KDFTV,5LE..KDH200,202,LH20#

 1
17430-30061

2KDFTV,5LE..KDH200,202,LH20#..STD..(GCC,GEN,SA,TH)

 1
17430-30061

2KDFTV,5LE..KDH200,202,LH20#..STD..(GCC,GEN,SA,TH)

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-30060

2KDFTV,5LE..KDH200,202,LH20#

 1
17430-30060

2KDFTV,5LE..KDH200,202,LH20#

 1
17430-30061

2KDFTV,5LE..KDH200,202,LH20#..STD..(GCC,GEN,SA,TH)

 1
17430-30061

2KDFTV,5LE..KDH200,202,LH20#..STD..(GCC,GEN,SA,TH)

 1
17451 - GASKET, EXHAUST PIPE
90917-06073

1KDFTV..KDH201..RHD..03S;1KDFTV..KDH201,203..RHD..SG;1KDFTV,2KDFTV,5LE..KDH200,202,212,22#,LH20#,212,222

 1
90917-06073

1KDFTV..KDH201..RHD..03S;1KDFTV..KDH201,203..RHD..SG;1KDFTV,2KDFTV,5LE..KDH200,202,212,22#,LH20#,212,222

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2KDFTV..KDH202..STD..TH;1KDFTV..KDH201..RHD..03S;2KDFTV..KDH202..GCC,GEN,MA;1KDFTV..KDH201,203..RHD..SG;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KDH200,212,22#,LH20#,212,222,TRH20#,213,22#

 5
17565-28010

2KDFTV..KDH202..STD..TH;1KDFTV..KDH201..RHD..03S;2KDFTV..KDH202..GCC,GEN,MA;1KDFTV..KDH201,203..RHD..SG;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KDH200,212,22#,LH20#,212,222,TRH20#,213,22#

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2KDFTV..KDH202..STD..TH;1KDFTV..KDH201..RHD..03S;2KDFTV..KDH202..GCC,GEN,MA;1KDFTV..KDH201,203..RHD..SG;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KDH200,212,22#,LH20#,212,222,TRH20#,213,22#

 5
17565-28010

2KDFTV..KDH202..STD..TH;1KDFTV..KDH201..RHD..03S;2KDFTV..KDH202..GCC,GEN,MA;1KDFTV..KDH201,203..RHD..SG;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KDH200,212,22#,LH20#,212,222,TRH20#,213,22#

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2KDFTV..KDH202..STD..TH;1KDFTV..KDH201..RHD..03S;2KDFTV..KDH202..GCC,GEN,MA;1KDFTV..KDH201,203..RHD..SG;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KDH200,212,22#,LH20#,212,222,TRH20#,213,22#

 5
17565-28010

2KDFTV..KDH202..STD..TH;1KDFTV..KDH201..RHD..03S;2KDFTV..KDH202..GCC,GEN,MA;1KDFTV..KDH201,203..RHD..SG;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KDH200,212,22#,LH20#,212,222,TRH20#,213,22#

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2KDFTV..KDH202..STD..TH;1KDFTV..KDH201..RHD..03S;2KDFTV..KDH202..GCC,GEN,MA;1KDFTV..KDH201,203..RHD..SG;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KDH200,212,22#,LH20#,212,222,TRH20#,213,22#

 5
17565-28010

2KDFTV..KDH202..STD..TH;1KDFTV..KDH201..RHD..03S;2KDFTV..KDH202..GCC,GEN,MA;1KDFTV..KDH201,203..RHD..SG;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KDH200,212,22#,LH20#,212,222,TRH20#,213,22#

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2KDFTV..KDH202..STD..TH;1KDFTV..KDH201..RHD..03S;2KDFTV..KDH202..GCC,GEN,MA;1KDFTV..KDH201,203..RHD..SG;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KDH200,212,22#,LH20#,212,222,TRH20#,213,22#

 5
17565-28010

2KDFTV..KDH202..STD..TH;1KDFTV..KDH201..RHD..03S;2KDFTV..KDH202..GCC,GEN,MA;1KDFTV..KDH201,203..RHD..SG;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KDH200,212,22#,LH20#,212,222,TRH20#,213,22#

 5
Common parts
90105-10388
90177-10001
90501-35032
90901-05020

(1312-1501)1KDFTV..KDH223..RUS ; (1312-1501)1KDFTV..KDH201,203..LHD..03S,12S ; (131

Click highlighted areas on diagram

diagram 17410 17410B 17420 17420X 17430 17430 17451 17565A 17565A 17565A 17565A 17565A 9008050392 9010510388 9010510388 90109T0005 9017710001 9050135032 9090105020 9155381035 9155381035
Part # Description Qty Price
Common parts
90080-50392
90105-10388
90109-T0005
90177-10001
90501-35032
90901-05020
91553-81035
