LH202L-RDMDE (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013
Engine 5LE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )5LE

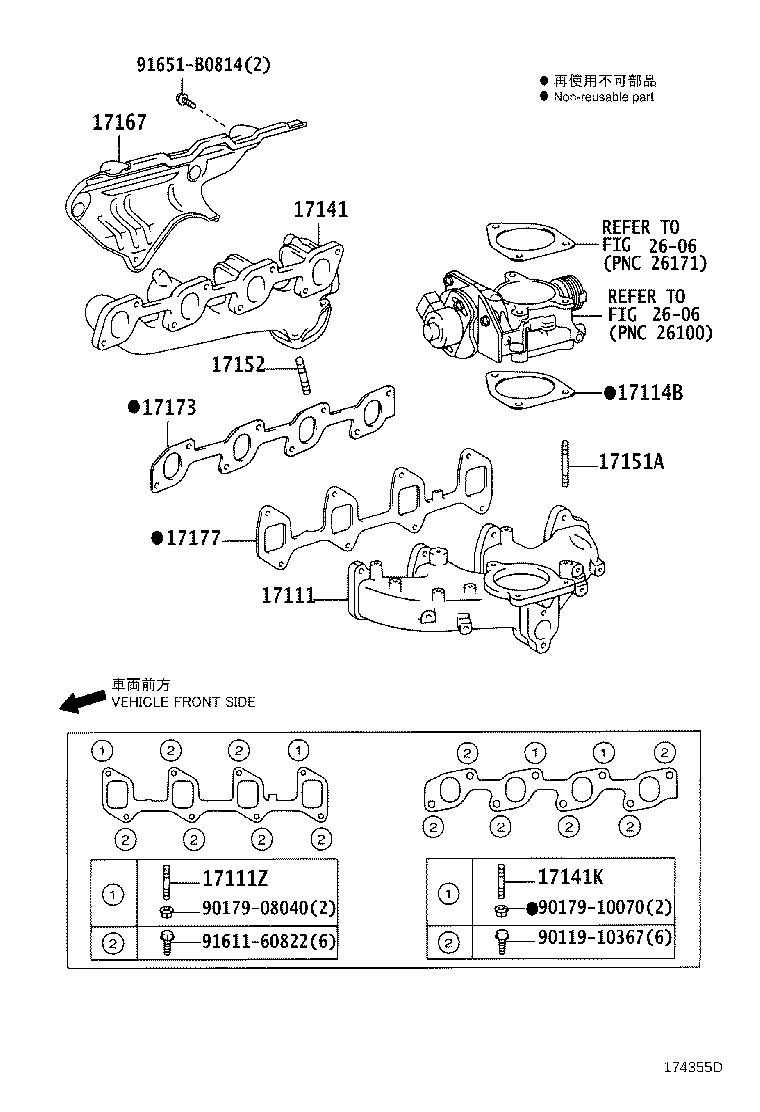

Click highlighted areas on diagram

diagram 17111 17111Z 17114B 17141 17141K 17151A 17152 17167 17173 17177 2606 2606 9011910367 9017908040 9017910070 9161160822 91651B0814
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-54113

5LE..LH20#,212,222..03S,12S,15S,16S

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90116-08220

5LE..LH20#,212,222..03S,12S,15S,16S

 2
17114B - GASKET, INTAKE FLANGE
17116-54030

5LE..LH20#,212,222..03S,12S,15S,16S

 1
17141 - MANIFOLD, EXHAUST
17141-54111

5LE..LH20#,212,222..03S,12S,15S,16S

 1
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90116-10141

5LE..LH20#,212,222..03S,12S,15S,16S

 2
17151A - BOLT, STUD(FOR MANIFOLD TO VENTURI)
90116-08292

5LE..LH20#,212,222..03S,12S,15S,16S

 3
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10088

5LE..LH20#,212,222..03S,12S,15S,16S

 3
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-54110

5LE..LH20#,212,222..03S,12S,15S,16S

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-54030

5LE..LH20#,212,222..03S,12S,15S,16S

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-54021

5LE..LH20#,212,222..03S,12S,15S,16S

 1
Common parts
90119-10367
90179-08040
90179-10070
91611-60822
91651-B0814
Linked diagrams
2606

(0501- )2KDFTV..KDH222..GL..SA ; (0501- )2KDFTV..KDH200,202,212,220 ; (0501-

Click highlighted areas on diagram

E/G NO.=0XXXXXX-6XXXXXX OR 9XXXXXX

diagram 04175 15407 15407A 15407B 15471 15472 1703 1703 17111 17111Z 17118 17118 17135A 17141 17141J 17141J 17173 17177 17201 17230 17230B 17230B 17230C 17278 17279 17291 17293 17294 17294A 17294A 17860 17861F 17861G 17861G 2501 8405 8405 8405 9010508426 90105T0030 90105T0118 90105T0240 9011606048 9011608160 9011608260 9011610175 9011906748 9011910778 9011910778 90119T0057 90177T0006 90177T0009 90178T0019 90178T0019 90178T0019 9017906298 9017908040 9017908040 9017908040 9017908101 9017908229 9017910070 90182T0007 9020110109 9020110109 9033903005 9034116021 9043016010 90560T0006 9099992002 9151180822 9155180814 9155180814 9167100816 9212260825 9212280814 9418401041 9418401041 9613240700
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-54113

5LE..LH20#,212,222..03S,12S,15S,16S

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90116-08220

5LE..LH20#,212,222..03S,12S,15S,16S

 2
17141 - MANIFOLD, EXHAUST
17141-54111

5LE..LH20#,212,222..03S,12S,15S,16S

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-54030

5LE..LH20#,212,222..03S,12S,15S,16S

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-54021

5LE..LH20#,212,222..03S,12S,15S,16S

 1
Common parts
90105-08426
90105-T0030
90105-T0118
90105-T0240
90116-06048
90116-08160
90116-08260
90116-10175
90119-06748
90119-10778
90119-T0057
90177-T0006
90177-T0009
90178-T0019
90179-06298
90179-08040
90179-08101
90179-08229
90179-10070
90182-T0007
90201-10109
90339-03005
90341-16021
90430-16010
90560-T0006
90999-92002
91511-80822
91551-80814
91671-00816
92122-60825
92122-80814
94184-01041
96132-40700
Linked diagrams
1703
2501
8405
