LH202L-RDMDE (2005)
Toyota Hiace
ILLUST NO. 1 OF 3(0501-0902)2KDFTV..KDH220..SP..5F ; (0501-0902)2KDFTV..KDH222..LHD..GEN ; (0501-090

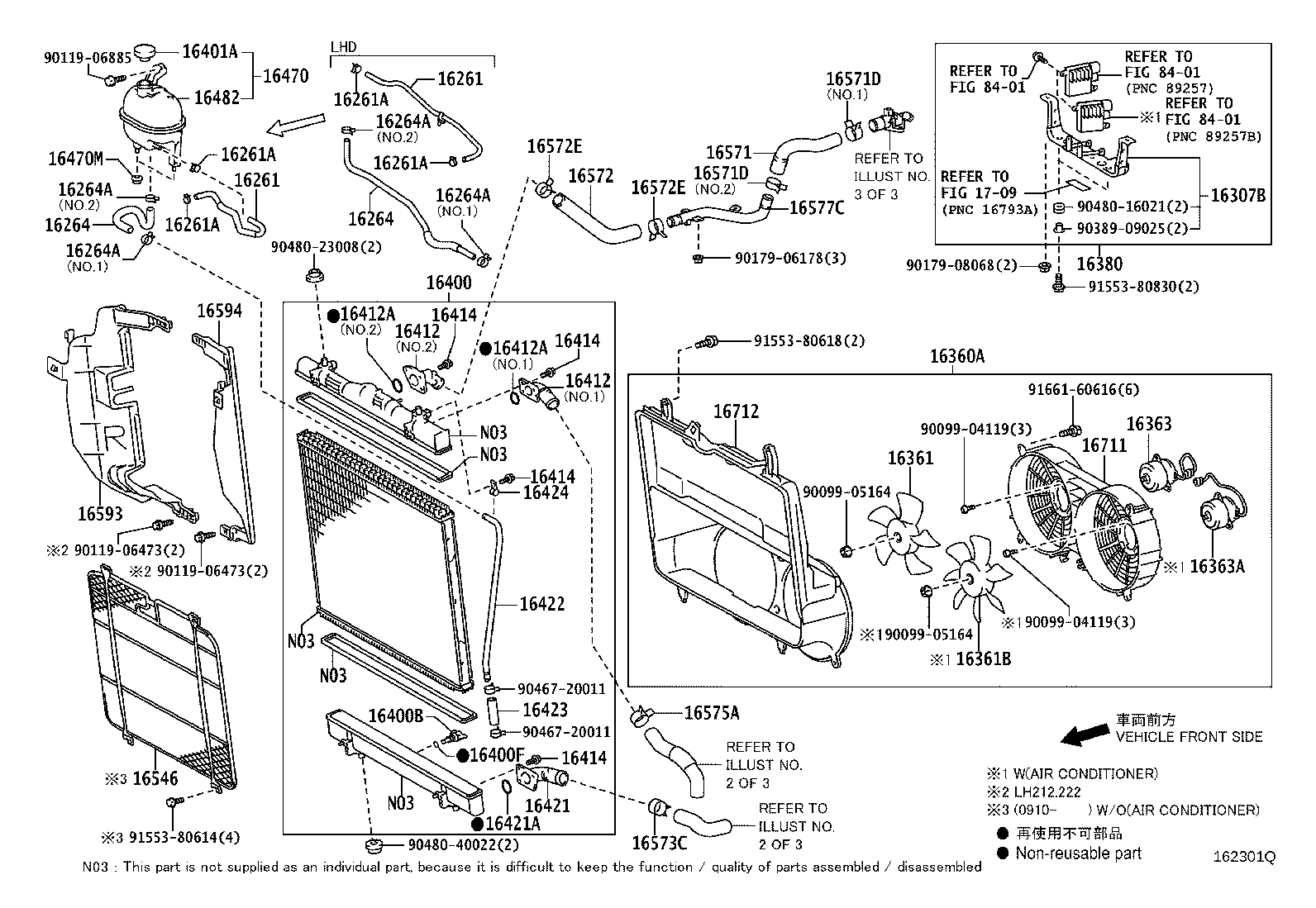

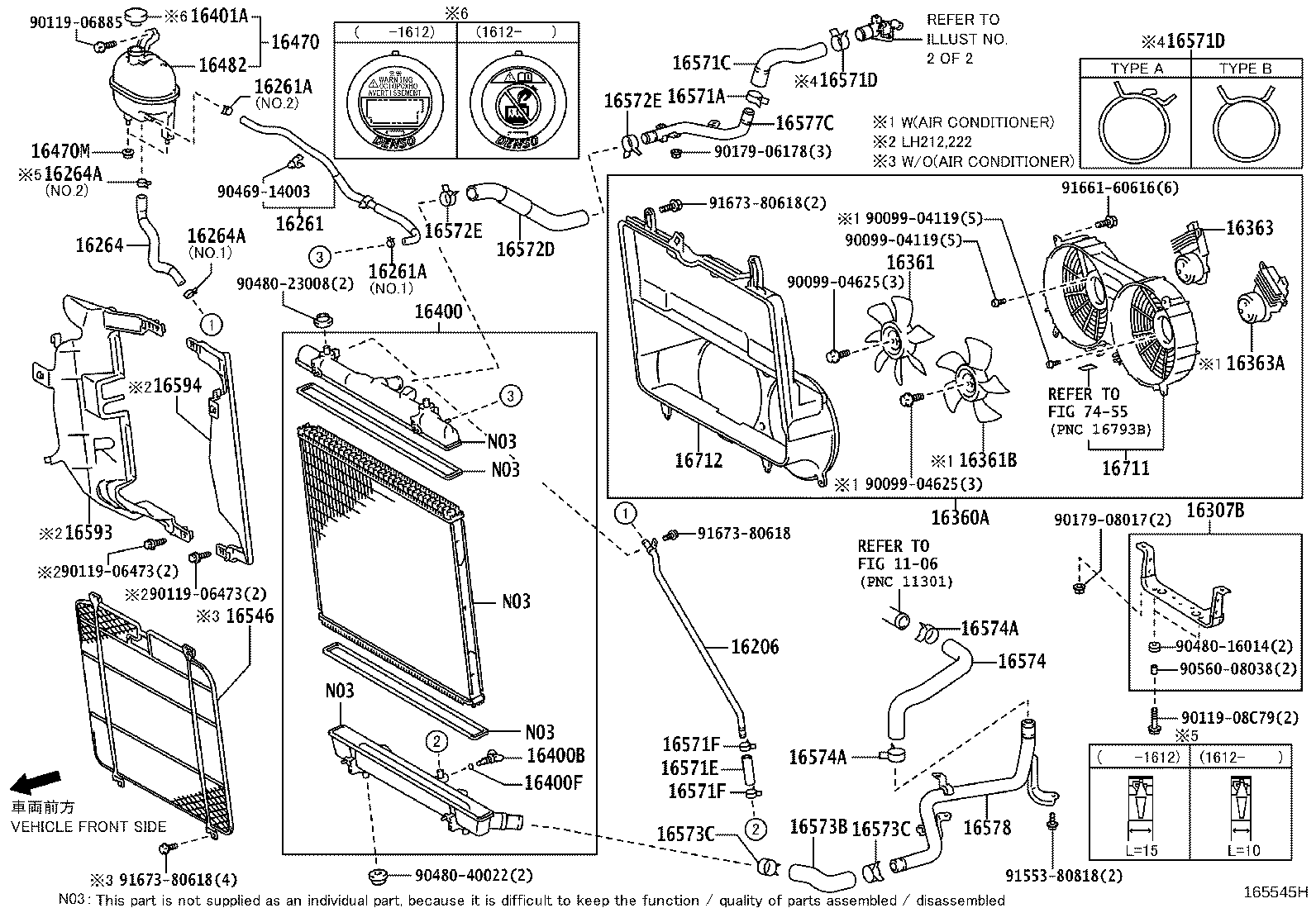

MAIN RADIATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75160 |
5LE..LH20#..LHD |
1 | ||
| 16261-75160 |
5LE..LH20#..LHD |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75160 |
5LE..LH20#..LHD |
1 | ||
| 16261-75160 |
5LE..LH20#..LHD |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
5LE..LH20#,212,222 |
2 | ||
| 96135-51300 |
5LE..LH20#,212,222 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
5LE..LH20#,212,222 |
2 | ||
| 96135-51300 |
5LE..LH20#,212,222 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
5LE..LH20#,212,222 |
2 | ||
| 96135-51300 |
5LE..LH20#,212,222 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
5LE..LH20#,212,222 |
2 | ||
| 96135-51300 |
5LE..LH20#,212,222 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75100 |
5LE..LH20#..LHD |
1 | ||
| 16264-75100 |
5LE..LH20#..LHD |
1 | ||
| 16264-75101 |
5LE..LH20#..LHD |
1 | ||
| 16264-75101 |
5LE..LH20#..LHD |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75100 |
5LE..LH20#..LHD |
1 | ||
| 16264-75100 |
5LE..LH20#..LHD |
1 | ||
| 16264-75101 |
5LE..LH20#..LHD |
1 | ||
| 16264-75101 |
5LE..LH20#..LHD |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90467-22011 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96136-42501 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96136-42501 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90467-20011 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 90467-20011 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90467-22011 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96136-42501 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96136-42501 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90467-20011 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 90467-20011 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90467-22011 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96136-42501 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96136-42501 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90467-20011 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 90467-20011 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90467-22011 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96136-42501 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96136-42501 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90467-20011 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 90467-20011 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-75010 |
5LE..LH20#,212,222 |
1 | ||
| 16307-75010 |
5LE..LH20#,212,222 |
1 | ||
| 16307-75011 |
5LE..LH20#,212,222 |
1 | ||
| 16307-75011 |
5LE..LH20#,212,222 |
1 | ||
| 16307-75020 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16307-75020 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16307-75021 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16307-75021 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16307-30010 |
5LE..LH20#,212,222 |
1 | ||
| 16307-30010 |
5LE..LH20#,212,222 |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-75020 |
5LE..LH20#,212,222 |
1 | ||
| 16360-75020 |
5LE..LH20#,212,222 |
1 | ||
| 16360-75030 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16360-75030 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16360-75021 |
5LE..LH20#,212,222 |
1 | ||
| 16360-75021 |
5LE..LH20#,212,222 |
1 | ||
| 16360-75031 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16360-75031 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16361 - FAN | ||||
| 16361-75030 |
5LE..LH20#,212,222 |
1 | ||
| 16361-75030 |
5LE..LH20#,212,222 |
1 | ||
| 16361-30060 |
5LE..LH20#,212,222 |
1 | ||
| 16361-30060 |
5LE..LH20#,212,222 |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-75040 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16361-75040 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16361-30050 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16361-30050 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-20390 |
5LE..LH20#,212,222 |
1 | ||
| 16363-20390 |
5LE..LH20#,212,222 |
1 | ||
| 16363-20390 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16363-20390 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16363-30041 |
5LE..LH20#,212,222 |
1 | ||
| 16363-30041 |
5LE..LH20#,212,222 |
1 | ||
| 16363-30040 |
5LE..LH20#,212,222 |
1 | ||
| 16363-30040 |
5LE..LH20#,212,222 |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-75030 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16363-75030 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16363-30040 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16363-30040 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16363-30041 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16363-30041 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16380 - BRACKET ASSY, FAN | ||||
| 16380-75010 |
5LE..LH20#,212,222 |
1 | ||
| 16380-75010 |
5LE..LH20#,212,222 |
1 | ||
| 16380-75011 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16380-75011 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16380-75021 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16380-75021 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16380-75022 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16380-75022 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-54A00 |
5LE..LH20#,212,222 |
1 | ||
| 16400-54A00 |
5LE..LH20#,212,222 |
1 | ||
| 16400-54A01 |
5LE..LH20#,212,222 |
1 | ||
| 16400-54A01 |
5LE..LH20#,212,222 |
1 | ||
| 16400-75471 |
5LE..LH20#,212,222 |
1 | ||
| 16400-75471 |
5LE..LH20#,212,222 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
5LE..LH20#,212,222 |
1 | ||
| 16417-30170 |
5LE..LH20#,212,222 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
5LE..LH20#,212,222 |
1 | ||
| 16418-15520 |
5LE..LH20#,212,222 |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16401-75120 |
5LE..LH20#,212,222 |
1 | ||
| 16401-75120 |
5LE..LH20#,212,222 |
1 | ||
| 16475-51010 |
5LE..LH20#,212,222 TYPE A:REFER ILLUST. |
1 | ||
| 16475-51010 |
5LE..LH20#,212,222 TYPE A:REFER ILLUST. |
1 | ||
| 16475-37010 |
5LE..LH20#,212,222 TYPE B:REFER ILLUST. |
1 | ||
| 16475-37010 |
5LE..LH20#,212,222 TYPE B:REFER ILLUST. |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75122 |
5LE..LH20#,212,222 |
1 | ||
| 16470-75122 |
5LE..LH20#,212,222 |
1 | ||
| 16470-75121 |
5LE..LH20#,212,222 |
1 | ||
| 16470-75121 |
5LE..LH20#,212,222 |
1 | ||
| 16470M - GROMMET | ||||
| 90480-15023 |
5LE..LH20#,212,222 |
2 | ||
| 90480-15023 |
5LE..LH20#,212,222 |
2 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-75070 |
5LE..LH20#,212,222 |
1 | ||
| 16480-75070 |
5LE..LH20#,212,222 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54640 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16571-54640 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-75270 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16572-75270 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-75270 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16572-75270 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-75060 |
5LE..LH20# |
1 | ||
| 16573-75060 |
5LE..LH20# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-54020 |
5LE..LH20# |
1 | ||
| 16574-54020 |
5LE..LH20# |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-54260 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16577-54260 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-54011 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16578-54011 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16578-75011 |
5LE..LH20#,212,222 |
1 | ||
| 16578-75011 |
5LE..LH20#,212,222 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-30111 |
5LE..LH20#,212,222 |
1 | ||
| 16711-30111 |
5LE..LH20#,212,222 |
1 | ||
| 16711-75230 |
5LE..LH222;5LE..LH20#,212..03S,10S,12S,15S |
1 | ||
| 16711-75230 |
5LE..LH222;5LE..LH20#,212..03S,10S,12S,15S |
1 | ||
| 16711-30110 |
5LE..LH20#,212,222 |
1 | ||
| 16711-30110 |
5LE..LH20#,212,222 |
1 | ||
| 16711-30080 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16711-30080 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16711-75230 |
5LE..LH20#,212,222 |
1 | ||
| 16711-75230 |
5LE..LH20#,212,222 |
1 | ||
| 16711-30081 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16711-30081 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-75120 |
5LE..LH20#,212,222 |
1 | ||
| 16712-75120 |
5LE..LH20#,212,222 |
1 | ||
| 16712-75121 |
5LE..LH20#,212,222 |
1 | ||
| 16712-75121 |
5LE..LH20#,212,222 |
1 | ||
| Common parts | ||||
| 82711-14560 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06473 | ||||
| 90119-06885 | ||||
| 90179-06178 | ||||
| 90179-08068 | ||||
| 90339-16001 | ||||
| 90381-08002 | ||||
| 90389-09025 | ||||
| 90464-00906 | ||||
| 90466-21001 | ||||
| 90480-16016 | ||||
| 90480-16021 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 91553-80618 | ||||
| 91553-80818 | ||||
| 91553-80830 | ||||
| 91661-60616 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
| 8716 | ||||
ILLUST NO. 3 OF 3(0501- )2KDFTV..KDH200,202,212 ; (0501- )2KDFTV..KDH220..SP..5F ; (0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-54230 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16331-54230 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16331A - THERMOSTAT | ||||
| 16340-54040 |
5LE..LH20#,212,222..03S,12S,15S,16S *WAX 82-95 |
1 | ||
| 16340-54040 |
5LE..LH20#,212,222..03S,12S,15S,16S *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-05020 |
5LE..LH20#,212,222..03S,12S,15S,16S (L) |
1 | ||
| 16341-05020 |
5LE..LH20#,212,222..03S,12S,15S,16S (L) |
1 | ||
| 16341-35010 |
5LE..LH20#,212,222..03S,12S,15S,16S (J) |
1 | ||
| 16341-35010 |
5LE..LH20#,212,222..03S,12S,15S,16S (J) |
1 | ||
| Common parts | ||||
| 90105-T0053 | ||||
| 90105-T0066 | ||||
| 90105-T0119 | ||||
| 90119-T0067 | ||||
| 90178-T0018 | ||||
| 90179-06080 | ||||
| 90339-16003 | ||||
| 91511-B0610 | ||||
| 91511-B0812 | ||||
| 91551-80612 | ||||
| 91551-80812 | ||||
| 91551-80818 | ||||
| 91643-80635 | ||||
| 94151-80600 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 8716 | ||||
ILLUST NO. 1 OF 2(0501- )2TRFE..TRH213..STD..VN ; (0501- )2TRFE..TRH223..5F..GCC ; (0501- )
W/O(AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75160 |
5LE..LH20#..LHD |
1 | ||
| 16261-75160 |
5LE..LH20#..LHD |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
5LE..LH20#,212,222 |
2 | ||
| 96135-51300 |
5LE..LH20#,212,222 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
5LE..LH20#,212,222 |
2 | ||
| 96135-51300 |
5LE..LH20#,212,222 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75100 |
5LE..LH20#..LHD |
1 | ||
| 16264-75100 |
5LE..LH20#..LHD |
1 | ||
| 16264-75101 |
5LE..LH20#..LHD |
1 | ||
| 16264-75101 |
5LE..LH20#..LHD |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90467-22011 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96136-42501 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96136-42501 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90467-20011 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 90467-20011 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90467-22011 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96136-42501 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96136-42501 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90467-20011 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 90467-20011 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-75010 |
5LE..LH20#,212,222 |
1 | ||
| 16307-75010 |
5LE..LH20#,212,222 |
1 | ||
| 16307-75011 |
5LE..LH20#,212,222 |
1 | ||
| 16307-75011 |
5LE..LH20#,212,222 |
1 | ||
| 16307-75020 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16307-75020 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16307-75021 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16307-75021 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16307-30010 |
5LE..LH20#,212,222 |
1 | ||
| 16307-30010 |
5LE..LH20#,212,222 |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-75020 |
5LE..LH20#,212,222 |
1 | ||
| 16360-75020 |
5LE..LH20#,212,222 |
1 | ||
| 16360-75030 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16360-75030 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16360-75021 |
5LE..LH20#,212,222 |
1 | ||
| 16360-75021 |
5LE..LH20#,212,222 |
1 | ||
| 16360-75031 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16360-75031 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16361 - FAN | ||||
| 16361-75030 |
5LE..LH20#,212,222 |
1 | ||
| 16361-75030 |
5LE..LH20#,212,222 |
1 | ||
| 16361-30060 |
5LE..LH20#,212,222 |
1 | ||
| 16361-30060 |
5LE..LH20#,212,222 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-20390 |
5LE..LH20#,212,222 |
1 | ||
| 16363-20390 |
5LE..LH20#,212,222 |
1 | ||
| 16363-20390 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16363-20390 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16363-30041 |
5LE..LH20#,212,222 |
1 | ||
| 16363-30041 |
5LE..LH20#,212,222 |
1 | ||
| 16363-30040 |
5LE..LH20#,212,222 |
1 | ||
| 16363-30040 |
5LE..LH20#,212,222 |
1 | ||
| 16380 - BRACKET ASSY, FAN | ||||
| 16380-75010 |
5LE..LH20#,212,222 |
1 | ||
| 16380-75010 |
5LE..LH20#,212,222 |
1 | ||
| 16380-75011 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16380-75011 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16380-75021 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16380-75021 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16380-75022 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16380-75022 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-54A00 |
5LE..LH20#,212,222 |
1 | ||
| 16400-54A00 |
5LE..LH20#,212,222 |
1 | ||
| 16400-54A01 |
5LE..LH20#,212,222 |
1 | ||
| 16400-54A01 |
5LE..LH20#,212,222 |
1 | ||
| 16400-75471 |
5LE..LH20#,212,222 |
1 | ||
| 16400-75471 |
5LE..LH20#,212,222 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-54A00 |
5LE..LH20#,212,222 |
1 | ||
| 16400-54A00 |
5LE..LH20#,212,222 |
1 | ||
| 16400-54A01 |
5LE..LH20#,212,222 |
1 | ||
| 16400-54A01 |
5LE..LH20#,212,222 |
1 | ||
| 16400-75471 |
5LE..LH20#,212,222 |
1 | ||
| 16400-75471 |
5LE..LH20#,212,222 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
5LE..LH20#,212,222 |
1 | ||
| 16417-30170 |
5LE..LH20#,212,222 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
5LE..LH20#,212,222 |
1 | ||
| 16417-30170 |
5LE..LH20#,212,222 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
5LE..LH20#,212,222 |
1 | ||
| 16418-15520 |
5LE..LH20#,212,222 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
5LE..LH20#,212,222 |
1 | ||
| 16418-15520 |
5LE..LH20#,212,222 |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16401-75120 |
5LE..LH20#,212,222 |
1 | ||
| 16401-75120 |
5LE..LH20#,212,222 |
1 | ||
| 16475-51010 |
5LE..LH20#,212,222 TYPE A:REFER ILLUST. |
1 | ||
| 16475-51010 |
5LE..LH20#,212,222 TYPE A:REFER ILLUST. |
1 | ||
| 16475-37010 |
5LE..LH20#,212,222 TYPE B:REFER ILLUST. |
1 | ||
| 16475-37010 |
5LE..LH20#,212,222 TYPE B:REFER ILLUST. |
1 | ||
| 16412 - PIPE, RADIATOR TANK, UPPER | ||||
| 16412-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16412-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16412-75540 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 16412-75540 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 16412-30171 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16412-30171 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16412A - RING, O(FOR RADIATOR UPPER TANK PIPE) | ||||
| 16413-30171 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16413-30171 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16413-75540 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 16413-75540 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 16413-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16413-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16413-75541 |
5LE..LH20#,212,222 |
1 | ||
| 16413-75541 |
5LE..LH20#,212,222 |
1 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 16414-75540 |
5LE..LH20#,212,222 |
7 | ||
| 16414-75540 |
5LE..LH20#,212,222 |
7 | ||
| 16414-75540 |
5LE..LH20#,212,222 |
10 | ||
| 16414-75540 |
5LE..LH20#,212,222 |
10 | ||
| 90119-06885 |
5LE..LH20#,212,222 |
7 | ||
| 90119-06885 |
5LE..LH20#,212,222 |
7 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 16414-75540 |
5LE..LH20#,212,222 |
7 | ||
| 16414-75540 |
5LE..LH20#,212,222 |
7 | ||
| 16414-75540 |
5LE..LH20#,212,222 |
10 | ||
| 16414-75540 |
5LE..LH20#,212,222 |
10 | ||
| 90119-06885 |
5LE..LH20#,212,222 |
7 | ||
| 90119-06885 |
5LE..LH20#,212,222 |
7 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 16414-75540 |
5LE..LH20#,212,222 |
7 | ||
| 16414-75540 |
5LE..LH20#,212,222 |
7 | ||
| 16414-75540 |
5LE..LH20#,212,222 |
10 | ||
| 16414-75540 |
5LE..LH20#,212,222 |
10 | ||
| 90119-06885 |
5LE..LH20#,212,222 |
7 | ||
| 90119-06885 |
5LE..LH20#,212,222 |
7 | ||
| 16421 - PIPE, RADIATOR TANK, LOWER NO.1 | ||||
| 16421-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16421-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16421A - RING, O(FOR RADIATOR LOWER TANK PIPE NO.1) | ||||
| 16413-75541 |
5LE..LH20#,212,222 |
1 | ||
| 16413-75541 |
5LE..LH20#,212,222 |
1 | ||
| 16413-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16413-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16422 - PIPE, RADIATOR TANK, LOWER NO.2 | ||||
| 16422-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16422-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16423 - HOSE, RADIATOR TANK | ||||
| 16423-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16423-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16424 - CLAMP, RADIATOR TANK PIPE | ||||
| 16424-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16424-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75122 |
5LE..LH20#,212,222 |
1 | ||
| 16470-75122 |
5LE..LH20#,212,222 |
1 | ||
| 16470-75121 |
5LE..LH20#,212,222 |
1 | ||
| 16470-75121 |
5LE..LH20#,212,222 |
1 | ||
| 16470M - GROMMET | ||||
| 90480-15023 |
5LE..LH20#,212,222 |
2 | ||
| 90480-15023 |
5LE..LH20#,212,222 |
2 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-75070 |
5LE..LH20#,212,222 |
1 | ||
| 16480-75070 |
5LE..LH20#,212,222 |
1 | ||
| 16546 - PROTECTOR, RADIATOR | ||||
| 16546-75010 |
5LE..LH20#,212,222 |
1 | ||
| 16546-75010 |
5LE..LH20#,212,222 |
1 | ||
| 16546-75010 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16546-75010 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-75060 |
5LE..LH20# |
1 | ||
| 16573-75060 |
5LE..LH20# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-54020 |
5LE..LH20# |
1 | ||
| 16574-54020 |
5LE..LH20# |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-54260 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16577-54260 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-54011 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16578-54011 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16578-75011 |
5LE..LH20#,212,222 |
1 | ||
| 16578-75011 |
5LE..LH20#,212,222 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-30111 |
5LE..LH20#,212,222 |
1 | ||
| 16711-30111 |
5LE..LH20#,212,222 |
1 | ||
| 16711-75230 |
5LE..LH222;5LE..LH20#,212..03S,10S,12S,15S |
1 | ||
| 16711-75230 |
5LE..LH222;5LE..LH20#,212..03S,10S,12S,15S |
1 | ||
| 16711-30110 |
5LE..LH20#,212,222 |
1 | ||
| 16711-30110 |
5LE..LH20#,212,222 |
1 | ||
| 16711-30080 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16711-30080 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16711-75230 |
5LE..LH20#,212,222 |
1 | ||
| 16711-75230 |
5LE..LH20#,212,222 |
1 | ||
| 16711-30081 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16711-30081 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-75120 |
5LE..LH20#,212,222 |
1 | ||
| 16712-75120 |
5LE..LH20#,212,222 |
1 | ||
| 16712-75121 |
5LE..LH20#,212,222 |
1 | ||
| 16712-75121 |
5LE..LH20#,212,222 |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06473 | ||||
| 90119-06885 | ||||
| 90119-08C79 | ||||
| 90179-06178 | ||||
| 90179-08068 | ||||
| 90389-09025 | ||||
| 90467-20011 | ||||
| 90480-16021 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 91553-80614 | ||||
| 91553-80618 | ||||
| 91553-80818 | ||||
| 91553-80830 | ||||
| 91631-J0620 | ||||
| 91661-60616 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 3(0812-1008)5LE
MAIN RADIATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75160 |
5LE..LH20#..LHD |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75160 |
5LE..LH20#..LHD |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
5LE..LH20#,212,222 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
5LE..LH20#,212,222 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
5LE..LH20#,212,222 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
5LE..LH20#,212,222 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75100 |
5LE..LH20#..LHD |
1 | ||
| 16264-75101 |
5LE..LH20#..LHD |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75100 |
5LE..LH20#..LHD |
1 | ||
| 16264-75101 |
5LE..LH20#..LHD |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96136-42501 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90467-20011 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96136-42501 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90467-20011 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96136-42501 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90467-20011 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96136-42501 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90467-20011 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-75010 |
5LE..LH20#,212,222 |
1 | ||
| 16307-75011 |
5LE..LH20#,212,222 |
1 | ||
| 16307-75020 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16307-75021 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16307-30010 |
5LE..LH20#,212,222 |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-75020 |
5LE..LH20#,212,222 |
1 | ||
| 16360-75030 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16360-75021 |
5LE..LH20#,212,222 |
1 | ||
| 16360-75031 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16361 - FAN | ||||
| 16361-75030 |
5LE..LH20#,212,222 |
1 | ||
| 16361-30060 |
5LE..LH20#,212,222 |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-75040 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16361-30050 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-20390 |
5LE..LH20#,212,222 |
1 | ||
| 16363-20390 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16363-30041 |
5LE..LH20#,212,222 |
1 | ||
| 16363-30040 |
5LE..LH20#,212,222 |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-75030 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16363-30040 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16363-30041 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16380 - BRACKET ASSY, FAN | ||||
| 16380-75010 |
5LE..LH20#,212,222 |
1 | ||
| 16380-75011 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16380-75021 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16380-75022 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-54A00 |
5LE..LH20#,212,222 |
1 | ||
| 16400-54A01 |
5LE..LH20#,212,222 |
1 | ||
| 16400-75471 |
5LE..LH20#,212,222 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
5LE..LH20#,212,222 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
5LE..LH20#,212,222 |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16401-75120 |
5LE..LH20#,212,222 |
1 | ||
| 16475-51010 |
5LE..LH20#,212,222 TYPE A:REFER ILLUST. |
1 | ||
| 16475-37010 |
5LE..LH20#,212,222 TYPE B:REFER ILLUST. |
1 | ||
| 16412 - PIPE, RADIATOR TANK, UPPER | ||||
| 16412-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16412-75540 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 16412-30171 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16412 - PIPE, RADIATOR TANK, UPPER | ||||
| 16412-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16412-75540 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 16412-30171 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16412A - RING, O(FOR RADIATOR UPPER TANK PIPE) | ||||
| 16413-30171 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16413-75540 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 16413-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16413-75541 |
5LE..LH20#,212,222 |
1 | ||
| 16412A - RING, O(FOR RADIATOR UPPER TANK PIPE) | ||||
| 16413-30171 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16413-75540 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 16413-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16413-75541 |
5LE..LH20#,212,222 |
1 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 16414-75540 |
5LE..LH20#,212,222 |
7 | ||
| 16414-75540 |
5LE..LH20#,212,222 |
10 | ||
| 90119-06885 |
5LE..LH20#,212,222 |
7 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 16414-75540 |
5LE..LH20#,212,222 |
7 | ||
| 16414-75540 |
5LE..LH20#,212,222 |
10 | ||
| 90119-06885 |
5LE..LH20#,212,222 |
7 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 16414-75540 |
5LE..LH20#,212,222 |
7 | ||
| 16414-75540 |
5LE..LH20#,212,222 |
10 | ||
| 90119-06885 |
5LE..LH20#,212,222 |
7 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 16414-75540 |
5LE..LH20#,212,222 |
7 | ||
| 16414-75540 |
5LE..LH20#,212,222 |
10 | ||
| 90119-06885 |
5LE..LH20#,212,222 |
7 | ||
| 16421 - PIPE, RADIATOR TANK, LOWER NO.1 | ||||
| 16421-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16421A - RING, O(FOR RADIATOR LOWER TANK PIPE NO.1) | ||||
| 16413-75541 |
5LE..LH20#,212,222 |
1 | ||
| 16413-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16422 - PIPE, RADIATOR TANK, LOWER NO.2 | ||||
| 16422-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16423 - HOSE, RADIATOR TANK | ||||
| 16423-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16424 - CLAMP, RADIATOR TANK PIPE | ||||
| 16424-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75122 |
5LE..LH20#,212,222 |
1 | ||
| 16470-75121 |
5LE..LH20#,212,222 |
1 | ||
| 16470M - GROMMET | ||||
| 90480-15023 |
5LE..LH20#,212,222 |
2 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-75070 |
5LE..LH20#,212,222 |
1 | ||
| 16546 - PROTECTOR, RADIATOR | ||||
| 16546-75010 |
5LE..LH20#,212,222 |
1 | ||
| 16546-75010 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54640 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S NO.2 |
1 | ||
| 90467-37005 |
5LE..LH20#,212,222..03S,12S,15S,16S NO.1 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S NO.2 |
1 | ||
| 90467-37005 |
5LE..LH20#,212,222..03S,12S,15S,16S NO.1 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-75270 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16575A - CLIP, RADIATOR HOSE, NO.5 | ||||
| 90467-34006 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-54260 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-30111 |
5LE..LH20#,212,222 |
1 | ||
| 16711-75230 |
5LE..LH222;5LE..LH20#,212..03S,10S,12S,15S |
1 | ||
| 16711-30110 |
5LE..LH20#,212,222 |
1 | ||
| 16711-30080 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16711-75230 |
5LE..LH20#,212,222 |
1 | ||
| 16711-30081 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-75120 |
5LE..LH20#,212,222 |
1 | ||
| 16712-75121 |
5LE..LH20#,212,222 |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06473 | ||||
| 90119-06885 | ||||
| 90179-06178 | ||||
| 90179-08068 | ||||
| 90389-09025 | ||||
| 90467-20011 | ||||
| 90480-16021 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 91553-80614 | ||||
| 91553-80618 | ||||
| 91553-80830 | ||||
| 91661-60616 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||

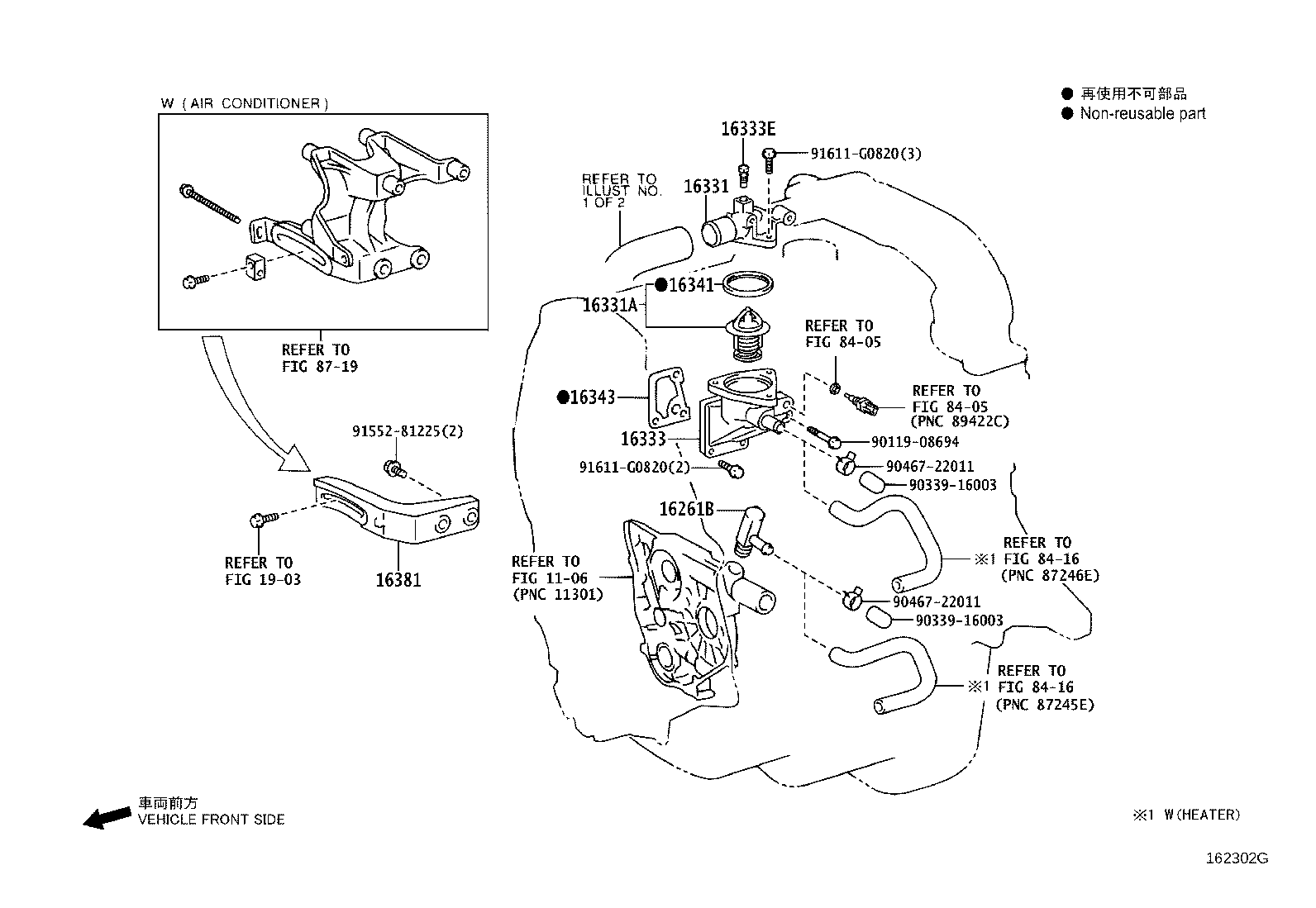

ILLUST NO. 3 OF 3(0501- )5LE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 87251-89113 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-54230 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16331A - THERMOSTAT | ||||
| 16340-54040 |
5LE..LH20#,212,222..03S,12S,15S,16S *WAX 82-95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54280 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16333E - PLUG, DRAIN COCK | ||||
| 90910-09133 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-05020 |
5LE..LH20#,212,222..03S,12S,15S,16S (L) |
1 | ||
| 16341-35010 |
5LE..LH20#,212,222..03S,12S,15S,16S (J) |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54040 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54150 |
5LE..LH20#,212,222 |
1 | ||
| Common parts | ||||
| 90119-08694 | ||||
| 90339-16003 | ||||
| 90467-22011 | ||||
| 91552-81225 | ||||
| 91611-G0820 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1903 | ||||
| 8405 | ||||
| 8416 | ||||
| 8719 | ||||

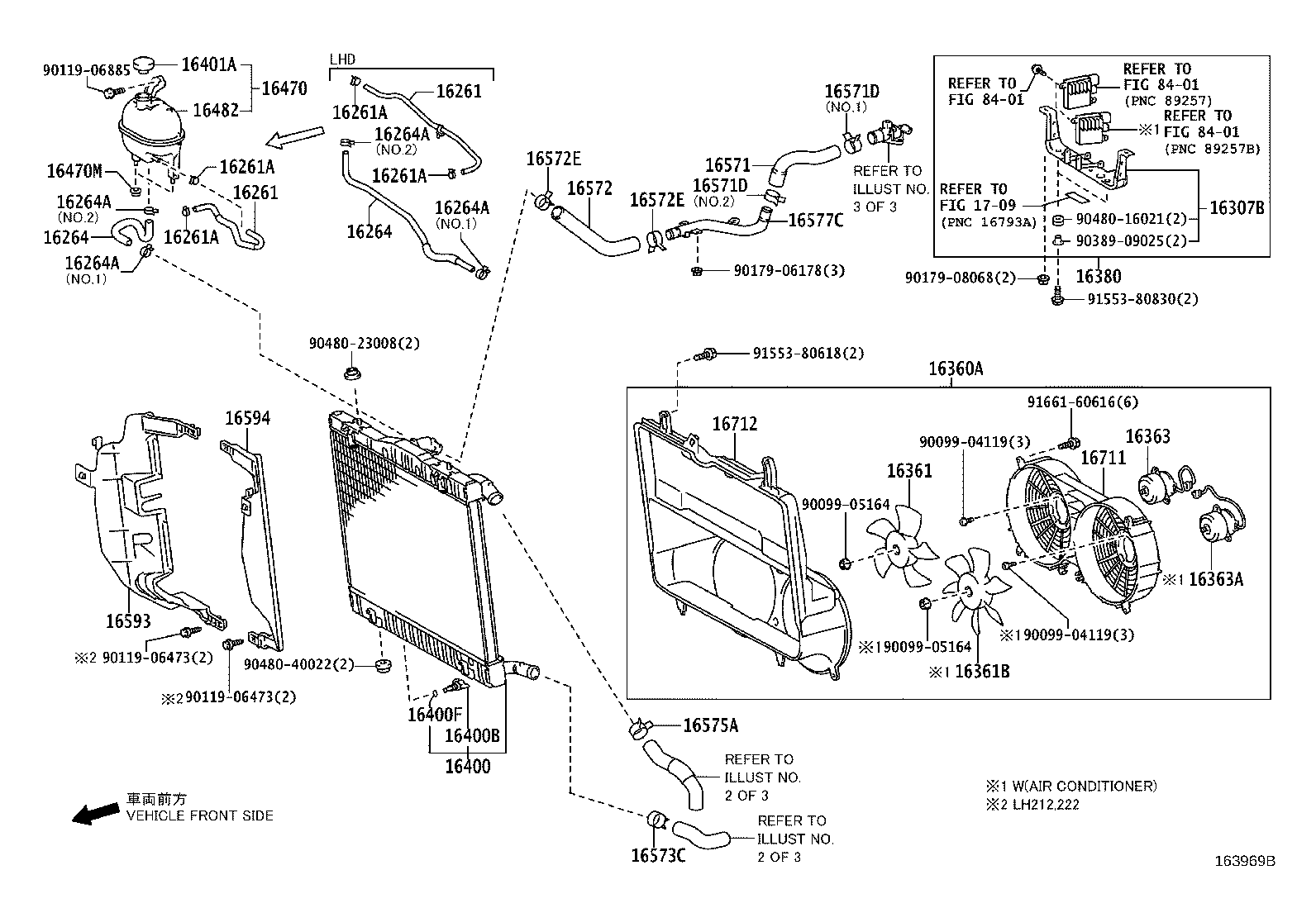

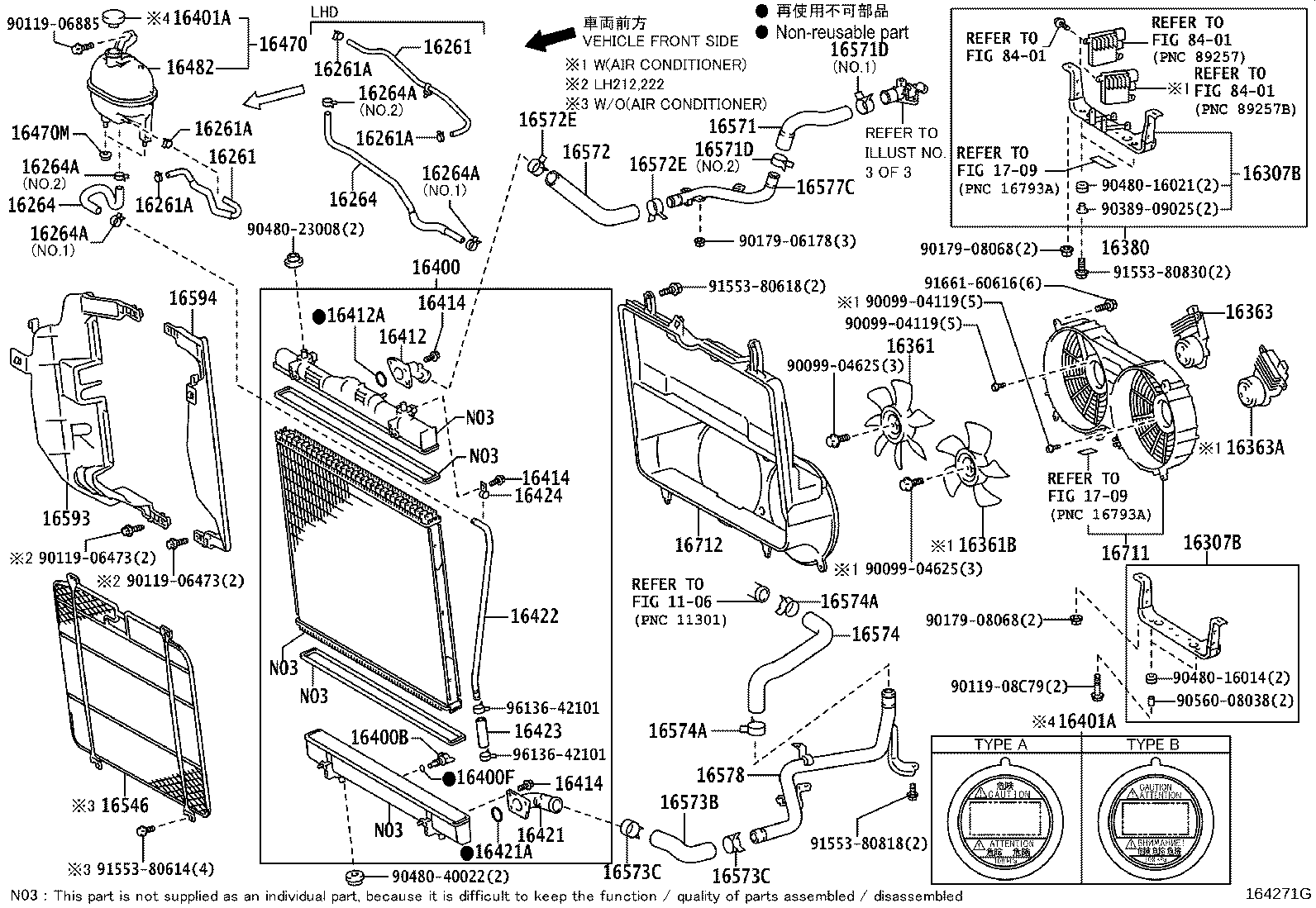

ILLUST NO. 1 OF 2(0501- )2TRFE..TRH223..GL..SA ; (0501- )2TRFE..TRH201,203,213,221 ; (0501-
W(AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75160 |
5LE..LH20#..LHD |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
5LE..LH20#,212,222 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
5LE..LH20#,212,222 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75100 |
5LE..LH20#..LHD |
1 | ||
| 16264-75101 |
5LE..LH20#..LHD |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96136-42501 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90467-20011 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96136-42501 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90467-20011 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-75010 |
5LE..LH20#,212,222 |
1 | ||
| 16307-75011 |
5LE..LH20#,212,222 |
1 | ||
| 16307-75020 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16307-75021 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16307-30010 |
5LE..LH20#,212,222 |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-75020 |
5LE..LH20#,212,222 |
1 | ||
| 16360-75030 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16360-75021 |
5LE..LH20#,212,222 |
1 | ||
| 16360-75031 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16361 - FAN | ||||
| 16361-75030 |
5LE..LH20#,212,222 |
1 | ||
| 16361-30060 |
5LE..LH20#,212,222 |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-75040 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16361-30050 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-20390 |
5LE..LH20#,212,222 |
1 | ||
| 16363-20390 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16363-30041 |
5LE..LH20#,212,222 |
1 | ||
| 16363-30040 |
5LE..LH20#,212,222 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-20390 |
5LE..LH20#,212,222 |
1 | ||
| 16363-20390 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16363-30041 |
5LE..LH20#,212,222 |
1 | ||
| 16363-30040 |
5LE..LH20#,212,222 |
1 | ||
| 16380 - BRACKET ASSY, FAN | ||||
| 16380-75010 |
5LE..LH20#,212,222 |
1 | ||
| 16380-75011 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16380-75021 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16380-75022 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-54A00 |
5LE..LH20#,212,222 |
1 | ||
| 16400-54A01 |
5LE..LH20#,212,222 |
1 | ||
| 16400-75471 |
5LE..LH20#,212,222 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-54A00 |
5LE..LH20#,212,222 |
1 | ||
| 16400-54A01 |
5LE..LH20#,212,222 |
1 | ||
| 16400-75471 |
5LE..LH20#,212,222 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
5LE..LH20#,212,222 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
5LE..LH20#,212,222 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
5LE..LH20#,212,222 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
5LE..LH20#,212,222 |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16401-75120 |
5LE..LH20#,212,222 |
1 | ||
| 16475-51010 |
5LE..LH20#,212,222 TYPE A:REFER ILLUST. |
1 | ||
| 16475-37010 |
5LE..LH20#,212,222 TYPE B:REFER ILLUST. |
1 | ||
| 16412 - PIPE, RADIATOR TANK, UPPER | ||||
| 16412-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16412-75540 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 16412-30171 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16412A - RING, O(FOR RADIATOR UPPER TANK PIPE) | ||||
| 16413-30171 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16413-75540 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 16413-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16413-75541 |
5LE..LH20#,212,222 |
1 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 16414-75540 |
5LE..LH20#,212,222 |
7 | ||
| 16414-75540 |
5LE..LH20#,212,222 |
10 | ||
| 90119-06885 |
5LE..LH20#,212,222 |
7 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 16414-75540 |
5LE..LH20#,212,222 |
7 | ||
| 16414-75540 |
5LE..LH20#,212,222 |
10 | ||
| 90119-06885 |
5LE..LH20#,212,222 |
7 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 16414-75540 |
5LE..LH20#,212,222 |
7 | ||
| 16414-75540 |
5LE..LH20#,212,222 |
10 | ||
| 90119-06885 |
5LE..LH20#,212,222 |
7 | ||
| 16421 - PIPE, RADIATOR TANK, LOWER NO.1 | ||||
| 16421-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16421A - RING, O(FOR RADIATOR LOWER TANK PIPE NO.1) | ||||
| 16413-75541 |
5LE..LH20#,212,222 |
1 | ||
| 16413-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16422 - PIPE, RADIATOR TANK, LOWER NO.2 | ||||
| 16422-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16423 - HOSE, RADIATOR TANK | ||||
| 16423-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16424 - CLAMP, RADIATOR TANK PIPE | ||||
| 16424-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75122 |
5LE..LH20#,212,222 |
1 | ||
| 16470-75121 |
5LE..LH20#,212,222 |
1 | ||
| 16470M - GROMMET | ||||
| 90480-15023 |
5LE..LH20#,212,222 |
2 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-75070 |
5LE..LH20#,212,222 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-75060 |
5LE..LH20# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-54020 |
5LE..LH20# |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-54260 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-54011 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16578-75011 |
5LE..LH20#,212,222 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-30111 |
5LE..LH20#,212,222 |
1 | ||
| 16711-75230 |
5LE..LH222;5LE..LH20#,212..03S,10S,12S,15S |
1 | ||
| 16711-30110 |
5LE..LH20#,212,222 |
1 | ||
| 16711-30080 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16711-75230 |
5LE..LH20#,212,222 |
1 | ||
| 16711-30081 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-75120 |
5LE..LH20#,212,222 |
1 | ||
| 16712-75121 |
5LE..LH20#,212,222 |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06473 | ||||
| 90119-06885 | ||||
| 90119-08C79 | ||||
| 90179-06178 | ||||
| 90179-08068 | ||||
| 90389-09025 | ||||
| 90467-20011 | ||||
| 90480-16021 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 91553-80618 | ||||
| 91553-80818 | ||||
| 91553-80830 | ||||
| 91631-J0620 | ||||
| 91661-60616 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0501- )2TRFE..TRH203..12S..GEN ; (0501- )2TRFE..TRH201..4D..SP..GEN ; (0501-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331A - THERMOSTAT | ||||
| 16340-54040 |
5LE..LH20#,212,222..03S,12S,15S,16S *WAX 82-95 |
1 | ||
| 16340-54040 |
5LE..LH20#,212,222..03S,12S,15S,16S *WAX 82-95 |
1 | ||
| 16340-54040 |
5LE..LH20#,212,222..03S,12S,15S,16S *WAX 82-95 |
1 | ||
| 16340-54040 |
5LE..LH20#,212,222..03S,12S,15S,16S *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90105-T0120 | ||||
| 90119-T0237 | ||||
| 90178-T0019 | ||||
| 90179-08087 | ||||
| 90412-08004 | ||||
| 91551-00820 | ||||
| 91671-80816 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(0501-1107)2TRFE..TRH201..5D..5F ; (0501-1107)2TRFE..TRH201..SG..4FC ; (0501-1107)2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331A - THERMOSTAT | ||||
| 16340-54040 |
5LE..LH20#,212,222..03S,12S,15S,16S *WAX 82-95 |
1 | ||
| 16340-54040 |
5LE..LH20#,212,222..03S,12S,15S,16S *WAX 82-95 |
1 | ||
| 16340-54040 |
5LE..LH20#,212,222..03S,12S,15S,16S *WAX 82-95 |
1 | ||
| 16340-54040 |
5LE..LH20#,212,222..03S,12S,15S,16S *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90105-T0120 | ||||
| 90119-T0237 | ||||
| 90178-T0019 | ||||
| 90179-08087 | ||||
| 90412-08004 | ||||
| 91551-00820 | ||||
| 91671-80816 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 8716 | ||||

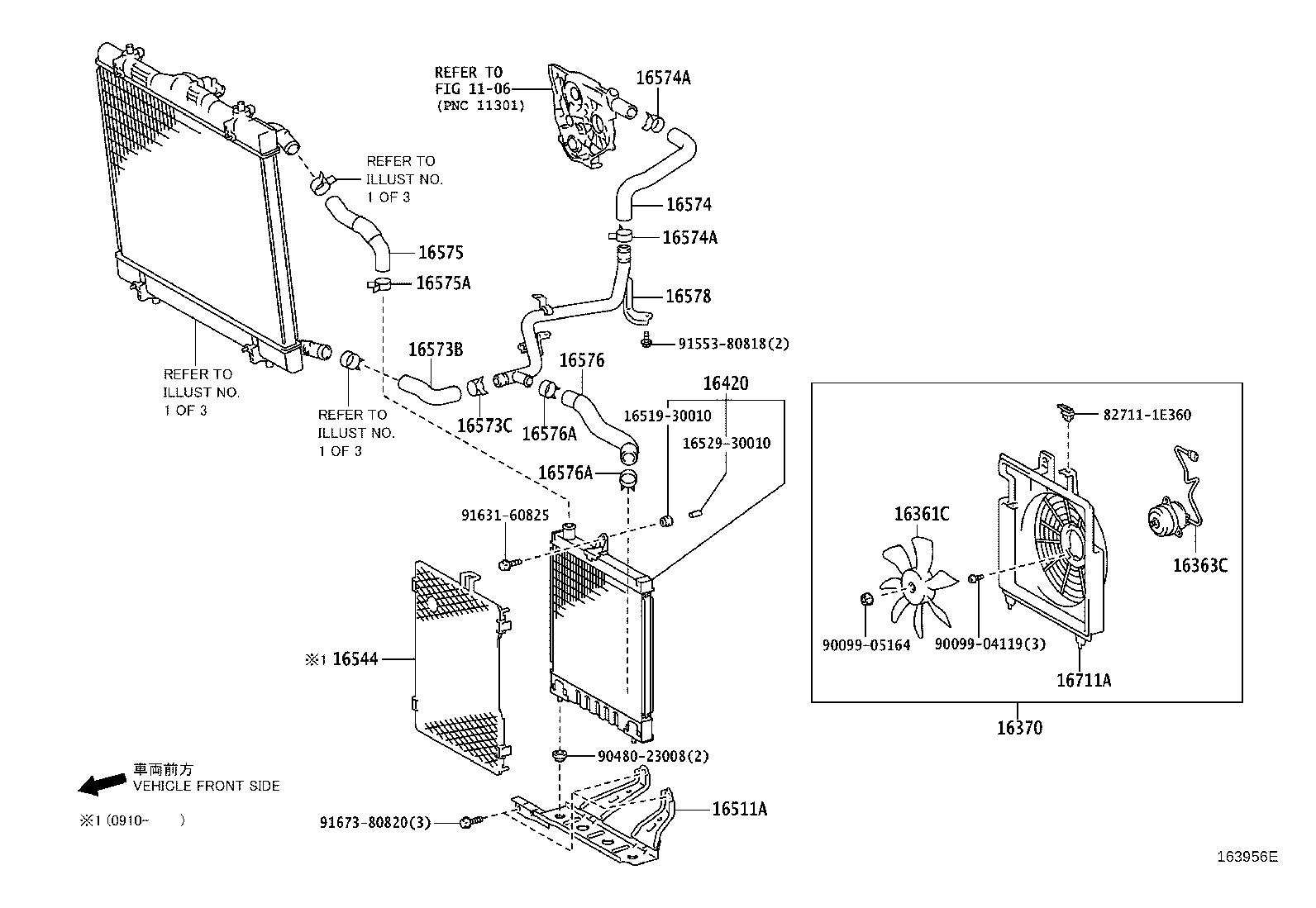

ILLUST NO. 2 OF 3(0501-1008)5LE
SUB RADIATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361C - FAN NO.2 | ||||
| 16361-30040 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16363C - MOTOR, COOLING FAN, NO.3 | ||||
| 16363-30010 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16370 - FAN ASSY, W/MOTOR, NO.2 | ||||
| 16370-30010 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16420 - RADIATOR ASSY, SUB | ||||
| 16510-30010 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16510-30011 |
5LE..LH20#,212,222 |
1 | ||
| 16511A - BRACKET, SUB-RADIATOR | ||||
| 16511-30010 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16544 - PROTECTOR, SUB-RADIATOR | ||||
| 16544-30010 |
5LE..LH20#,212,222 |
1 | ||
| 16544-30010 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-75060 |
5LE..LH20# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-54020 |
5LE..LH20# |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16575 - HOSE, RADIATOR, NO.5 | ||||
| 16575-30010 |
5LE..LH20# |
1 | ||
| 16575A - CLIP, RADIATOR HOSE, NO.5 | ||||
| 90467-34006 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16576 - HOSE, RADIATOR, NO.6 | ||||
| 16576-54010 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16576A - CLIP, RADIATOR HOSE, NO.6 | ||||
| 90467-34006 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16576A - CLIP, RADIATOR HOSE, NO.6 | ||||
| 90467-34006 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-54011 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16578-75011 |
5LE..LH20#,212,222 |
1 | ||
| 16711A - SHROUD, FAN, NO.2 | ||||
| 16711-30050 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| Common parts | ||||
| 16519-30010 | ||||
| 16529-30010 | ||||
| 82711-1E360 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90480-23008 | ||||
| 91553-80818 | ||||
| 91631-60825 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 1106 | ||||
ILLUST NO. 1 OF 3(0501-0812)5LE
MAIN RADIATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75160 |
5LE..LH20#..LHD |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75160 |
5LE..LH20#..LHD |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
5LE..LH20#,212,222 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
5LE..LH20#,212,222 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
5LE..LH20#,212,222 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
5LE..LH20#,212,222 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75100 |
5LE..LH20#..LHD |
1 | ||
| 16264-75101 |
5LE..LH20#..LHD |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75100 |
5LE..LH20#..LHD |
1 | ||
| 16264-75101 |
5LE..LH20#..LHD |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96136-42501 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90467-20011 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96136-42501 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90467-20011 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96136-42501 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90467-20011 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96136-42501 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90467-20011 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-75010 |
5LE..LH20#,212,222 |
1 | ||
| 16307-75011 |
5LE..LH20#,212,222 |
1 | ||
| 16307-75020 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16307-75021 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16307-30010 |
5LE..LH20#,212,222 |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-75020 |
5LE..LH20#,212,222 |
1 | ||
| 16360-75030 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16360-75021 |
5LE..LH20#,212,222 |
1 | ||
| 16360-75031 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16361 - FAN | ||||
| 16361-75030 |
5LE..LH20#,212,222 |
1 | ||
| 16361-30060 |
5LE..LH20#,212,222 |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-75040 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16361-30050 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-20390 |
5LE..LH20#,212,222 |
1 | ||
| 16363-20390 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16363-30041 |
5LE..LH20#,212,222 |
1 | ||
| 16363-30040 |
5LE..LH20#,212,222 |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-75030 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16363-30040 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16363-30041 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16380 - BRACKET ASSY, FAN | ||||
| 16380-75010 |
5LE..LH20#,212,222 |
1 | ||
| 16380-75011 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16380-75021 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16380-75022 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-54A00 |
5LE..LH20#,212,222 |
1 | ||
| 16400-54A01 |
5LE..LH20#,212,222 |
1 | ||
| 16400-75471 |
5LE..LH20#,212,222 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
5LE..LH20#,212,222 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
5LE..LH20#,212,222 |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16401-75120 |
5LE..LH20#,212,222 |
1 | ||
| 16475-51010 |
5LE..LH20#,212,222 TYPE A:REFER ILLUST. |
1 | ||
| 16475-37010 |
5LE..LH20#,212,222 TYPE B:REFER ILLUST. |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75122 |
5LE..LH20#,212,222 |
1 | ||
| 16470-75121 |
5LE..LH20#,212,222 |
1 | ||
| 16470M - GROMMET | ||||
| 90480-15023 |
5LE..LH20#,212,222 |
2 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-75070 |
5LE..LH20#,212,222 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54640 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S NO.2 |
1 | ||
| 90467-37005 |
5LE..LH20#,212,222..03S,12S,15S,16S NO.1 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S NO.2 |
1 | ||
| 90467-37005 |
5LE..LH20#,212,222..03S,12S,15S,16S NO.1 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-75270 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16575A - CLIP, RADIATOR HOSE, NO.5 | ||||
| 90467-34006 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-54260 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-30111 |
5LE..LH20#,212,222 |
1 | ||
| 16711-75230 |
5LE..LH222;5LE..LH20#,212..03S,10S,12S,15S |
1 | ||
| 16711-30110 |
5LE..LH20#,212,222 |
1 | ||
| 16711-30080 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16711-75230 |
5LE..LH20#,212,222 |
1 | ||
| 16711-30081 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-75120 |
5LE..LH20#,212,222 |
1 | ||
| 16712-75121 |
5LE..LH20#,212,222 |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06473 | ||||
| 90119-06885 | ||||
| 90179-06178 | ||||
| 90179-08068 | ||||
| 90389-09025 | ||||
| 90480-16021 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 91553-80618 | ||||
| 91553-80830 | ||||
| 91661-60616 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 3(1008- )5LE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75160 |
5LE..LH20#..LHD |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75160 |
5LE..LH20#..LHD |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
5LE..LH20#,212,222 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
5LE..LH20#,212,222 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
5LE..LH20#,212,222 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
5LE..LH20#,212,222 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75100 |
5LE..LH20#..LHD |
1 | ||
| 16264-75101 |
5LE..LH20#..LHD |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75100 |
5LE..LH20#..LHD |
1 | ||
| 16264-75101 |
5LE..LH20#..LHD |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96136-42501 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90467-20011 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96136-42501 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90467-20011 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96136-42501 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90467-20011 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 96136-42501 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 90467-20011 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-75010 |
5LE..LH20#,212,222 |
1 | ||
| 16307-75011 |
5LE..LH20#,212,222 |
1 | ||
| 16307-75020 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16307-75021 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16307-30010 |
5LE..LH20#,212,222 |
1 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-75010 |
5LE..LH20#,212,222 |
1 | ||
| 16307-75011 |
5LE..LH20#,212,222 |
1 | ||
| 16307-75020 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16307-75021 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16307-30010 |
5LE..LH20#,212,222 |
1 | ||
| 16361 - FAN | ||||
| 16361-75030 |
5LE..LH20#,212,222 |
1 | ||
| 16361-30060 |
5LE..LH20#,212,222 |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-75040 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16361-30050 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-20390 |
5LE..LH20#,212,222 |
1 | ||
| 16363-20390 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16363-30041 |
5LE..LH20#,212,222 |
1 | ||
| 16363-30040 |
5LE..LH20#,212,222 |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-75030 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16363-30040 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16363-30041 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16380 - BRACKET ASSY, FAN | ||||
| 16380-75010 |
5LE..LH20#,212,222 |
1 | ||
| 16380-75011 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16380-75021 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16380-75022 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-54A00 |
5LE..LH20#,212,222 |
1 | ||
| 16400-54A01 |
5LE..LH20#,212,222 |
1 | ||
| 16400-75471 |
5LE..LH20#,212,222 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
5LE..LH20#,212,222 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
5LE..LH20#,212,222 |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16401-75120 |
5LE..LH20#,212,222 |
1 | ||
| 16475-51010 |
5LE..LH20#,212,222 TYPE A:REFER ILLUST. |
1 | ||
| 16475-37010 |
5LE..LH20#,212,222 TYPE B:REFER ILLUST. |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16401-75120 |
5LE..LH20#,212,222 |
1 | ||
| 16475-51010 |
5LE..LH20#,212,222 TYPE A:REFER ILLUST. |
1 | ||
| 16475-37010 |
5LE..LH20#,212,222 TYPE B:REFER ILLUST. |
1 | ||
| 16412 - PIPE, RADIATOR TANK, UPPER | ||||
| 16412-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16412-75540 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 16412-30171 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16412A - RING, O(FOR RADIATOR UPPER TANK PIPE) | ||||
| 16413-30171 |
5LE..LH20#,212,222 NO.1 |
1 | ||
| 16413-75540 |
5LE..LH20#,212,222 NO.2 |
1 | ||
| 16413-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16413-75541 |
5LE..LH20#,212,222 |
1 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 16414-75540 |
5LE..LH20#,212,222 |
7 | ||
| 16414-75540 |
5LE..LH20#,212,222 |
10 | ||
| 90119-06885 |
5LE..LH20#,212,222 |
7 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 16414-75540 |
5LE..LH20#,212,222 |
7 | ||
| 16414-75540 |
5LE..LH20#,212,222 |
10 | ||
| 90119-06885 |
5LE..LH20#,212,222 |
7 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 16414-75540 |
5LE..LH20#,212,222 |
7 | ||
| 16414-75540 |
5LE..LH20#,212,222 |
10 | ||
| 90119-06885 |
5LE..LH20#,212,222 |
7 | ||
| 16421 - PIPE, RADIATOR TANK, LOWER NO.1 | ||||
| 16421-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16421A - RING, O(FOR RADIATOR LOWER TANK PIPE NO.1) | ||||
| 16413-75541 |
5LE..LH20#,212,222 |
1 | ||
| 16413-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16422 - PIPE, RADIATOR TANK, LOWER NO.2 | ||||
| 16422-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16423 - HOSE, RADIATOR TANK | ||||
| 16423-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16424 - CLAMP, RADIATOR TANK PIPE | ||||
| 16424-75540 |
5LE..LH20#,212,222 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75122 |
5LE..LH20#,212,222 |
1 | ||
| 16470-75121 |
5LE..LH20#,212,222 |
1 | ||
| 16470M - GROMMET | ||||
| 90480-15023 |
5LE..LH20#,212,222 |
2 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-75070 |
5LE..LH20#,212,222 |
1 | ||
| 16546 - PROTECTOR, RADIATOR | ||||
| 16546-75010 |
5LE..LH20#,212,222 |
1 | ||
| 16546-75010 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54640 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S NO.2 |
1 | ||
| 90467-37005 |
5LE..LH20#,212,222..03S,12S,15S,16S NO.1 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S NO.2 |
1 | ||
| 90467-37005 |
5LE..LH20#,212,222..03S,12S,15S,16S NO.1 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-75270 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-75060 |
5LE..LH20# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-54020 |
5LE..LH20# |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
5LE..LH20#,212,222..03S,12S,15S,16S |
2 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-54260 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-54011 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 16578-75011 |
5LE..LH20#,212,222 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-30111 |
5LE..LH20#,212,222 |
1 | ||
| 16711-75230 |
5LE..LH222;5LE..LH20#,212..03S,10S,12S,15S |
1 | ||
| 16711-30110 |
5LE..LH20#,212,222 |
1 | ||
| 16711-30080 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16711-75230 |
5LE..LH20#,212,222 |
1 | ||
| 16711-30081 |
5LE..LH202 AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS) |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-75120 |
5LE..LH20#,212,222 |
1 | ||
| 16712-75121 |
5LE..LH20#,212,222 |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-04625 | ||||
| 90119-06473 | ||||
| 90119-06885 | ||||
| 90119-08C79 | ||||
| 90179-06178 | ||||
| 90179-08068 | ||||
| 90389-09025 | ||||
| 90480-16014 | ||||
| 90480-16021 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 90560-08038 | ||||
| 91553-80614 | ||||
| 91553-80618 | ||||
| 91553-80818 | ||||
| 91553-80830 | ||||
| 91661-60616 | ||||
| 96136-42101 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1709 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(1312-2005)5LE..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-04119 | ||||
| 90099-04625 | ||||
| 90119-06473 | ||||
| 90119-06885 | ||||
| 90119-08C79 | ||||
| 90179-06178 | ||||
| 90179-08017 | ||||
| 90469-14003 | ||||
| 90480-16014 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 90560-08038 | ||||
| 91553-80818 | ||||
| 91661-60616 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 7455 | ||||
ILLUST NO. 1 OF 2(1312-2005)2TRFE..TRH223..GL..SA ; (1312-2005)2TRFE..TRH213,221..RHD ; (1312-2005)2
W(AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06473 | ||||
| 90119-06885 | ||||
| 90119-08C79 | ||||
| 90179-06178 | ||||
| 90179-08017 | ||||
| 90389-09025 | ||||
| 90480-16021 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 91553-80818 | ||||
| 91661-60616 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 7455 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
