LH202L-RDMDE (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013
Engine 5LE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )5LE

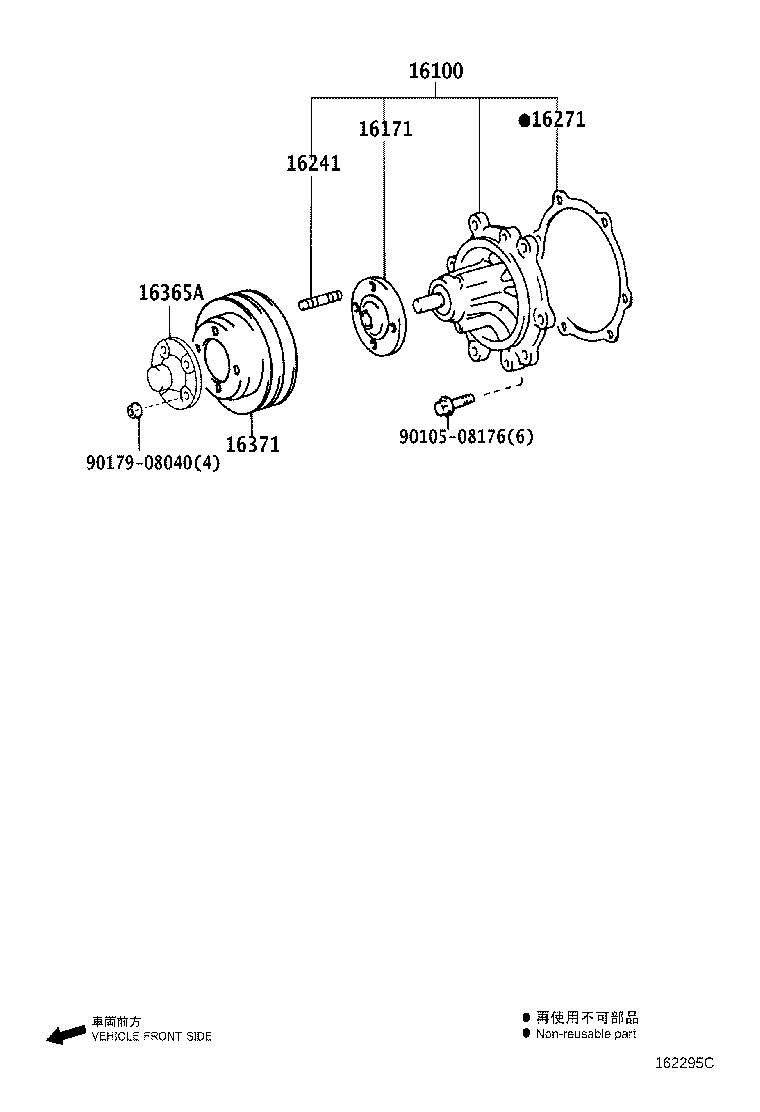

Click highlighted areas on diagram

diagram 16100 16171 16241 16271 16365A 16371 9010508176 9017908040
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-59257

5LE..LH20#,212,222..03S,12S,15S,16S

 1
16171 - SEAT, WATER PUMP PULLEY
16171-75020

5LE..LH20#,212,222..03S,12S,15S,16S

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
92122-60818

5LE..LH20#,212,222

 4
92122-80818

5LE..LH20#,212,222..03S,12S,15S,16S

 4
16271 - GASKET, WATER PUMP
16271-54030

5LE..LH20#,212,222..03S,12S,15S,16S

 1
16365A - SPACER, FAN
16365-70010

5LE..LH20#,212,222..03S,12S,15S,16S

 1
16371 - PULLEY, FAN
16371-54030

5LE..LH20#,212,222..03S,12S,15S,16S

(J)

 1
16371-05010

5LE..LH20#,212,222..03S,12S,15S,16S

(L)

 1
Common parts
90105-08176
90179-08040
