LH202L-RDMDE (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013
Engine 5LE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )5LE

Click highlighted areas on diagram

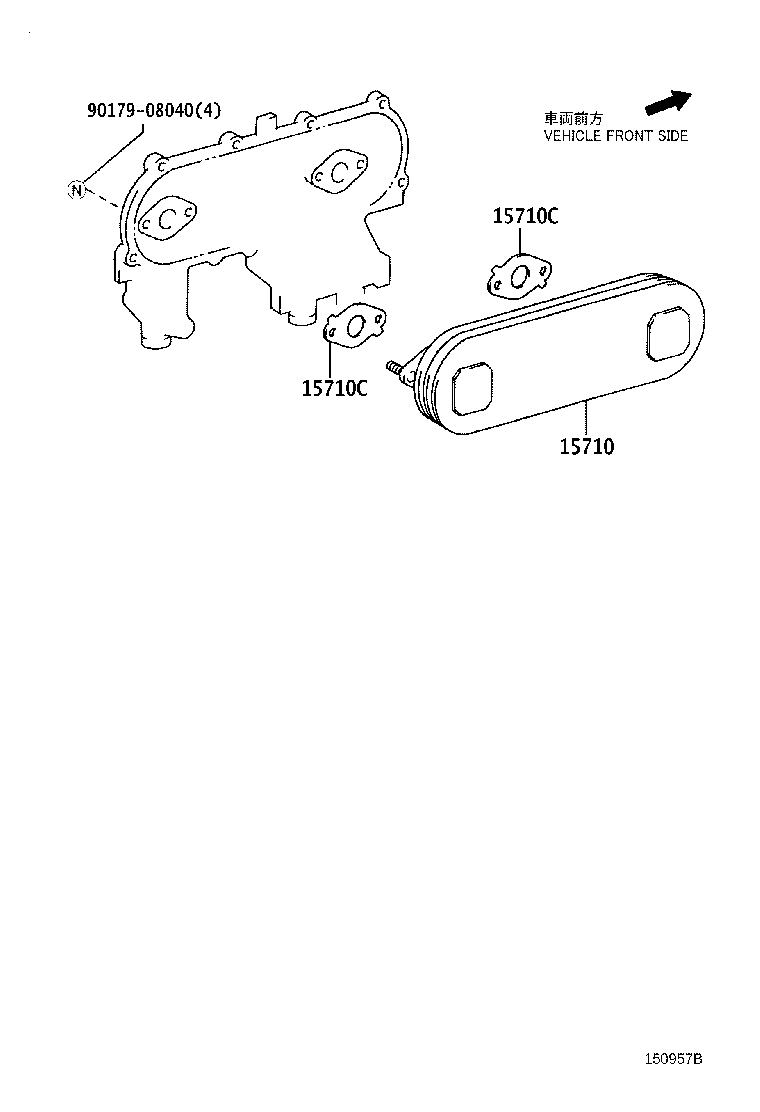

diagram 15710 15710C 15710C 9017908040
Part # Description Qty Price
15710 - COOLER ASSY, OIL
15710-54050

5LE..LH20#,212,222..03S,12S,15S,16S

 1
15710C - GASKET(FOR OIL COOLER)
15785-54010

5LE..LH20#,212,222..03S,12S,15S,16S

 2
15710C - GASKET(FOR OIL COOLER)
15785-54010

5LE..LH20#,212,222..03S,12S,15S,16S

 2
Common parts
90179-08040
