LH202L-RDMDE (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013
Engine 5LE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )5LE

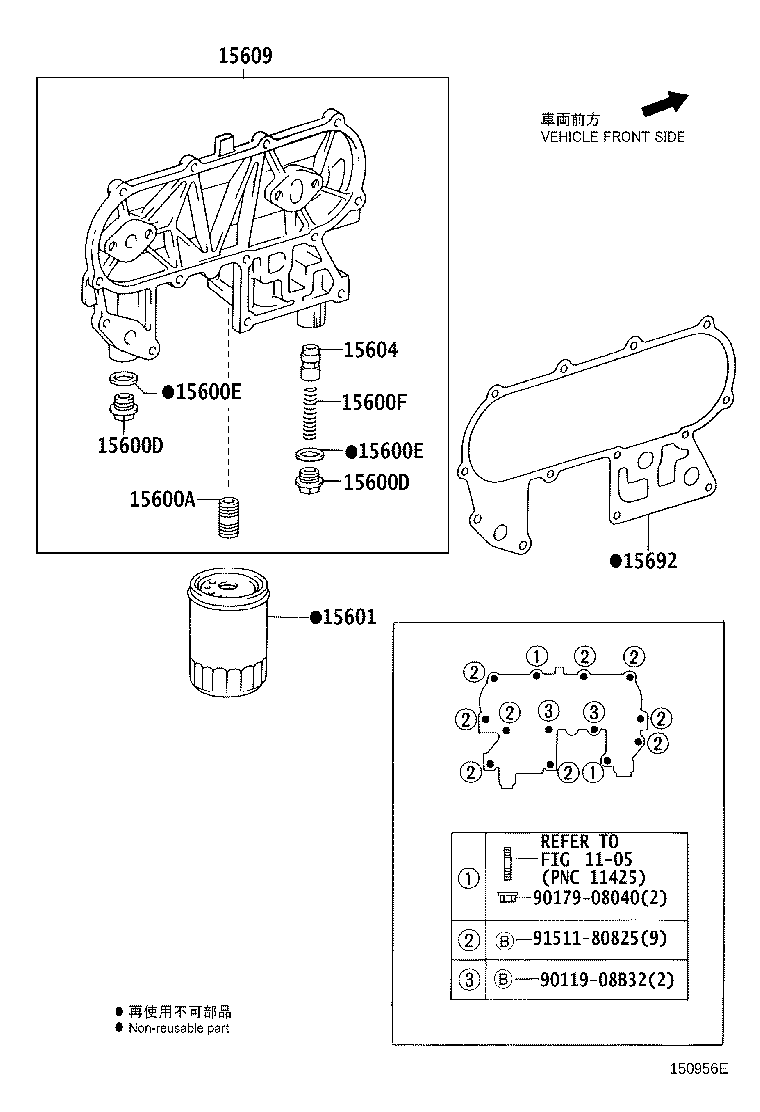

Click highlighted areas on diagram

diagram 1105 15600A 15600D 15600D 15600E 15600E 15600F 15601 15604 15609 15692 9011908B32 9017908040 9151180825
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90404-19011

5LE..LH20#,212,222

 1
90404-19011

5LE..LH20#,212,222

 1
15600D - PLUG(FOR OIL FILTER)
90341-18015

5LE..LH20#,212,222

 2
90341-18015

5LE..LH20#,212,222

 2
15600D - PLUG(FOR OIL FILTER)
90341-18015

5LE..LH20#,212,222

 2
90341-18015

5LE..LH20#,212,222

 2
15600E - WASHER(FOR OIL FILTER)
90430-18029

5LE..LH20#,212,222

 2
90430-18029

5LE..LH20#,212,222

 2
15600E - WASHER(FOR OIL FILTER)
90430-18029

5LE..LH20#,212,222

 2
90430-18029

5LE..LH20#,212,222

 2
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

5LE..LH20#,212,222

 1
90501-16026

5LE..LH20#,212,222

 1
15601 - FILTER SUB-ASSY, OIL
15600-41010

5LE..LH20#,212,222..03S,12S,15S,16S

 1
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

5LE..LH20#,212,222

 1
15131-54010

5LE..LH20#,212,222

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-54014

5LE..LH20#,212,222..03S,12S,15S,16S

 1
15692 - GASKET, OIL FILTER BRACKET
15692-54050

5LE..LH20#,212,222..03S,12S,15S,16S

 1
Common parts
90119-08B32
90179-08040
91511-80825
Linked diagrams
1105
