LH202L-RDMDE (2005)
Toyota Hiace
(0501- )5LE

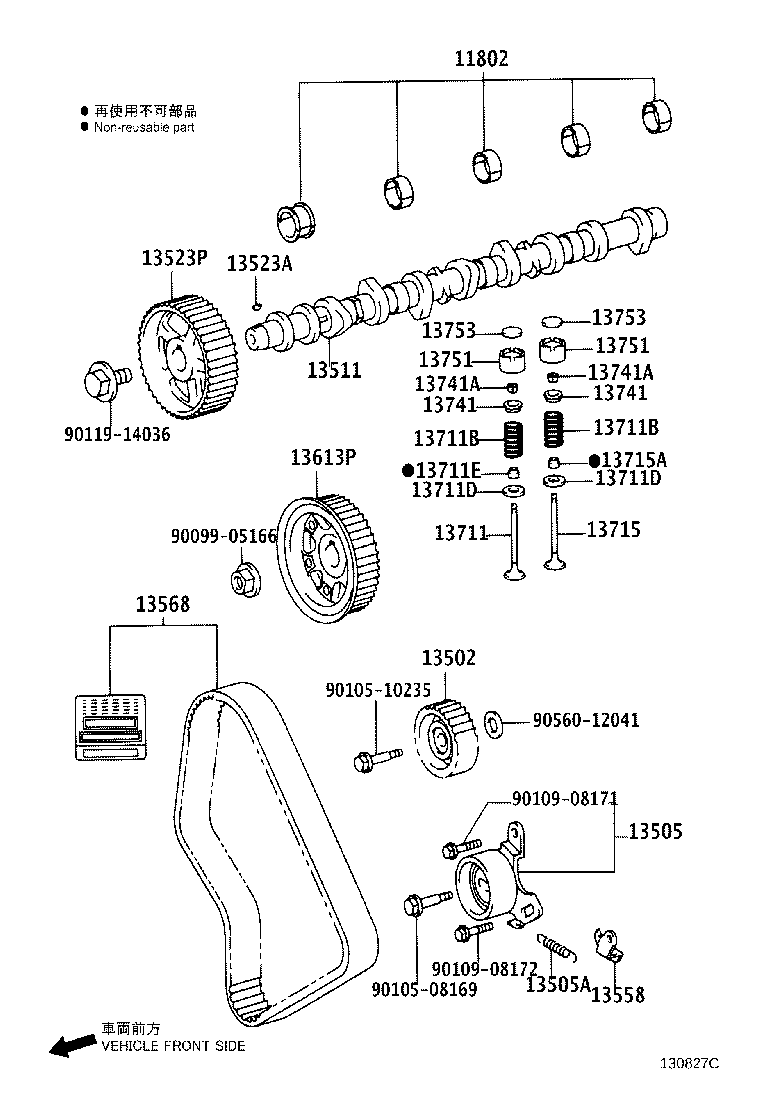

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11804-54020 |
5LE..LH20#,212,222 U/S 0.25 |
1 | ||
| 11802-54020 |
5LE..LH20#,212,222 STD |
1 | ||
| 11803-54021 |
5LE..LH20#,212,222..03S,12S,15S,16S U/S 0.125 |
1 | ||
| 11803-54020 |
5LE..LH20#,212,222 U/S 0.125 |
1 | ||
| 11802-54021 |
5LE..LH20#,212,222..03S,12S,15S,16S STD |
1 | ||
| 11804-54021 |
5LE..LH20#,212,222..03S,12S,15S,16S U/S 0.25 |
1 | ||
| 13502 - IDLER SUB-ASSY, TIMING BELT, NO.2 | ||||
| 13503-05010 |
5LE..LH20#,212,222..03S,12S,15S,16S (L) |
1 | ||
| 13503-54030 |
5LE..LH20#,212,222..03S,12S,15S,16S (J) |
1 | ||
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-54021 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 13505A - SPRING, TENSION(FOR IDLER) | ||||
| 90506-18060 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-54090 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 13523A - KEY, WOODRUFF(FOR TIMING GEAR) | ||||
| 90280-05004 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-05010 |
5LE..LH20#,212,222..03S,12S,15S,16S (L) |
1 | ||
| 13523-54040 |
5LE..LH20#,212,222..03S,12S,15S,16S (J) |
1 | ||
| 13558 - BRACKET, SPRING(FOR IDLER) | ||||
| 13558-54020 |
5LE..LH20#,212,222..03S,12S,15S,16S |
1 | ||
| 13568 - BELT, TIMING | ||||
| 13568-59106 |
5LE..LH20#,212,222 |
1 | ||
| 13568-59106 |
5LE..LH20#,212,222 |
1 | ||
| 13568-59175 |
5LE..LH20#,212,222 |
1 | ||
| 13613P - PULLEY, INJECTION PUMP DRIVE | ||||
| 13603-05010 |
5LE..LH20#,212,222..03S,12S,15S,16S (L) |
1 | ||
| 13603-54030 |
5LE..LH20#,212,222..03S,12S,15S,16S (J) |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-54030 |
5LE..LH20#,212,222..03S,12S,15S,16S |
4 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90504-49001 |
5LE..LH20#,212,222..03S,12S,15S,16S |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90504-49001 |
5LE..LH20#,212,222..03S,12S,15S,16S |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-23003 |
5LE..LH20#,212,222..03S,12S,15S,16S |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-23003 |
5LE..LH20#,212,222..03S,12S,15S,16S |
8 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90913-02117 |
5LE..LH20#,212,222 |
4 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-54050 |
5LE..LH20#,212,222..03S,12S,15S,16S |
4 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90913-02117 |
5LE..LH20#,212,222 |
4 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-54020 |
5LE..LH20#,212,222..03S,12S,15S,16S |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-54020 |
5LE..LH20#,212,222..03S,12S,15S,16S |
8 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03014 |
5LE..LH20#,212,222..03S,12S,15S,16S |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03014 |
5LE..LH20#,212,222..03S,12S,15S,16S |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-54010 |
5LE..LH20#,212,222..03S,12S,15S,16S |
8 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-54010 |
5LE..LH20#,212,222..03S,12S,15S,16S |
8 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-54310 |
5LE..LH20#,212,222..03S,12S,15S,16S T=3.10,MARK=T31 |
8 | ||
| 13753-54160 |
5LE..LH20#,212,222..03S,12S,15S,16S T=2.80,MARK=T16 |
8 | ||
| 13753-54110 |
5LE..LH20#,212,222..03S,12S,15S,16S T=2.70,MARK=T11 |
8 | ||
| 13753-54210 |
5LE..LH20#,212,222..03S,12S,15S,16S T=2.90,MARK=T21 |
8 | ||
| 13753-54420 |
5LE..LH20#,212,222..03S,12S,15S,16S T=2.55,MARK=T42 |
8 | ||
| 13753-54260 |
5LE..LH20#,212,222..03S,12S,15S,16S T=3.00,MARK=T26 |
8 | ||
| 13753-54480 |
5LE..LH20#,212,222..03S,12S,15S,16S T=3.15,MARK=T48 |
8 | ||
| 13753-54450 |
5LE..LH20#,212,222..03S,12S,15S,16S T=2.85,MARK=T45 |
8 | ||
| 13753-54440 |
5LE..LH20#,212,222..03S,12S,15S,16S T=2.75,MARK=T44 |
8 | ||
| 13753-54410 |
5LE..LH20#,212,222..03S,12S,15S,16S T=3.30,MARK=T41 |
8 | ||
| 13753-54060 |
5LE..LH20#,212,222..03S,12S,15S,16S T=2.60,MARK=T06 |
8 | ||
| 13753-54490 |
5LE..LH20#,212,222..03S,12S,15S,16S T=3.25,MARK=T49 |
8 | ||
| 13753-54360 |
5LE..LH20#,212,222..03S,12S,15S,16S T=3.20,MARK=T36 |
8 | ||
| 13753-54470 |
5LE..LH20#,212,222..03S,12S,15S,16S T=3.05,MARK=T47 |
8 | ||
| 13753-54460 |
5LE..LH20#,212,222..03S,12S,15S,16S T=2.95,MARK=T46 |
8 | ||
| 13753-54430 |
5LE..LH20#,212,222..03S,12S,15S,16S T=2.65,MARK=T43 |
8 | ||
| 13753-54010 |
5LE..LH20#,212,222..03S,12S,15S,16S T=2.50,MARK=T01 |
8 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-54310 |
5LE..LH20#,212,222..03S,12S,15S,16S T=3.10,MARK=T31 |
8 | ||
| 13753-54160 |
5LE..LH20#,212,222..03S,12S,15S,16S T=2.80,MARK=T16 |
8 | ||
| 13753-54110 |
5LE..LH20#,212,222..03S,12S,15S,16S T=2.70,MARK=T11 |
8 | ||
| 13753-54210 |
5LE..LH20#,212,222..03S,12S,15S,16S T=2.90,MARK=T21 |
8 | ||
| 13753-54420 |
5LE..LH20#,212,222..03S,12S,15S,16S T=2.55,MARK=T42 |
8 | ||
| 13753-54260 |
5LE..LH20#,212,222..03S,12S,15S,16S T=3.00,MARK=T26 |
8 | ||
| 13753-54480 |
5LE..LH20#,212,222..03S,12S,15S,16S T=3.15,MARK=T48 |
8 | ||
| 13753-54450 |
5LE..LH20#,212,222..03S,12S,15S,16S T=2.85,MARK=T45 |
8 | ||
| 13753-54440 |
5LE..LH20#,212,222..03S,12S,15S,16S T=2.75,MARK=T44 |
8 | ||
| 13753-54410 |
5LE..LH20#,212,222..03S,12S,15S,16S T=3.30,MARK=T41 |
8 | ||
| 13753-54060 |
5LE..LH20#,212,222..03S,12S,15S,16S T=2.60,MARK=T06 |
8 | ||
| 13753-54490 |
5LE..LH20#,212,222..03S,12S,15S,16S T=3.25,MARK=T49 |
8 | ||
| 13753-54360 |
5LE..LH20#,212,222..03S,12S,15S,16S T=3.20,MARK=T36 |
8 | ||
| 13753-54470 |
5LE..LH20#,212,222..03S,12S,15S,16S T=3.05,MARK=T47 |
8 | ||
| 13753-54460 |
5LE..LH20#,212,222..03S,12S,15S,16S T=2.95,MARK=T46 |
8 | ||
| 13753-54430 |
5LE..LH20#,212,222..03S,12S,15S,16S T=2.65,MARK=T43 |
8 | ||
| 13753-54010 |
5LE..LH20#,212,222..03S,12S,15S,16S T=2.50,MARK=T01 |
8 | ||
| Common parts | ||||
| 90099-05166 | ||||
| 90105-08169 | ||||
| 90105-10235 | ||||
| 90109-08171 | ||||
| 90109-08172 | ||||
| 90119-14036 | ||||
| 90560-12041 | ||||
