LH202L-RDMDE (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013
Engine 5LE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )5LE

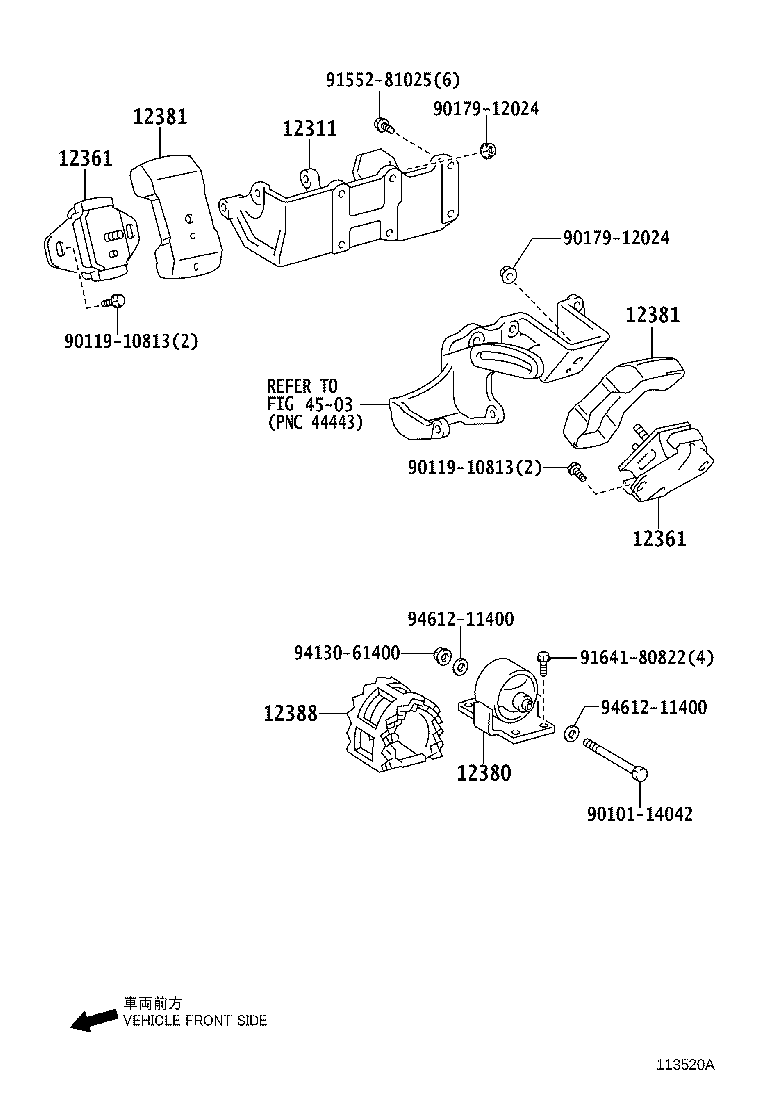

Click highlighted areas on diagram

diagram 12311 12361 12361 12380 12381 12381 12388 4503 9010114042 9011910813 9011910813 9017912024 9017912024 9155281025 9164180822 9413061400 9461211400 9461211400
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54280

5LE..LH20#,212,222

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54143

5LE..LH20#,212,222

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54143

5LE..LH20#,212,222

 2
12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR
12380-75020

5LE..LH20#,212,222..03S,12S,15S,16S

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-54040

5LE..LH20#,212,222

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54040

5LE..LH20#,212,222

 2
12388 - STOPPER, ENGINE MOUNTING BRACKET, REAR
12388-67011

5LE..LH20#,212,222..03S,12S,15S,16S

 1
Common parts
90101-14042
90119-10813
90179-12024
91552-81025
91641-80822
94130-61400
94612-11400
Linked diagrams
4503
