LH202L-RDMDE (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013
Engine 5LE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )5LE

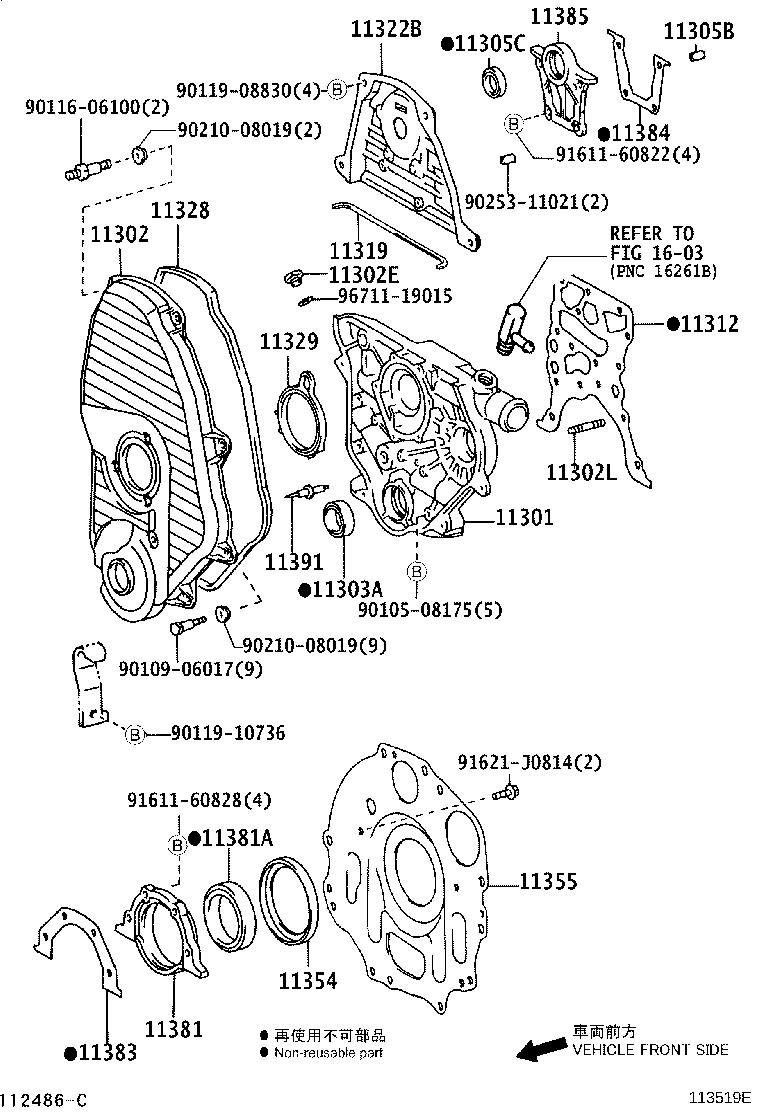

Click highlighted areas on diagram

diagram 11301 11302 11302E 11302L 11303A 11305B 11305C 11312 11319 11322B 11328 11329 11354 11355 11381 11381A 11383 11384 11385 11391 1603 9010508175 9010906017 9011606100 9011908830 9011910736 9021008019 9021008019 9025311021 9161160822 9161160828 91621J0814 9671119015
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11311-54052

5LE..LH20#,212,222..03S,12S,15S,16S

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-54020

5LE..LH20#,212,222

 1
11321-54021

5LE..LH20#,212,222

 1
11302E - PLUG, STRAIGHT(FOR TIMING GEAR COVER)
90341-18004

5LE..LH20#,212,222..03S,12S,15S,16S

 1
11302L - BOLT, STUD(FOR INJECTION PUMP)
92132-60828

5LE..LH20#,212,222

 2
11303A - SEAL, OIL(FOR CRANKSHAFT FRONT)
90311-42031

5LE..LH20#,212,222

 1
11305B - PIN, RING(FOR OIL SEAL RETAINER, NO.2)
90253-11021

5LE..LH20#,212,222..03S,12S,15S,16S

 2
11305C - SEAL, OIL(FOR CAMSHAFT)
90311-32019

5LE..LH20#,212,222

 1
11312 - GASKET, FRONT END PLATE
11312-54040

5LE..LH20#,212,222..03S,12S,15S,16S

 1
11319 - GASKET, TIMING BELT COVER, NO.3
11319-54010

5LE..LH20#,212,222..03S,12S,15S,16S

 1
11322B - COVER, TIMING BELT, NO.2
11322-54022

5LE..LH20#,212,222..03S,12S,15S,16S

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-54021

5LE..LH20#,212,222..03S,12S,15S,16S

(J)

 1
11328-05010

5LE..LH20#,212,222..03S,12S,15S,16S

(L)

 1
11329 - GASKET, TIMING GEAR REAR COVER
11329-05010

5LE..LH20#,212,222..03S,12S,15S,16S

(L)

 1
11329-54021

5LE..LH20#,212,222..03S,12S,15S,16S

(J)

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-54010

5LE..LH20#,212,222

 1
11355 - PLATE, REAR END
11355-05040

5LE..LH20#,212,222

(L)

 1
11355-54030

5LE..LH20#,212,222

(J)

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-54030

5LE..LH20#,212,222..03S,12S,15S,16S

 1
11381A - SEAL, ENGINE REAR OIL
90311-85008

5LE..LH20#,212,222

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-54030

5LE..LH20#,212,222..03S,12S,15S,16S

 1
11384 - GASKET, OIL SEAL RETAINER, NO.2
11384-54030

5LE..LH20#,212,222..03S,12S,15S,16S

 1
11385 - RETAINER, CAMSHAFT OIL SEAL
11382-54020

5LE..LH20#,212,222..03S,12S,15S,16S

(J)

 1
11382-05010

5LE..LH20#,212,222..03S,12S,15S,16S

(L)

 1
11391 - POINTER, TIMING
11391-54020

5LE..LH20#,212,222..03S,12S,15S,16S

 1
Common parts
90105-08175
90109-06017
90116-06100
90119-08830
90119-10736
90210-08019
90253-11021
91611-60822
91611-60828
91621-J0814
96711-19015
