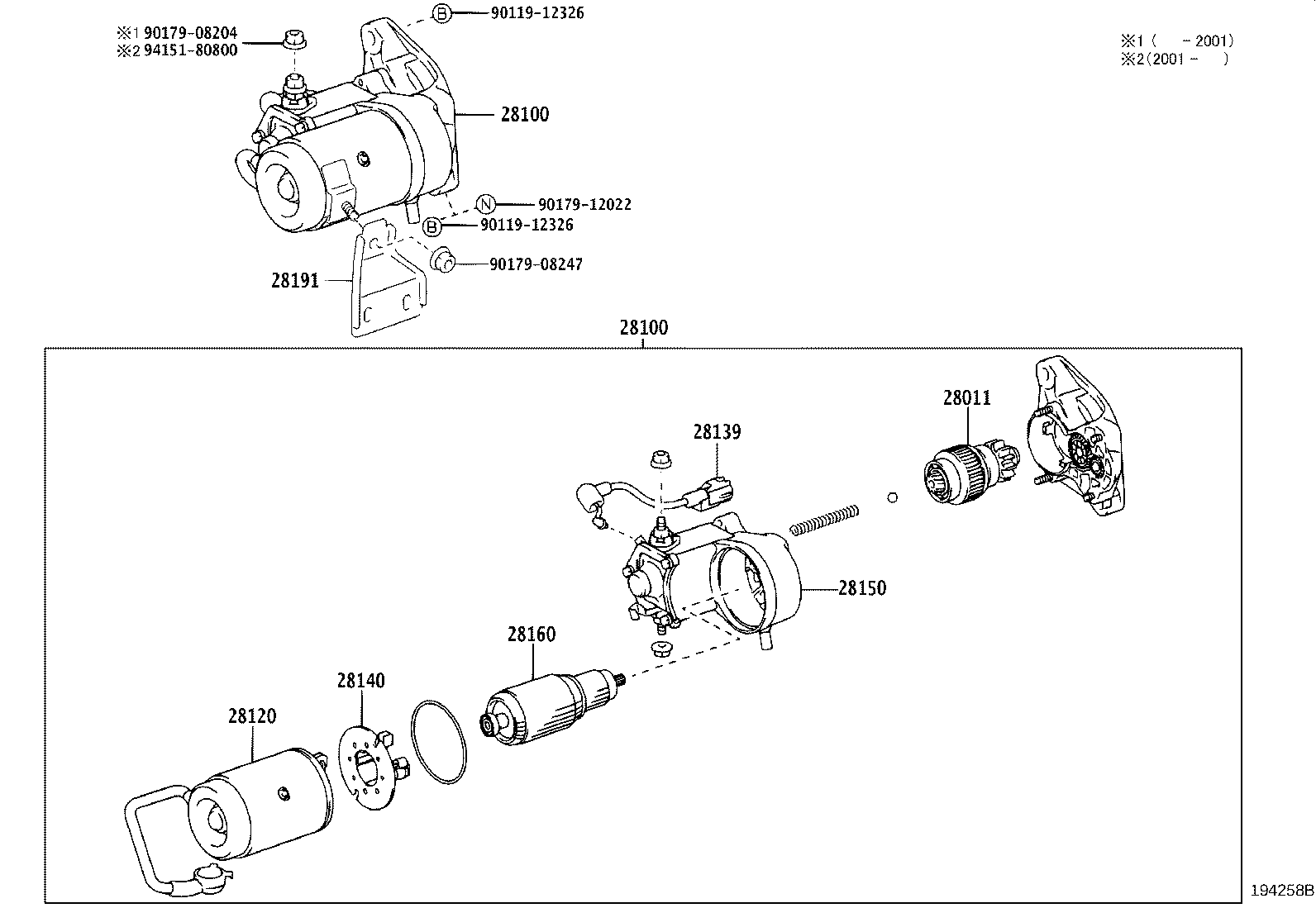

LH202L-RDMDE (2013)
Toyota Hiace
(1312- )5LE
12V 2.2KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54480 |
5LE..LH20#..4D COLD AREA SPEC |
1 | ||
| 28011-54260 |
5LE..LH20#,212,222..4D |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54262 |
5LE..LH20#,212,222..4D 12V 2.2KW |
1 | ||
| 28100-54481 |
5LE..LH20#..4D 12V 2.7KW,COLD AREA SPEC |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54262 |
5LE..LH20#,212,222..4D 12V 2.2KW |
1 | ||
| 28100-54481 |
5LE..LH20#..4D 12V 2.7KW,COLD AREA SPEC |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-47040 |
5LE..LH20#..4D COLD AREA SPEC |
1 | ||
| 28120-54260 |
5LE..LH20#,212,222..4D |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-54261 |
5LE..LH20#..4D;5LE..LH222..LHD |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
1KDFTV,2KDFTV..KDH200,201..LHD..5D..GEN;1KDFTV,2KDFTV,5LE..KDH202,213,222,LH20#..4D..5F..GEN COLD AREA SPEC |
1 | ||
| 28140-64040 |
1KDFTV..KDH201,221..5F;1KDFTV..KDH223..GL..GEN;1KDFTV..KDH201..SP..06S..4FC;1KDFTV,5LE..KDH203,213,LH202,212,222..COM;1KDFTV,5LE..KDH223,LH200..4D..5F..(ARL,GEN,VN) |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-54330 |
5LE..LH20#,212,222..4D |
1 | ||
| 28150-54480 |
5LE..LH20#..4D COLD AREA SPEC |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-64041 |
1KDFTV..KDH201,221..5F;1KDFTV..KDH223..GL..GEN;1KDFTV..KDH201..SP..06S..4FC;1KDFTV,5LE..KDH203,213,LH202,212,222..COM;1KDFTV,5LE..KDH223,LH200..4D..5F..(ARL,GEN,VN) |
1 | ||
| 28160-54140 |
1KDFTV,2KDFTV..KDH200,201..LHD..5D..GEN;1KDFTV,2KDFTV,5LE..KDH202,213,222,LH20#..4D..5F..GEN COLD AREA SPEC |
1 | ||
| 28191 - STAY, STARTER | ||||
| 28191-54040 |
5LE..LH20#..4D;5LE..LH222..LHD |
1 | ||
| 28191-54010 |
5LE..LH20#..4D COLD AREA SPEC |
1 | ||
| Common parts | ||||
| 90119-12326 | ||||
| 90179-08204 | ||||
| 90179-08247 | ||||
| 90179-12022 | ||||
| 94151-80800 | ||||

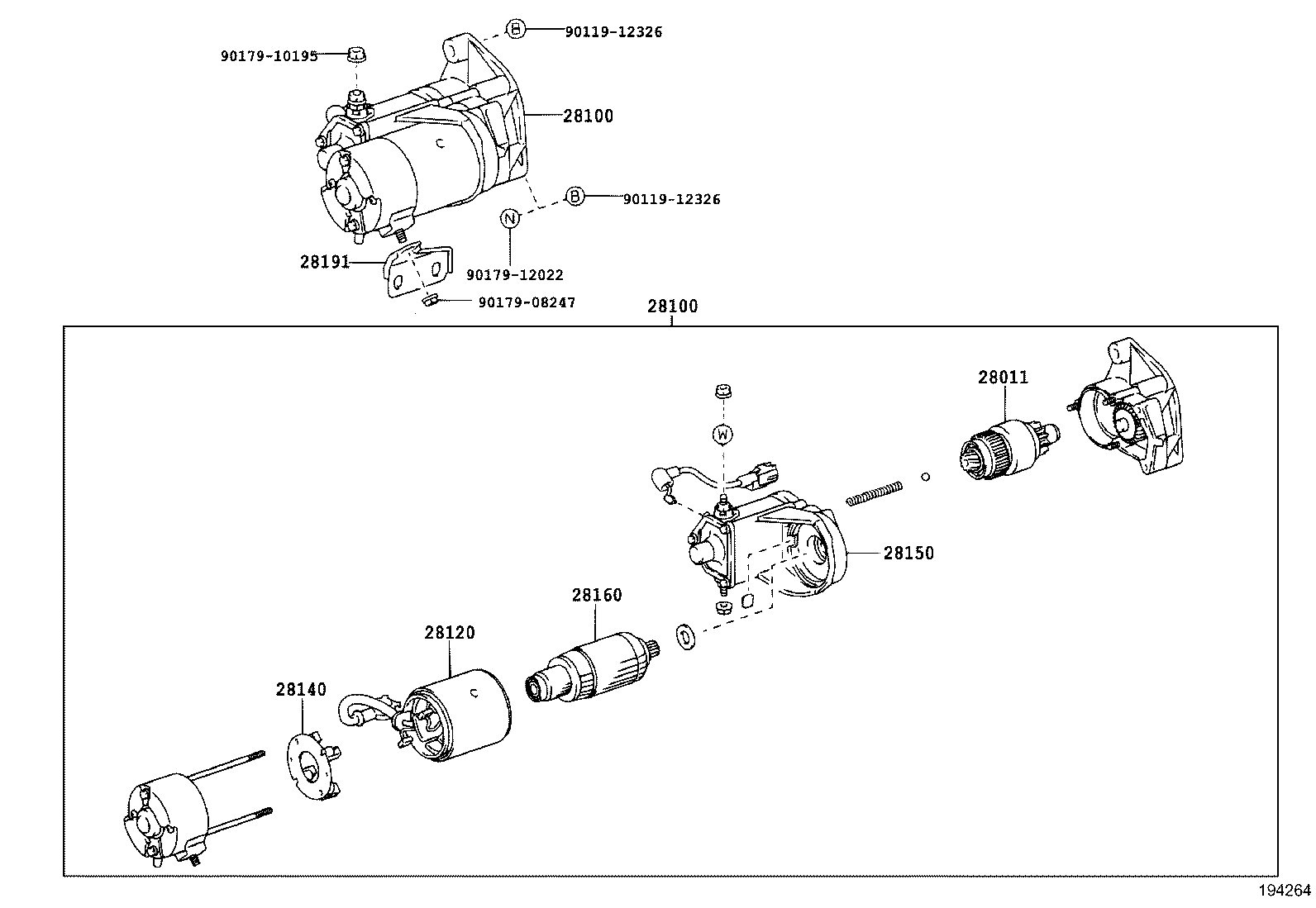

(1312- )5LE..LH20#
12V 2.7KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54480 |
5LE..LH20#..4D COLD AREA SPEC |
1 | ||
| 28011-54260 |
5LE..LH20#,212,222..4D |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54262 |
5LE..LH20#,212,222..4D 12V 2.2KW |
1 | ||
| 28100-54481 |
5LE..LH20#..4D 12V 2.7KW,COLD AREA SPEC |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54262 |
5LE..LH20#,212,222..4D 12V 2.2KW |
1 | ||
| 28100-54481 |
5LE..LH20#..4D 12V 2.7KW,COLD AREA SPEC |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-47040 |
5LE..LH20#..4D COLD AREA SPEC |
1 | ||
| 28120-54260 |
5LE..LH20#,212,222..4D |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
1KDFTV,2KDFTV..KDH200,201..LHD..5D..GEN;1KDFTV,2KDFTV,5LE..KDH202,213,222,LH20#..4D..5F..GEN COLD AREA SPEC |
1 | ||
| 28140-64040 |
1KDFTV..KDH201,221..5F;1KDFTV..KDH223..GL..GEN;1KDFTV..KDH201..SP..06S..4FC;1KDFTV,5LE..KDH203,213,LH202,212,222..COM;1KDFTV,5LE..KDH223,LH200..4D..5F..(ARL,GEN,VN) |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-54330 |
5LE..LH20#,212,222..4D |
1 | ||
| 28150-54480 |
5LE..LH20#..4D COLD AREA SPEC |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-64041 |
1KDFTV..KDH201,221..5F;1KDFTV..KDH223..GL..GEN;1KDFTV..KDH201..SP..06S..4FC;1KDFTV,5LE..KDH203,213,LH202,212,222..COM;1KDFTV,5LE..KDH223,LH200..4D..5F..(ARL,GEN,VN) |
1 | ||
| 28160-54140 |
1KDFTV,2KDFTV..KDH200,201..LHD..5D..GEN;1KDFTV,2KDFTV,5LE..KDH202,213,222,LH20#..4D..5F..GEN COLD AREA SPEC |
1 | ||
| 28191 - STAY, STARTER | ||||
| 28191-54040 |
5LE..LH20#..4D;5LE..LH222..LHD |
1 | ||
| 28191-54010 |
5LE..LH20#..4D COLD AREA SPEC |
1 | ||
| Common parts | ||||
| 90119-12326 | ||||
| 90179-08247 | ||||
| 90179-10195 | ||||
| 90179-12022 | ||||
