LH11RP-JR (1982)

Toyota Hiace

Production Nov 1982 - Jul 1985
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )LH11

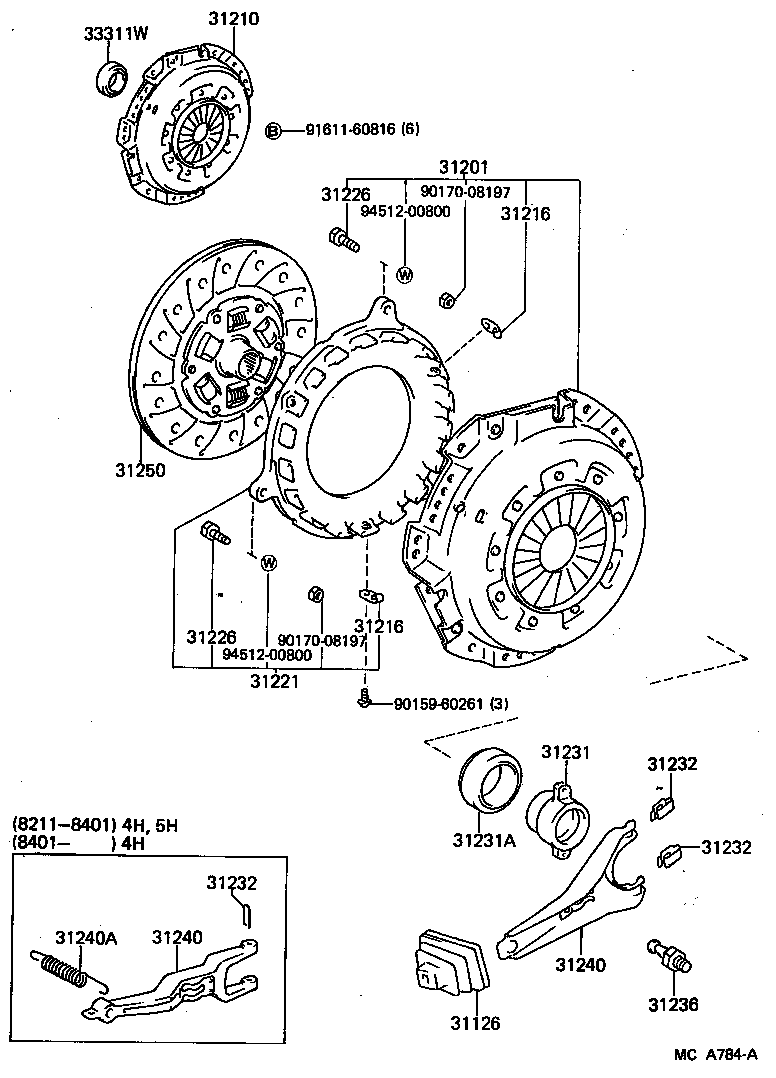

Click highlighted areas on diagram

diagram 31126 31201 31210 31216 31216 31221 31226 31226 31231 31231A 31232 31232 31232 31236 31240 31240 31240A 31250 33311W 9015960261 9017008197 9017008197 9161160816 9451200800 9451200800
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20050

LH11..4H

 1
31201 - COVER SUB-ASSY, CLUTCH
31201-29085

LH11

 1
31210 - COVER ASSY, CLUTCH
31210-26030

LH11..4H

 1
31216 - SPRING, CLUTCH RETRACTING
31216-30010

LH11,RH11

 3
31216 - SPRING, CLUTCH RETRACTING
31216-30010

LH11,RH11

 3
31221 - PLATE, CLUTCH PRESSURE
31221-29035

LH11..4H

 1
31226 - BOLT, CLUTCH PRESSURE PLATE
90101-08022

LH11,RH11

 6
31226 - BOLT, CLUTCH PRESSURE PLATE
90101-08022

LH11,RH11

 6
31231 - HUB, CLUTCH RELEASE BEARING
31231-30080

LH11

 1
31231-30080

LH11..4H

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40022

LH11,RH11

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-30020

LH11,RH11

 2
31232-30020

LH11,RH11..4H

 2
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-30020

LH11,RH11

 2
31232-30020

LH11,RH11..4H

 2
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-30020

LH11,RH11

 2
31232-30020

LH11,RH11..4H

 2
31236 - BALL, RELEASE FORK
31236-30060

LH11

 1
31236-30060

LH11..4H

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-26010

LH11

 1
31204-26010

LH11..4H

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-26010

LH11

 1
31204-26010

LH11..4H

 1
31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)
90506-16004

LH11

 1
90506-16004

LH11..4H

 1
31250 - DISC ASSY, CLUTCH
31250-35061

LH11,RH11..4H

 1
31250-35062

LH11,RH11..4H

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

LH11,RH11

 1
Common parts
90159-60261
90170-08197
91611-60816
94512-00800
