LH11R-QRBW (1979)
Toyota Hiace
Production
Dec 1979
-
Nov 1982
Engine
L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7912- )RHD..EUR

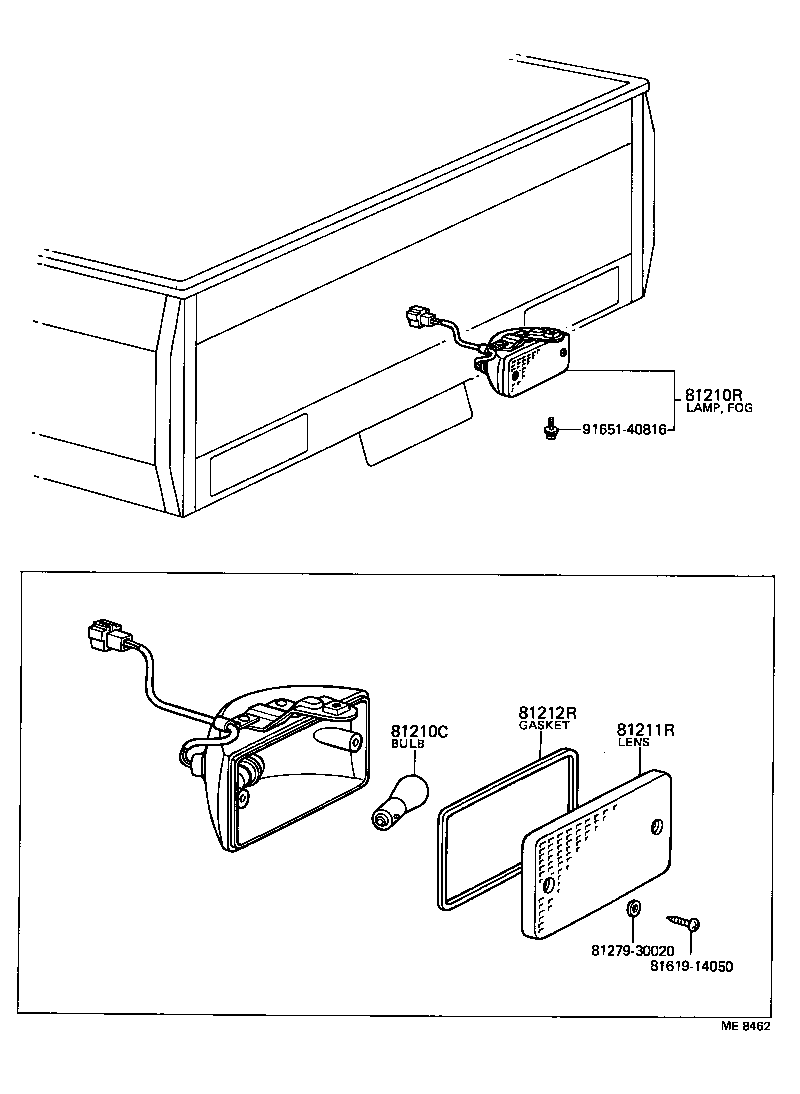

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210C - BULB, REAR FOG LAMP | ||||
| 99132-11210 |
LH11,20,30,RH11,20,3#..RHD..EUR 12V 21W |
1 | ||
| 99132-11210 |
LH11,20,30,RH11,20,32..RHD..EUR 12V 21W |
1 | ||
| 81210R - LAMP ASSY, REAR FOG | ||||
| 81210-95A00 |
LH20,30,RH20,3#..RHD..EUR |
1 | ||
| 81210-29015 |
LH11,RH11..RHD..EUR |
1 | ||
| 81211R - LENS, REAR FOG LAMP | ||||
| 81211-95700 |
LH11,20,30,RH11,20,32..RHD..EUR |
1 | ||
| 81211-95700 |
LH11,20,30,RH11,20,3#..RHD..EUR |
1 | ||
| 81212R - GASKET, REAR FOG LAMP, NO.1 | ||||
| 81212-95700 |
LH11,20,30,RH11,20,3#..RHD..EUR |
1 | ||
| 81212-95700 |
LH11,20,30,RH11,20,32..RHD..EUR |
1 | ||
| Common parts | ||||
| 81279-30020 | ||||
| 81619-14050 | ||||
| 91651-40816 | ||||
