LH11R-JRY (1982)
Toyota Hiace
Production
Nov 1982
-
Jul 1985
Engine
L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8211- )

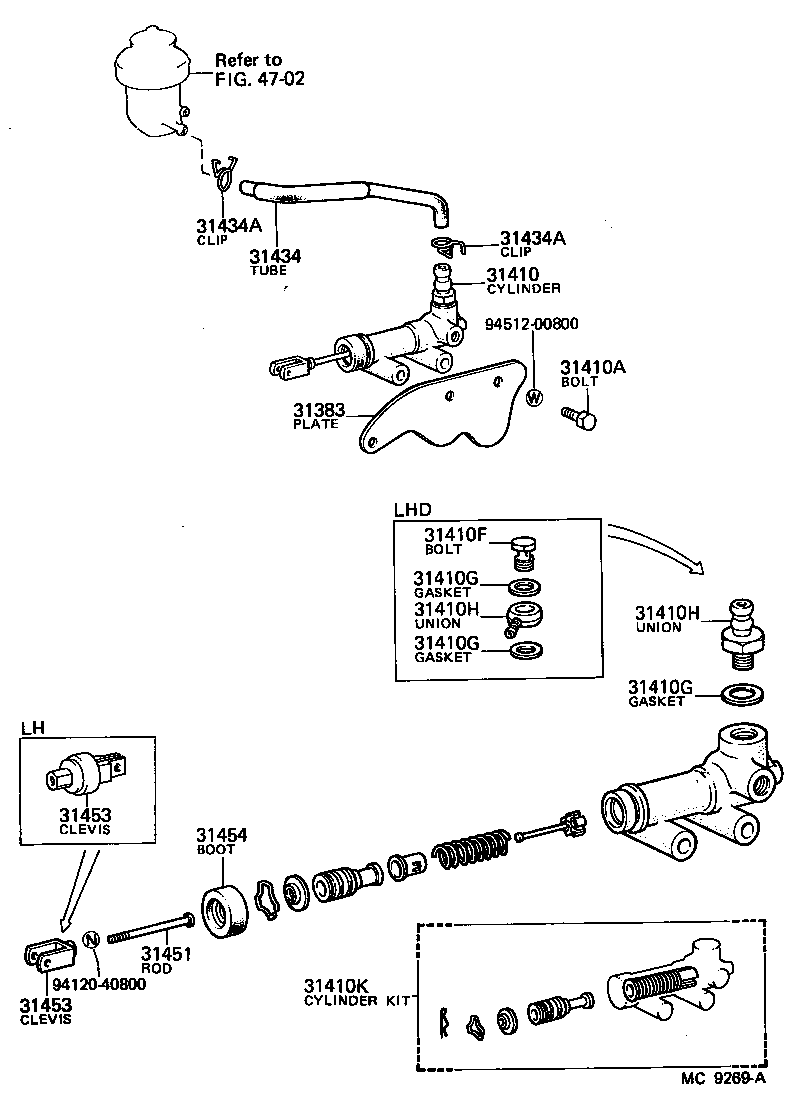

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31383 - PLATE, PEDAL SUPPORT SHAFT SET | ||||
| 55105-95A01 |
LH11,RH11 |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31420-26041 |
LH11..RHD |
1 | ||
| 31420-26110 |
LH11..RHD |
1 | ||
| 31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING) | ||||
| 91121-40865 |
LH11,RH11 |
2 | ||
| 31410G - GASKET(FOR CLUTCH MASTER CYLINDER UNION) | ||||
| 90430-16242 |
LH11,RH11 |
2 | ||
| 31410G - GASKET(FOR CLUTCH MASTER CYLINDER UNION) | ||||
| 90430-16242 |
LH11,RH11 |
2 | ||
| 31410G - GASKET(FOR CLUTCH MASTER CYLINDER UNION) | ||||
| 90430-16242 |
LH11,RH11 |
2 | ||
| 31410H - UNION(FOR CLUTCH MASTER CYLINDER) | ||||
| 90404-16307 |
LH11,RH11..RHD |
1 | ||
| 31410H - UNION(FOR CLUTCH MASTER CYLINDER) | ||||
| 90404-16307 |
LH11,RH11..RHD |
1 | ||
| 31410K - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-12020 |
LH11 |
1 | ||
| 04311-14011 |
LH11,RH11 |
1 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 31434-26070 |
LH11,RH11..RHD |
1 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96132-30800 |
LH11,RH11 |
2 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96132-30800 |
LH11,RH11 |
2 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-30060 |
LH11 |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-26011 |
LH11 |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-26011 |
LH11 |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-14010 |
LH11,RH11 |
1 | ||
| Common parts | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
