LH11R-JRB (1982)
Toyota Hiace
Production
Nov 1982
-
Jul 1985
Engine
L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8211- )LH11..RHD

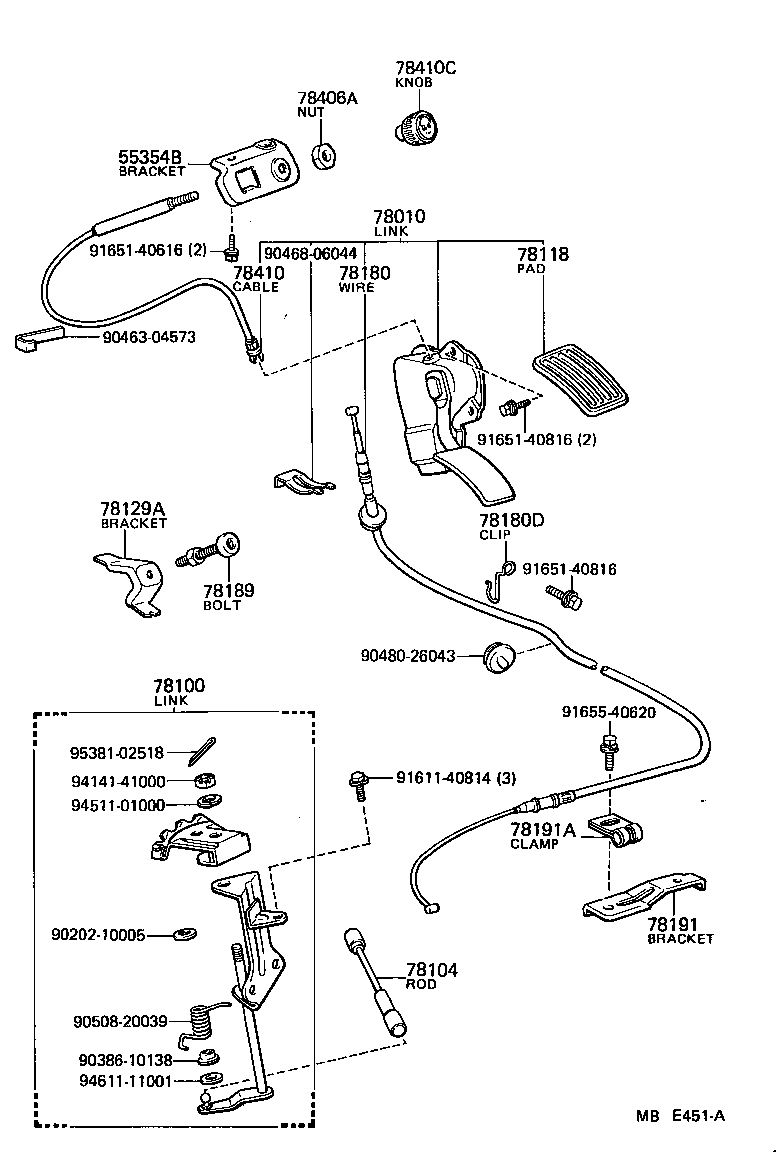

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55354B - BRACKET, THROTTLE CABLE | ||||
| 55354-95A04 |
LH11..RHD..(ARL,EUR,GEN) |
1 | ||
| 78010 - LINK, ACCELERATOR | ||||
| 78180-95A17 |
LH11..RHD |
1 | ||
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-95A02 |
LH11 |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-30120 |
LH11 |
1 | ||
| 78118 - PAD, ACCELERATOR PEDAL | ||||
| 78119-95A02 |
LH11,RH11 |
1 | ||
| 78129A - BRACKET, ACCELERATOR PEDAL STOPPER | ||||
| 78109-95A00 |
LH11,RH11..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78150-95A12 |
LH11..RHD |
1 | ||
| 78180D - CLIP (FOR ACCELERATOR WIRE) | ||||
| 78169-95A01 |
LH11,RH11..RHD |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 78107-95A00 |
LH11,RH11..RHD |
1 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78109-95A02 |
LH11 |
1 | ||
| 78191A - CLAMP (FOR ACCELERATOR WIRE SET) | ||||
| 90461-10434 |
LH11..T3,TW |
1 | ||
| 78406A - NUT, HOLDER (FOR THROTTLE BUTTON) | ||||
| 78413-95A02 |
LH11 |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78401-95A02 |
LH11..RHD |
1 | ||
| 78410C - KNOB, THROTTLE CABLE | ||||
| 78402-95A00 |
LH11 |
1 | ||
| Common parts | ||||
| 90202-10005 | ||||
| 90386-10138 | ||||
| 90463-04573 | ||||
| 90468-06044 | ||||
| 90480-26043 | ||||
| 90508-20039 | ||||
| 91611-40814 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91655-40620 | ||||
| 94141-41000 | ||||
| 94511-01000 | ||||
| 94611-11001 | ||||
| 95381-02518 | ||||
