LH11L-QRW3 (1979)
Toyota Hiace
Production
Dec 1979
-
Nov 1982
Engine
L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7912- )LH11,20,30..EUR

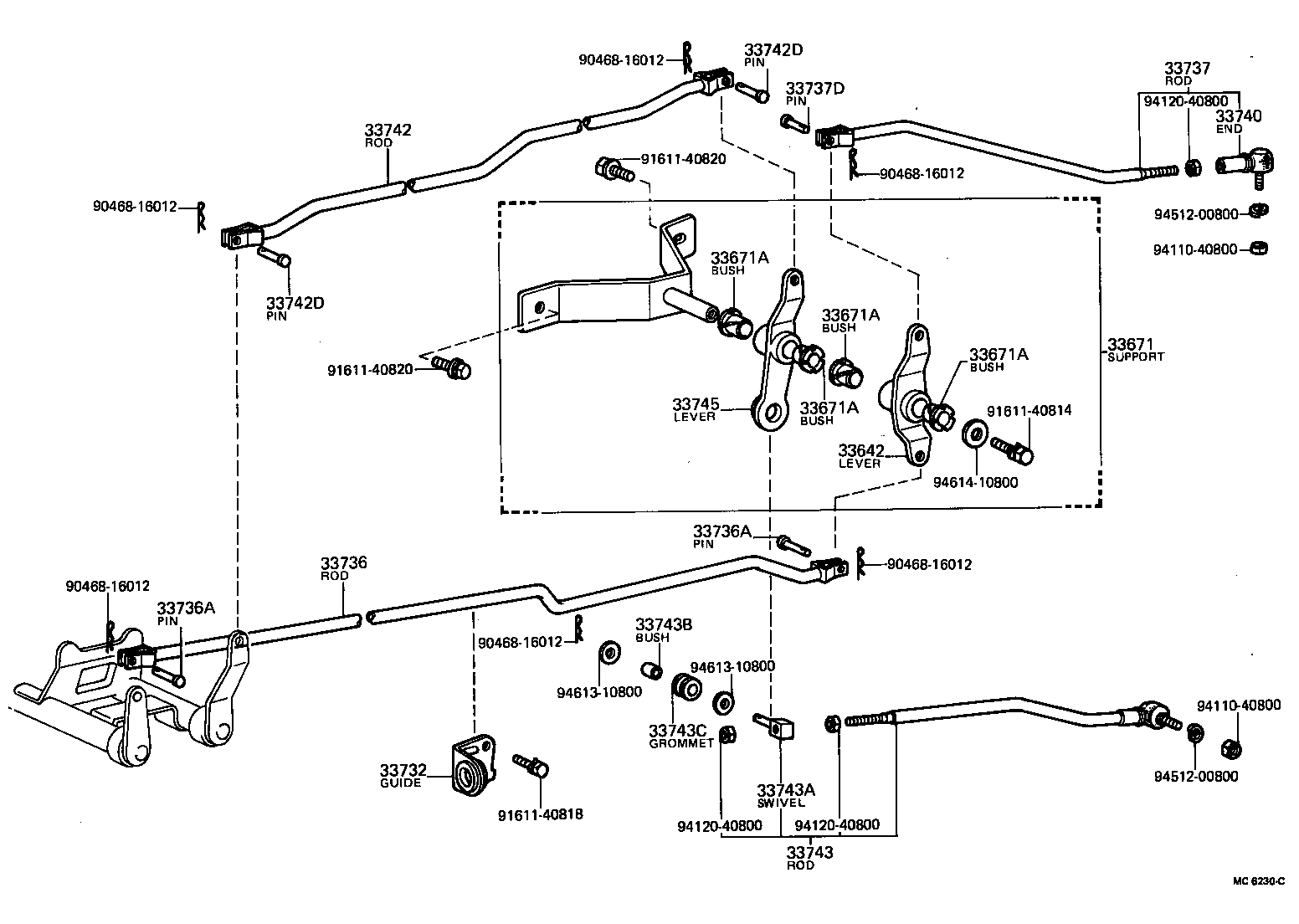

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33642 - LEVER, GEAR SELECTING, NO.2 | ||||
| 33643-26050 |
LH11,20,30..EUR |
1 | ||
| 33671 - SUPPORT, CONTROL ROD, NO.1 | ||||
| 33670-26180 |
LH11..EUR |
1 | ||
| 33671A - BUSH (FOR CONTROL ROD, NO.1 SUPPORT) | ||||
| 90386-13007 |
LH11,20,30..EUR |
4 | ||
| 33671A - BUSH (FOR CONTROL ROD, NO.1 SUPPORT) | ||||
| 90386-13007 |
LH11,20,30..EUR |
4 | ||
| 33671A - BUSH (FOR CONTROL ROD, NO.1 SUPPORT) | ||||
| 90386-13007 |
LH11,20,30..EUR |
4 | ||
| 33671A - BUSH (FOR CONTROL ROD, NO.1 SUPPORT) | ||||
| 90386-13007 |
LH11,20,30..EUR |
4 | ||
| 33732 - GUIDE, SELECTING ROD | ||||
| 33732-26013 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33736 - ROD, GEAR SELECTING, NO.2(FOR COLUMN SHIFT) | ||||
| 33736-26090 |
LH11,20,30..EUR |
1 | ||
| 33790-26060 |
RH11,2#,3#,42 |
1 | ||
| 33736A - PIN, W/HOLE | ||||
| 90240-08094 |
LH11,20,30..EUR |
2 | ||
| 33736A - PIN, W/HOLE | ||||
| 90240-08094 |
LH11,20,30..EUR |
2 | ||
| 33737 - ROD, GEAR SELECTING, NO.3 (FOR COLUMN SHIFT) | ||||
| 33850-26010 |
LH11,20,30..EUR |
1 | ||
| 33737D - PIN, W/HOSE (FOR GEAR SELECTING ROD NO.3) | ||||
| 90240-08094 |
LH11,20,30..EUR |
1 | ||
| 33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT) | ||||
| 33740-35011 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33742 - ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT) | ||||
| 33742-26080 |
LH11,20,30..EUR |
1 | ||
| 33742-26013 |
RH11,2#,3#,42 |
1 | ||
| 33742D - PIN, W/HOLE | ||||
| 90240-08094 |
LH11,20,30..EUR |
2 | ||
| 33742D - PIN, W/HOLE | ||||
| 90240-08094 |
LH11,20,30..EUR |
2 | ||
| 33743 - ROD, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT) | ||||
| 33840-26050 |
LH11,20,30..EUR |
1 | ||
| 33743A - SWIVEL, CONNECTING ROD | ||||
| 33723-10020 |
LH11,20,30..EUR |
1 | ||
| 33743B - BUSH, NO.1 | ||||
| 90389-08005 |
LH11,20,30..EUR |
1 | ||
| 33743C - GROMMET | ||||
| 90480-17177 |
LH11,20,30..EUR |
1 | ||
| 33745 - LEVER, GEAR SHIFTING, NO.2 (FOR COLUMN SHIFT) | ||||
| 33749-26050 |
LH11,20,30..EUR |
1 | ||
| Common parts | ||||
| 90468-16012 | ||||
| 91611-40814 | ||||
| 91611-40818 | ||||
| 91611-40820 | ||||
| 94110-40800 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94613-10800 | ||||
| 94614-10800 | ||||
(8211-8401)5H
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08146 | ||||
| 90206-08016 | ||||
| 90468-16012 | ||||
| 91611-40814 | ||||
| 91611-40820 | ||||
| 94120-40800 | ||||
| 94613-10800 | ||||
| 94614-10800 | ||||
