LH11L-QRW3 (1979)

Toyota Hiace

Production Dec 1979 - Nov 1982
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7912- )LH11,20,30..EUR

Click highlighted areas on diagram

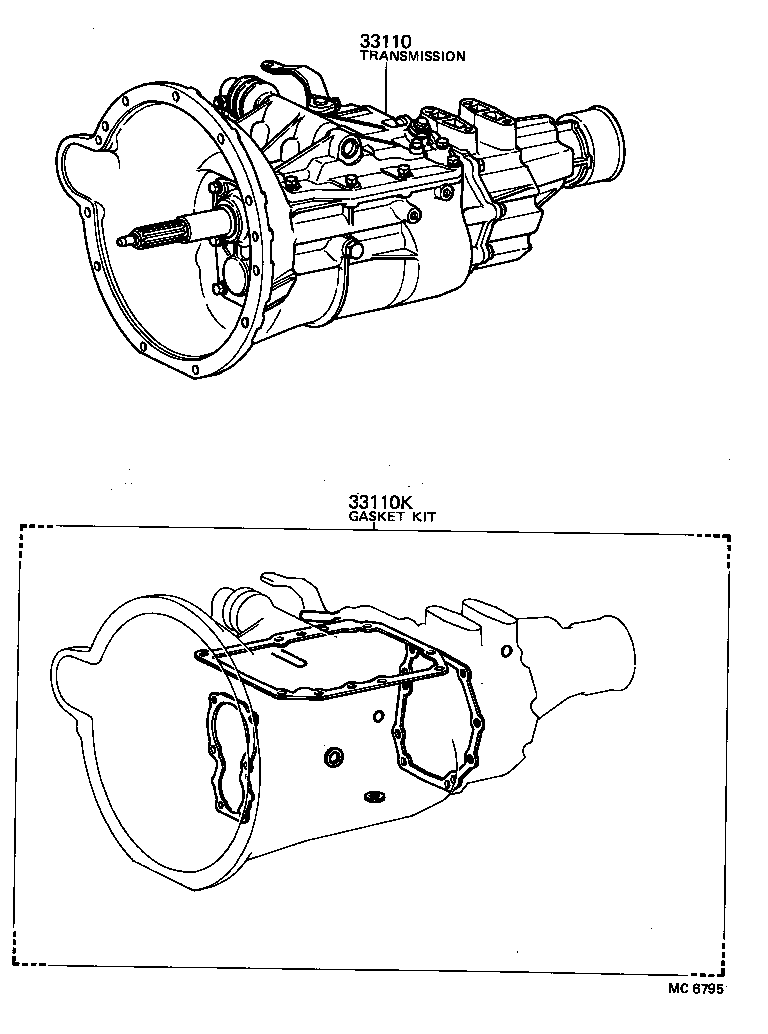

diagram 33110 33110K
Part # Description Qty Price
33110 - TRANSMISSION ASSY, MANUAL
33110-26450

LH11,20,30..EUR

SMG R=19:5

 1
33110-26440

LH11,20,30..EUR

SMG R=19:6

 1
33110K - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-35070

LH11,20,30..EUR

 1
04331-35071

LH11,20,30..EUR

 1
04331-35072

LH11,20,30..EUR

 1

(8211-8401)5H

Click highlighted areas on diagram

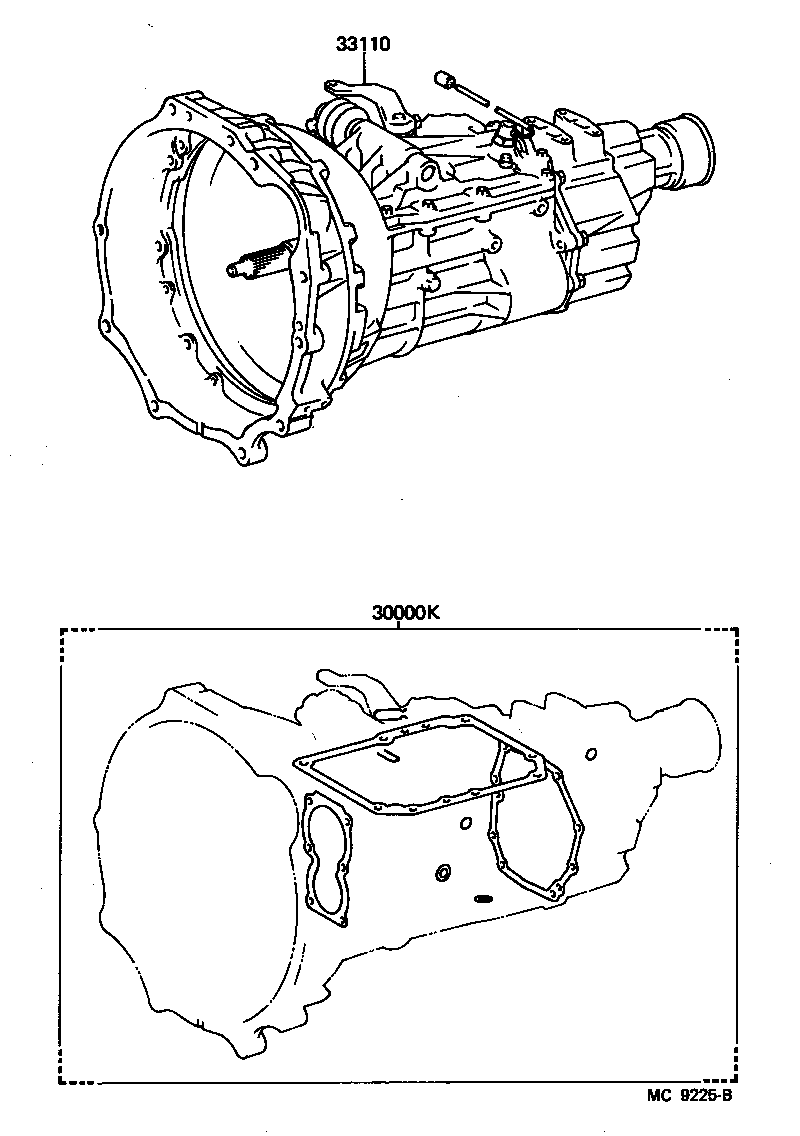

diagram 30000K 33110
Part # Description Qty Price
