LH11L-QRW (1982)

Toyota Hiace

Production Nov 1982 - Jul 1985
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

Click highlighted areas on diagram

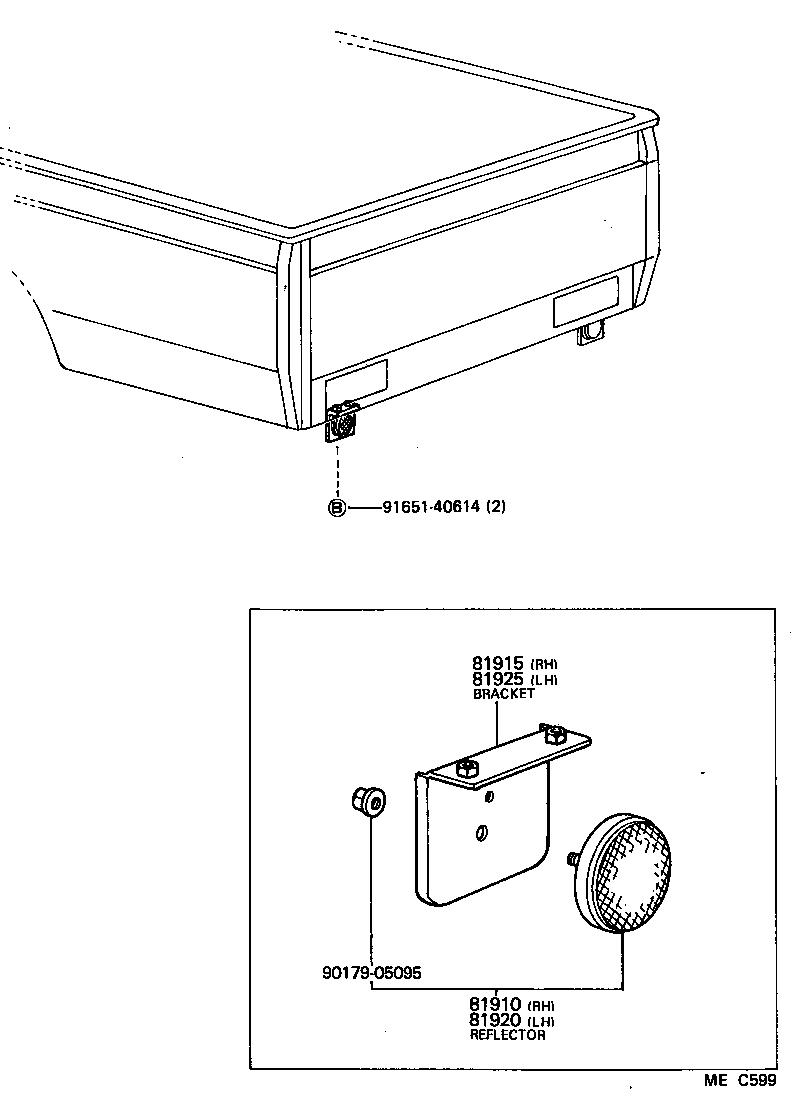

diagram 81910 81915 81920 81925 9017905095 9165140614
Part # Description Qty Price
81910 - REFLECTOR ASSY, REFLEX, RH
81910-39055

LH11,RH11..ARL,EUR

 1
81915 - BRACKET, REFLEX REFLECTOR, RH
81941-95600

LH11,RH11..ARL,EUR

 1
81920 - REFLECTOR ASSY, REFLEX, LH
81910-39055

LH11,RH11..ARL,EUR

 1
81925 - BRACKET, REFLEX REFLECTOR, LH
81941-95600

LH11,RH11..ARL,EUR

 1
Common parts
90179-05095
91651-40614
