LH11L-QRBW (1982)

Toyota Hiace

Production Nov 1982 - Jul 1985
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

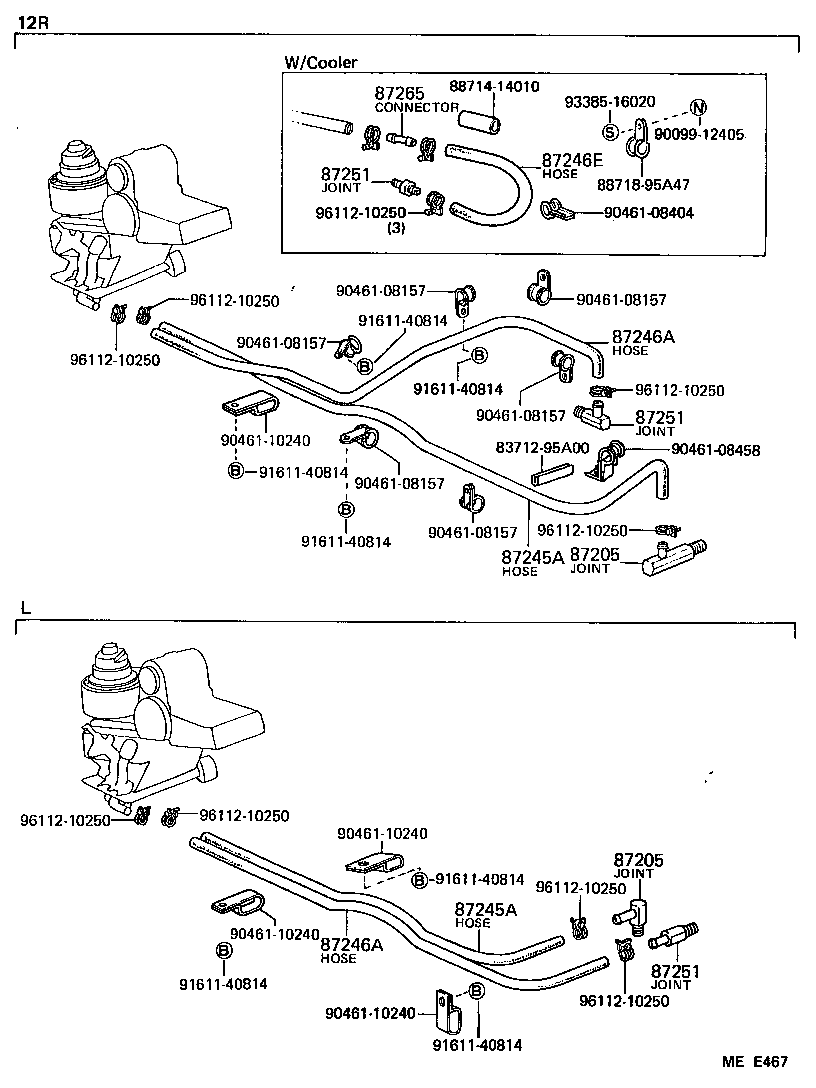

Click highlighted areas on diagram

diagram 8371295A00 87205 87205 87245A 87245A 87246A 87246A 87246E 87251 87251 87251 87265 8871414010 8871895A47 9009912405 9046108157 9046108157 9046108157 9046108157 9046108157 9046108157 9046108404 9046108458 9046110240 9046110240 9046110240 9046110240 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9338516020 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30230

LH11..ARL,EUR,GEN

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30230

LH11..ARL,EUR,GEN

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95A17

LH11..ARL,EUR,GEN

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95A17

LH11..ARL,EUR,GEN

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95A18

LH11..ARL,EUR,GEN

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95A18

LH11..ARL,EUR,GEN

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

LH11..ARL,EUR,GEN

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

LH11..ARL,EUR,GEN

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

LH11..ARL,EUR,GEN

 1
Common parts
83712-95A00
88714-14010
88718-95A47
90099-12405
90461-08157
90461-08404
90461-08458
90461-10240
91611-40814
93385-16020
96112-10250
