LH11L-QRBW (1982)

Toyota Hiace

Production Nov 1982 - Jul 1985
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )LHD

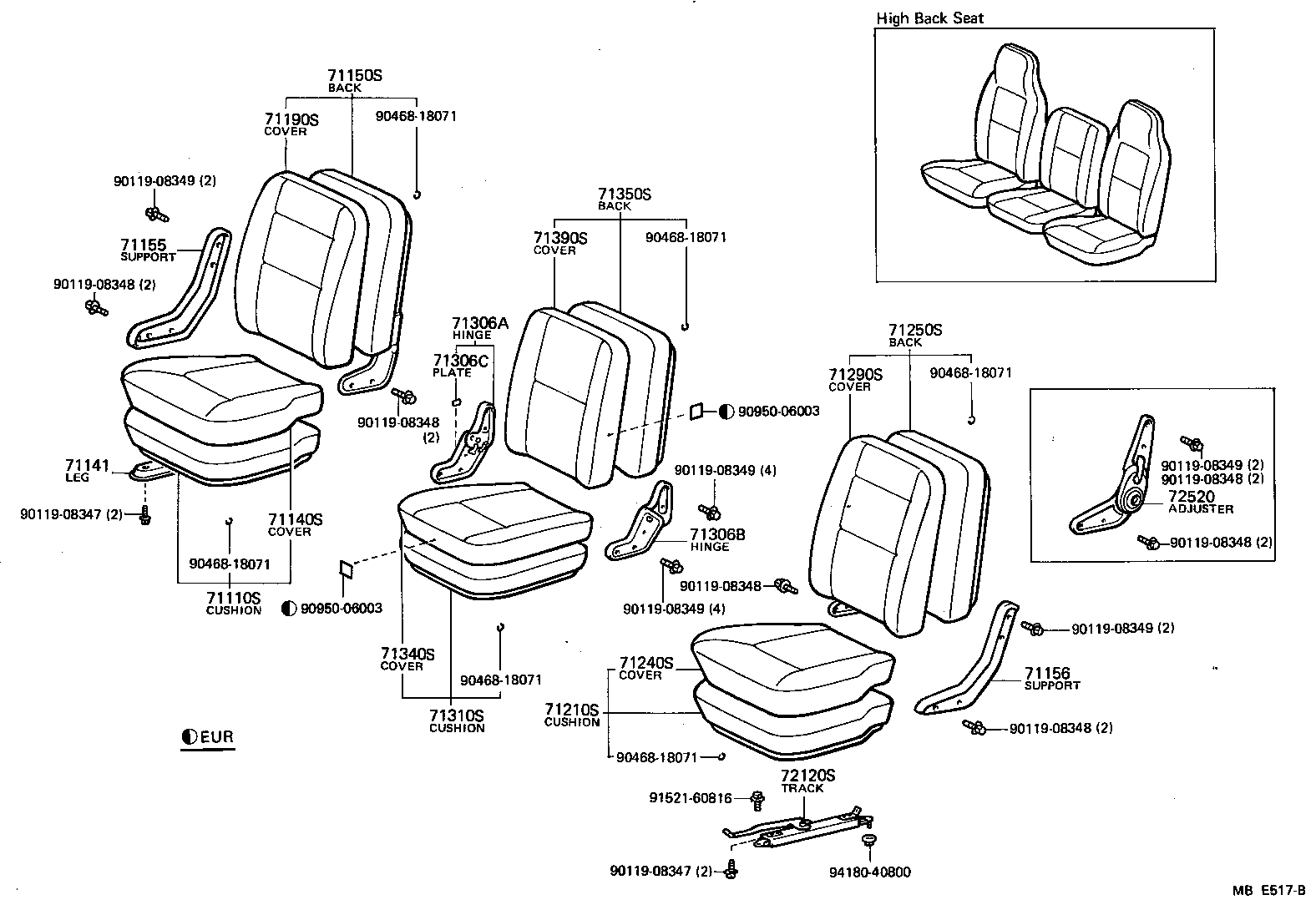

Click highlighted areas on diagram

diagram 71110S 71140S 71141 71150S 71155 71156 71190S 71210S 71240S 71250S 71290S 71306A 71306B 71306C 71310S 71340S 71350S 71390S 72120S 72520 9011908347 9011908347 9011908348 9011908348 9011908348 9011908348 9011908348 9011908348 9011908349 9011908349 9011908349 9011908349 9011908349 9046818071 9046818071 9046818071 9046818071 9046818071 9046818071 9095006003 9095006003 9152160816 9418040800
Part # Description Qty Price
71110S - CUSHION ASSY, FRONT SEAT, RH
71110-95A55

LH11,RH11..LHD..EUR

T=1.5

 1
71140S - COVER, FRONT SEAT CUSHION, RH
71140-95A41

LH11,RH11..LHD..EUR

T=1.5

 1
71141 - LEG, FRONT SEAT
71141-95A02

LH11,RH11..LHD

 1
71150S - BACK ASSY, FRONT SEAT, RH
71170-95A21

LH11,RH11..LHD..EUR

T=1.5

 1
71170-95A22

LH11,RH11..LHD..EUR

T=1.5,*HBS,W/ADJUSTER

 1
71155 - SUPPORT, DRIVER SEAT BACK, RH
71191-95A05

LH11,RH11..EUR,GEN,IDN

 1
71190S - COVER, FRONT SEAT BACK, RH
71190-95A82

LH11,RH11..LHD..EUR

T=1.5,*HBS,W/ADJUSTER

 1
71190-95A81

LH11,RH11..LHD..EUR

T=1.5

 1
71210S - CUSHION ASSY, FRONT SEAT, LH
71210-95A54

LH11,RH11..LHD..EUR

T=1.5

 1
71240S - COVER, FRONT SEAT CUSHION, LH
71240-95A56

LH11,RH11..LHD..EUR

T=1.5

 1
71250S - BACK ASSY, FRONT SEAT, LH
71270-95A18

LH11,RH11..LHD..EUR

T=1.5

 1
71270-95A19

LH11,RH11..LHD..EUR

T=1.5,*HBS

 1
71290S - COVER, FRONT SEAT BACK, LH
71290-95A36

LH11,RH11..LHD..EUR

T=1.5,*HBS

 1
71290-95A35

LH11,RH11..LHD..EUR

T=1.5

 1
71306A - HINGE SUB-ASSY, CENTER SEAT, RH
71330-95A08

LH11,RH11..LHD

 1
71306B - HINGE SUB-ASSY, CENTER SEAT, LH
71308-95A07

LH11,RH11

 1
71306C - PLATE, CENTER SEAT HINGE CAUTION
71386-95A00

LH11,RH11..EUR,GEN,IDN

 1
71310S - CUSHION ASSY, FRONT SEAT, CENTER
71310-95A35

LH11,RH11..LHD

 1
71310-95A38

LH11,RH11..LHD..EUR

 1
71340S - COVER, FRONT SEAT CUSHION, CENTER
71340-95A31

LH11,RH11

 1
71340-95A33

LH11,RH11..EUR

 1
71350S - BACK ASSY, FRONT SEAT, CENTER
71350-95A47

LH11,RH11..EUR

 1
71350-95A44

LH11,RH11..EUR,GEN,IDN

 1
71390S - COVER, FRONT SEAT BACK, CENTER
71390-95A37

LH11,RH11

 1
71390-95A39

LH11,RH11..EUR

 1
72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
72720-95A00

LH11,RH11..LHD

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-95A04

LH11,RH11..LHD

 1
Common parts
90119-08347
90119-08348
90119-08349
90468-18071
90950-06003
91521-60816
94180-40800
