LH11L-QRBW (1982)
Toyota Hiace
Production
Nov 1982
-
Jul 1985
Engine
L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8211- )L..T1,T3..ARL,EUR,GEN

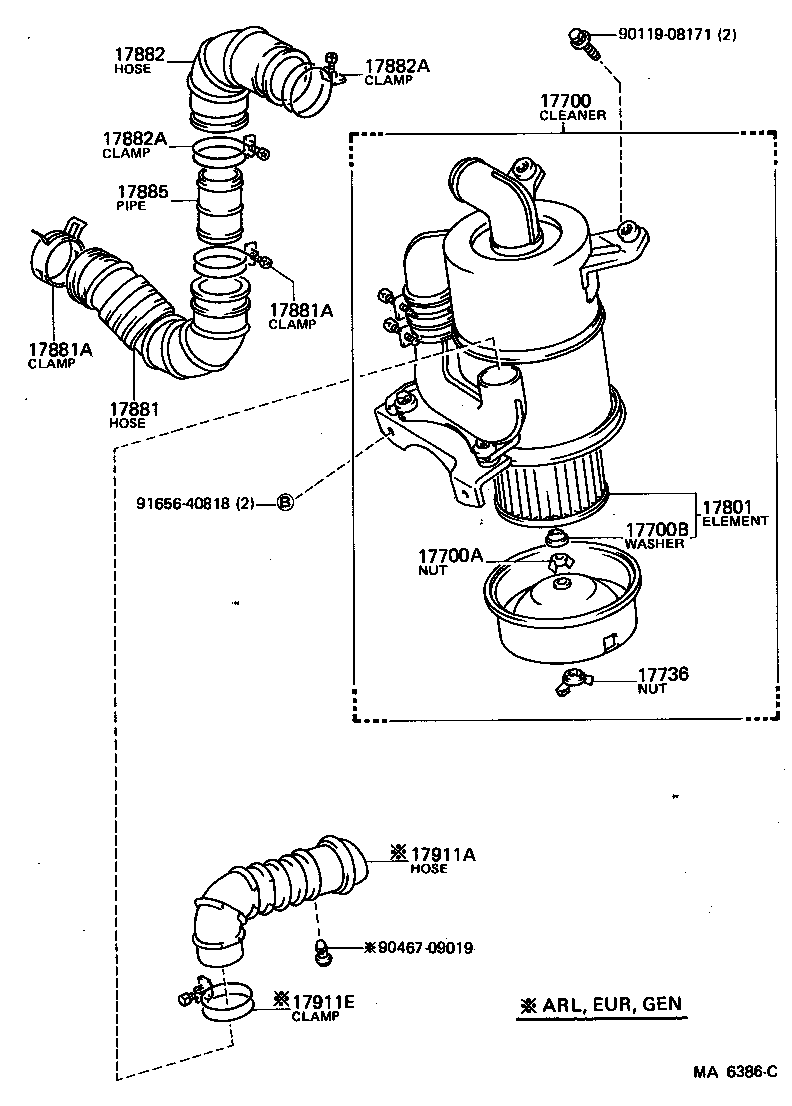

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-54210 |
L..LH11..(T1,T3)..(ARL,EUR,GEN) |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00800 |
L..LH11..(T1,T3)..(ARL,EUR,GEN) |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-08024 |
L..LH11 |
1 | ||
| 17736 - NUT, AIR CLEANER CASE | ||||
| 90175-06003 |
L..LH11..(T1,T3)..(ARL,EUR,GEN) |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-64030 |
L..LH11 CYCLONE TYPE |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17882-54050 |
L..LH11 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
L..LH11 PIPE SIDE |
1 | ||
| 90467-69001 |
L..LH11 INTAKE MANIFOLD SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
L..LH11 PIPE SIDE |
1 | ||
| 90467-69001 |
L..LH11 INTAKE MANIFOLD SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17881-54090 |
L..LH11 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10690 |
L..LH11 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10690 |
L..LH11 |
2 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-54020 |
L..LH11 |
1 | ||
| 17911A - HOSE, COOL AIR INTAKE, NO.1 | ||||
| 17884-95A00 |
L..LH11..(T1,T3)..(ARL,EUR,GEN) |
1 | ||
| 17911E - CLAMP, COOL AIR INTAKE HOSE, NO.1 | ||||
| 96111-10690 |
L..LH11..(T1,T3)..(ARL,EUR,GEN) |
1 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90467-09019 | ||||
| 91656-40818 | ||||
