KDH223R-LEPDYQ (2013)
Toyota Hiace

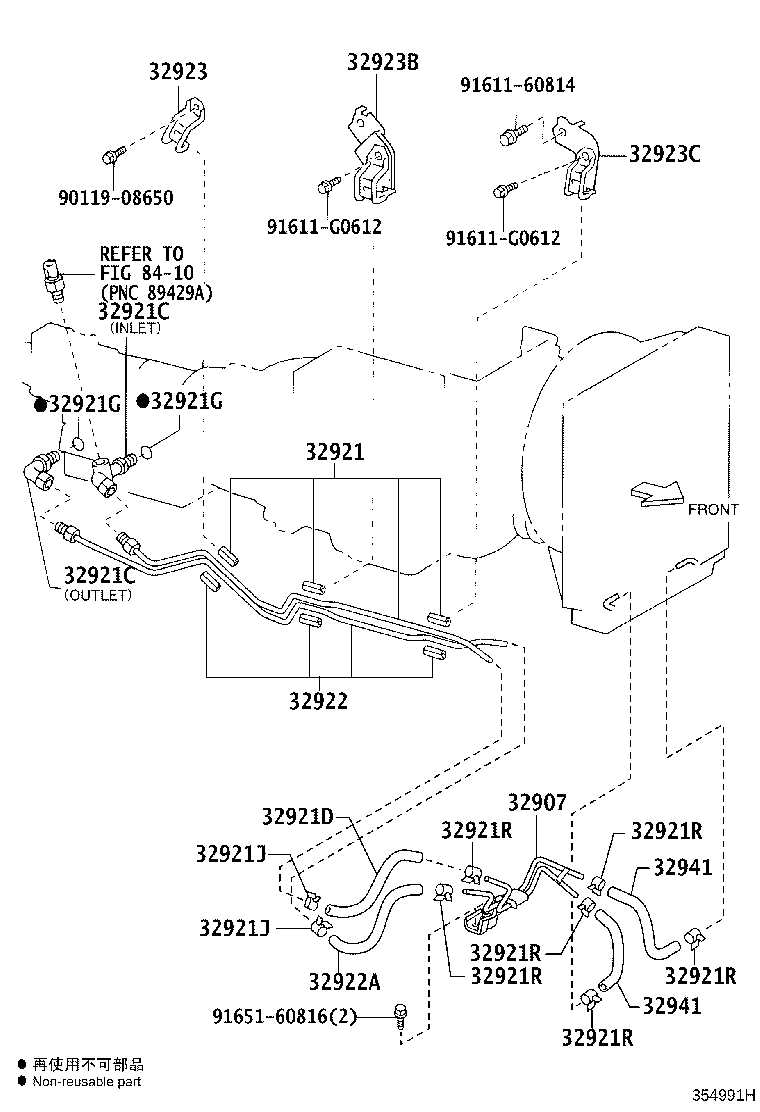

(1312- )KEN ; (1312- )KDH201,21#,221,222,223..4FC
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2 | ||||
| 32907-26052 |
TRH223..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,221,222,223,TRH201,213,221..4FC,6FC |
1 | ||
| 32907-26051 |
KDH201,21#,221,222,223,TRH20#,213,22#..4FC,6FC |
1 | ||
| 32907-26050 |
KDH201,21#,221,222,223,TRH201,203,213,22#..4FC |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-26380 |
KDH201..SG..4FC;KDH201..4FC..ARL;KDH221,223..4FC..STD..(ARL,GEN) |
1 | ||
| 32921-26400 |
KDH221,223..4FC..ARL SINGAPORE SPEC |
1 | ||
| 32921-26400 |
KDH201..SG..4FC;KDH201..4FC..ARL;KDH221,223..4FC..STD..(ARL,GEN) |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14024 |
KDH201..SG..4FC;KDH201..4FC..ARL;KDH221,223..4FC..STD..(ARL,GEN) INLET |
1 | ||
| 90407-16012 |
TRH201,22#..RHD..4FC INLET |
1 | ||
| 90407-16012 |
KDH221,223..4FC..ARL SINGAPORE SPEC,INLET |
1 | ||
| 90407-16009 |
TRH201,22#..RHD..4FC OUTLET |
1 | ||
| 90407-16012 |
TRH203,223..4FC INLET |
1 | ||
| 90407-16009 |
KDH201,223..(03S,14S)..4FC..STD OUTLET |
1 | ||
| 90407-16009 |
TRH203,223..4FC OUTLET |
1 | ||
| 90407-16012 |
KDH223..4FC..ARL INLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14024 |
KDH201..SG..4FC;KDH201..4FC..ARL;KDH221,223..4FC..STD..(ARL,GEN) INLET |
1 | ||
| 90407-16012 |
TRH201,22#..RHD..4FC INLET |
1 | ||
| 90407-16012 |
KDH221,223..4FC..ARL SINGAPORE SPEC,INLET |
1 | ||
| 90407-16009 |
TRH201,22#..RHD..4FC OUTLET |
1 | ||
| 90407-16012 |
TRH203,223..4FC INLET |
1 | ||
| 90407-16009 |
KDH201,223..(03S,14S)..4FC..STD OUTLET |
1 | ||
| 90407-16009 |
TRH203,223..4FC OUTLET |
1 | ||
| 90407-16012 |
KDH223..4FC..ARL INLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-26210 |
KDH221,223..4FC..ARL SINGAPORE SPEC |
1 | ||
| 90445-17178 |
KDH201..SG..4FC;KDH201..4FC..ARL;KDH221,223..4FC..STD..(ARL,GEN) |
1 | ||
| 32941-26210 |
KDH201..SG..4FC;KDH201..4FC..ARL;KDH221,223..4FC..STD..(ARL,GEN) |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11030 |
TRH223..(4FC,6FC)..ARL;KDH213,TRH223..COM..4FC..GL;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC |
2 | ||
| 90301-11030 |
TRH203,223..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11030 |
TRH223..(4FC,6FC)..ARL;KDH213,TRH223..COM..4FC..GL;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC |
2 | ||
| 90301-11030 |
TRH203,223..4FC |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,TRH200..4FC..GEN;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,TRH200..4FC..GEN;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC |
2 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,TRH200..4FC..GEN;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,TRH200..4FC..GEN;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,TRH200..4FC..GEN;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,TRH200..4FC..GEN;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,TRH200..4FC..GEN;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,TRH200..4FC..GEN;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC |
6 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-26370 |
KDH201..SG..4FC;KDH201..4FC..ARL;KDH221,223..4FC..STD..(ARL,GEN) |
1 | ||
| 32922-26390 |
KDH201..SG..4FC;KDH201..4FC..ARL;KDH221,223..4FC..STD..(ARL,GEN) |
1 | ||
| 32922-26390 |
KDH221,223..4FC..ARL SINGAPORE SPEC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 32942-26140 |
KDH201..SG..4FC;KDH201..4FC..ARL;KDH221,223..4FC..STD..(ARL,GEN) |
1 | ||
| 32942-26150 |
KDH221,223..4FC..ARL SINGAPORE SPEC |
1 | ||
| 32942-26150 |
KDH201..SG..4FC;KDH201..4FC..ARL;KDH221,223..4FC..STD..(ARL,GEN) |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32929-24060 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32909-35190 |
KDH213..4FC..GEN;KDH201,212,221,222,223..4FC |
1 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 32909-26200 |
KDH213..4FC..GEN;KDH201,212,221,222,223..4FC |
1 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-26181 |
TRH223..6FC;KDH213,TRH223..COM..4FC..GL;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC |
2 | ||
| 32941-26180 |
KDH201,21#,221,222,223,TRH201,203,213,22#..4FC |
2 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-26181 |
TRH223..6FC;KDH213,TRH223..COM..4FC..GL;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC |
2 | ||
| 32941-26180 |
KDH201,21#,221,222,223,TRH201,203,213,22#..4FC |
2 | ||
| Common parts | ||||
| 90119-08650 | ||||
| 91611-60814 | ||||
| 91611-G0612 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 8410 | ||||

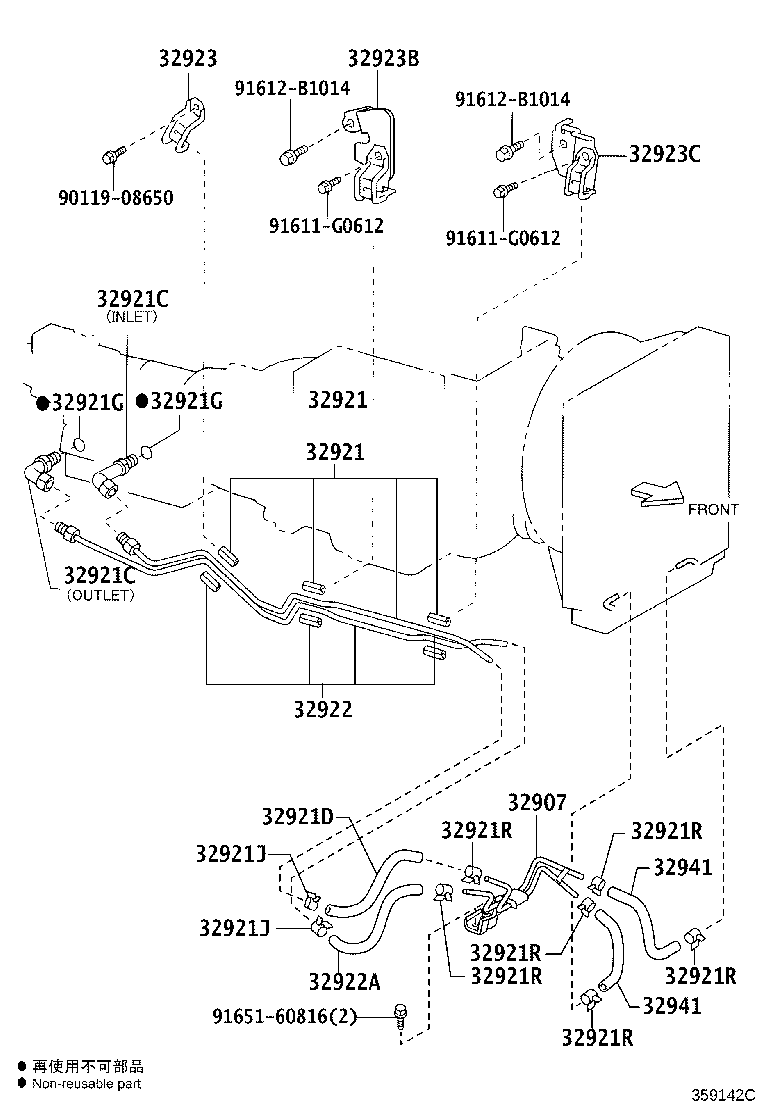

(1312- )TRH201,203,213,22#..4FC
A343E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2 | ||||
| 32907-26052 |
TRH223..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,221,222,223,TRH201,213,221..4FC,6FC |
1 | ||
| 32907-26051 |
KDH201,21#,221,222,223,TRH20#,213,22#..4FC,6FC |
1 | ||
| 32907-26050 |
KDH201,21#,221,222,223,TRH201,203,213,22#..4FC |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-26380 |
KDH201..SG..4FC;KDH201..4FC..ARL;KDH221,223..4FC..STD..(ARL,GEN) |
1 | ||
| 32921-26400 |
KDH221,223..4FC..ARL SINGAPORE SPEC |
1 | ||
| 32921-26400 |
KDH201..SG..4FC;KDH201..4FC..ARL;KDH221,223..4FC..STD..(ARL,GEN) |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14024 |
KDH201..SG..4FC;KDH201..4FC..ARL;KDH221,223..4FC..STD..(ARL,GEN) INLET |
1 | ||
| 90407-16012 |
TRH201,22#..RHD..4FC INLET |
1 | ||
| 90407-16012 |
KDH221,223..4FC..ARL SINGAPORE SPEC,INLET |
1 | ||
| 90407-16009 |
TRH201,22#..RHD..4FC OUTLET |
1 | ||
| 90407-16012 |
TRH203,223..4FC INLET |
1 | ||
| 90407-16009 |
KDH201,223..(03S,14S)..4FC..STD OUTLET |
1 | ||
| 90407-16009 |
TRH203,223..4FC OUTLET |
1 | ||
| 90407-16012 |
KDH223..4FC..ARL INLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14024 |
KDH201..SG..4FC;KDH201..4FC..ARL;KDH221,223..4FC..STD..(ARL,GEN) INLET |
1 | ||
| 90407-16012 |
TRH201,22#..RHD..4FC INLET |
1 | ||
| 90407-16012 |
KDH221,223..4FC..ARL SINGAPORE SPEC,INLET |
1 | ||
| 90407-16009 |
TRH201,22#..RHD..4FC OUTLET |
1 | ||
| 90407-16012 |
TRH203,223..4FC INLET |
1 | ||
| 90407-16009 |
KDH201,223..(03S,14S)..4FC..STD OUTLET |
1 | ||
| 90407-16009 |
TRH203,223..4FC OUTLET |
1 | ||
| 90407-16012 |
KDH223..4FC..ARL INLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-26210 |
KDH221,223..4FC..ARL SINGAPORE SPEC |
1 | ||
| 90445-17178 |
KDH201..SG..4FC;KDH201..4FC..ARL;KDH221,223..4FC..STD..(ARL,GEN) |
1 | ||
| 32941-26210 |
KDH201..SG..4FC;KDH201..4FC..ARL;KDH221,223..4FC..STD..(ARL,GEN) |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11030 |
TRH223..(4FC,6FC)..ARL;KDH213,TRH223..COM..4FC..GL;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC |
2 | ||
| 90301-11030 |
TRH203,223..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11030 |
TRH223..(4FC,6FC)..ARL;KDH213,TRH223..COM..4FC..GL;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC |
2 | ||
| 90301-11030 |
TRH203,223..4FC |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,TRH200..4FC..GEN;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,TRH200..4FC..GEN;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC |
2 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,TRH200..4FC..GEN;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,TRH200..4FC..GEN;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,TRH200..4FC..GEN;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,TRH200..4FC..GEN;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,TRH200..4FC..GEN;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,TRH200..4FC..GEN;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC |
6 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-26370 |
KDH201..SG..4FC;KDH201..4FC..ARL;KDH221,223..4FC..STD..(ARL,GEN) |
1 | ||
| 32922-26390 |
KDH201..SG..4FC;KDH201..4FC..ARL;KDH221,223..4FC..STD..(ARL,GEN) |
1 | ||
| 32922-26390 |
KDH221,223..4FC..ARL SINGAPORE SPEC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 32942-26140 |
KDH201..SG..4FC;KDH201..4FC..ARL;KDH221,223..4FC..STD..(ARL,GEN) |
1 | ||
| 32942-26150 |
KDH221,223..4FC..ARL SINGAPORE SPEC |
1 | ||
| 32942-26150 |
KDH201..SG..4FC;KDH201..4FC..ARL;KDH221,223..4FC..STD..(ARL,GEN) |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32929-24060 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32909-35190 |
KDH213..4FC..GEN;KDH201,212,221,222,223..4FC |
1 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 32909-26200 |
KDH213..4FC..GEN;KDH201,212,221,222,223..4FC |
1 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-26181 |
TRH223..6FC;KDH213,TRH223..COM..4FC..GL;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC |
2 | ||
| 32941-26180 |
KDH201,21#,221,222,223,TRH201,203,213,22#..4FC |
2 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-26181 |
TRH223..6FC;KDH213,TRH223..COM..4FC..GL;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC |
2 | ||
| 32941-26180 |
KDH201,21#,221,222,223,TRH201,203,213,22#..4FC |
2 | ||
| Common parts | ||||
| 90119-08650 | ||||
| 91611-G0612 | ||||
| 91612-B1014 | ||||
| 91651-60816 | ||||
