KDH223L-LEMDY (2014)

Toyota Hiace

Production Jul 2014 - Feb 2019
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1712)KDH222..RHD..GL ; (1312-1712)KDH222..RHD..STD..GEN ; (1312-1712)KDH202,2

Click highlighted areas on diagram

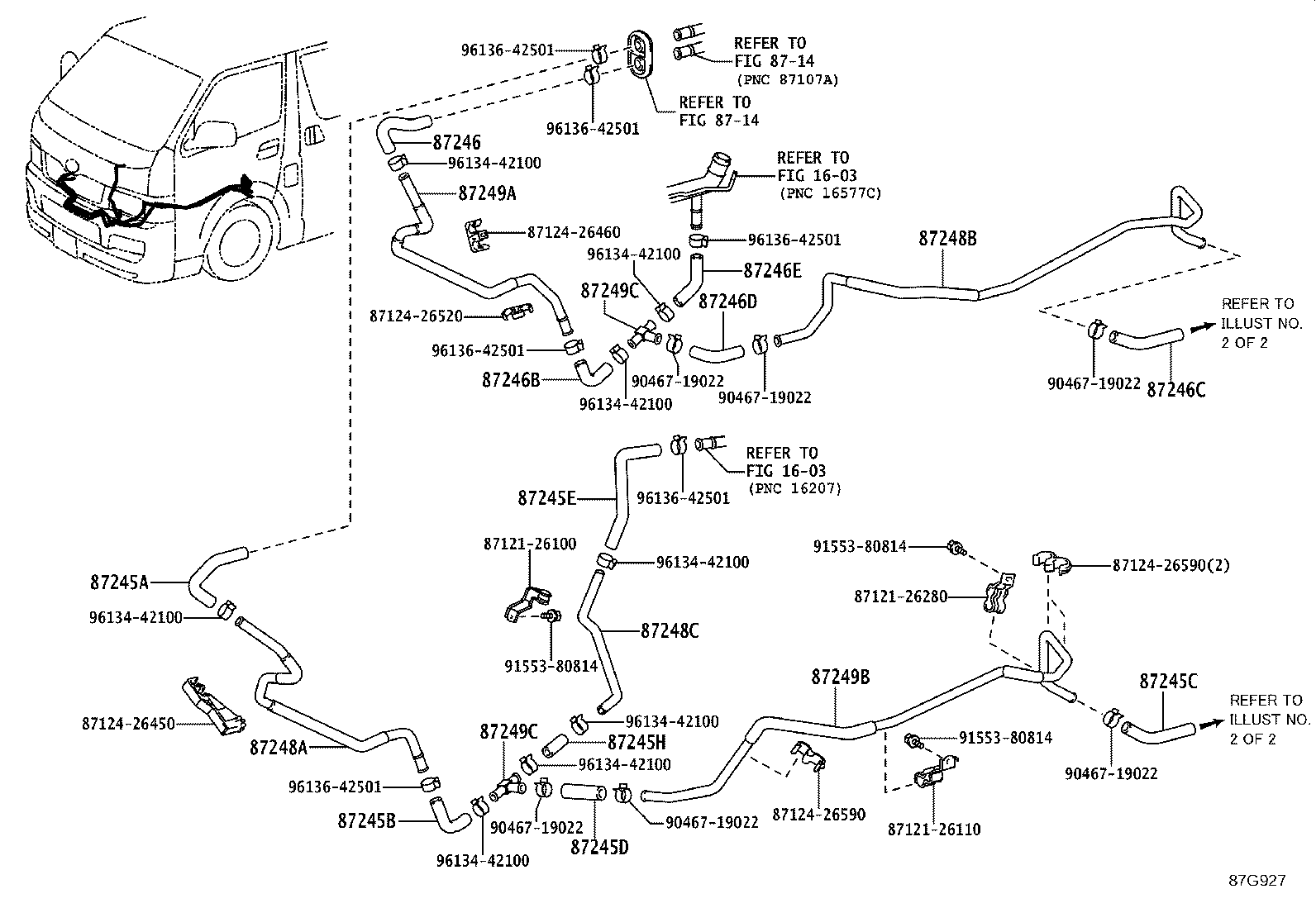

FRONT:W(REAR HEATER)

diagram 1603 1603 8712126100 8712126110 8712426450 8712426460 8712426481 8712426520 8712426590 8712426590 8712426590 87124A 8714 8714 87245A 87245B 87245C 87245D 87245E 87245H 87246 87246B 87246C 87246D 87246E 87248A 87248B 87248C 87249A 87249B 87249C 87249C 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9155380814 9155380814 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-26B20

KDH223..5F..(ARL,GEN,RUS,VN);KDH213,220,TRH221..02S,06S,10S;KDH222,TRH223..STD..(ARL,KEN,SA);KDH221,TRH213,223..(02S,03S,10S,12S,13S)..(ARL,GEN,RUS)

 1
87245-26B20

KDH223,TRH213..(10S,12S)..GEN

FRONT HEATER-WITHOUT(HEATER),WITH(BOOST VENTILATOR)

 1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00

KDH221;KDH222..STD..(KEN,SA);KDH223..5F..(ARL,GEN,RUS,VN);KDH201,213,220..02S,05S,06S,10S

 1
87245-26C00

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87245-26B80

TRH213,223..LHD..(10S,12S,13S);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA)

 1
87245C - HOSE, HEATER WATER ,INLET C
87209-26180

TRH213,223..LHD..(10S,12S,13S)

*H,L=220

 1
99556-20300

KDH223..STD..GEN

*H,L=210,REAR HEATER-WITH(FLOOR SET)

 1
87245D - HOSE, HEATER WATER, INLET D
99556-20200

KDH223..STD..GEN

*H,L=60,REAR HEATER-WITH(FLOOR SET)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-26B60

TRH201..RHD;TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA);TRH200,213,223..(06S,10S,12S,13S)..(4FC,5F)..(GEN,RUS)

 1
87245-26C10

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87245-26C10

KDH221;KDH222..STD..(KEN,SA);KDH223..5F..(ARL,GEN,RUS,VN);KDH201,213,220..02S,05S,06S,10S

 1
87245H - HOSE, HEATER WATER, INLET H
99556-30100

KDH223..STD..GEN

*H,L=60,REAR HEATER-WITH(FLOOR SET)

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-26B30

KDH223..5F..(ARL,GEN,RUS,VN);KDH213,220,TRH221..02S,06S,10S;KDH222,TRH223..STD..(ARL,KEN,SA);KDH221,TRH213,223..(02S,03S,10S,12S,13S)..(ARL,GEN,RUS)

 1
87245-26B30

KDH223,TRH213..(10S,12S)..GEN

FRONT HEATER-WITHOUT(HEATER),WITH(BOOST VENTILATOR)

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26C20

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87245-26C80

KDH221;KDH222..STD..(KEN,SA);KDH223..5F..(ARL,GEN);KDH201,220..02S,05S,06S

 1
87245-26B90

TRH213,223..LHD..(10S,12S,13S);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA)

 1
87246C - HOSE, HEATER WATER, OUTLET C
99556-20220

TRH213,223..LHD..(10S,12S,13S)

*H,L=220

 1
99556-20300

KDH223..STD..GEN

*H,L=210,REAR HEATER-WITH(FLOOR SET)

 1
87246D - HOSE, HEATER WATER, OUTLET D
87245-26C50

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26B70

TRH201..RHD;TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA);TRH200,213,223..(06S,10S,12S,13S)..(4FC,5F)..(GEN,RUS)

 1
87245-26C30

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87248A - PIPE, HEATER WATER INLET, A
87248-26440

KDH223,TRH213..(10S,12S)..GEN

FRONT HEATER-WITHOUT(HEATER),WITH(BOOST VENTILATOR)

 1
87248-26440

KDH223..5F..(ARL,GEN,RUS,VN);KDH213,220,TRH221..02S,06S,10S;KDH222,TRH223..STD..(ARL,KEN,SA);KDH221,TRH213,223..(02S,03S,10S,12S,13S)..(ARL,GEN,RUS)

 1
87248B - PIPE, HEATER WATER INLET, B
87248-26500

TRH213,223..LHD..(10S,12S,13S)

 1
87248-26583

KDH212,222,223..(10S,12S,14S)..5F..(GEN,SA)

REAR HEATER-WITH(FLOOR SET)

 1
87248-26570

KDH221;KDH222..STD..(KEN,SA);KDH223..5F..(ARL,GEN);KDH201,220..02S,05S,06S

 1
87248-26D30

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87248C - PIPE, HEATER WATER INLET, C
87248-26540

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26450

KDH223..5F..(ARL,GEN,RUS,VN);KDH213,220,TRH221..02S,06S,10S;KDH222,TRH223..STD..(ARL,KEN,SA);KDH221,TRH213,223..(02S,03S,10S,12S,13S)..(ARL,GEN,RUS)

 1
87248-26450

KDH223,TRH213..(10S,12S)..GEN

FRONT HEATER-WITHOUT(HEATER),WITH(BOOST VENTILATOR)

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26510

TRH213,223..LHD..(10S,12S,13S)

 1
87248-26592

KDH212,222,223..(10S,12S,14S)..5F..(GEN,SA)

REAR HEATER-WITH(FLOOR SET)

 1
87248-26D40

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87249C - PIPE, HEATER WATER OUTLET, C
87248-52010

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 2
87249C - PIPE, HEATER WATER OUTLET, C
87248-52010

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 2
Common parts
87121-26100
87121-26110
87124-26450
87124-26460
87124-26481
87124-26520
87124-26590
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714

(1312-1712)KDH222..GL..GCC ; (1312-1712)KDH222,223..LHD..12S,16S..GEN,RUS ; (1501-1

Click highlighted areas on diagram

FRONT:W(REAR HEATER)

diagram 1603 1603 8712126100 8712126110 8712426450 8712426460 8712426481 8712426520 8712426590 8712426590 8714 8714 87245A 87245B 87245C 87245D 87245E 87245H 87246 87246B 87246C 87246D 87246E 87248A 87248B 87248C 87249A 87249B 87249C 87249C 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9155380814 9155380814 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-26B20

KDH223..5F..(ARL,GEN,RUS,VN);KDH213,220,TRH221..02S,06S,10S;KDH222,TRH223..STD..(ARL,KEN,SA);KDH221,TRH213,223..(02S,03S,10S,12S,13S)..(ARL,GEN,RUS)

 1
87245-26B20

KDH223,TRH213..(10S,12S)..GEN

FRONT HEATER-WITHOUT(HEATER),WITH(BOOST VENTILATOR)

 1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00

KDH221;KDH222..STD..(KEN,SA);KDH223..5F..(ARL,GEN,RUS,VN);KDH201,213,220..02S,05S,06S,10S

 1
87245-26C00

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87245-26B80

TRH213,223..LHD..(10S,12S,13S);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA)

 1
87245C - HOSE, HEATER WATER ,INLET C
87209-26180

TRH213,223..LHD..(10S,12S,13S)

*H,L=220

 1
99556-20300

KDH223..STD..GEN

*H,L=210,REAR HEATER-WITH(FLOOR SET)

 1
87245D - HOSE, HEATER WATER, INLET D
99556-20200

KDH223..STD..GEN

*H,L=60,REAR HEATER-WITH(FLOOR SET)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-26B60

TRH201..RHD;TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA);TRH200,213,223..(06S,10S,12S,13S)..(4FC,5F)..(GEN,RUS)

 1
87245-26C10

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87245-26C10

KDH221;KDH222..STD..(KEN,SA);KDH223..5F..(ARL,GEN,RUS,VN);KDH201,213,220..02S,05S,06S,10S

 1
87245H - HOSE, HEATER WATER, INLET H
99556-30100

KDH223..STD..GEN

*H,L=60,REAR HEATER-WITH(FLOOR SET)

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-26B30

KDH223..5F..(ARL,GEN,RUS,VN);KDH213,220,TRH221..02S,06S,10S;KDH222,TRH223..STD..(ARL,KEN,SA);KDH221,TRH213,223..(02S,03S,10S,12S,13S)..(ARL,GEN,RUS)

 1
87245-26B30

KDH223,TRH213..(10S,12S)..GEN

FRONT HEATER-WITHOUT(HEATER),WITH(BOOST VENTILATOR)

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26C20

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87245-26C80

KDH221;KDH222..STD..(KEN,SA);KDH223..5F..(ARL,GEN);KDH201,220..02S,05S,06S

 1
87245-26B90

TRH213,223..LHD..(10S,12S,13S);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA)

 1
87246C - HOSE, HEATER WATER, OUTLET C
99556-20220

TRH213,223..LHD..(10S,12S,13S)

*H,L=220

 1
99556-20300

KDH223..STD..GEN

*H,L=210,REAR HEATER-WITH(FLOOR SET)

 1
87246D - HOSE, HEATER WATER, OUTLET D
87245-26C50

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26B70

TRH201..RHD;TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA);TRH200,213,223..(06S,10S,12S,13S)..(4FC,5F)..(GEN,RUS)

 1
87245-26C30

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87248A - PIPE, HEATER WATER INLET, A
87248-26440

KDH223,TRH213..(10S,12S)..GEN

FRONT HEATER-WITHOUT(HEATER),WITH(BOOST VENTILATOR)

 1
87248-26440

KDH223..5F..(ARL,GEN,RUS,VN);KDH213,220,TRH221..02S,06S,10S;KDH222,TRH223..STD..(ARL,KEN,SA);KDH221,TRH213,223..(02S,03S,10S,12S,13S)..(ARL,GEN,RUS)

 1
87248B - PIPE, HEATER WATER INLET, B
87248-26500

TRH213,223..LHD..(10S,12S,13S)

 1
87248-26583

KDH212,222,223..(10S,12S,14S)..5F..(GEN,SA)

REAR HEATER-WITH(FLOOR SET)

 1
87248-26570

KDH221;KDH222..STD..(KEN,SA);KDH223..5F..(ARL,GEN);KDH201,220..02S,05S,06S

 1
87248-26D30

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87248C - PIPE, HEATER WATER INLET, C
87248-26540

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26450

KDH223..5F..(ARL,GEN,RUS,VN);KDH213,220,TRH221..02S,06S,10S;KDH222,TRH223..STD..(ARL,KEN,SA);KDH221,TRH213,223..(02S,03S,10S,12S,13S)..(ARL,GEN,RUS)

 1
87248-26450

KDH223,TRH213..(10S,12S)..GEN

FRONT HEATER-WITHOUT(HEATER),WITH(BOOST VENTILATOR)

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26510

TRH213,223..LHD..(10S,12S,13S)

 1
87248-26592

KDH212,222,223..(10S,12S,14S)..5F..(GEN,SA)

REAR HEATER-WITH(FLOOR SET)

 1
87248-26D40

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87249C - PIPE, HEATER WATER OUTLET, C
87248-52010

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 2
87249C - PIPE, HEATER WATER OUTLET, C
87248-52010

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 2
Common parts
87121-26100
87121-26110
87124-26450
87124-26460
87124-26481
87124-26520
87124-26590
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714

(1712- )KDH222,223..5F..GEN,RUS,VN ; (1712-)KDH21#,222..10S,14S,16S..GL

Click highlighted areas on diagram

FRONT:W(REAR HEATER)

diagram 1603 1603 8712126100 8712126110 8712126280 8712426450 8712426460 8712426520 8712426590 8712426590 8714 8714 87245A 87245B 87245C 87245D 87245E 87245H 87246 87246B 87246C 87246D 87246E 87248A 87248B 87248C 87249A 87249B 87249C 87249C 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9155380814 9155380814 9155380814 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-26B20

KDH223..5F..(ARL,GEN,RUS,VN);KDH213,220,TRH221..02S,06S,10S;KDH222,TRH223..STD..(ARL,KEN,SA);KDH221,TRH213,223..(02S,03S,10S,12S,13S)..(ARL,GEN,RUS)

 1
87245-26B20

KDH223,TRH213..(10S,12S)..GEN

FRONT HEATER-WITHOUT(HEATER),WITH(BOOST VENTILATOR)

 1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00

KDH221;KDH222..STD..(KEN,SA);KDH223..5F..(ARL,GEN,RUS,VN);KDH201,213,220..02S,05S,06S,10S

 1
87245-26C00

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87245-26B80

TRH213,223..LHD..(10S,12S,13S);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA)

 1
87245C - HOSE, HEATER WATER ,INLET C
87209-26180

TRH213,223..LHD..(10S,12S,13S)

*H,L=220

 1
99556-20300

KDH223..STD..GEN

*H,L=210,REAR HEATER-WITH(FLOOR SET)

 1
87245D - HOSE, HEATER WATER, INLET D
99556-20200

KDH223..STD..GEN

*H,L=60,REAR HEATER-WITH(FLOOR SET)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-26B60

TRH201..RHD;TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA);TRH200,213,223..(06S,10S,12S,13S)..(4FC,5F)..(GEN,RUS)

 1
87245-26C10

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87245-26C10

KDH221;KDH222..STD..(KEN,SA);KDH223..5F..(ARL,GEN,RUS,VN);KDH201,213,220..02S,05S,06S,10S

 1
87245H - HOSE, HEATER WATER, INLET H
99556-30100

KDH223..STD..GEN

*H,L=60,REAR HEATER-WITH(FLOOR SET)

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-26B30

KDH223..5F..(ARL,GEN,RUS,VN);KDH213,220,TRH221..02S,06S,10S;KDH222,TRH223..STD..(ARL,KEN,SA);KDH221,TRH213,223..(02S,03S,10S,12S,13S)..(ARL,GEN,RUS)

 1
87245-26B30

KDH223,TRH213..(10S,12S)..GEN

FRONT HEATER-WITHOUT(HEATER),WITH(BOOST VENTILATOR)

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26C20

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87245-26C80

KDH221;KDH222..STD..(KEN,SA);KDH223..5F..(ARL,GEN);KDH201,220..02S,05S,06S

 1
87245-26B90

TRH213,223..LHD..(10S,12S,13S);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA)

 1
87246C - HOSE, HEATER WATER, OUTLET C
99556-20220

TRH213,223..LHD..(10S,12S,13S)

*H,L=220

 1
99556-20300

KDH223..STD..GEN

*H,L=210,REAR HEATER-WITH(FLOOR SET)

 1
87246D - HOSE, HEATER WATER, OUTLET D
87245-26C50

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26B70

TRH201..RHD;TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA);TRH200,213,223..(06S,10S,12S,13S)..(4FC,5F)..(GEN,RUS)

 1
87245-26C30

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87248A - PIPE, HEATER WATER INLET, A
87248-26440

KDH223,TRH213..(10S,12S)..GEN

FRONT HEATER-WITHOUT(HEATER),WITH(BOOST VENTILATOR)

 1
87248-26440

KDH223..5F..(ARL,GEN,RUS,VN);KDH213,220,TRH221..02S,06S,10S;KDH222,TRH223..STD..(ARL,KEN,SA);KDH221,TRH213,223..(02S,03S,10S,12S,13S)..(ARL,GEN,RUS)

 1
87248B - PIPE, HEATER WATER INLET, B
87248-26500

TRH213,223..LHD..(10S,12S,13S)

 1
87248-26583

KDH212,222,223..(10S,12S,14S)..5F..(GEN,SA)

REAR HEATER-WITH(FLOOR SET)

 1
87248-26570

KDH221;KDH222..STD..(KEN,SA);KDH223..5F..(ARL,GEN);KDH201,220..02S,05S,06S

 1
87248-26D30

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87248C - PIPE, HEATER WATER INLET, C
87248-26540

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26450

KDH223..5F..(ARL,GEN,RUS,VN);KDH213,220,TRH221..02S,06S,10S;KDH222,TRH223..STD..(ARL,KEN,SA);KDH221,TRH213,223..(02S,03S,10S,12S,13S)..(ARL,GEN,RUS)

 1
87248-26450

KDH223,TRH213..(10S,12S)..GEN

FRONT HEATER-WITHOUT(HEATER),WITH(BOOST VENTILATOR)

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26510

TRH213,223..LHD..(10S,12S,13S)

 1
87248-26592

KDH212,222,223..(10S,12S,14S)..5F..(GEN,SA)

REAR HEATER-WITH(FLOOR SET)

 1
87248-26D40

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 1
87249C - PIPE, HEATER WATER OUTLET, C
87248-52010

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 2
87249C - PIPE, HEATER WATER OUTLET, C
87248-52010

KDH223..STD..GEN

REAR HEATER-WITH(FLOOR SET)

 2
Common parts
87121-26100
87121-26110
87121-26280
87124-26450
87124-26460
87124-26520
87124-26590
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714
