4708 - BRAKE TUBE & CLAMP

KDH223L-LEMDY (2014)

Toyota Hiace

Production Jul 2014 - Feb 2019

Engine 1KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

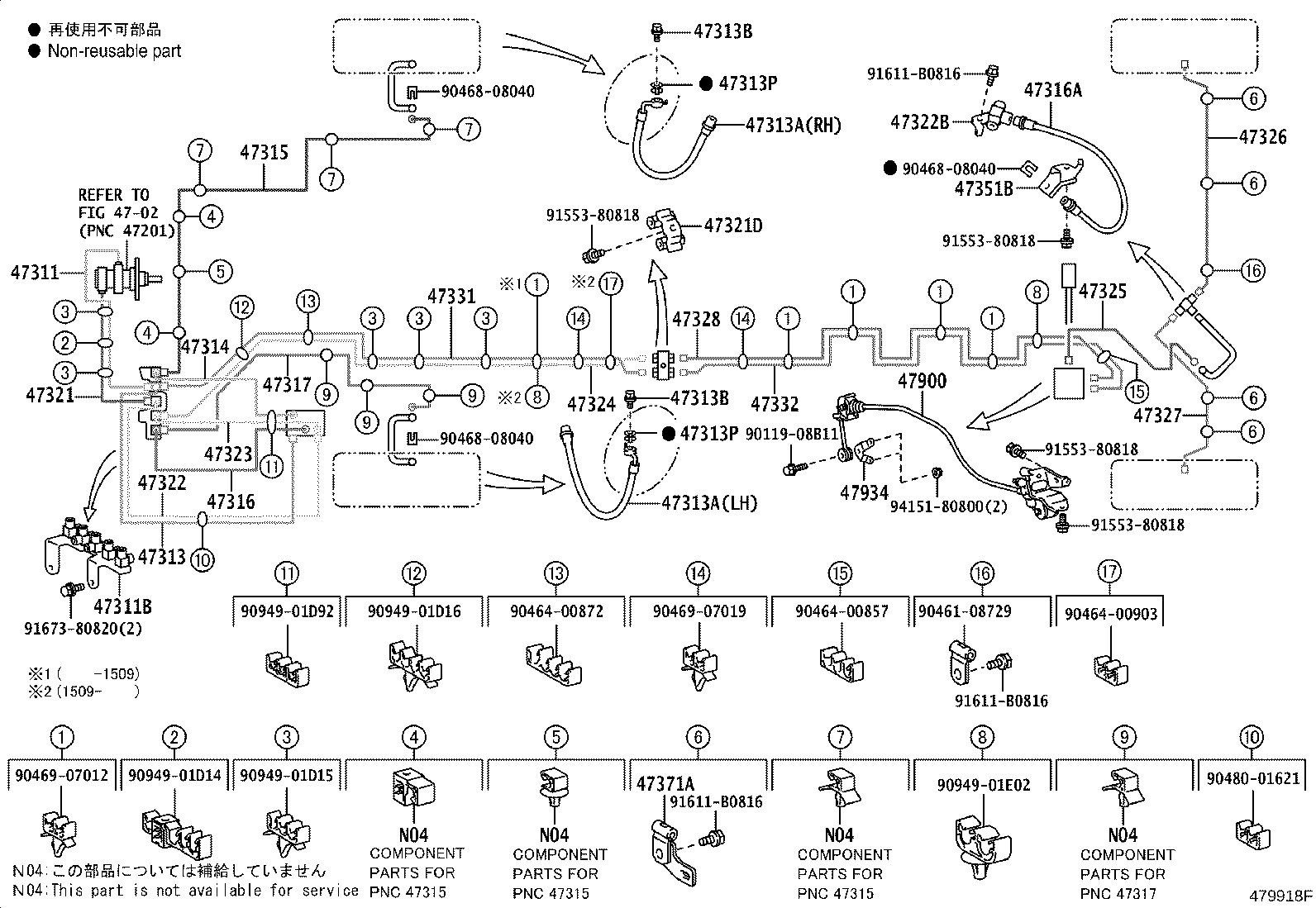

ILLUST NO. 1 OF 3(1501- )KDH220,222,223,LH222,TRH22#..LHD..GCC,GEN,VN

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-26A20	KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD	12/2013 - 01/2015	1
47311-26A50	TRH203..LHD..5F;KDH222..LHD..GEN;TRH223..4FC..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,202,203,21#,220,223,LH20#,212,222,TRH213..LHD..(GCC,GEN,VN)	01/2015 - 12/2999	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10305	TRH223..4FC..GEN;TRH201,221..RHD..5F;TRH223..(12S,14S)..5F;KDH221,223..ARL,GEN,RUS;KDH201,203,212,TRH213..02S,06S,10S,11S;KDH200,213,220,222..(03S,06S,11S,14S)..(SA,TH)	12/2013 - 01/2015	1
90413-10338	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26320	TRH223..4FC..GEN;TRH201,221..RHD..5F;TRH223..(12S,14S)..5F;KDH221,223..ARL,GEN,RUS;KDH201,203,212,TRH213..02S,06S,10S,11S;KDH200,213,220,222..(03S,06S,11S,14S)..(SA,TH)	12/2013 - 01/2015	1
47313-26390	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH RH	12/2013 - 01/2015	1
90947-02F54	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH LH	12/2013 - 01/2015	1
90947-02G74	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S RH	01/2015 - 12/2999	1
90947-02H54	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S LH	01/2015 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH RH	12/2013 - 01/2015	1
90947-02F54	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH LH	12/2013 - 01/2015	1
90947-02G74	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S RH	01/2015 - 12/2999	1
90947-02H54	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S LH	01/2015 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 11/2017	2
47389-50021	KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S	12/2017 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 11/2017	2
47389-50021	KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S	12/2017 - 12/2999	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-26370	TRH223..4FC..GEN;TRH201,221..RHD..5F;TRH223..(12S,14S)..5F;KDH221,223..ARL,GEN,RUS;KDH201,203,212,TRH213..02S,06S,10S,11S;KDH200,213,220,222..(03S,06S,11S,14S)..(SA,TH)	12/2013 - 01/2015	1
47314-26390	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-26301	TRH221..5F;KDH222..GL;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH21#,220,221,LH212,222,TRH213	12/2013 - 01/2015	1
47315-26340	TRH221..GCC;KDH222..GEN,KEN;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH21#,220,221,223,LH212,222..ARL,GCC,GEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH)	01/2015 - 12/2999	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-26470	TRH223..4FC..GEN;TRH201,221..RHD..5F;TRH223..(12S,14S)..5F;KDH221,223..ARL,GEN,RUS;KDH201,203,212,TRH213..02S,06S,10S,11S;KDH200,213,220,222..(03S,06S,11S,14S)..(SA,TH)	12/2013 - 01/2015	1
47316-26490	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02F56	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 01/2015	1
90947-02H57	KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	01/2015 - 12/2999	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-26360	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S	01/2015 - 12/2999	1
47317-26340	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47321 - TUBE, REAR BRAKE, NO.1
47321-26770	KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD	12/2013 - 01/2015	1
47321-26800	TRH203..LHD..5F;KDH222..LHD..GEN;TRH223..4FC..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,202,203,21#,220,223,LH20#,212,222,TRH213..LHD..(GCC,GEN,VN)	01/2015 - 12/2999	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10166	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
90412-10285	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S	01/2015 - 12/2999	1
47322 - TUBE, REAR BRAKE, NO.2
47322-26420	TRH223..4FC..GEN;TRH201,221..RHD..5F;TRH223..(12S,14S)..5F;KDH221,223..ARL,GEN,RUS;KDH201,203,212,TRH213..02S,06S,10S,11S;KDH200,213,220,222..(03S,06S,11S,14S)..(SA,TH)	12/2013 - 01/2015	1
47322-26430	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10307	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 01/2015	1
90413-10337	KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	01/2015 - 12/2999	1
47323 - TUBE, REAR BRAKE, NO.3
47323-26410	TRH223..4FC..GEN;TRH201,221..RHD..5F;TRH223..(12S,14S)..5F;KDH221,223..ARL,GEN,RUS;KDH201,203,212,TRH213..02S,06S,10S,11S;KDH200,213,220,222..(03S,06S,11S,14S)..(SA,TH)	12/2013 - 01/2015	1
47323-26420	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-26550	TRH223..4FC..GEN;TRH201,221..RHD..5F;TRH223..(12S,14S)..5F;KDH221,223..ARL,GEN,RUS;KDH201,203,212,TRH213..02S,06S,10S,11S;KDH200,213,220,222..(03S,06S,11S,14S)..(SA,TH)	12/2013 - 01/2015	1
47324-26570	TRH201..RHD;KDH212..10S,11S;KDH201..RHD..03S;KDH212..13S..4FC;KDH201,223,TRH223..02S,05S,06S,10S,12S,13S,14S;KDH203,213,221,TRH200,213..02S,03S,06S,10S,11S,13S;KDH200,220,222,TRH221..(02S,03S,06S,14S)..(ARL,SA)	01/2015 - 01/2016	1
47324-26580	KDH212..5F..(GCC,GEN);KDH201,TRH201..LHD..5D;KDH200,202,203,220,222,LH20#,212,222,TRH203,213,22#..(03S,12S,15S,16S)..(GCC,GEN)	01/2015 - 01/2016	1
47324-26580	KDH213,223..5F..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT	12/2015 - 01/2016	1
47324-26571	KDH223..4FC..TH;KDH201..RHD..03S;TRH223..ARL,RUS,TH;KDH223..ARL,GEN,RUS,VN;KDH221,222,TRH201,213..RHD..(02S,03S,05S,06S,11S);GDH201,KDH201,203,213,220,TRH22#..(02S,05S,06S,10S,11S,13S)..(ARL,GEN,SA)	01/2016 - 12/2999	1
47325 - TUBE, REAR BRAKE, NO.5
47325-26410	TRH221..5F;KDH222..GL;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH21#,220,221,LH212,222,TRH213	12/2013 - 01/2015	1
47325-26430	TRH213..LHD;KDH222..GEN,KEN;TRH223..LHD..STD..GEN;KDH220,TRH22#..06S,10S,13S;KDH21#,220,223,LH212,222..GCC,GEN,VN	01/2015 - 12/2999	1
47326 - TUBE, REAR BRAKE, NO.6
47326-26490	TRH223..GL..SA;KDH222..GL..(GEN,SA);KDH222,223,LH222,TRH223..5F..GEN	12/2013 - 01/2015	1
47326-26520	TRH223..LHD..STD..GEN;KDH222,223,LH222..GEN,KEN,VN	01/2015 - 12/2999	1
47327 - TUBE, REAR BRAKE, NO.7
47327-26340	TRH223..GL..SA;KDH222..GL..(GEN,SA);KDH222,223,LH222,TRH223..5F..GEN	12/2013 - 01/2015	1
47327-26370	TRH223..LHD..STD..GEN;KDH222,223,LH222..GEN,KEN,VN	01/2015 - 12/2999	1
47328 - TUBE, REAR BRAKE, NO.8
47328-26160	TRH221..5F;KDH222..GL;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH220,221,223,LH222..ARL,GEN,RUS,SA	12/2013 - 01/2015	1
47328-26180	TRH223..LHD..STD..GEN;KDH220,TRH22#..06S,10S,13S;KDH220,222,223,LH222..GEN,KEN,VN	01/2015 - 12/2999	1
47331 - TUBE, REAR BRAKE, NO.10
47331-26250	TRH201..RHD;KDH212..10S,11S;KDH201..RHD..03S;KDH212..13S..4FC;KDH201,223,TRH223..02S,05S,06S,10S,12S,13S,14S;KDH203,213,221,TRH200,213..02S,03S,06S,10S,11S,13S;KDH200,220,222,TRH221..(02S,03S,06S,14S)..(ARL,SA)	01/2015 - 01/2016	1
47331-26260	KDH212..5F..(GCC,GEN);KDH201,TRH201..LHD..5D;KDH200,202,203,220,222,LH20#,212,222,TRH203,213,22#..(03S,12S,15S,16S)..(GCC,GEN)	01/2015 - 01/2016	1
47331-26260	KDH213,223..5F..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT	12/2015 - 01/2016	1
47331-26251	KDH223..4FC..TH;KDH201..RHD..03S;TRH223..ARL,RUS,TH;KDH223..ARL,GEN,RUS,VN;KDH221,222,TRH201,213..RHD..(02S,03S,05S,06S,11S);GDH201,KDH201,203,213,220,TRH22#..(02S,05S,06S,10S,11S,13S)..(ARL,GEN,SA)	01/2016 - 12/2999	1
47332 - TUBE, REAR BRAKE, NO.11
47332-26170	TRH223..LHD..STD..GEN;KDH220,TRH22#..06S,10S,13S;KDH220,222,223,LH222..GEN,KEN,VN	01/2015 - 12/2999	1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-26210	KDH221;KDH201..SG;KDH201,223..ARL,RUS;TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS)	12/2013 - 01/2015	1
47351-26210	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-26200	TRH203..LHD..5F;LH222,TRH201,213,223..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 05/2020	4
47371-26200	KDH223..4FC..TH;KDH221,TRH201..RHD;TRH223..10S,12S,13S;KDH222..STD..(KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA);GDH201,KDH201,202,203,212,TRH203,213..(02S,05S,06S,10S,11S)..(ARL,GEN,MA,TH);KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	4
47900 - VALVE ASSY, LOAD SENSING W/SPRING
47900-26570	KDH223..STD..GEN	01/2015 - 12/2999	1
47934 - BRACKET, LOAD SENSING
47934-26110	KDH223..STD..GEN	01/2015 - 12/2999	1
Common parts
90119-08B11
90461-08729
90464-00857
90464-00872
90464-00903
90468-08040
90469-07012
90469-07019
90480-01621
90949-01D14
90949-01D15
90949-01D16
90949-01D92
90949-01E02
91553-80818
91611-B0816
91673-80820
94151-80800
