KDH222R-LEMNYN (2013)
Toyota Hiace
(1312- )KDH222,TRH223..RHD..GL

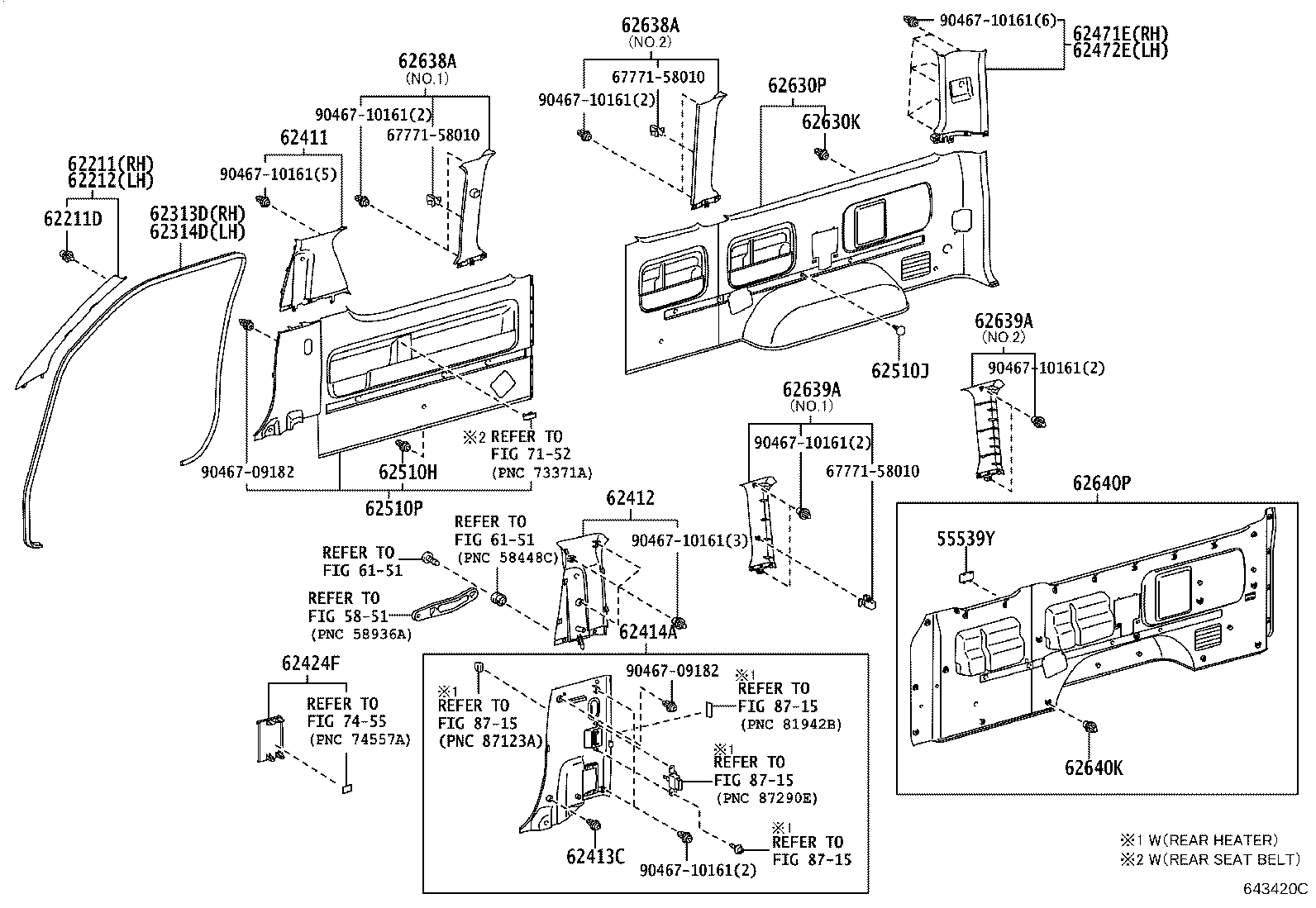

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539Y - COVER, SPARE SWITCH HOLE | ||||
| 55539-28120B2 |
KDH222..5F..GL;TRH223..5F..GL..(GEN,SA) DK.GRAY,TRIM1# |
1 | ||
| 55539-28120B2 |
KDH213,222..RHD..GL DK.GRAY,TRIM1# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-26052B0 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) LT.GRAY,TRIM1# |
1 | ||
| 62210-26052B0 |
KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90467-10161 |
TRH213;KDH201..SP..06S;KDH212,22#,LH212,222,TRH22#..ARL,GCC,GEN,RUS,SA;KDH202,203,213,TRH200,203..RHD..(06S,10S,11S,12S) |
2 | ||
| 67771-28150 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
2 | ||
| 67771-28150 |
KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-26050B0 |
TRH221..SG;KDH222..5F..GL;KDH222,TRH223..STD..GCC;KDH220,TRH22#..(03S,14S)..SA LT.GRAY,TRIM1# |
1 | ||
| 62220-26032B0 |
KDH222..GL..SA WITHOUT(DESTINATION PACKAGE),LT.GRAY,TRIM1# |
1 | ||
| 62220-26050B0 |
KDH222,TRH223..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA) LT.GRAY,TRIM1# |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-26010C0 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) BLACK,TRIM1# |
1 | ||
| 62313-26010C0 |
KDH222,TRH223..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA) BLACK,TRIM1# |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62314-26010C0 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) BLACK,TRIM1# |
1 | ||
| 62314-26010C0 |
KDH222,TRH223..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA) BLACK,TRIM1# |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-26110B0 |
KDH222,TRH223..GL..SA LT.GRAY,TRIM1# |
1 | ||
| 62410-26110B0 |
KDH222..GL..SA LT.GRAY,TRIM1# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-26110B0 |
KDH222,TRH223..GL..SA LT.GRAY,TRIM1# |
1 | ||
| 62420-26110B0 |
KDH222..GL..SA LT.GRAY,TRIM1# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 75867-33030 |
KDH213..11S;KDH223..STD;KDH212..13S..STD;KDH222,TRH213,223..RHD;KDH222,TRH213,223..LHD..STD;KDH20#,212,220,221,LH20#,212,222,TRH20#,221..02S,03S,05S,06S,10S,11S,12S,15S,16S |
1 | ||
| 67771-28150 |
TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;KDH220,222,TRH223..(03S,14S)..SA |
1 | ||
| 67771-28150 |
KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-26380B0 |
KDH222,TRH223..GL..SA DK.GRAY,TRIM1# |
1 | ||
| 62414-26400B2 |
KDH222,TRH223..GL..SA REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1# |
1 | ||
| 62414-26380B0 |
KDH222..GL..SA DK.GRAY,TRIM1# |
1 | ||
| 62414-26400B2 |
KDH222..GL..SA REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1# |
1 | ||
| 62424F - COVER, CENTER PILLAR GARNISH, LOWER LH | ||||
| 62424-26031B0 |
KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# DK.GRAY,TRIM1# |
1 | ||
| 62424-26032B0 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) DK.GRAY,TRIM1# |
1 | ||
| 62424-26032B0 |
KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 62471E - GARNISH, ROOF SIDE, INNER UPPER RH | ||||
| 62471-26331B0 |
TRH223..(12S,13S,14S)..GL;KDH21#,222,223,TRH213..(10S,11S,12S,14S)..GL LT.GRAY,TRIM1# |
1 | ||
| 62471-26332B0 |
KDH222,TRH223..GL..SA LT.GRAY,TRIM1# |
1 | ||
| 62471-26332B0 |
KDH213,222..RHD..GL LT.GRAY,TRIM1# |
1 | ||
| 62472E - GARNISH, ROOF SIDE, INNER UPPER LH | ||||
| 62472-26242B0 |
TRH223..(12S,13S,14S)..GL;KDH21#,222,223,TRH213..(10S,11S,12S,14S)..GL LT.GRAY,TRIM1# |
1 | ||
| 62472-26243B0 |
KDH222,TRH223..GL..SA LT.GRAY,TRIM1# |
1 | ||
| 62472-26243B0 |
KDH213,222..RHD..GL LT.GRAY,TRIM1# |
1 | ||
| 62510H - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90467-10161 |
KDH222,TRH223..GL..SA |
18 | ||
| 90467-10161 |
KDH222..GL..SA |
18 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 67771-26230B2 |
KDH222..5F..GL;TRH223..5F..GL..(GEN,SA) DK.GRAY,TRIM1# |
2 | ||
| 90467-08104B5 |
KDH222..GL;TRH223..GL..GEN NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 67771-26230B2 |
KDH222,TRH223..GL..SA DK.GRAY,TRIM1# |
2 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-26670B4 |
KDH222,TRH223..GL..SA DK.GRAY,TRIM1# |
1 | ||
| 62510-26670B4 |
KDH222..GL..SA DK.GRAY,TRIM1# |
1 | ||
| 62630K - CLIP(FOR QUARTER TRIM REAR PANEL) | ||||
| 90467-10161 |
KDH222,TRH223..GL..SA |
24 | ||
| 90467-10161 |
KDH222..GL..SA |
24 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-26D90B1 |
KDH222,TRH223..GL..SA DK.GRAY,TRIM1# |
1 | ||
| 62630-26D90B1 |
KDH222..GL..SA DK.GRAY,TRIM1# |
1 | ||
| 62638A - GARNISH, QUARTER PILLAR, RH | ||||
| 62638-26072B0 |
KDH222,TRH223..GL..SA LT.GRAY,TRIM1#,NO.2 |
1 | ||
| 62638-26073B0 |
KDH222,TRH223..GL..SA LT.GRAY,TRIM1#,NO.2 |
1 | ||
| 62638-26060B0 |
KDH222..5F..GL;TRH223..5F..GL..(GEN,SA) LT.GRAY,TRIM1#,NO.1 |
1 | ||
| 62638-26073B0 |
KDH222..GL..SA LT.GRAY,TRIM1#,NO.2 |
1 | ||
| 62638-26060B0 |
KDH222..GL..SA LT.GRAY,TRIM1#,NO.1 |
1 | ||
| 62638A - GARNISH, QUARTER PILLAR, RH | ||||
| 62638-26072B0 |
KDH222,TRH223..GL..SA LT.GRAY,TRIM1#,NO.2 |
1 | ||
| 62638-26073B0 |
KDH222,TRH223..GL..SA LT.GRAY,TRIM1#,NO.2 |
1 | ||
| 62638-26060B0 |
KDH222..5F..GL;TRH223..5F..GL..(GEN,SA) LT.GRAY,TRIM1#,NO.1 |
1 | ||
| 62638-26073B0 |
KDH222..GL..SA LT.GRAY,TRIM1#,NO.2 |
1 | ||
| 62638-26060B0 |
KDH222..GL..SA LT.GRAY,TRIM1#,NO.1 |
1 | ||
| 62639A - GARNISH, QUARTER PILLAR, LH | ||||
| 62639-26062B0 |
KDH222,223,TRH223..(10S,12S,13S,14S)..GL LT.GRAY,TRIM1#,NO.2 |
1 | ||
| 62639-26080B0 |
KDH222,TRH223..GL..SA LT.GRAY,TRIM1#,NO.1 |
1 | ||
| 62639-26063B0 |
KDH222,TRH223..GL..SA LT.GRAY,TRIM1#,NO.2 |
1 | ||
| 62639-26080B0 |
KDH222..GL..SA LT.GRAY,TRIM1#,NO.1 |
1 | ||
| 62639-26063B0 |
KDH222..GL..SA LT.GRAY,TRIM1#,NO.2 |
1 | ||
| 62639A - GARNISH, QUARTER PILLAR, LH | ||||
| 62639-26062B0 |
KDH222,223,TRH223..(10S,12S,13S,14S)..GL LT.GRAY,TRIM1#,NO.2 |
1 | ||
| 62639-26080B0 |
KDH222,TRH223..GL..SA LT.GRAY,TRIM1#,NO.1 |
1 | ||
| 62639-26063B0 |
KDH222,TRH223..GL..SA LT.GRAY,TRIM1#,NO.2 |
1 | ||
| 62639-26080B0 |
KDH222..GL..SA LT.GRAY,TRIM1#,NO.1 |
1 | ||
| 62639-26063B0 |
KDH222..GL..SA LT.GRAY,TRIM1#,NO.2 |
1 | ||
| 62640K - CLIP(FOR QUARTER TRIM REAR PANEL) | ||||
| 90467-10161 |
KDH222,TRH223..GL..SA |
27 | ||
| 90467-10161 |
KDH222..GL..SA |
27 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62640-26D70B1 |
KDH222,TRH223..GL..SA DK.GRAY,TRIM1# |
1 | ||
| 62640-26D70B1 |
KDH222..GL..SA DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 67771-58010 | ||||
| 90467-09182 | ||||
| 90467-10161 | ||||
| Linked diagrams | ||||
| 5851 | ||||
| 6151 | ||||
| 7152 | ||||
| 7455 | ||||
| 8715 | ||||
