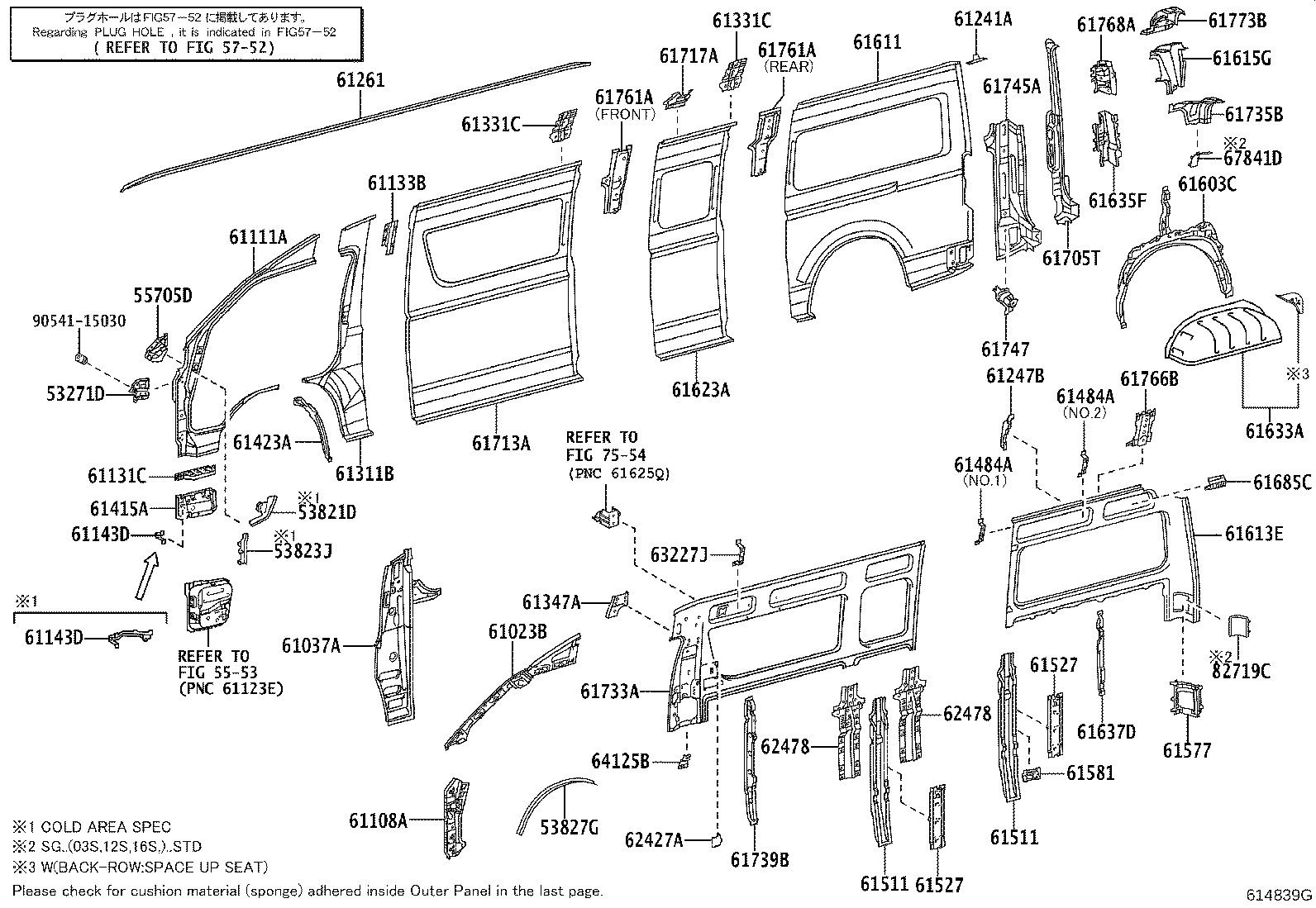

KDH222R-LEMNYN (2013)
Toyota Hiace
(1312- )KDH222,223,LH222,TRH223..RHD
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53271D - BRACKET, HEADLAMP MOUNTING, RH | ||||
| 53271-26021 |
TRH223..4FC;KDH222..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 53271-26021 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 53827G - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-26010 |
KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 53827-26010 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 55705D - PANEL SUB-ASSY, COWL TOP SIDE, RH, | ||||
| 55705-26080 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 55705-26080 |
TRH223..4FC;KDH222..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-26200 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61023-26200 |
TRH223..4FC;KDH222..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA) |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-26040 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA |
1 | ||
| 61037-26040 |
KDH222..GL..SA |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-26010 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61108-26010 |
TRH223..4FC;KDH222..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 61111A - PANEL, FRONT SIDE, OUTER RH | ||||
| 61131-26111 |
KDH220,222,TRH22#..(03S,14S)..SA |
1 | ||
| 61131-26111 |
KDH222..GL..SA |
1 | ||
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-26081 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61131-26081 |
TRH223..4FC;KDH222..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 61133B - BRACKET, FRONT BODY PILLAR ,OUTER RH | ||||
| 61133-26010 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA |
1 | ||
| 61133-26010 |
KDH222..GL..SA |
1 | ||
| 61143D - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 61143-26010 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61143-26010 |
TRH223..4FC;KDH222..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 61143D - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 61143-26010 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61143-26010 |
TRH223..4FC;KDH222..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 61241A - GUSSET, ROOF SIDE RAIL, REAR RH | ||||
| 61241-26030 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61241-26030 |
TRH223..4FC;KDH222..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA) |
1 | ||
| 61247B - REINFORCEMENT, ROOF SIDE RAIL, INNER RH | ||||
| 61247-26020 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA |
5 | ||
| 61247-26020 |
KDH222..GL..SA |
5 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-26061 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61261-26061 |
TRH223..4FC;KDH222..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA) |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-26070 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA |
1 | ||
| 61311-26070 |
KDH222..GL..SA |
1 | ||
| 61331C - REINFORCEMENT, CENTER PILLAR, UPPER OUTER RH | ||||
| 61331-26010 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA |
2 | ||
| 61331-26010 |
KDH222..GL..SA |
2 | ||
| 61331C - REINFORCEMENT, CENTER PILLAR, UPPER OUTER RH | ||||
| 61331-26010 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA |
2 | ||
| 61331-26010 |
KDH222..GL..SA |
2 | ||
| 61347A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH | ||||
| 61347-26040 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA |
1 | ||
| 61347-26040 |
KDH222..GL..SA |
1 | ||
| 61415A - PANEL, FRONT STEP, UNDER, RH | ||||
| 61415-26021 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61415-26021 |
TRH223..4FC;KDH222..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 61423A - PANEL, FENDER, INNER LOWER RH | ||||
| 61423-26030 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61423-26030 |
TRH223..4FC;KDH222..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 61484A - BRACKET, ROOF SIDE RAIL REINFORCE, NO.4 | ||||
| 61481-26110 |
KDH222..5F..GL;TRH223..5F..GL..(GEN,SA) NO.1 |
1 | ||
| 61481-26100 |
KDH222..5F..GL;TRH223..5F..GL..(GEN,SA) NO.2 |
4 | ||
| 61481-26100 |
KDH222,TRH223..GL..SA NO.2 |
2 | ||
| 61481-26110 |
KDH222..GL;TRH223..GL..GEN NO.1 |
1 | ||
| 61481-26100 |
KDH222..GL..SA NO.2 |
4 | ||
| 61484A - BRACKET, ROOF SIDE RAIL REINFORCE, NO.4 | ||||
| 61481-26110 |
KDH222..5F..GL;TRH223..5F..GL..(GEN,SA) NO.1 |
1 | ||
| 61481-26100 |
KDH222..5F..GL;TRH223..5F..GL..(GEN,SA) NO.2 |
4 | ||
| 61481-26100 |
KDH222,TRH223..GL..SA NO.2 |
2 | ||
| 61481-26110 |
KDH222..GL;TRH223..GL..GEN NO.1 |
1 | ||
| 61481-26100 |
KDH222..GL..SA NO.2 |
4 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61511-26070 |
KDH222..GL..SA;KDH223,TRH223..RHD..(GEN,TH) |
2 | ||
| 61511-26070 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA |
2 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61511-26070 |
KDH222..GL..SA;KDH223,TRH223..RHD..(GEN,TH) |
2 | ||
| 61511-26070 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA |
2 | ||
| 61527 - REINFORCEMENT, QUARTER LOCK PILLER, LOWER RH | ||||
| 61527-26030 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA |
2 | ||
| 61527-26030 |
KDH222..GL..SA;KDH223,TRH223..RHD..(GEN,TH) |
2 | ||
| 61527 - REINFORCEMENT, QUARTER LOCK PILLER, LOWER RH | ||||
| 61527-26030 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA |
2 | ||
| 61527-26030 |
KDH222..GL..SA;KDH223,TRH223..RHD..(GEN,TH) |
2 | ||
| 61577 - PLATE, CAB REAR PILLAR, LOWER RH | ||||
| 61071-26100 |
KDH222,TRH223..GL..SA |
1 | ||
| 61071-26100 |
KDH213,222..RHD..GL |
1 | ||
| 61581 - BRACKET, REAR SEAT, NO.1 | ||||
| 61581-26040 |
KDH222..5F..GL;TRH223..RHD..GEN;KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61581-26040 |
KDH222..GL;TRH223..GL..GEN;TRH223..RHD..GEN;KDH222,223,TRH223..STD..(GCC,TH) |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61610-26150 |
KDH222,TRH223..GL..SA |
1 | ||
| 61610-26150 |
KDH222..GL..SA |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-26490 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA |
1 | ||
| 61611-26490 |
KDH222..GL..SA |
1 | ||
| 61613E - PANEL, QUARTER, INNER RH | ||||
| 61613-26D00 |
KDH222,TRH223..GL..SA |
1 | ||
| 61613-26D00 |
KDH222..GL..SA |
1 | ||
| 61615G - REINFORCEMENT, REAR BODY REAR SIDE PANEL, RH | ||||
| 61615-26160 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61615-26160 |
KDH222..GL;TRH223..GL..GEN;TRH223..RHD..GEN;KDH223,TRH221..GEN,TH;KDH222,TRH223..STD..GCC |
1 | ||
| 61623A - EXTENSION, QUARTER PANEL, OUTER RH | ||||
| 61623-26090 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA |
1 | ||
| 61623-26090 |
KDH222..GL..SA |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61603-26030 |
TRH223..RHD..GEN;KDH222,TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61603-26030 |
KDH213,222..RHD..GL |
1 | ||
| 61635F - REINFORCEMENT, QUARTER PANEL, UPR RH | ||||
| 61635-26040 |
KDH222,TRH223..GL..SA |
1 | ||
| 61635-26040 |
KDH213,222..GL |
1 | ||
| 61637D - REINFORCEMENT, QUARTER, INNER RH | ||||
| 61637-26030 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61637-26030 |
KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 61685C - BRACKET, REAR SEAT BACK STOPPER, RH | ||||
| 61685-26020 |
TRH223..RHD..GEN;KDH222,TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61685-26020 |
KDH222..GL..SA |
1 | ||
| 61705T - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61705-26290 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61705-26290 |
TRH223..4FC;KDH222..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA) |
1 | ||
| 61713A - EXTENSION, ROOF SIDE, OUTER RH | ||||
| 61713-26010 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA |
1 | ||
| 61713-26010 |
KDH222..GL..SA |
1 | ||
| 61717A - REINFORCEMENT, QUARTER PANEL EXTENSION, RH | ||||
| 61717-26070 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61717-26070 |
TRH223..4FC;KDH222..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA) |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-26090 |
KDH222,TRH223..GL..SA |
1 | ||
| 61733-26090 |
KDH222..GL..SA |
1 | ||
| 61735B - EXTENSION, QUARTER PANEL, INNER RH | ||||
| 61735-26A60 |
KDH222..5F..GL;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61735-26A60 |
KDH222..GL;TRH223..GL..GEN |
1 | ||
| 61739B - REINFORCEMENT, EXTENSION QUARTER INNER PANEL | ||||
| 61739-26040 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA |
1 | ||
| 61739-26040 |
KDH222..GL..SA |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-26050 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61745-26050 |
TRH223..4FC;KDH222..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH | ||||
| 61747-26020 |
KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 61747-26020 |
TRH221..SG;KDH220,222,TRH22#..(03S,14S)..SA |
1 | ||
| 61761A - REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH | ||||
| 61761-26110 |
KDH222..GL..SA REAR |
1 | ||
| 61761-26110 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA REAR |
1 | ||
| 61761-26090 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA FRONT |
1 | ||
| 61761-26090 |
KDH222..GL..SA FRONT |
1 | ||
| 61761A - REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH | ||||
| 61761-26110 |
KDH222..GL..SA REAR |
1 | ||
| 61761-26110 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA REAR |
1 | ||
| 61761-26090 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA FRONT |
1 | ||
| 61761-26090 |
KDH222..GL..SA FRONT |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-26040 |
KDH222,TRH223..GL..SA |
1 | ||
| 61766-26040 |
KDH222..GL..SA |
1 | ||
| 61768A - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH | ||||
| 61801-26010 |
KDH222,TRH223..GL..SA |
1 | ||
| 61801-26010 |
KDH213,222..GL |
1 | ||
| 61773B - FRAME, BACK DOOR OPENING SIDE, UPPER RH | ||||
| 61773-26150 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61773-26150 |
TRH223..4FC;KDH222..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA) |
1 | ||
| 62478 - PATCH, CENTER PILLAR, RH | ||||
| 62478-26040 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA |
2 | ||
| 62478-26040 |
KDH222..GL..SA |
2 | ||
| 62478 - PATCH, CENTER PILLAR, RH | ||||
| 62478-26040 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA |
2 | ||
| 62478-26040 |
KDH222..GL..SA |
2 | ||
| 64125B - ANCHOR, PILLAR SEAT BELT | ||||
| 64125-26050 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA) |
1 | ||
| 64125-26050 |
TRH223..4FC;KDH222..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 82719C - COVER, WIRE HANRESS SERVICE HOLE | ||||
| 82719-26030B1 |
KDH223..4FC..TH;TRH213..LHD..STD;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;KDH222..STD..(GEN,KEN,SA);KDH220,TRH200..06S..(4FC,5F);TRH22#..(02S,06S,16S)..(ARL,SA,TH);GDH201,KDH201,202,203,221,LH202,212,222,TRH201..ARL,GCC,GEN,SA,TH;KDH212,223,LH200,TRH203..4D..(03S,13S,15S,16S)..5F..STD..(GCC,GEN,VN) DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90541-15030 | ||||
| Linked diagrams | ||||
| 5553 | ||||
| 5752 | ||||
| 7554 | ||||

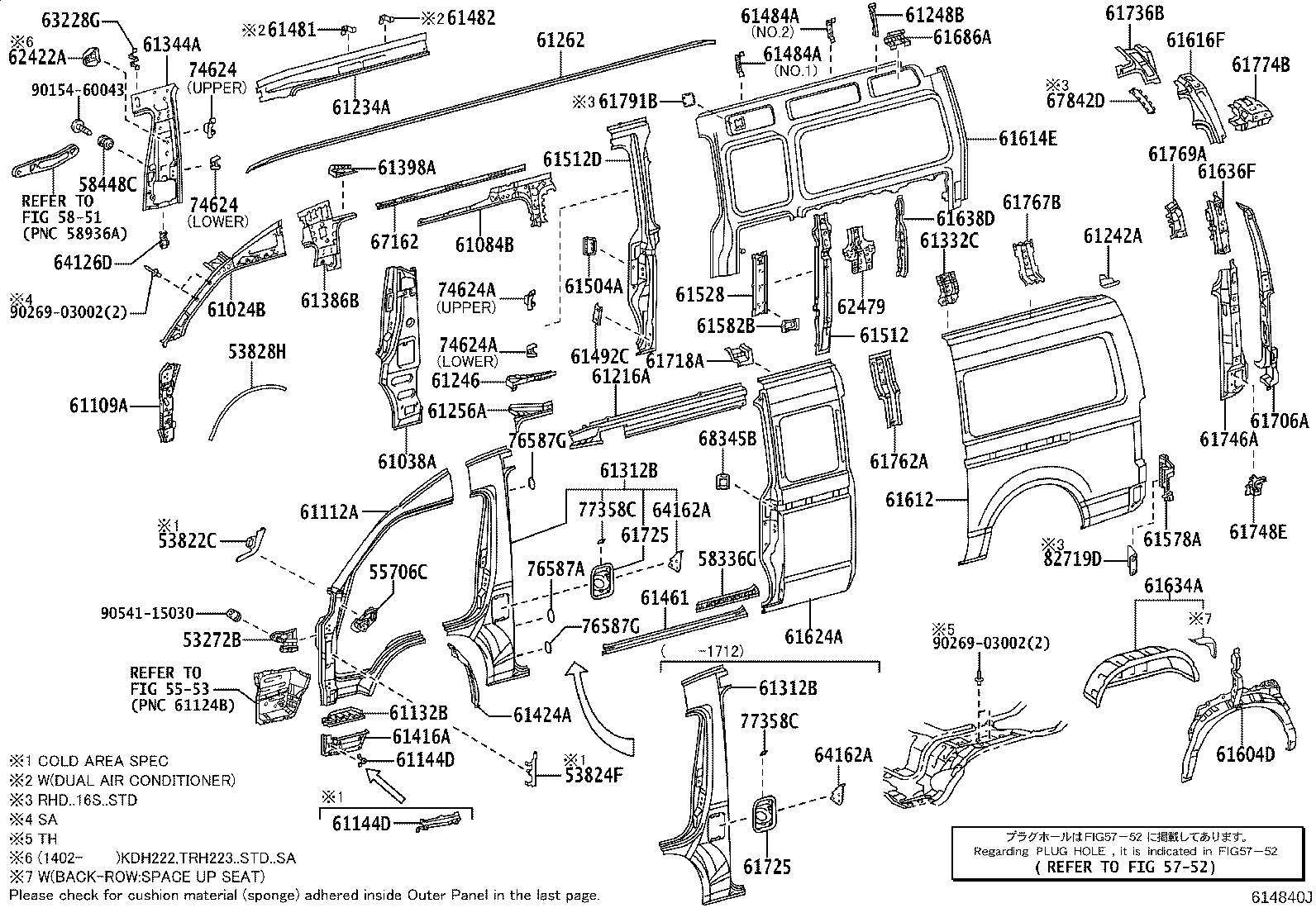

(1312- )KDH222,223,LH222,TRH223..RHD
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53272B - BRACKET, HEADLAMP MOUNTING, LH | ||||
| 53272-26011 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 53272-26011 |
TRH223..4FC;KDH222..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 53828H - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53827-26010 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 53827-26010 |
KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 55706C - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-26050 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 55706-26050 |
TRH223..4FC;KDH222..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 58336G - PLATE, FLOOR SIDE, FR LH | ||||
| 58336-26040 |
TRH223..RHD..GEN;TRH221..SP..03S..(GEN,SA);KDH220,222,TRH223..(03S,14S)..SA |
1 | ||
| 58336-26040 |
KDH213,222..RHD..GL |
1 | ||
| 58448C - HOOK, ENGINE SERVICE HOLE COVER, NO.2 LH | ||||
| 58448-26010B0 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) LT.GRAY,TRIM1# |
1 | ||
| 58448-26010B0 |
KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-26120 |
TRH221..SG;KDH222..5F..GL;KDH222,TRH223..STD..GCC;KDH220,TRH22#..(03S,14S)..SA |
1 | ||
| 61024-26120 |
TRH223..4FC;KDH222..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA) |
1 | ||
| 61024-26160 |
KDH222..GL..SA WITHOUT(DESTINATION PACKAGE) |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-26010 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA |
1 | ||
| 61038-26010 |
KDH213,222..RHD..GL |
1 | ||
| 61084B - BRACE SUB-ASSY, ROOF SIDE INNER, FR LH | ||||
| 61084-26080 |
TRH223..RHD..GEN;TRH221..SP..03S..(GEN,SA);KDH220,222,TRH223..(03S,14S)..SA |
1 | ||
| 61084-26080 |
KDH222..GL..SA;TRH221..SP..GEN;KDH223,TRH223..RHD..(GEN,TH) |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-26010 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61109-26010 |
TRH223..4FC;KDH222..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 61112A - PANEL, FRONT SIDE, OUTER LH | ||||
| 61132-26161 |
TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;KDH220,222,TRH223..(03S,14S)..SA |
1 | ||
| 61132-26161 |
TRH223..4FC;KDH222..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA) |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-26121 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61132-26121 |
TRH223..4FC;KDH222..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 61144D - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 61144-26010 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61144-26010 |
TRH223..4FC;KDH222..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 61144D - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 61144-26010 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61144-26010 |
TRH223..4FC;KDH222..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 61216A - RAIL, ROOF SIDE, OUTER REAR LH | ||||
| 61216-26030 |
KDH222..GL..SA |
1 | ||
| 61216-26030 |
TRH223..RHD..GEN;TRH221..SP..03S..(GEN,SA);KDH220,222,TRH223..(03S,14S)..SA |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-26380 |
TRH223..RHD..GEN;TRH221..SP..03S..(GEN,SA);KDH220,222,TRH223..(03S,14S)..SA |
1 | ||
| 61234-26380 |
KDH222..GL..SA |
1 | ||
| 61242A - GUSSET, ROOF SIDE RAIL, REAR LH | ||||
| 61242-26020 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61242-26020 |
TRH223..4FC;KDH222..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA) |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61246-26040 |
TRH223..6FC;TRH221..SP..(5F,6FC);KDH222,LH222,TRH223..RHD..(GEN,SA,TH);KDH220,221,223..(02S,03S,06S,14S,16S)..STD |
1 | ||
| 61246-26040 |
TRH223..RHD..GEN;TRH221..SP..03S..(GEN,SA);KDH220,222,TRH223..(03S,14S)..SA |
2 | ||
| 61246-26040 |
KDH222..GL..SA |
2 | ||
| 61248B - REINFORCEMENT, ROOF SIDE RAIL, INNER LH | ||||
| 61247-26020 |
TRH223..RHD..GEN;TRH221..SP..03S..(GEN,SA);KDH220,222,TRH223..(03S,14S)..SA |
3 | ||
| 61247-26020 |
KDH222..GL..SA;TRH221..SP..GEN;KDH223,TRH223..RHD..(GEN,TH) |
3 | ||
| 61256A - PLATE, ROOF SIDE RAIL, OUTER LH | ||||
| 61214-26060 |
TRH223..RHD..GEN;TRH221..SP..03S..(GEN,SA);KDH220,222,TRH223..(03S,14S)..SA |
2 | ||
| 61214-26060 |
TRH223..6FC;TRH221..SP..(5F,6FC);KDH222,LH222,TRH223..RHD..(GEN,SA,TH);KDH220,221,223..(02S,03S,06S,14S,16S)..STD |
1 | ||
| 61214-26060 |
KDH222..GL..SA |
2 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-26051 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61262-26051 |
TRH223..4FC;KDH222..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA) |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-26140 |
KDH222..RHD..GL..GEN;KDH222,TRH223..ARL,SA,TH;KDH221,223,TRH221..RHD..(ARL,GEN,TH) |
1 | ||
| 61302-26660 |
KDH223..4FC..ARL;KDH222,TRH223..GL..SA |
1 | ||
| 61302-26660 |
KDH222..GL..SA |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-26140 |
KDH222..RHD..GL..GEN;KDH222,TRH223..ARL,SA,TH;KDH221,223,TRH221..RHD..(ARL,GEN,TH) |
1 | ||
| 61302-26660 |
KDH223..4FC..ARL;KDH222,TRH223..GL..SA |
1 | ||
| 61302-26660 |
KDH222..GL..SA |
1 | ||
| 61332C - REINFORCEMENT, CENTER PILLAR, UPPER OUTER LH | ||||
| 61332-26020 |
TRH223..RHD..GEN;TRH221..SP..03S..(GEN,SA);KDH220,222,TRH223..(03S,14S)..SA |
1 | ||
| 61332-26020 |
KDH222..GL..SA |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-26380 |
KDH222..GL..SA |
1 | ||
| 61344-26380 |
KDH222,TRH223..GL..SA |
1 | ||
| 61386B - EXTENSION, CENTER BODY PILLAR, INNER LH | ||||
| 61386-26020 |
KDH222..GL..SA |
1 | ||
| 61386-26020 |
TRH223..RHD..GEN;TRH221..SP..03S..(GEN,SA);KDH220,222,TRH223..(03S,14S)..SA |
1 | ||
| 61398A - PATCH, CENTER BODY PILLAR, INNER LH | ||||
| 61398-26050 |
TRH223..RHD..GEN;TRH221..SP..03S..(GEN,SA);KDH220,222,TRH223..(03S,14S)..SA |
1 | ||
| 61398-26050 |
KDH222..GL..SA |
1 | ||
| 61416A - PANEL, FRONT STEP UNDER, LH | ||||
| 61416-26021 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61416-26021 |
TRH223..4FC;KDH222..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-26030 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61424-26030 |
TRH223..4FC;KDH222..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 61461 - PANEL, ROCKER, OUTER LH | ||||
| 61461-26010 |
TRH223..RHD..GEN;TRH221..SP..03S..(GEN,SA);KDH220,222,TRH223..(03S,14S)..SA |
1 | ||
| 61461-26010 |
KDH222..GL..SA |
1 | ||
| 61481 - BRACKET, ROOF SIDE RAIL REINFORCE, NO.1 | ||||
| 61482-26050 |
KDH222,TRH223..GL..SA |
1 | ||
| 61482-26050 |
KDH222..GL..SA |
1 | ||
| 61482 - BRACKET, ROOF SIDE RAIL REINFORCE, NO.2 | ||||
| 61481-26050 |
KDH222..5F..GL;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61481-26050 |
KDH222..GL..SA |
1 | ||
| 61484A - BRACKET, ROOF SIDE RAIL REINFORCE, NO.4 | ||||
| 61481-26110 |
KDH222..5F..GL;TRH223..5F..GL..(GEN,SA) NO.1 |
1 | ||
| 61481-26100 |
KDH222..5F..GL;TRH223..5F..GL..(GEN,SA) NO.2 |
4 | ||
| 61481-26100 |
KDH222,TRH223..GL..SA NO.2 |
2 | ||
| 61481-26110 |
KDH222..GL;TRH223..GL..GEN NO.1 |
1 | ||
| 61481-26100 |
KDH222..GL..SA NO.2 |
4 | ||
| 61484A - BRACKET, ROOF SIDE RAIL REINFORCE, NO.4 | ||||
| 61481-26110 |
KDH222..5F..GL;TRH223..5F..GL..(GEN,SA) NO.1 |
1 | ||
| 61481-26100 |
KDH222..5F..GL;TRH223..5F..GL..(GEN,SA) NO.2 |
4 | ||
| 61481-26100 |
KDH222,TRH223..GL..SA NO.2 |
2 | ||
| 61481-26110 |
KDH222..GL;TRH223..GL..GEN NO.1 |
1 | ||
| 61481-26100 |
KDH222..GL..SA NO.2 |
4 | ||
| 61492C - PLATE, NO.3 LOWER RAIL, INNER LH | ||||
| 61491-26010 |
TRH223..RHD..GEN;TRH221..SP..03S..(GEN,SA);KDH220,222,TRH223..(03S,14S)..SA |
1 | ||
| 61491-26010 |
KDH213,222..RHD..GL |
1 | ||
| 61504A - REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH | ||||
| 61503-26030 |
TRH223..RHD..GEN;TRH221..SP..03S..(GEN,SA);KDH220,222,TRH223..(03S,14S)..SA |
1 | ||
| 61503-26030 |
KDH213,222..RHD..GL |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61512-26050 |
TRH223..RHD..GEN;TRH221..SP..03S..(GEN,SA);KDH220,222,TRH223..(03S,14S)..SA |
1 | ||
| 61512-26050 |
KDH222..GL..SA;TRH221..SP..GEN;KDH223,TRH223..RHD..(GEN,TH) |
1 | ||
| 61512D - PILLAR, QUARTER LOCK, LH | ||||
| 61512-26030 |
TRH223..RHD..GEN;TRH221..SP..03S..(GEN,SA);KDH220,222,TRH223..(03S,14S)..SA |
1 | ||
| 61512-26030 |
KDH222..GL..SA |
1 | ||
| 61528 - REINFORCEMENT, QUARTER LOCK PILLER, LOWER LH | ||||
| 61528-26040 |
TRH223..RHD..GEN;TRH221..SP..03S..(GEN,SA);KDH220,222,TRH223..(03S,14S)..SA |
1 | ||
| 61528-26040 |
TRH203..4FC;KDH222..GL..SA;KDH200..LHD..4D;TRH221..SP..GEN;KDH223,TRH223..RHD..(GEN,TH) |
1 | ||
| 61578A - PLATE, CAB REAR PILLAR, LOWER LH | ||||
| 61072-26140 |
KDH222,TRH223..GL..SA |
1 | ||
| 61072-26140 |
KDH213,222..GL |
1 | ||
| 61582B - BRACKET, REAR SEAT, NO.2 LH | ||||
| 61581-26040 |
KDH222..5F..GL;TRH223..RHD..GEN;KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61581-26040 |
KDH222..GL;TRH223..GL..GEN;TRH223..RHD..GEN;KDH222,223,TRH223..STD..(GCC,TH) |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61620-26200 |
KDH222,TRH223..GL..SA |
1 | ||
| 61620-26200 |
KDH222..GL..SA |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-26560 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA |
1 | ||
| 61612-26560 |
KDH222..GL..SA |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61614-26C40 |
KDH222,TRH223..GL..SA |
1 | ||
| 61614-26C40 |
KDH222..GL..SA |
1 | ||
| 61616F - REINFORCEMENT, REAR BODY REAR SIDE PANEL, LH | ||||
| 61616-26090 |
KDH222..GL;TRH223..GL..GEN;TRH223..RHD..GEN;KDH223,TRH221..GEN,TH;KDH222,TRH223..STD..GCC |
1 | ||
| 61616-26090 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61624A - EXTENSION, QUARTER PANEL, OUTER LH | ||||
| 61624-26040 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA |
1 | ||
| 61624-26040 |
KDH222..GL..SA |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61604-26020 |
TRH223..RHD..GEN;KDH222,TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61604-26020 |
KDH213,222..RHD..GL |
1 | ||
| 61636F - REINFORCEMENT, QUARTER PANEL, UPR LH | ||||
| 61636-26030 |
KDH222,TRH223..GL..SA |
1 | ||
| 61636-26030 |
KDH213,222..GL |
1 | ||
| 61638D - REINFORCEMENT, QUARTER, INNER LH | ||||
| 61638-26030 |
LH200..5D;KDH222..GL;TRH203..4FC;KDH200..LHD..4D;TRH223..GL..GEN;KDH222,TRH223..STD..GCC;KDH213,223,TRH221..GEN,TH;KDH200,TRH213,223..RHD..GEN |
1 | ||
| 61638-26030 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61686A - BRACKET, REAR SEAT BACK STOPPER, LH | ||||
| 61686-26020 |
TRH223..RHD..GEN;KDH222,TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61686-26020 |
KDH222..GL;TRH223..GL..GEN;KDH223,TRH223..RHD..(GEN,TH) |
1 | ||
| 61706A - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-26280 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61706-26280 |
TRH223..4FC;KDH222..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA) |
1 | ||
| 61718A - REINFORCEMENT, QUARTER PANEL EXTENSION, LH | ||||
| 61718-26050 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61718-26050 |
TRH223..4FC;KDH222..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA) |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-26041 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61725-26041 |
TRH223..4FC;KDH222..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-26041 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61725-26041 |
TRH223..4FC;KDH222..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 61736B - EXTENSION, QUARTER PANEL, INNER LH | ||||
| 61736-26A60 |
KDH222..5F..GL;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61736-26A60 |
KDH222..GL;TRH223..GL..GEN |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-26040 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61746-26040 |
TRH223..4FC;KDH222..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 61748E - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH | ||||
| 61748-26010 |
TRH221..SG;KDH220,222,TRH22#..(03S,14S)..SA |
1 | ||
| 61748-26010 |
KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 61762A - REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER LH | ||||
| 61761-26100 |
TRH223..RHD..GEN;TRH221..SP..03S..(GEN,SA);KDH220,222,TRH223..(03S,14S)..SA |
1 | ||
| 61761-26100 |
KDH222..GL..SA;TRH221..SP..GEN;KDH223,TRH223..RHD..(GEN,TH) |
1 | ||
| 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH | ||||
| 61767-26020 |
KDH222,TRH223..GL..SA |
1 | ||
| 61767-26020 |
KDH222..GL |
1 | ||
| 61769A - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH | ||||
| 61802-26010 |
KDH222,TRH223..GL..SA |
1 | ||
| 61802-26010 |
KDH213,222..GL |
1 | ||
| 61774B - FRAME, BACK DOOR OPENING SIDE, UPPER LH | ||||
| 61774-26150 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 61774-26150 |
TRH223..4FC;KDH222..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA) |
1 | ||
| 62479 - PATCH, CENTER PILLAR, LH | ||||
| 62479-26050 |
KDH222..GL..SA |
1 | ||
| 62479-26050 |
TRH223..RHD..GEN;TRH221..SP..03S..(GEN,SA);KDH220,222,TRH223..(03S,14S)..SA |
1 | ||
| 64126D - ANCHOR, PILLAR SEAT BELT, LH | ||||
| 64126-26030 |
KDH213,222..RHD..GL |
1 | ||
| 64126-26030 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 64162A - BRACKET, FUEL INLET | ||||
| 64162-26010 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 64162-26010 |
TRH223..4FC;KDH222..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 64162A - BRACKET, FUEL INLET | ||||
| 64162-26010 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 64162-26010 |
TRH223..4FC;KDH222..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 67162 - EXTENSION, SLIDE DOOR INSIDE PANEL, UPPER LH | ||||
| 67162-26020 |
TRH223..RHD..GEN;TRH221..SP..03S..(GEN,SA);KDH220,222,TRH223..(03S,14S)..SA |
1 | ||
| 67162-26020 |
KDH222..GL..SA |
1 | ||
| 68345B - COVER, SLIDE DOOR CENTER RAIL, RH | ||||
| 68345-26020B0 |
KDH200..MA;KDH223..4FC..TH;TRH213..LHD..STD;TRH223..LHD..STD..GEN;KDH212,TRH203..5F..STD;TRH223..STD..(ARL,SA,TH);KDH222,223..STD..(ARL,GEN,SA,VN);KDH201,202,203,LH20#,212,222,TRH201..4D DK.GRAY,TRIM1# |
1 | ||
| 74624 - REINFORCEMENT, RR ASSIST GRIP, LH | ||||
| 74623-26050 |
KDH222,TRH223..GL..SA LOWER |
1 | ||
| 74624-26060 |
KDH222,TRH223..GL..SA UPPER |
1 | ||
| 74623-26050 |
KDH222..GL..SA LOWER |
1 | ||
| 74624-26060 |
KDH222..GL..SA UPPER |
1 | ||
| 74624 - REINFORCEMENT, RR ASSIST GRIP, LH | ||||
| 74623-26050 |
KDH222,TRH223..GL..SA LOWER |
1 | ||
| 74624-26060 |
KDH222,TRH223..GL..SA UPPER |
1 | ||
| 74623-26050 |
KDH222..GL..SA LOWER |
1 | ||
| 74624-26060 |
KDH222..GL..SA UPPER |
1 | ||
| 74624A - REINFORCEMENT, REAR ASSIST GRIP, LH | ||||
| 74624-26030 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA LOWER |
1 | ||
| 74624-26050 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA UPPER |
1 | ||
| 74624-26050 |
KDH222..GL..SA;KDH223,TRH213,223..RHD..(GEN,TH) UPPER |
1 | ||
| 74624-26030 |
KDH222..GL..SA;KDH223,TRH213,223..RHD..(GEN,TH) LOWER |
1 | ||
| 74624A - REINFORCEMENT, REAR ASSIST GRIP, LH | ||||
| 74624-26030 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA LOWER |
1 | ||
| 74624-26050 |
TRH223..RHD..GEN;KDH222,TRH223..GL..SA UPPER |
1 | ||
| 74624-26050 |
KDH222..GL..SA;KDH223,TRH213,223..RHD..(GEN,TH) UPPER |
1 | ||
| 74624-26030 |
KDH222..GL..SA;KDH223,TRH213,223..RHD..(GEN,TH) LOWER |
1 | ||
| 76587A - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26010 |
TRH221..SG;KDH222..5F..GL;KDH223..4FC..ARL;TRH223..RHD..GEN;KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 76587-26010 |
KDH222,TRH223..5F..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA) |
1 | ||
| 76587G - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26030 |
TRH221..SG;KDH222..5F..GL;TRH223..RHD..GEN;KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
2 | ||
| 76587-26030 |
KDH222,TRH223..5F..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA) |
2 | ||
| 76587G - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26030 |
TRH221..SG;KDH222..5F..GL;TRH223..RHD..GEN;KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
2 | ||
| 76587-26030 |
KDH222,TRH223..5F..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA) |
2 | ||
| 77358C - STOPPER, FUEL FILLER OPENING LID, NO.1 | ||||
| 77358-26010 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77358-26010 |
TRH223..4FC;KDH222..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 77358C - STOPPER, FUEL FILLER OPENING LID, NO.1 | ||||
| 77358-26010 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77358-26010 |
TRH223..4FC;KDH222..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) |
1 | ||
| 82719D - COVER, WIRE HANRESS SERVICE HOLE | ||||
| 82719-26040B1 |
KDH223..4FC..TH;TRH213..LHD..STD;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;KDH222..STD..(GEN,KEN,SA);KDH220,TRH200..06S..(4FC,5F);TRH22#..(02S,06S,16S)..(ARL,SA,TH);GDH201,KDH201,202,203,221,LH202,212,222,TRH201..ARL,GCC,GEN,SA,TH;KDH212,223,LH200,TRH203..4D..(03S,13S,15S,16S)..5F..STD..(GCC,GEN,VN) DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90154-60043 | ||||
| 90269-03002 | ||||
| 90541-15030 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 5851 | ||||
(1312- )ARL,GCC,GEN,KEN,MA,RUS,SA,TH
CUSHION MATERIAL (SPONGE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 61667-26330 | ||||
| 61667-26340 | ||||
| 61667-26350 | ||||
| 61667-26360 | ||||
| 61667-26390 | ||||
| 61667-26400 | ||||
| 61667-26420 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
