Toyota Hiace KDH222 BRAKE BOOSTER & VACUUM TUBE

Manufacturers Home
Toyota
GR
HIACE
KDH222R-LEMNYN (2013)
4703 - BRAKE BOOSTER & VACUUM TUBE

KDH222R-LEMNYN (2013)

Toyota Hiace

Production Dec 2013 - Sep 9999

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(1312-1501)KDH20#,21#,22#..RHD

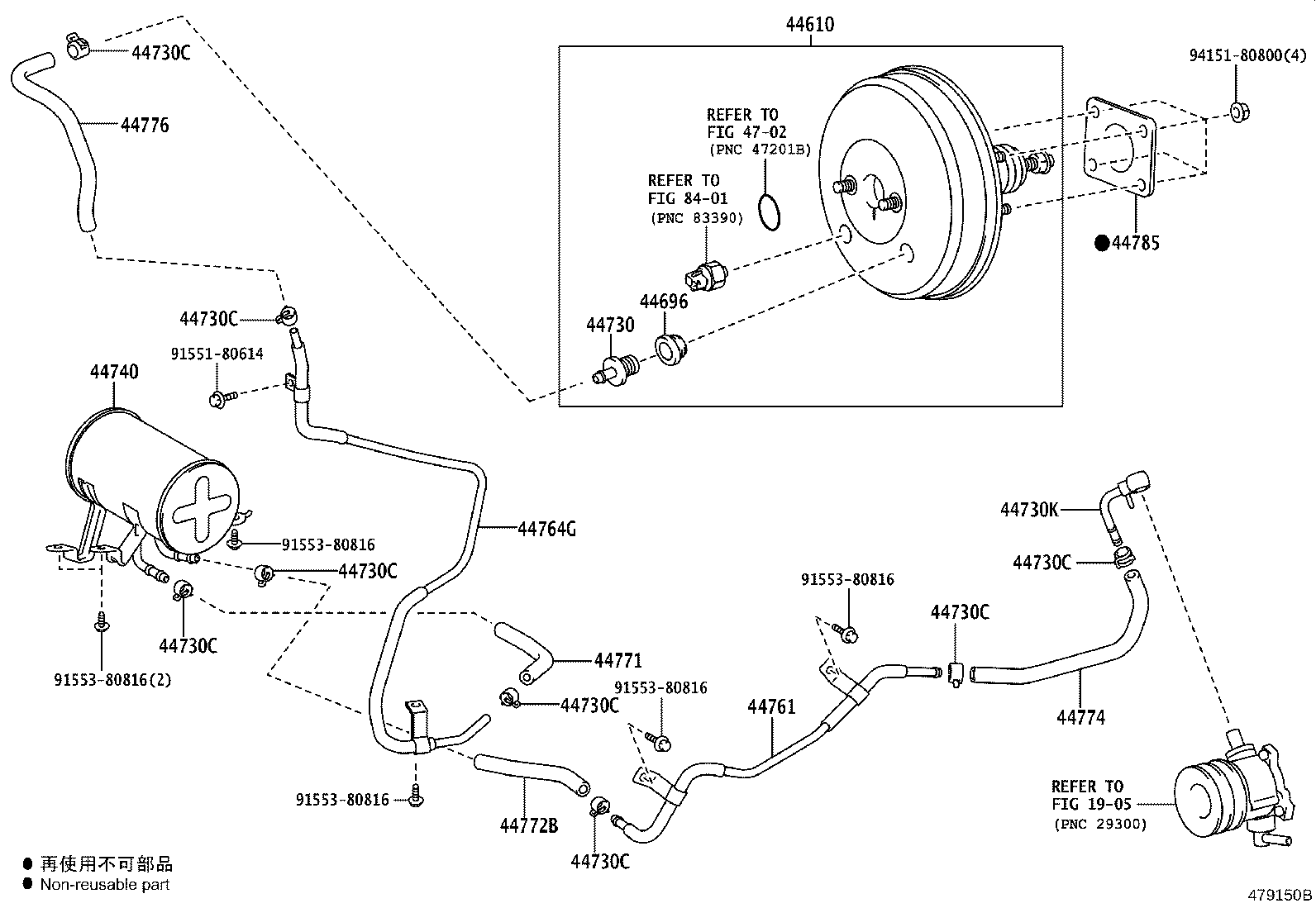

Click highlighted areas on diagram

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-26701	KDH201..RHD..(02S,06S);KDH202,203,221..02S,03S,10S;KDH200,21#,220,222,223..ARL,SA,TH	12/2013 - 01/2015	1
44610-26820	KDH220,222..(03S,14S)..SA	01/2015 - 02/2019	1
44610-26820	KDH222..GL..SA	11/2019 - 08/2021	1
44696 - GROMMET, CHECK VALVE
90480-24015	KDH223..ARL,RUS,TH;KDH20#,21#,220,221,222,LH20#,212,222	12/2013 - 01/2015	1
90480-24015	KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC NO.1	01/2015 - 02/2019	1
90480-24439	KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC NO.2	01/2015 - 02/2019	1
90480-24439	KDH222..STD..GCC;KDH213,222..RHD..GL NO.2	11/2019 - 12/2999	1
90480-24015	KDH222..STD..GCC;KDH213,222..RHD..GL NO.1	11/2019 - 12/2999	1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-28030	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
44730-28030	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730K - UNION, VACUUM HOSE(FOR VACUUM PUMP)
90405-09175	KDH220,222..(03S,14S)..SA	12/2013 - 02/2019	1
90405-09192	LH20#,212,222..4D	12/2013 - 12/2999	1
90405-09175	KDH222..STD..GCC;KDH213,222..RHD..GL	11/2019 - 12/2999	1
90405-09141	KDH222..GL..SA WITHOUT(DESTINATION PACKAGE)	05/2020 - 12/2999	1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-26390	LH20#,212,222..4D	12/2013 - 12/2999	1
44761-26420	KDH220,222..(03S,14S)..SA	12/2013 - 02/2019	1
44761-26420	KDH213,222..RHD..GL	11/2019 - 12/2999	1
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44764-26161	TRH223..RHD..GEN;KDH220,222,TRH22#..(03S,14S)..SA	12/2013 - 02/2019	1
44764-26101	LH20#,212,222..RHD..4D	12/2013 - 12/2999	1
44764-26161	KDH213,222..RHD..GL	11/2019 - 12/2999	1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-26160	LH20#,212,222..4D	12/2013 - 12/2999	1
44770-26010	TRH223..RHD..GEN;KDH220,222,TRH22#..(03S,14S)..SA	12/2013 - 02/2019	1
44770-26010	KDH213,222..RHD..GL	11/2019 - 12/2999	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-26430	LH212,222	12/2013 - 12/2999	1
44774-26421	KDH222..STD..GCC;KDH213,222..RHD..GL	11/2019 - 12/2999	1
44774-26421	KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC	12/2013 - 02/2019	1
44776 - HOSE, BRAKE BOOSTER
44776-26040	TRH223..RHD..GEN;KDH220,222,TRH22#..(03S,14S)..SA	12/2013 - 02/2019	1
44776-26050	LH20#,212,222..RHD..4D	12/2013 - 12/2999	1
44776-26040	KDH213,222..RHD..GL	11/2019 - 12/2999	1
44785 - GASKET, BRAKE BOOSTER
44785-12040	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	01/2015 - 02/2019	1
44785-32010	KDH223..ARL,RUS,TH;KDH20#,21#,220,221,222,LH20#,212,222,TRH20#,213,22#	12/2013 - 01/2015	1
44785-12040	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
Common parts
4476A-26010
4476A-26020
91553-80816
94151-80800
Linked diagrams
1905
8401

(1312-1501)TRH20#,213,22#..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-26701	KDH201..RHD..(02S,06S);KDH202,203,221..02S,03S,10S;KDH200,21#,220,222,223..ARL,SA,TH	12/2013 - 01/2015	1
44610-26820	KDH220,222..(03S,14S)..SA	01/2015 - 02/2019	1
44610-26820	KDH222..GL..SA	11/2019 - 08/2021	1
44696 - GROMMET, CHECK VALVE
90480-24015	KDH223..ARL,RUS,TH;KDH20#,21#,220,221,222,LH20#,212,222	12/2013 - 01/2015	1
90480-24015	KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC NO.1	01/2015 - 02/2019	1
90480-24439	KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC NO.2	01/2015 - 02/2019	1
90480-24439	KDH222..STD..GCC;KDH213,222..RHD..GL NO.2	11/2019 - 12/2999	1
90480-24015	KDH222..STD..GCC;KDH213,222..RHD..GL NO.1	11/2019 - 12/2999	1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-28030	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
44730-28030	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-26390	LH20#,212,222..4D	12/2013 - 12/2999	1
44761-26420	KDH220,222..(03S,14S)..SA	12/2013 - 02/2019	1
44761-26420	KDH213,222..RHD..GL	11/2019 - 12/2999	1
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44764-26161	TRH223..RHD..GEN;KDH220,222,TRH22#..(03S,14S)..SA	12/2013 - 02/2019	1
44764-26101	LH20#,212,222..RHD..4D	12/2013 - 12/2999	1
44764-26161	KDH213,222..RHD..GL	11/2019 - 12/2999	1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-26160	LH20#,212,222..4D	12/2013 - 12/2999	1
44770-26010	TRH223..RHD..GEN;KDH220,222,TRH22#..(03S,14S)..SA	12/2013 - 02/2019	1
44770-26010	KDH213,222..RHD..GL	11/2019 - 12/2999	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-26430	LH212,222	12/2013 - 12/2999	1
44774-26421	KDH222..STD..GCC;KDH213,222..RHD..GL	11/2019 - 12/2999	1
44774-26421	KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC	12/2013 - 02/2019	1
44776 - HOSE, BRAKE BOOSTER
44776-26040	TRH223..RHD..GEN;KDH220,222,TRH22#..(03S,14S)..SA	12/2013 - 02/2019	1
44776-26050	LH20#,212,222..RHD..4D	12/2013 - 12/2999	1
44776-26040	KDH213,222..RHD..GL	11/2019 - 12/2999	1
44785 - GASKET, BRAKE BOOSTER
44785-12040	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	01/2015 - 02/2019	1
44785-32010	KDH223..ARL,RUS,TH;KDH20#,21#,220,221,222,LH20#,212,222,TRH20#,213,22#	12/2013 - 01/2015	1
44785-12040	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
Common parts
4476A-26010
4476A-26020
91553-80816
94151-80800

(1312- )LH20#,212,222..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-26701	KDH201..RHD..(02S,06S);KDH202,203,221..02S,03S,10S;KDH200,21#,220,222,223..ARL,SA,TH	12/2013 - 01/2015	1
44610-26820	KDH220,222..(03S,14S)..SA	01/2015 - 02/2019	1
44610-26820	KDH222..GL..SA	11/2019 - 08/2021	1
44696 - GROMMET, CHECK VALVE
90480-24015	KDH223..ARL,RUS,TH;KDH20#,21#,220,221,222,LH20#,212,222	12/2013 - 01/2015	1
90480-24015	KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC NO.1	01/2015 - 02/2019	1
90480-24439	KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC NO.2	01/2015 - 02/2019	1
90480-24439	KDH222..STD..GCC;KDH213,222..RHD..GL NO.2	11/2019 - 12/2999	1
90480-24015	KDH222..STD..GCC;KDH213,222..RHD..GL NO.1	11/2019 - 12/2999	1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-28030	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
44730-28030	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730K - UNION, VACUUM HOSE(FOR VACUUM PUMP)
90405-09175	KDH220,222..(03S,14S)..SA	12/2013 - 02/2019	1
90405-09192	LH20#,212,222..4D	12/2013 - 12/2999	1
90405-09175	KDH222..STD..GCC;KDH213,222..RHD..GL	11/2019 - 12/2999	1
90405-09141	KDH222..GL..SA WITHOUT(DESTINATION PACKAGE)	05/2020 - 12/2999	1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-26390	LH20#,212,222..4D	12/2013 - 12/2999	1
44761-26420	KDH220,222..(03S,14S)..SA	12/2013 - 02/2019	1
44761-26420	KDH213,222..RHD..GL	11/2019 - 12/2999	1
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44764-26161	TRH223..RHD..GEN;KDH220,222,TRH22#..(03S,14S)..SA	12/2013 - 02/2019	1
44764-26101	LH20#,212,222..RHD..4D	12/2013 - 12/2999	1
44764-26161	KDH213,222..RHD..GL	11/2019 - 12/2999	1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-26160	LH20#,212,222..4D	12/2013 - 12/2999	1
44770-26010	TRH223..RHD..GEN;KDH220,222,TRH22#..(03S,14S)..SA	12/2013 - 02/2019	1
44770-26010	KDH213,222..RHD..GL	11/2019 - 12/2999	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-26430	LH212,222	12/2013 - 12/2999	1
44774-26421	KDH222..STD..GCC;KDH213,222..RHD..GL	11/2019 - 12/2999	1
44774-26421	KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC	12/2013 - 02/2019	1
44776 - HOSE, BRAKE BOOSTER
44776-26040	TRH223..RHD..GEN;KDH220,222,TRH22#..(03S,14S)..SA	12/2013 - 02/2019	1
44776-26050	LH20#,212,222..RHD..4D	12/2013 - 12/2999	1
44776-26040	KDH213,222..RHD..GL	11/2019 - 12/2999	1
44785 - GASKET, BRAKE BOOSTER
44785-12040	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	01/2015 - 02/2019	1
44785-32010	KDH223..ARL,RUS,TH;KDH20#,21#,220,221,222,LH20#,212,222,TRH20#,213,22#	12/2013 - 01/2015	1
44785-12040	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
Common parts
91551-80614
91553-80816
94151-80800
Linked diagrams
1905
4702
8401

(1501- )KDH20#,21#,22#..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-26701	KDH201..RHD..(02S,06S);KDH202,203,221..02S,03S,10S;KDH200,21#,220,222,223..ARL,SA,TH	12/2013 - 01/2015	1
44610-26820	KDH220,222..(03S,14S)..SA	01/2015 - 02/2019	1
44610-26820	KDH222..GL..SA	11/2019 - 08/2021	1
44696 - GROMMET, CHECK VALVE
90480-24015	KDH223..ARL,RUS,TH;KDH20#,21#,220,221,222,LH20#,212,222	12/2013 - 01/2015	1
90480-24015	KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC NO.1	01/2015 - 02/2019	1
90480-24439	KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC NO.2	01/2015 - 02/2019	1
90480-24439	KDH222..STD..GCC;KDH213,222..RHD..GL NO.2	11/2019 - 12/2999	1
90480-24015	KDH222..STD..GCC;KDH213,222..RHD..GL NO.1	11/2019 - 12/2999	1
44696 - GROMMET, CHECK VALVE
90480-24015	KDH223..ARL,RUS,TH;KDH20#,21#,220,221,222,LH20#,212,222	12/2013 - 01/2015	1
90480-24015	KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC NO.1	01/2015 - 02/2019	1
90480-24439	KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC NO.2	01/2015 - 02/2019	1
90480-24439	KDH222..STD..GCC;KDH213,222..RHD..GL NO.2	11/2019 - 12/2999	1
90480-24015	KDH222..STD..GCC;KDH213,222..RHD..GL NO.1	11/2019 - 12/2999	1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-28030	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
44730-28030	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730K - UNION, VACUUM HOSE(FOR VACUUM PUMP)
90405-09175	KDH220,222..(03S,14S)..SA	12/2013 - 02/2019	1
90405-09192	LH20#,212,222..4D	12/2013 - 12/2999	1
90405-09175	KDH222..STD..GCC;KDH213,222..RHD..GL	11/2019 - 12/2999	1
90405-09141	KDH222..GL..SA WITHOUT(DESTINATION PACKAGE)	05/2020 - 12/2999	1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-26390	LH20#,212,222..4D	12/2013 - 12/2999	1
44761-26420	KDH220,222..(03S,14S)..SA	12/2013 - 02/2019	1
44761-26420	KDH213,222..RHD..GL	11/2019 - 12/2999	1
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44764-26161	TRH223..RHD..GEN;KDH220,222,TRH22#..(03S,14S)..SA	12/2013 - 02/2019	1
44764-26101	LH20#,212,222..RHD..4D	12/2013 - 12/2999	1
44764-26161	KDH213,222..RHD..GL	11/2019 - 12/2999	1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-26160	LH20#,212,222..4D	12/2013 - 12/2999	1
44770-26010	TRH223..RHD..GEN;KDH220,222,TRH22#..(03S,14S)..SA	12/2013 - 02/2019	1
44770-26010	KDH213,222..RHD..GL	11/2019 - 12/2999	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-26430	LH212,222	12/2013 - 12/2999	1
44774-26421	KDH222..STD..GCC;KDH213,222..RHD..GL	11/2019 - 12/2999	1
44774-26421	KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC	12/2013 - 02/2019	1
44776 - HOSE, BRAKE BOOSTER
44776-26040	TRH223..RHD..GEN;KDH220,222,TRH22#..(03S,14S)..SA	12/2013 - 02/2019	1
44776-26050	LH20#,212,222..RHD..4D	12/2013 - 12/2999	1
44776-26040	KDH213,222..RHD..GL	11/2019 - 12/2999	1
44785 - GASKET, BRAKE BOOSTER
44785-12040	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	01/2015 - 02/2019	1
44785-32010	KDH223..ARL,RUS,TH;KDH20#,21#,220,221,222,LH20#,212,222,TRH20#,213,22#	12/2013 - 01/2015	1
44785-12040	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
Common parts
4476A-26010
4476A-26020
91553-80816
94151-80800
Linked diagrams
1905
4702
8401

(1501- )TRH20#,213,22#..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-26701	KDH201..RHD..(02S,06S);KDH202,203,221..02S,03S,10S;KDH200,21#,220,222,223..ARL,SA,TH	12/2013 - 01/2015	1
44610-26820	KDH220,222..(03S,14S)..SA	01/2015 - 02/2019	1
44610-26820	KDH222..GL..SA	11/2019 - 08/2021	1
44696 - GROMMET, CHECK VALVE
90480-24015	KDH223..ARL,RUS,TH;KDH20#,21#,220,221,222,LH20#,212,222	12/2013 - 01/2015	1
90480-24015	KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC NO.1	01/2015 - 02/2019	1
90480-24439	KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC NO.2	01/2015 - 02/2019	1
90480-24439	KDH222..STD..GCC;KDH213,222..RHD..GL NO.2	11/2019 - 12/2999	1
90480-24015	KDH222..STD..GCC;KDH213,222..RHD..GL NO.1	11/2019 - 12/2999	1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-28030	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
44730-28030	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44730C - CLIP(FOR VACUUM HOSE)
96133-41500	LH20#,212,222..4D	12/2013 - 12/2999	6
96133-41500	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	4
96133-41500	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	4
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-26390	LH20#,212,222..4D	12/2013 - 12/2999	1
44761-26420	KDH220,222..(03S,14S)..SA	12/2013 - 02/2019	1
44761-26420	KDH213,222..RHD..GL	11/2019 - 12/2999	1
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44764-26161	TRH223..RHD..GEN;KDH220,222,TRH22#..(03S,14S)..SA	12/2013 - 02/2019	1
44764-26101	LH20#,212,222..RHD..4D	12/2013 - 12/2999	1
44764-26161	KDH213,222..RHD..GL	11/2019 - 12/2999	1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-26160	LH20#,212,222..4D	12/2013 - 12/2999	1
44770-26010	TRH223..RHD..GEN;KDH220,222,TRH22#..(03S,14S)..SA	12/2013 - 02/2019	1
44770-26010	KDH213,222..RHD..GL	11/2019 - 12/2999	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-26430	LH212,222	12/2013 - 12/2999	1
44774-26421	KDH222..STD..GCC;KDH213,222..RHD..GL	11/2019 - 12/2999	1
44774-26421	KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC	12/2013 - 02/2019	1
44776 - HOSE, BRAKE BOOSTER
44776-26040	TRH223..RHD..GEN;KDH220,222,TRH22#..(03S,14S)..SA	12/2013 - 02/2019	1
44776-26050	LH20#,212,222..RHD..4D	12/2013 - 12/2999	1
44776-26040	KDH213,222..RHD..GL	11/2019 - 12/2999	1
44785 - GASKET, BRAKE BOOSTER
44785-12040	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	01/2015 - 02/2019	1
44785-32010	KDH223..ARL,RUS,TH;KDH20#,21#,220,221,222,LH20#,212,222,TRH20#,213,22#	12/2013 - 01/2015	1
44785-12040	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
Common parts
4476A-26010
4476A-26020
91553-80816
94151-80800
Linked diagrams
4702

KDH222R-LEMNYN (2013)

(1312-1501)KDH20#,21#,22#..RHD

(1312-1501)TRH20#,213,22#..RHD

(1312- )LH20#,212,222..RHD

(1501- )KDH20#,21#,22#..RHD

(1501- )TRH20#,213,22#..RHD

Part Price Details
